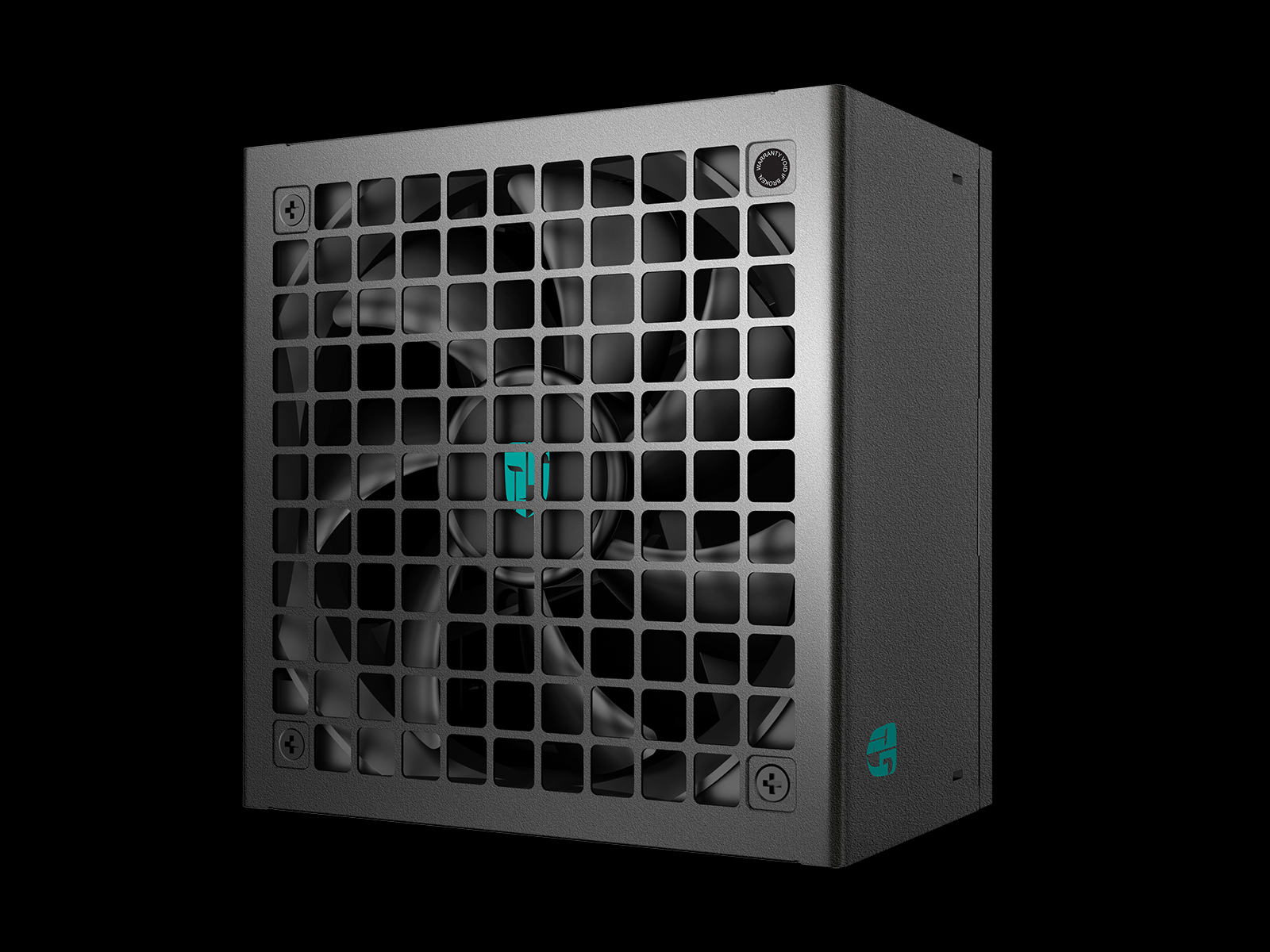

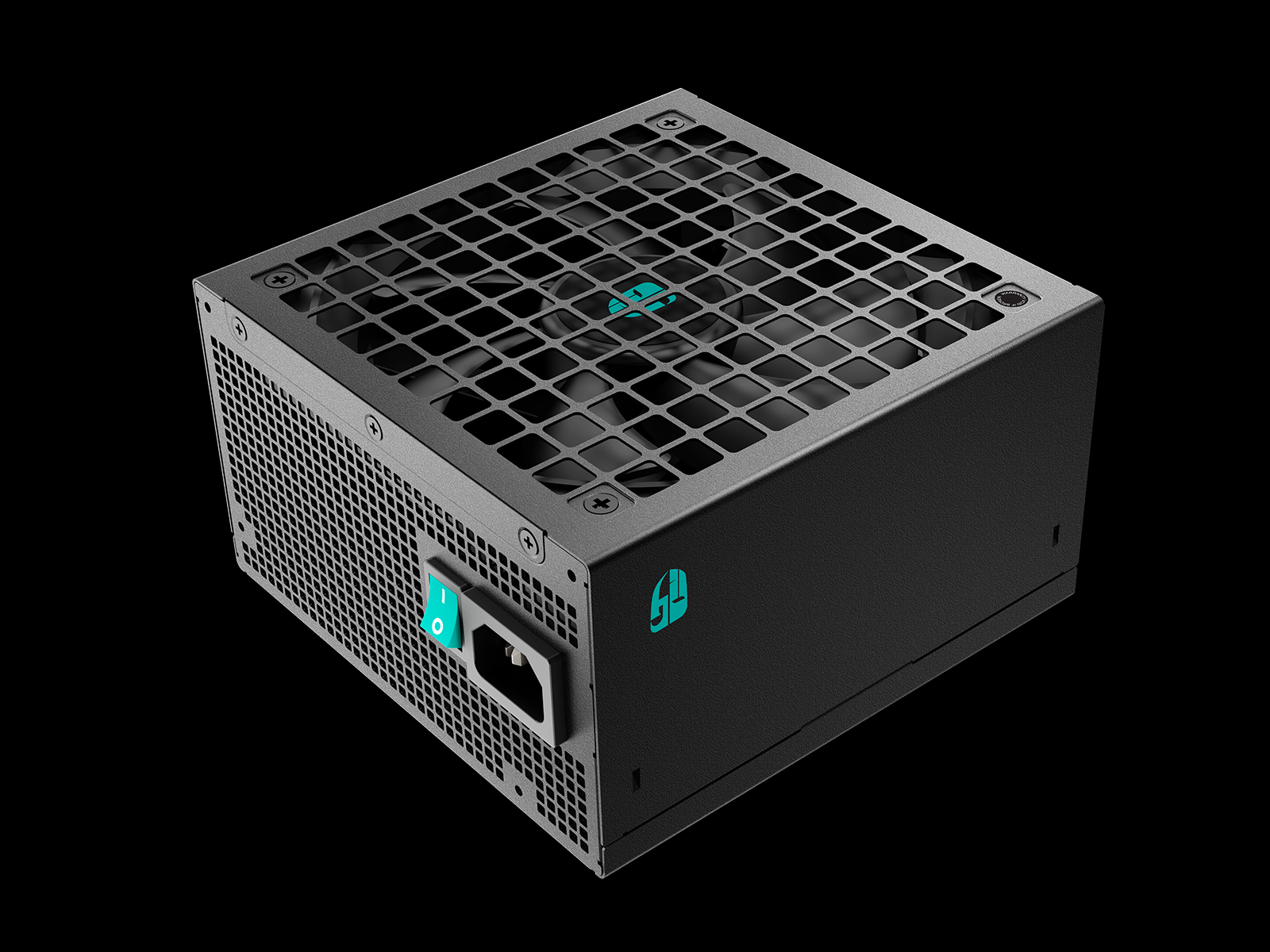

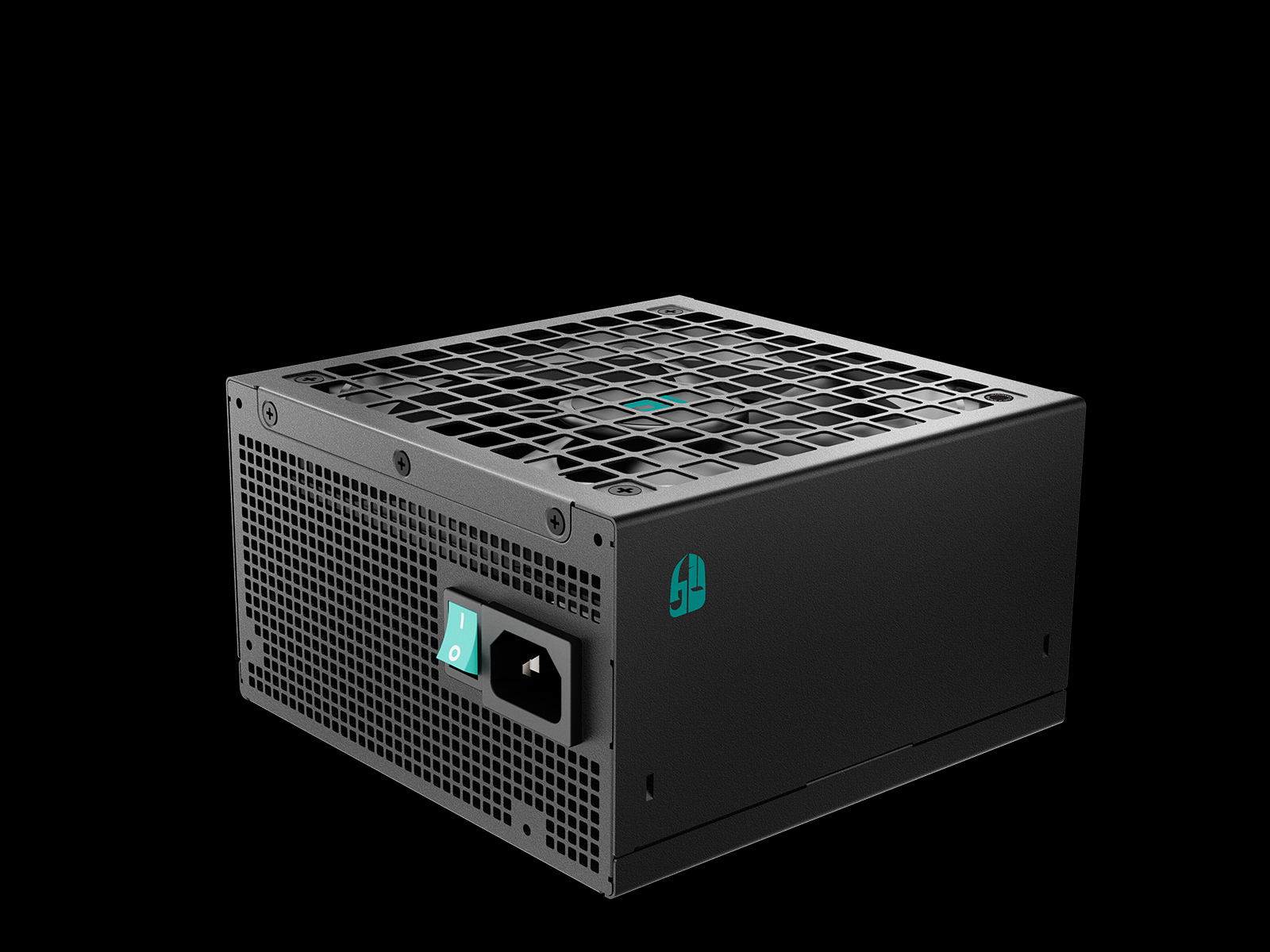

About GamerStorm PSU PN1200M Black Desktop SMPS
| Specification | Detail |
|---|---|
| Model | PN1200M (Black version) |
| Total Rated Output | 1200 W |
| Efficiency Certification | 80 PLUS Gold; also rated Gold by Cybenetics |
| Standard / Compatibility | ATX12V V3.1 (ready for modern high-end systems) |
| Topology & Components | Active PFC + Half-Bridge SRC LLC + DC-to-DC conversion; Japanese electrolytic capacitors |
| Hold-Up Time | ≥ 16 ms at 80% load |
| Dimensions & Form-Factor | 150 × 150 × 86 mm – compact for its power class |
| Fan & Cooling | 135 mm Fluid Dynamic Bearing (FDB) fan, dynamically controlled |
| Cable Design & Connectors | Fully modular; includes a high-grade 105 °C-rated 16 AWG 12V-2×6 (16-pin) cable for up to ~600 W GPU support |
| Protection Features | Full suite: OPP, OVP, SCP, OTP, OCP, UVP, NLO, SIP |
| Operating Conditions | 0-40 °C typical; supports high altitudes up to ~5000 m per manufacturer claim |
| Warranty & Build Quality | 10-year limited warranty; MTBF ~100,000 hours |
At its core, the GamerStorm PSU PN1200M Black Desktop SMPS supports the ATX12V V3.1 standard, giving it the capability to handle modern component demands, including graphics cards and CPUs with large transient power draws.

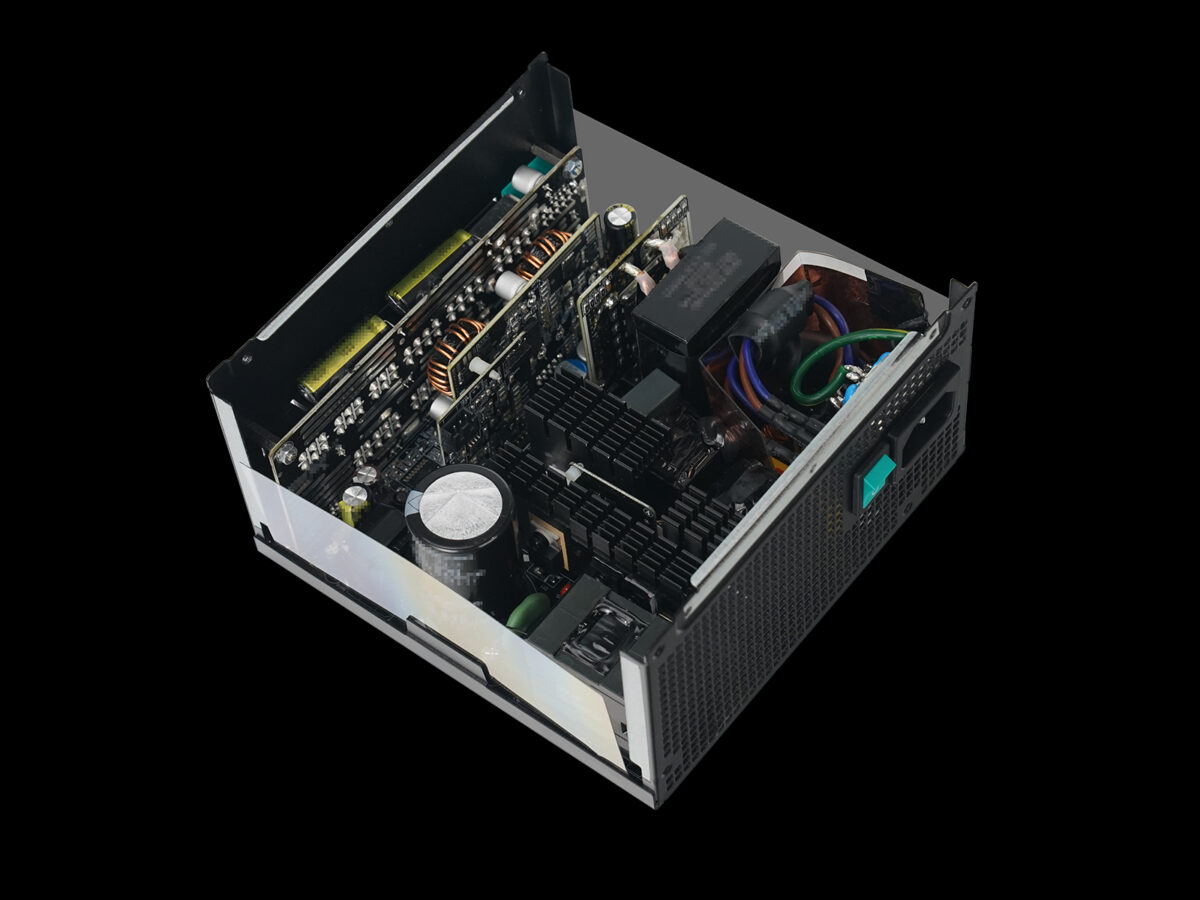

Its internal engineering features active PFC, a half-bridge SRC LLC topology combined with DC-to-DC conversion, and use of high-quality Japanese bulk capacitors—all contributing to clean, stable power delivery.
The GamerStorm 1200W Black Desktop SMPS hold-up time of at least 16 ms under 80% load shows that it can handle brief power drops without instability.

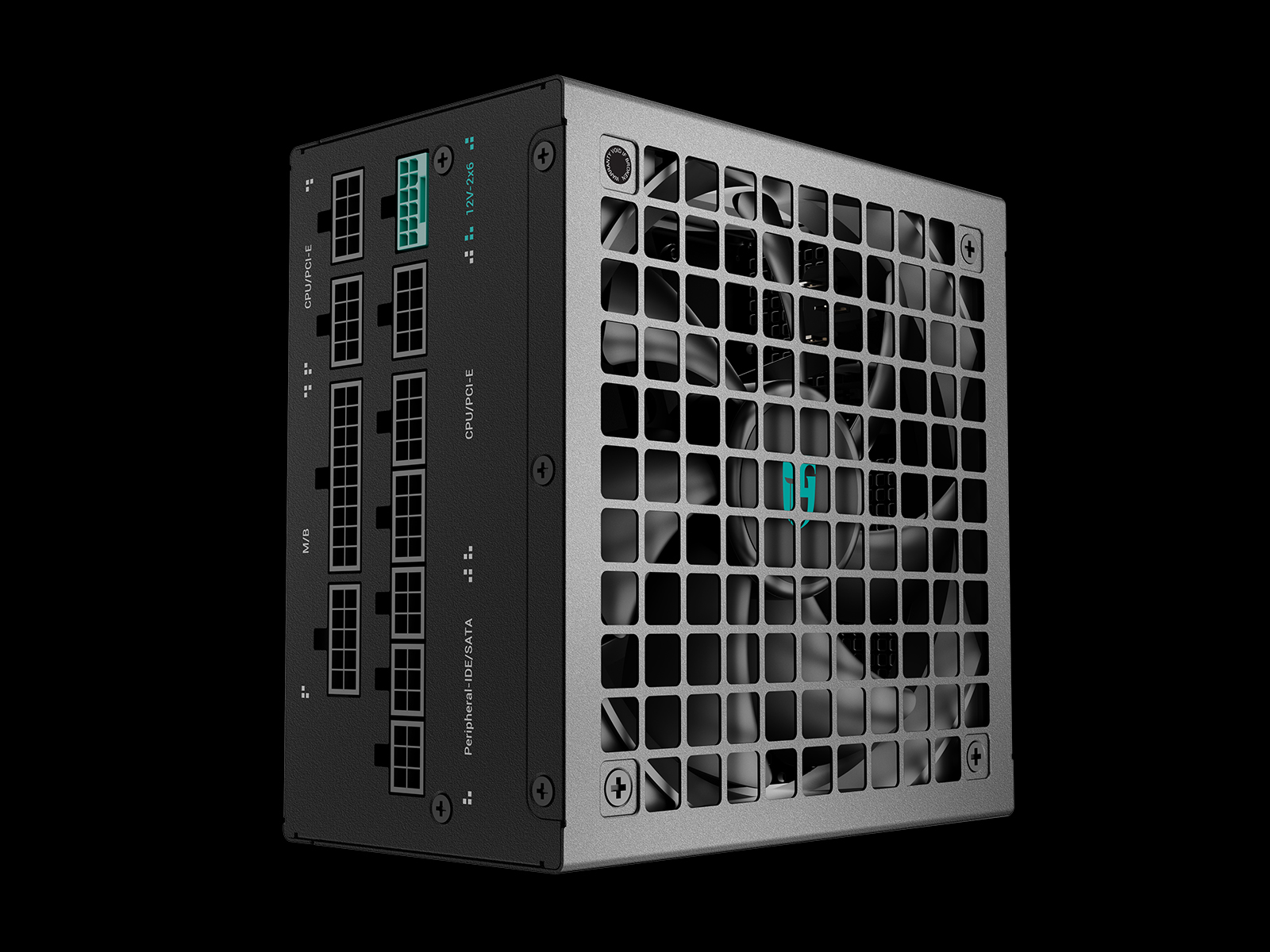

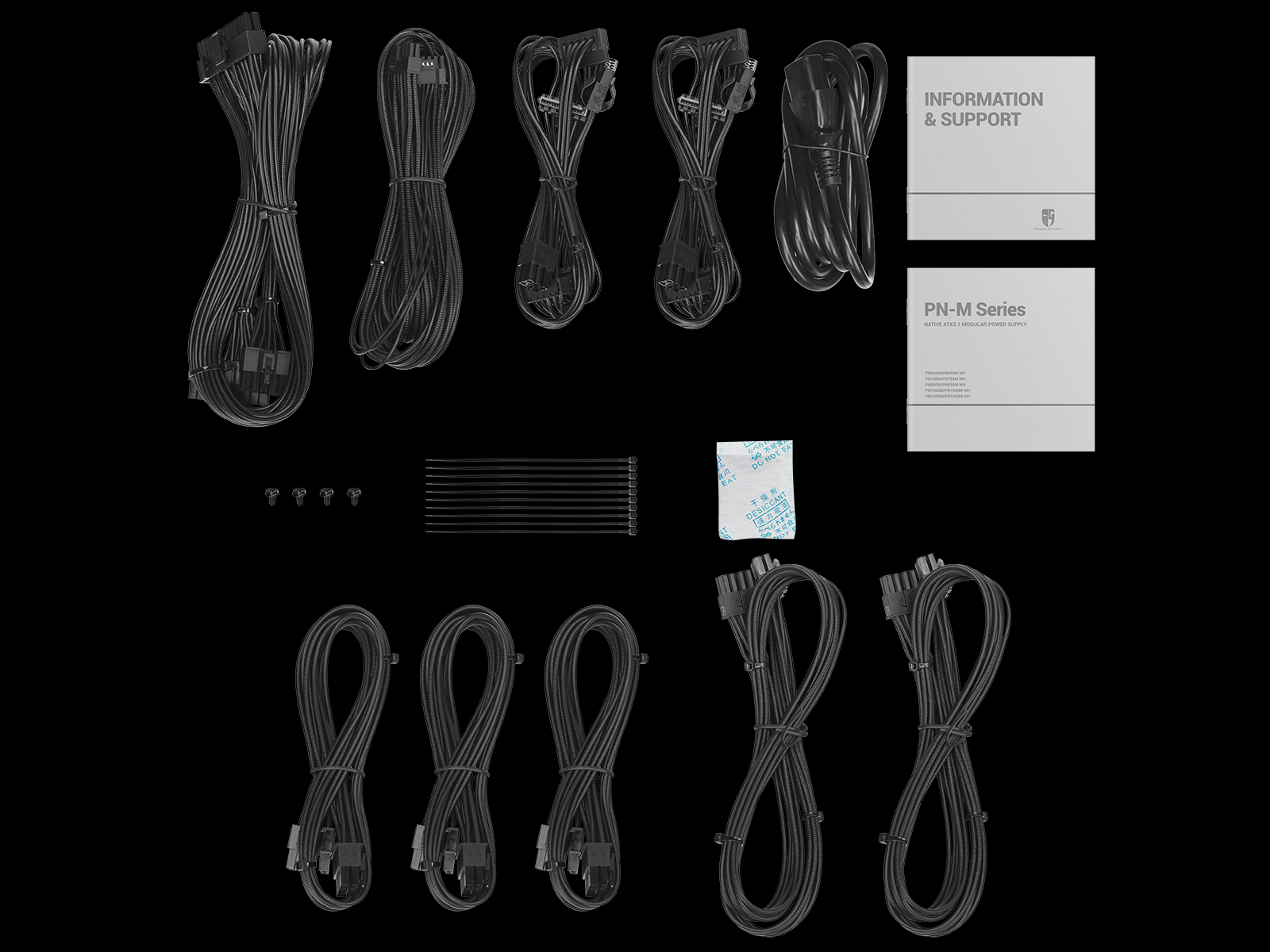

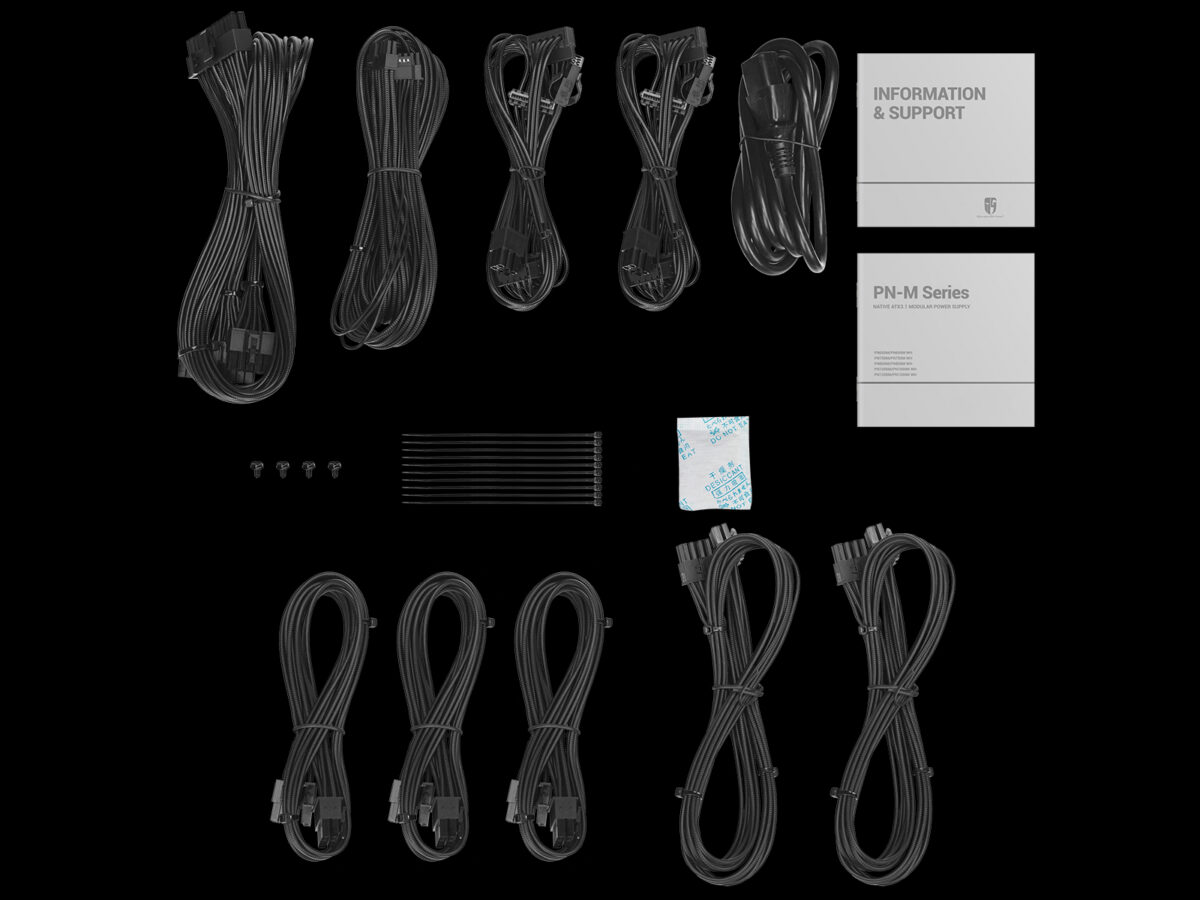

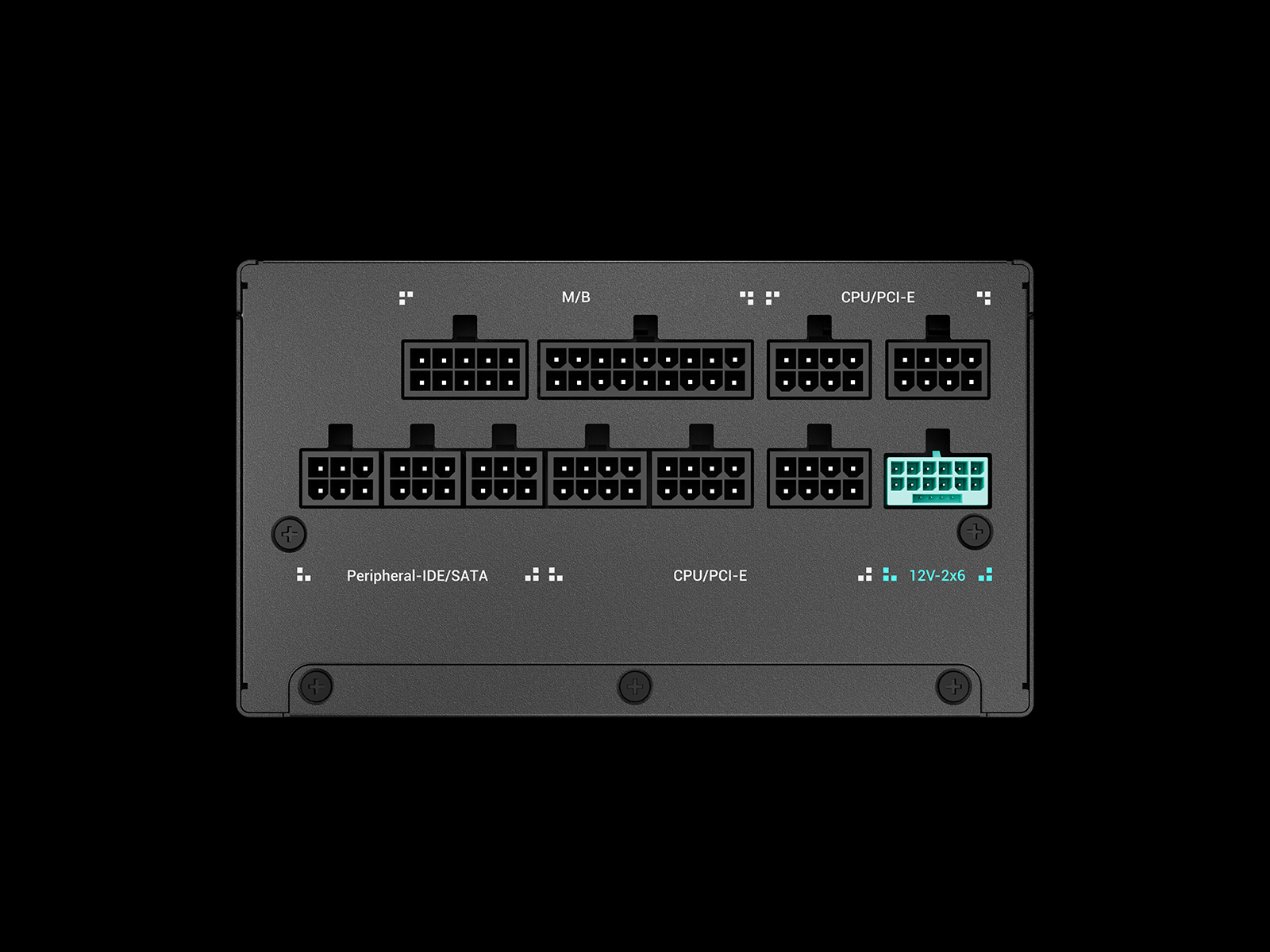

For installations and upgrades, the fully modular cable system is a big plus.
You only connect what you need, keeping your build cleaner and improving airflow.
Even better, for high-end GPU setups, the GamerStorm 1200W Black Desktop SMPS includes a special 12V-2×6 (16-pin) cable rated to around 600 watts, making it ideal for the latest graphics cards that draw heavily from the 12 V rail.
Cooling and fit matter too.

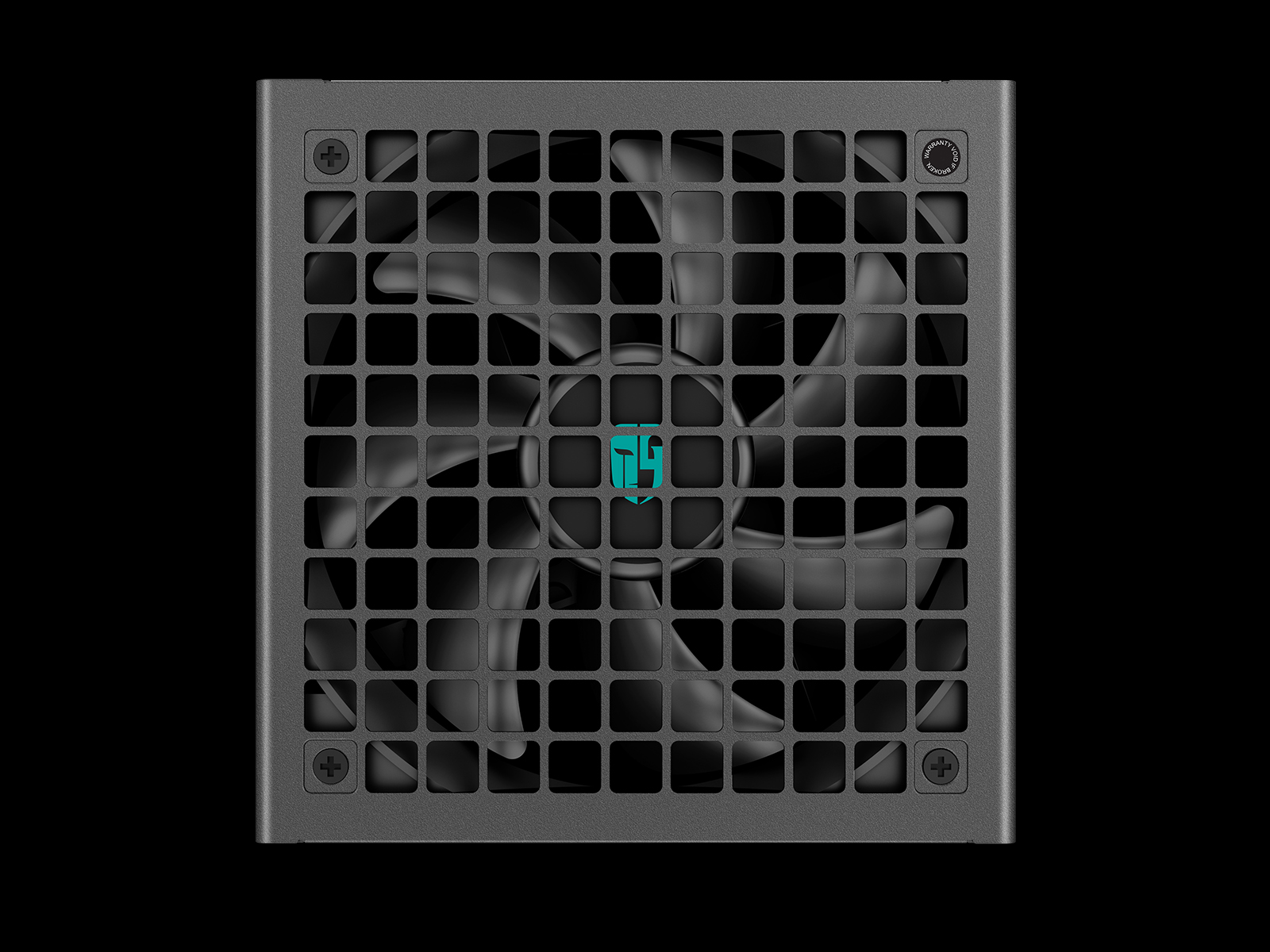

The GamerStorm Powerful 1200W Desktop SMPS uses a 135 mm Fluid Dynamic Bearing fan that dynamically adjusts based on load—keeping noise down during lighter use and increasing output when required.
And despite its high power, it fits into a relatively compact 150 × 150 × 86 mm form-factor—so compatibility with standard ATX cases is straightforward.
On the efficiency front, the GamerStorm 80 Plus Bronze Vertified SMPS is certified 80 PLUS Gold and also carries a Cybenetics Gold rating, meaning it delivers strong performance under typical loads and keeps losses and heat in check.
For builders keen on longevity and reliability, the protection suite is comprehensive—covering over-power, over-voltage, short-circuit, over-temperature, over-current, under-voltage, no-load operation and surge protection.
To top it off, the manufacturer offers a 10-year limited warranty and claims longevity with an MTBF of around 100,000 hours.
The GamerStorm PSU PN1200M Black Desktop SMPS Black is a high-end power supply unit tailored for serious builds.
Whether you’re planning a flagship gaming system, a creator workstation, or preparing for upgrades, this unit provides the ample power, modern standards, efficiency and reliability you need.
With modular convenience, premium features and future-ready support, it’s an excellent foundation for high-performance PC architecture.
