About GamerStorm PSU PN1000M Black Desktop SMPS
| Specification | Detail |
|---|---|
| Model | PN1000M (Black variant) |
| Total Rated Output | 1000 W |
| Efficiency Certification | 80 PLUS Gold; also rated Gold by Cybenetics. |
| Standard / Compatibility | ATX12V V3.1 – supports modern PC platform standards. |

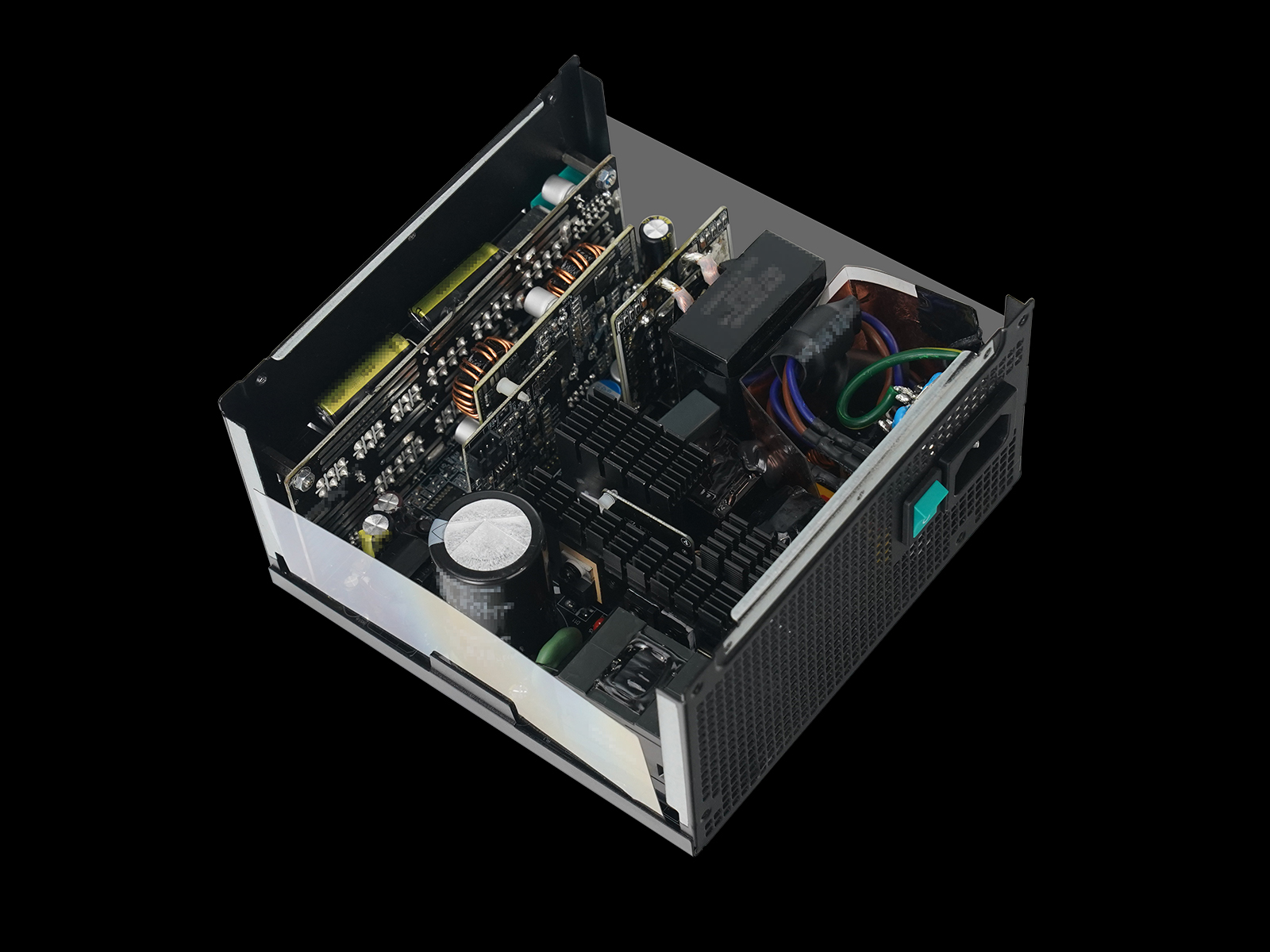

| Topology & Components | Active PFC + Half-Bridge SRC LLC + DC-to-DC conversion; Japanese bulk electrolytic capacitors. |
| Hold-Up Time | ≥ 16 ms at ~80% load. |
| Dimensions & Form-Factor | 150 × 150 × 86 mm – compact size for standard ATX cases. |
| Fan & Cooling | 135 mm Fluid Dynamic Bearing (FDB) fan, dynamic speed. |
| Cable Design & Connectors | Fully modular cables; includes high-grade 105 °C-rated 16 AWG 12V-2×6 (16-pin) cable capable of ~600 W to GPU. |
| Protection Features | Comprehensive protection: OPP, OVP, SCP, OTP, OCP, UVP, NLO, SIP. |
| Warranty & Additional Notes | 10-year limited warranty; designed for high-altitude use (up to ~5000 m). |
When building a high-end gaming rig, creator workstation or future-proof PC platform, you want a power supply that not only delivers the watts, but does so reliably, efficiently and with headroom for what’s next.
The GamerStorm PSU PN1000M Black Desktop SMPS brings all that and more.
With a 1000 W rating, fully modular cabling, modern platform support (ATX12V V3.1) and 80 PLUS Gold certification, this unit is engineered to meet the demands of serious systems.
This architecture ensures clean, stable power delivery even under heavy loads and transients.
The hold-up time of at least 16 ms under ~80% loading gives extra margin to withstand voltage dips and ensures your system remains stable in real-world use.
Efficiency-wise, GamerStorm 80 Plus Bronze Vertified SMPS hits Gold standards and real-world testing shows very good results.

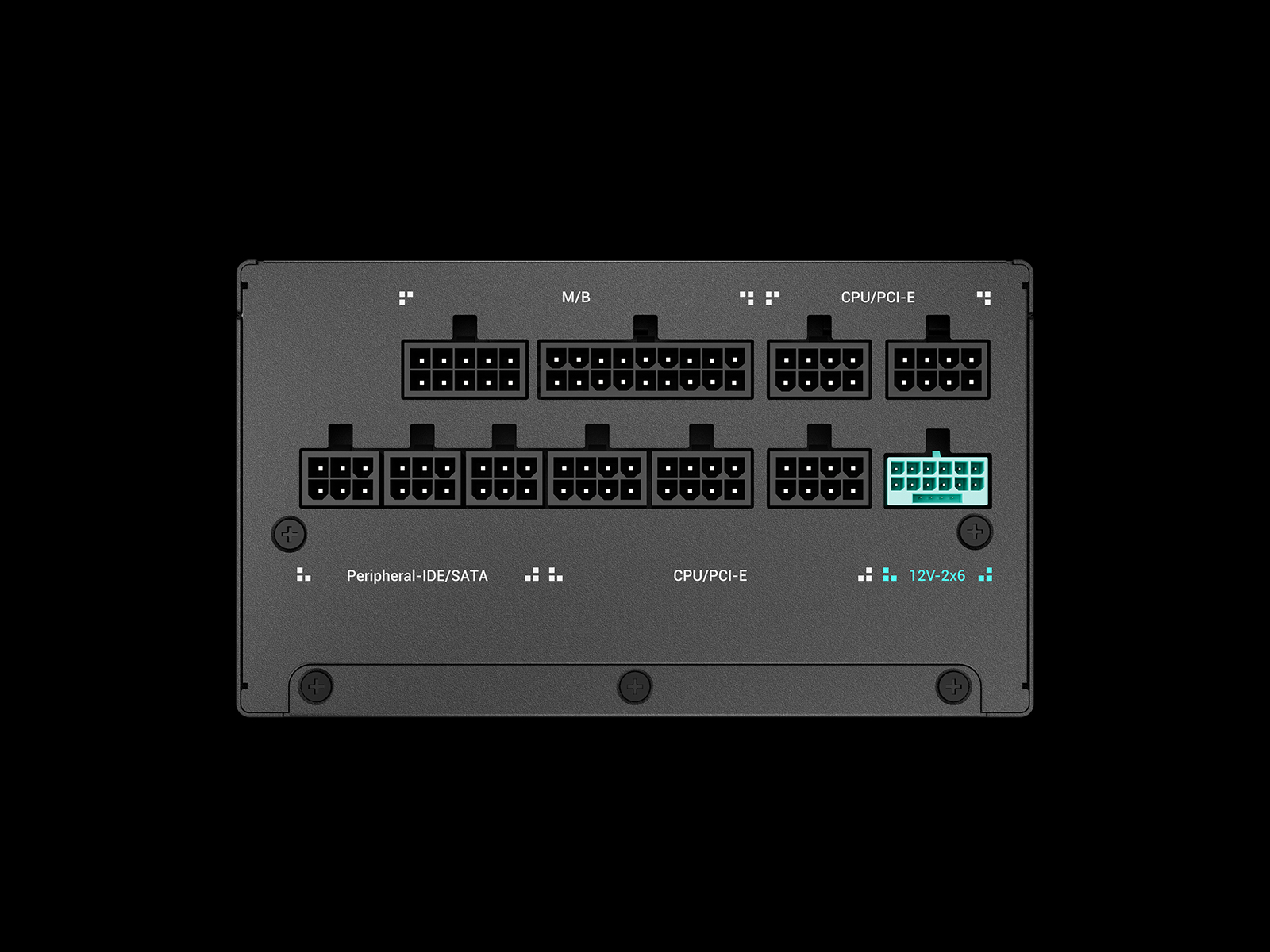

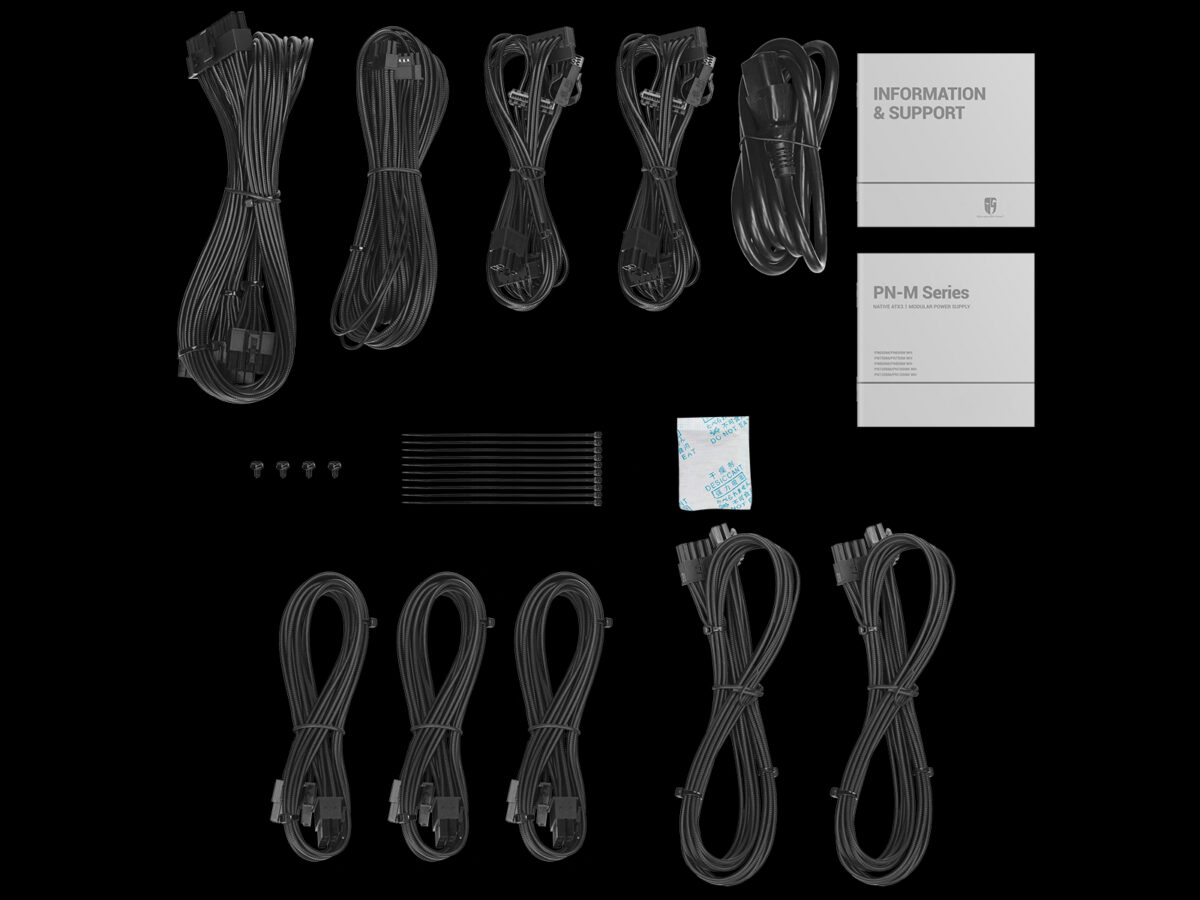

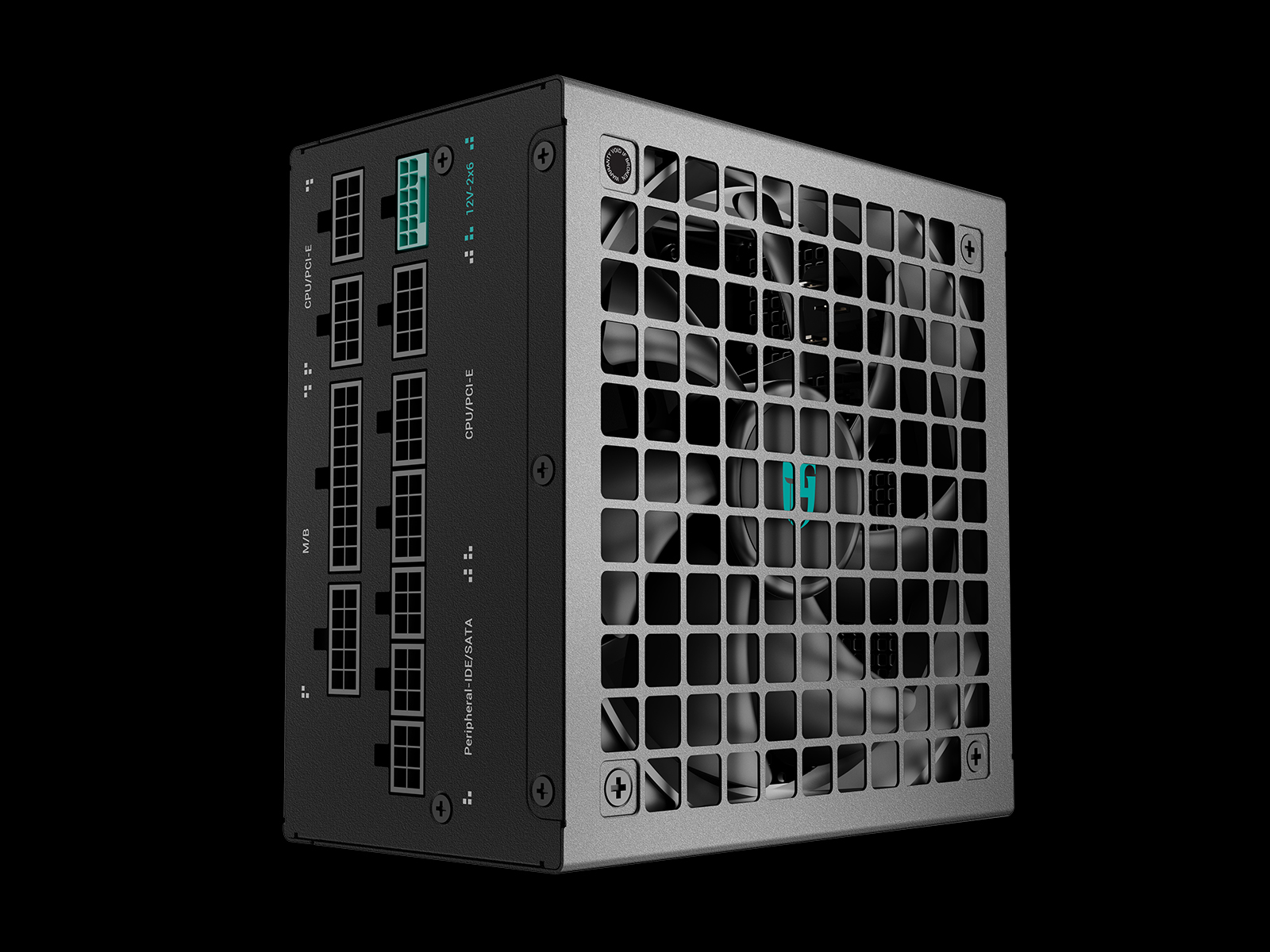

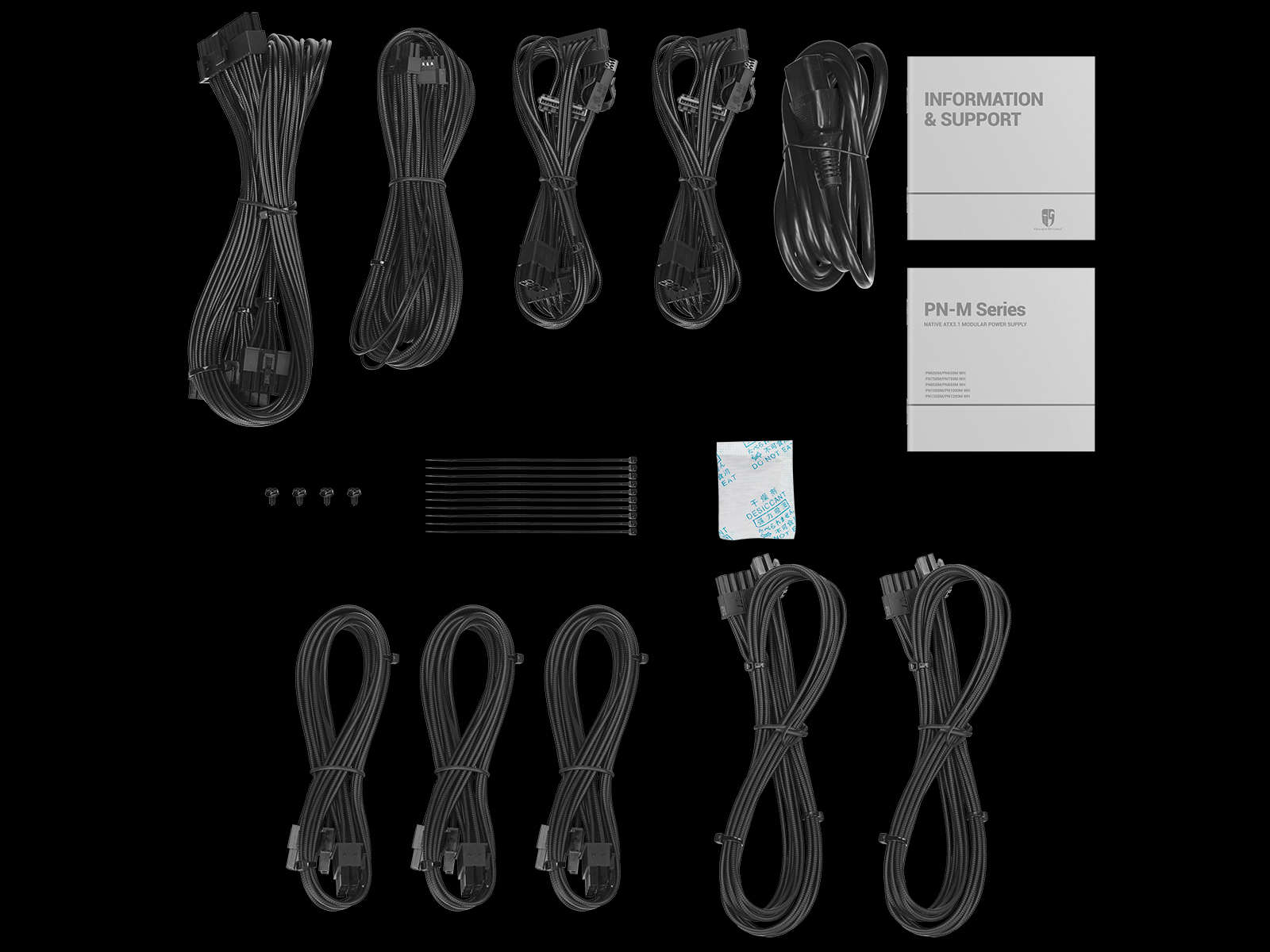

Cable management is another strong point: the fully modular design means you only install what you need, making for a tidy case layout and better internal airflow.
The inclusion of a dedicated 12V-2×6 (16-pin) cable, rated 105 °C and constructed from heavy-gauge copper, is a standout for modern builds—offering up to ~600 W specifically for a GPU, which is ideal for high-end graphics cards.

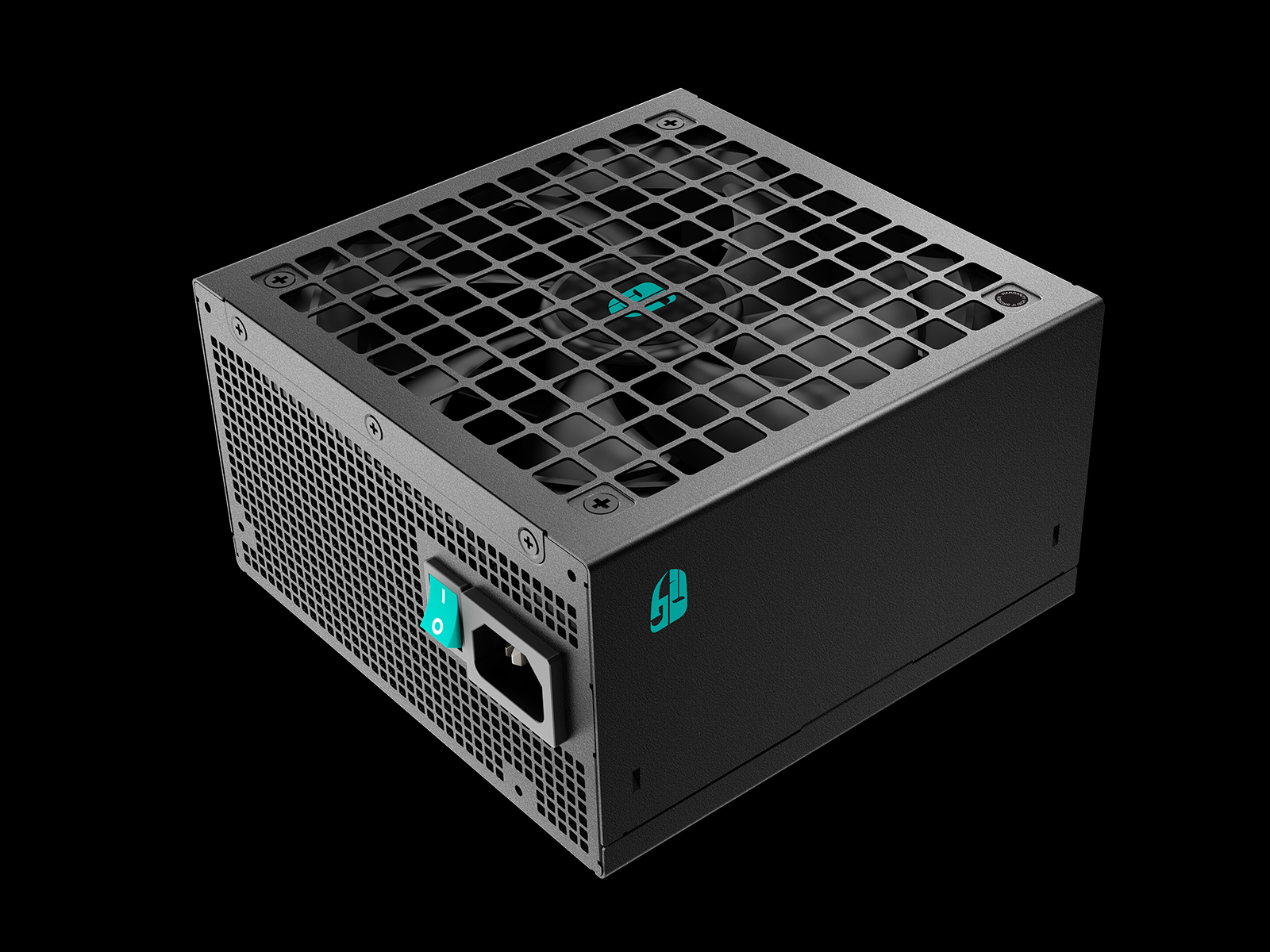

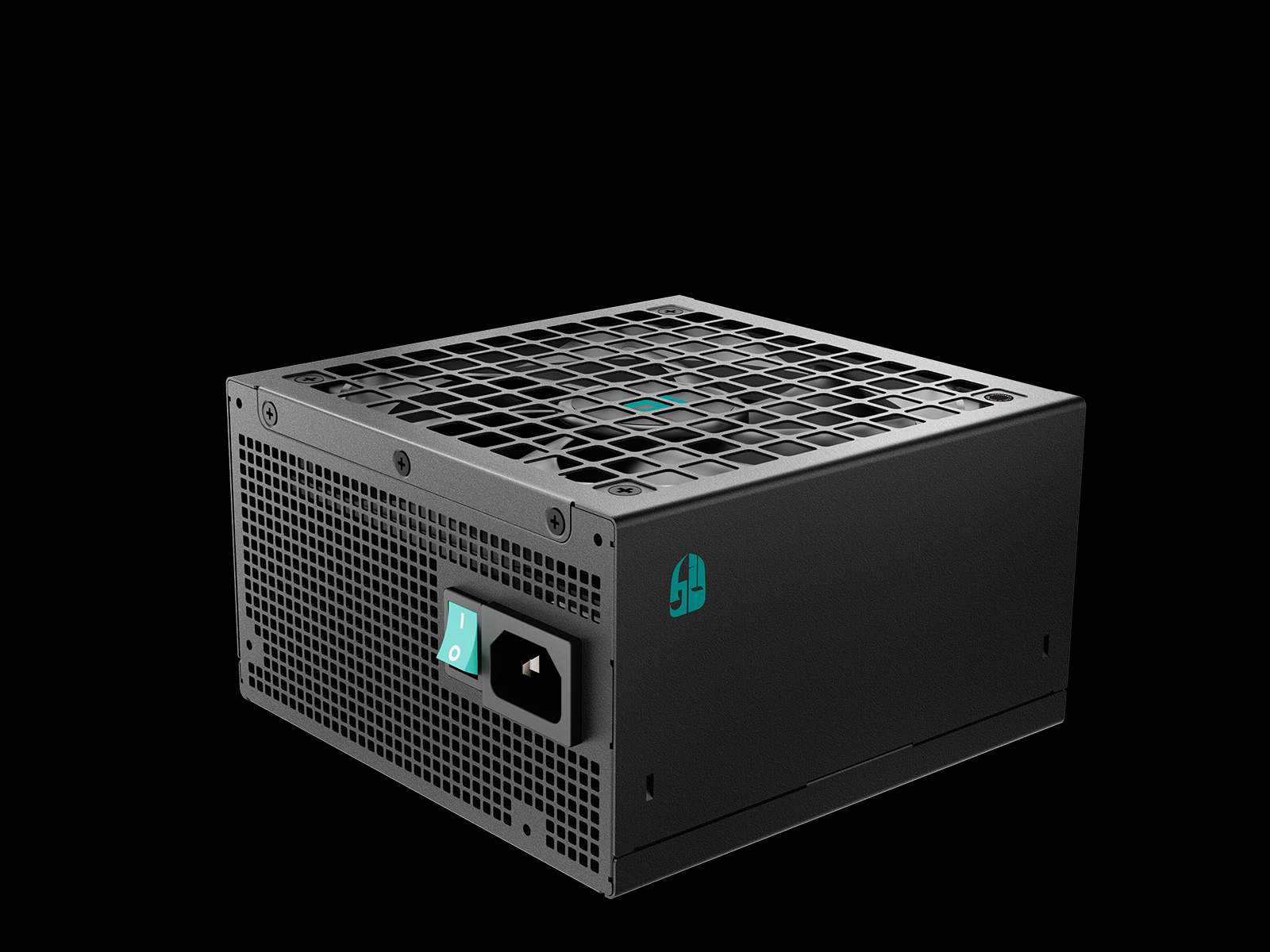

The overall footprint is compact for the class at 150 × 150 × 86 mm, fitting most standard ATX cases without issue.

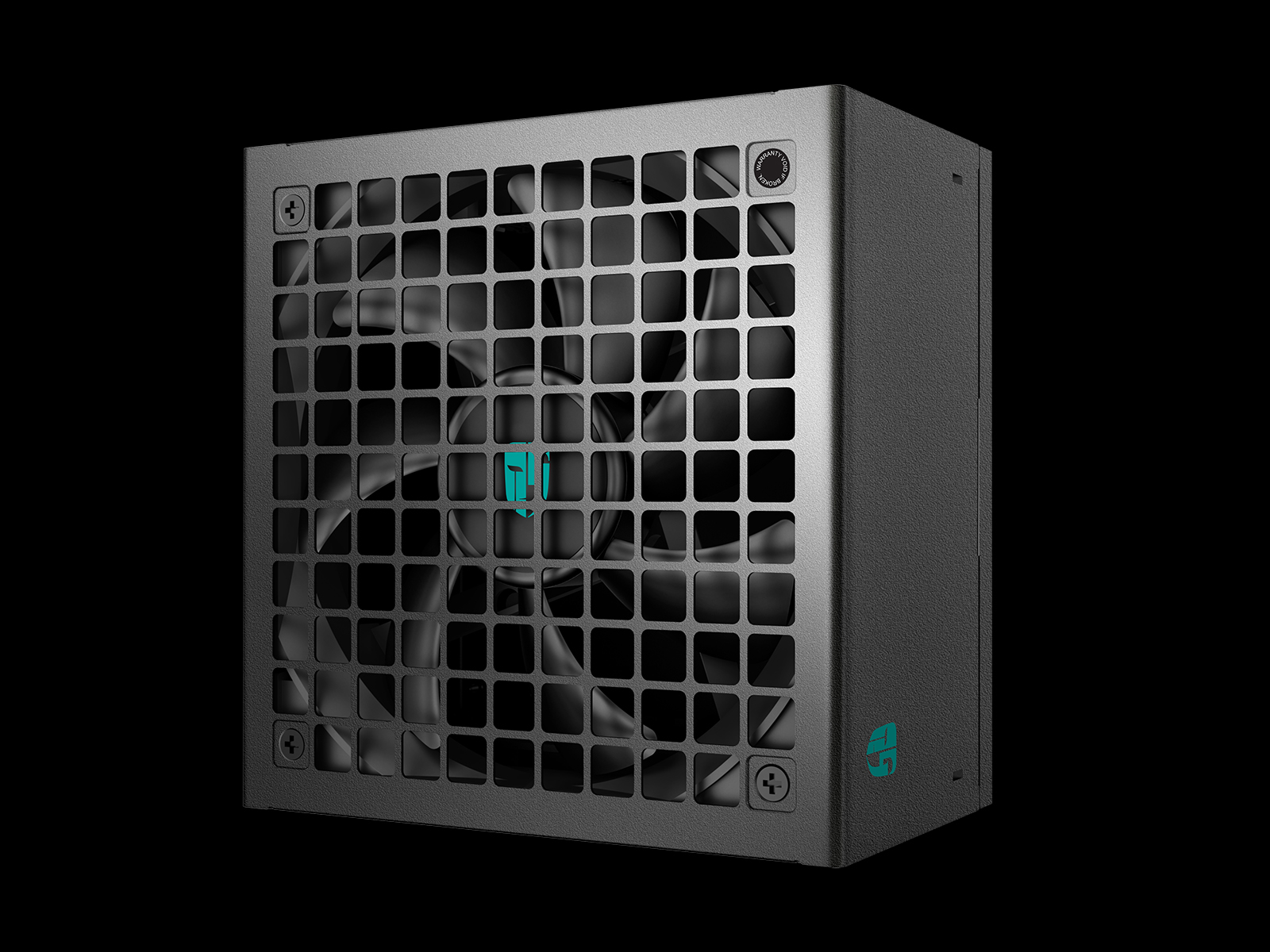

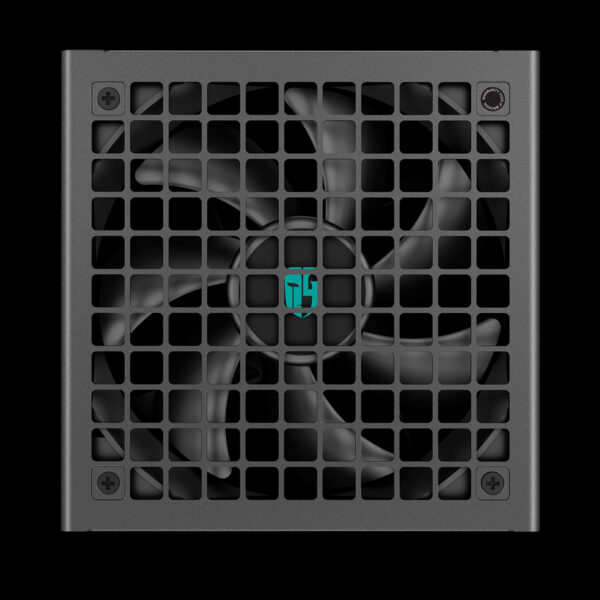

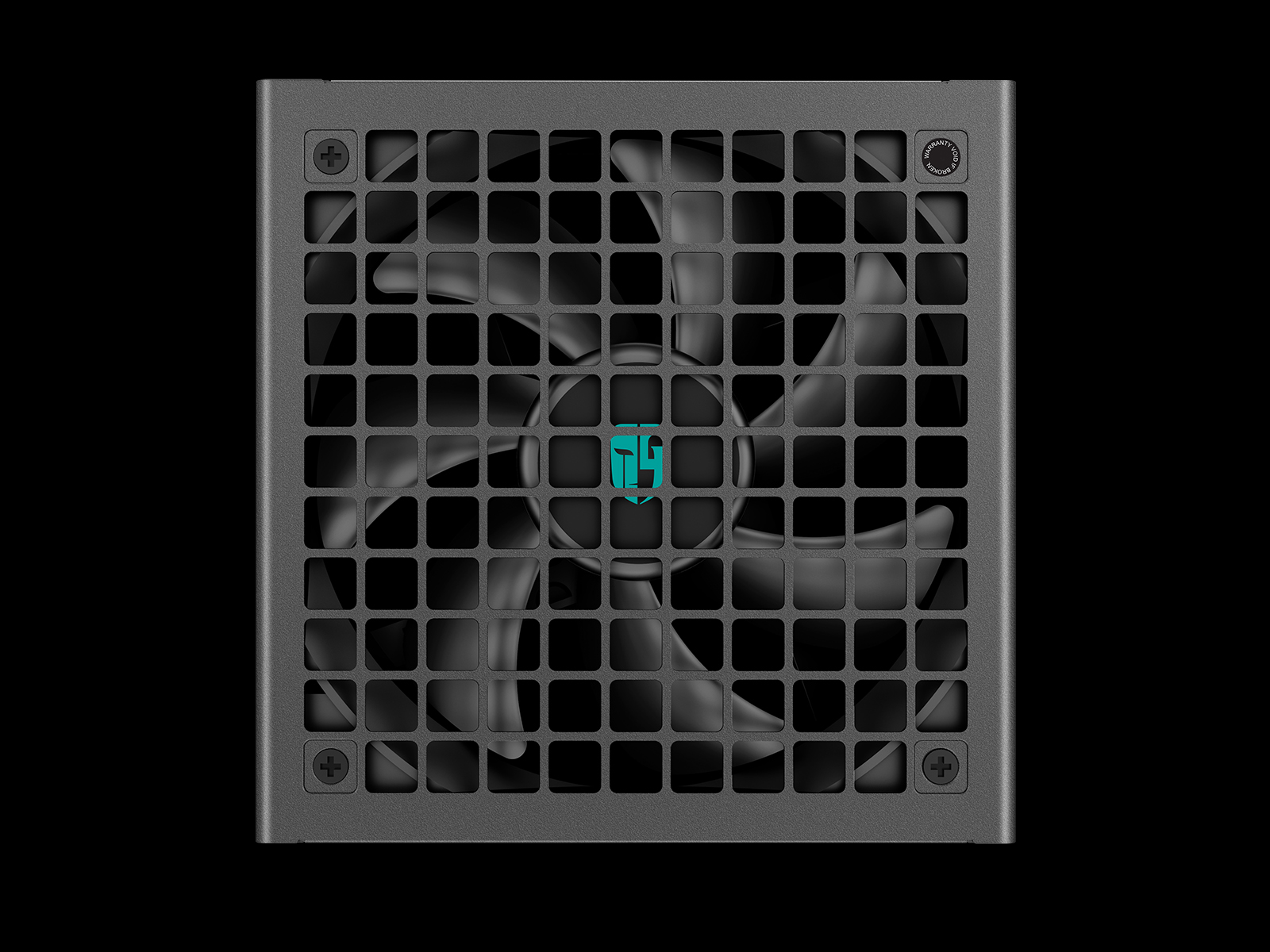

Cooling the unit is done by a 135 mm fluid dynamic bearing (FDB) fan.
The large fan in the GamerStorm PSU PN1000M Black Desktop SMPS means lower RPMs and quieter operation under moderate load, while still having the capacity to ramp up when needed.
This helps maintain a cooler, quieter build environment.
The GamerStorm PSU PN1000M Black Desktop SMPS also includes a full range of protections: over-power, over-voltage, short circuit, over-temperature, over-current, under-voltage, surge/inrush and no-load operation.
Such comprehensive protection helps safeguard your components and gives peace of mind.
Beyond specs, the manufacturer backs the unit with a 10-year limited warranty, which signals confidence in their build quality and long-term reliability.
Whether you’re building a system now or planning for upgrades down the line, the GamerStorm 1000W Black Desktop SMPS is positioned to serve reliably for years.
In sum, if you require a high-wattage, modular, efficient, future-ready PSU with premium features and a strong protection suite, the GamerStorm Powerful 1000W Desktop SMPS is a compelling choice.
It offers strong performance headroom, solid component design and build flexibility—all of which make it an excellent foundation for demanding PC builds.
