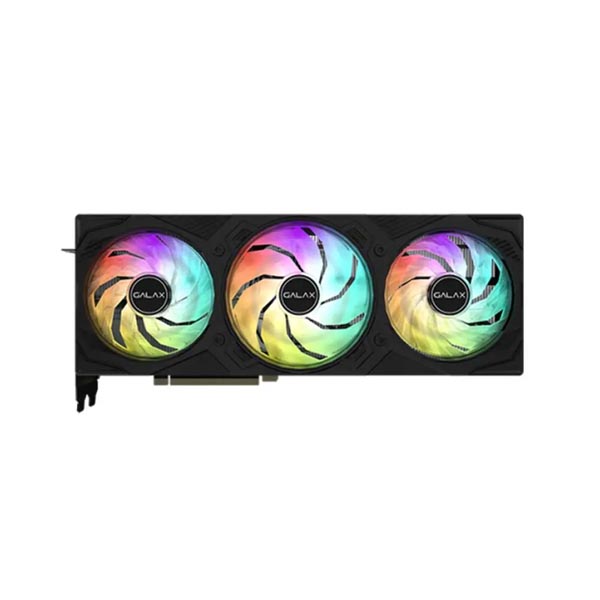

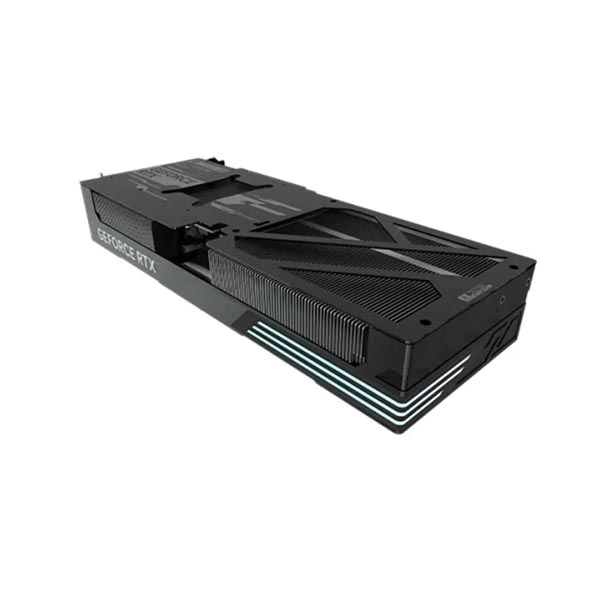

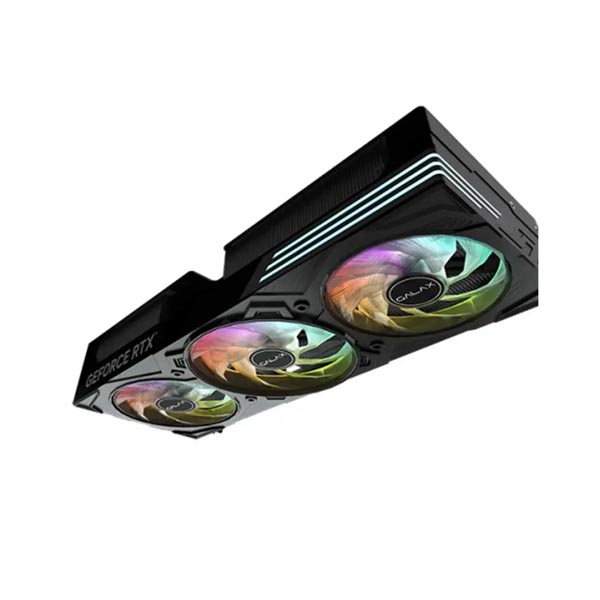

About GALAX GeForce RTX 5070 Ti EX Gamer 1-Click OC Edition Graphics Card
| Category | Specification |
|---|---|
| GPU / Architecture | GB203 GPU, NVIDIA Blackwell Architecture |
| CUDA Cores / SMs | 8960 / 70 SMs |
| Clock Speeds | Base Clock: ~2295 MHz Boost Clock: 2497 MHz (standard) 1-Click OC Clock: 2512 MHz (with Xtreme Tuner Plus software) |
| Memory | 16 GB GDDR7 Memory Speed: 28 Gbps Memory Bus: 256-bit |
| Memory Bandwidth | 896 GB / s |
| Display Outputs | DisplayPort 2.1b × 3, HDMI 2.1b × 1 |
| Form Factor / Dimensions | With Bracket: 334 × 144 × 52 mm Without Bracket: 322 × 130 × 52 mm |
| Cooling System | Triple fan (2 × 92 mm & 1 × 102 mm) with “WING 3.0” design, fan-stop at idle (all fans) |
| Power & PSU Requirements | Requires a native 16-pin power connector (or adapter to 3 × 8-pin) Recommended PSU: 750 W or greater (based on high-end system) |
| Feature Support / Technologies | NVIDIA DLSS 4, dedicated Tensor Cores, dedicated RT Cores, NVIDIA GPU Boost, NVIDIA G-SYNC, Game Ready & Studio Drivers, Windows 11 64-bit support |
| Slot / Interface Width | Triple-slot design |
| In-Box Accessories | Metallic support stick, PCIe 16-pin to 3×8-pin adapter, 1-Click Sync Pro cable. |
Feature of the GALAX GeForce RTX 5070 Ti EX Gamer 1-Click OC 16GB GDDR7 256-bit DP2.1b*3/HDMI 2.1b/DLSS 4
Powered by NVIDIA Blackwell, GALAX GeForce RTX 5070 Ti EX Gamer 1-Click OC Graphics Card bring game-changing capabilities to gamers and creators.
Equipped with a massive level of AI horsepower, the GALAX GeForce RTX 5070 Ti EX Gamer 1-Click OC Graphics Card enables new experiences and next-level graphics fidelity.
Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
Plus, access NVIDIA NIM microservices – state-of-the-art AI models that let enthusiasts and developers build AI assistants, agents, and workflows with peak performance on NIM-ready systems.
- Powered by the NVIDIA Blackwell Architecture and DLSS 4
- Dedicated Tensor Cores
- Dedicated RT Cores
- Microsoft DirectX® 12 Ultimate
- GDDR7 Graphics Memory
- NVIDIA DLSS 4
- NVIDIA® App
- NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- Game Ready and NVIDIA Studio Drivers
- DisplayPort 2.1b, HDMI 2.1b
- VR Ready
- To 1-Click OC, overclock, control ARGB and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
- All photos, specifications, contents are used for reference only and are subject to change without notice.
Powered by the GB203 chip under the NVIDIA Blackwell architecture, the GALAX GeForce RTX 5070 Ti EX Gamer 1-Click OC Graphics Card delivers 8960 CUDA cores and comes factory-rated at a boost clock of 2497 MHz.
For users seeking more performance, GALAX GeForce RTX 5070 Ti EX Gamer 1-Click OC Graphics Card’s intuitive Xtreme Tuner Plus software enables “1-Click OC,” letting you unlock even more potential without complicated overclocking procedures.
Equipped with 16 GB of GDDR7 memory on a 256-bit bus, the GALAX EX Gamer Series Graphics Card offers a massive 896 GB/s of memory bandwidth.
This ensures smooth performance in high-resolution gaming, real-time ray tracing scenarios, and demanding creative workloads like 3D rendering or video editing.
On the connectivity front, the Galax OC Edition Desktop Graphics Card features three DisplayPort 2.1b and one HDMI 2.1b outputs, providing full support for high refresh-rate monitors and advanced display features.
Thanks to the PCIe 5.0 x16 interface, users get future-ready bandwidth performance to take full advantage of next-generation systems.
Cooling is handled through a robust triple-fan heat sink. GALAX’s “WING 3.0” fan design includes two 92 mm and one 102 mm fan, all engineered to provide excellent airflow.
When your system is under low load or idle, the fans stop completely, delivering silent operation until needed.
This keeps temperatures in check while maintaining comfort during lighter tasks or media consumption.
Under the hood, the Galax EX Gamer Triple Fan ARGB Graphics Card supports the full suite of NVIDIA features.
DLSS 4 leverages advanced AI-based upscaling to boost frame rates with minimal fidelity loss, while dedicated RT and Tensor cores enable real-time ray tracing, neural rendering, and creative acceleration.
Game Ready and NVIDIA Studio drivers ensure stable performance and compatibility with the latest titles and software.
Finally, the GALAX GeForce RTX 5070 Ti EX Gamer 1-Click OC Graphics Card is designed for high-power systems.
It requires a PCIe-compliant motherboard with x16 slot support, and a system PSU rated at 750 W or more for optimal operation under full load.
GALAX also provides reliability through well-designed components, and the physical footprint is clearly outlined to help builders fit the card into their case without surprises.
Whether you’re aiming for high-FPS competitive gaming, immersive 4K visuals, or accelerated creative workflows, the GALAX GeForce RTX 5070 Ti EX Gamer 1-Click OC Graphics Card offers a compelling blend of performance, ease-of-use, and next-generation features.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
-
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
-
New Streaming Multiprocessors
Optimized for neural shaders
-
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
Accelerate Your Creativity
The GALAX GeForce RTX 5070 Ti EX Gamer 1-Click OC Graphics Card is powered by the NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
| GPU Engine Specs | |
| Cuda Cores | 8960 |
| Boost Clock | 2497Mhz |
| 1-Click OC Clock | 2512 (by installing Xtreme Tuner Plus Software and using 1-Click OC) |
| Memory Specs | |
| Memory Speed | 28 Gbps |
| Standard Memory Config | 16GB GDDR7 |
| Memory Interface Width | 256 Bit |
| Memory Bandwidth | 896 GB/sec |
| Feature Support | PCI-E 5.0 Windows 10/11 64-bit |
| Fan Feature | 92mm*102mm*92mm WING 2.0 with Fan stop @ Idle (All Fans) |
| Display Support | DisplayPort 1.4a x 3, HDMI 2.1b x 1 |
| Dimensions | Dimensions(with Bracket): 334*144*52 Dimensions(without Bracket): 322*130*52 |
| In Box Accessories | Metallic Support Stick PCIe 1 x 16-pin to 3 x 8-pin adaptor 1-Click Sync Pro cable |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Weight | 2 kg |
|---|---|
| Product Type | Normal |
| color | Black |
| Brands | Galax |
| GPU Chipset | Nvidia Geforce |
| GPU Memory Size | 16GB |
| GPU Series | RTX 50 Series |
| Max GPU Boost Clock | 2497 Mhz |
| Warranty | 3 Years |
| EAN / UPC Code |
4895147158655 |
