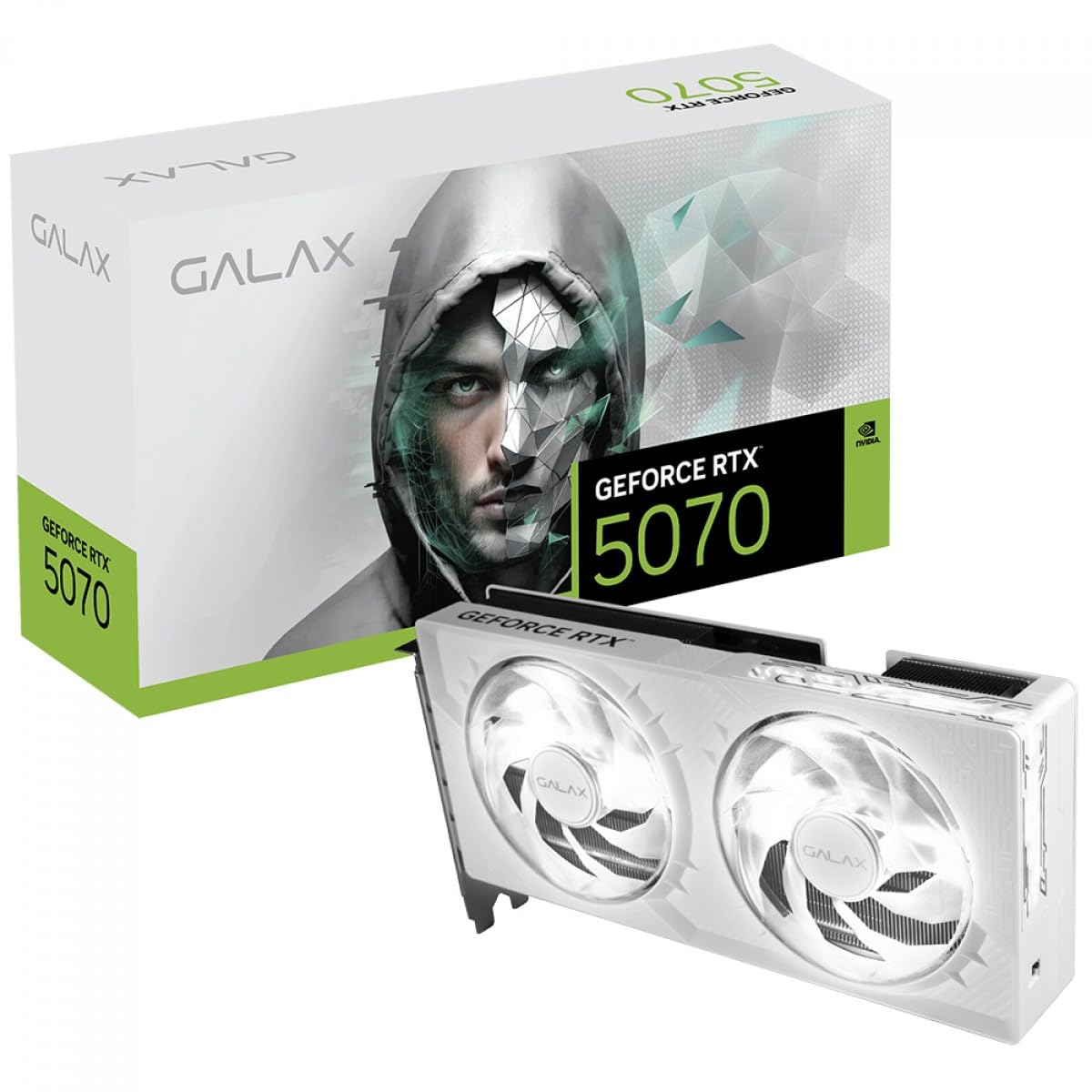

About Galax GeForce RTX 5070 1-Click OC Edition 12GB GDDR7 Graphics Card
| Category | Specification / Details |
|---|---|
| GPU / Architecture | GB205 GPU, part of NVIDIA Blackwell architecture. |
| CUDA Cores / SMs / TMUs / ROPs | 6144 CUDA cores; 48 SMs; TMUs: 192; ROPs: 80. |
| Clock Speeds | Base clock ~2325 MHz (per TechPowerUp data) Boost clock: 2527 MHz 1-Click OC clock (with software) 2542 MHz. |
| Memory | 12 GB GDDR7 Memory speed: 28 Gbps effective. Memory interface width: 192-bit. |
| Memory Bandwidth | 672 GB/s. |
| Bus / Interface | PCIe 5.0 x16 support. |

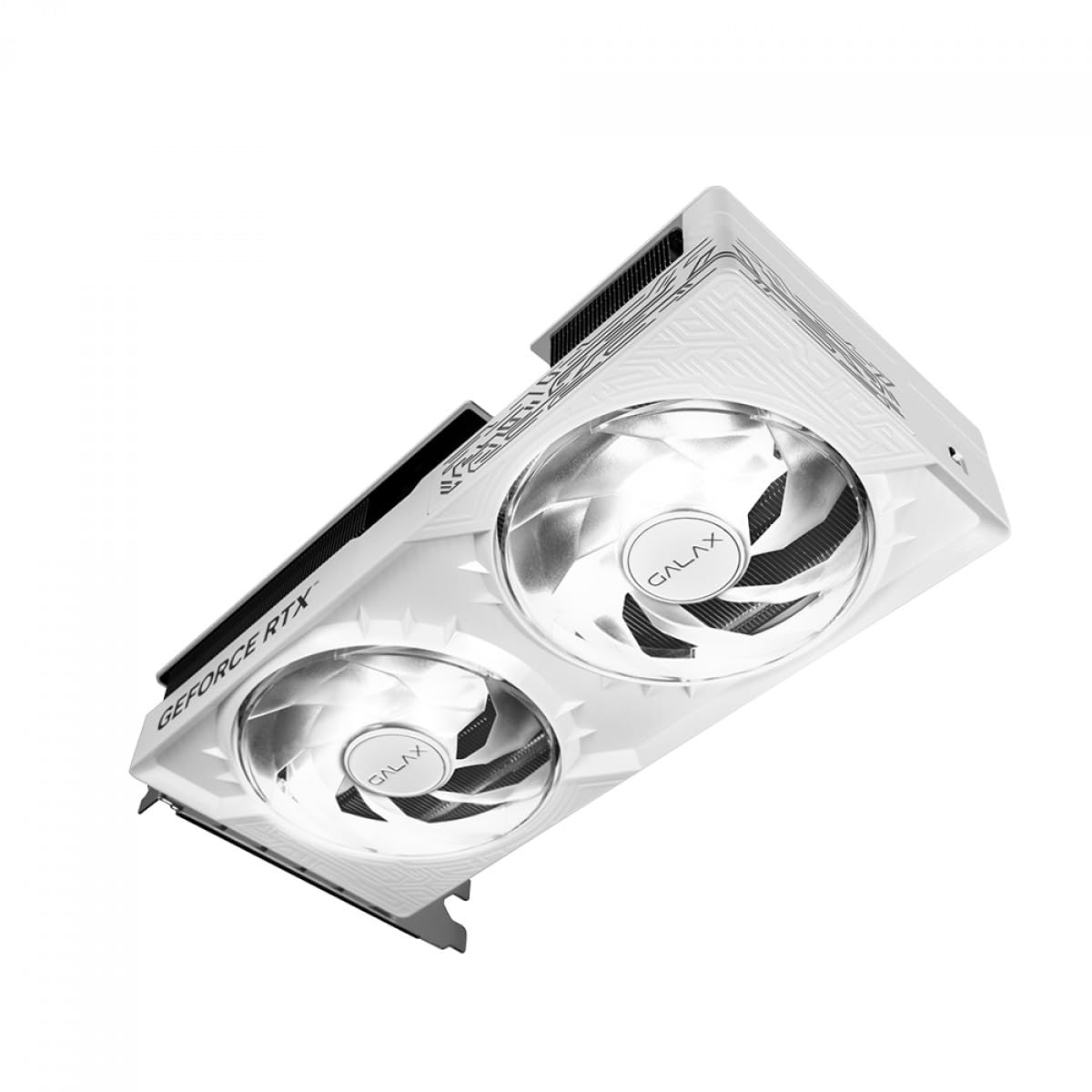

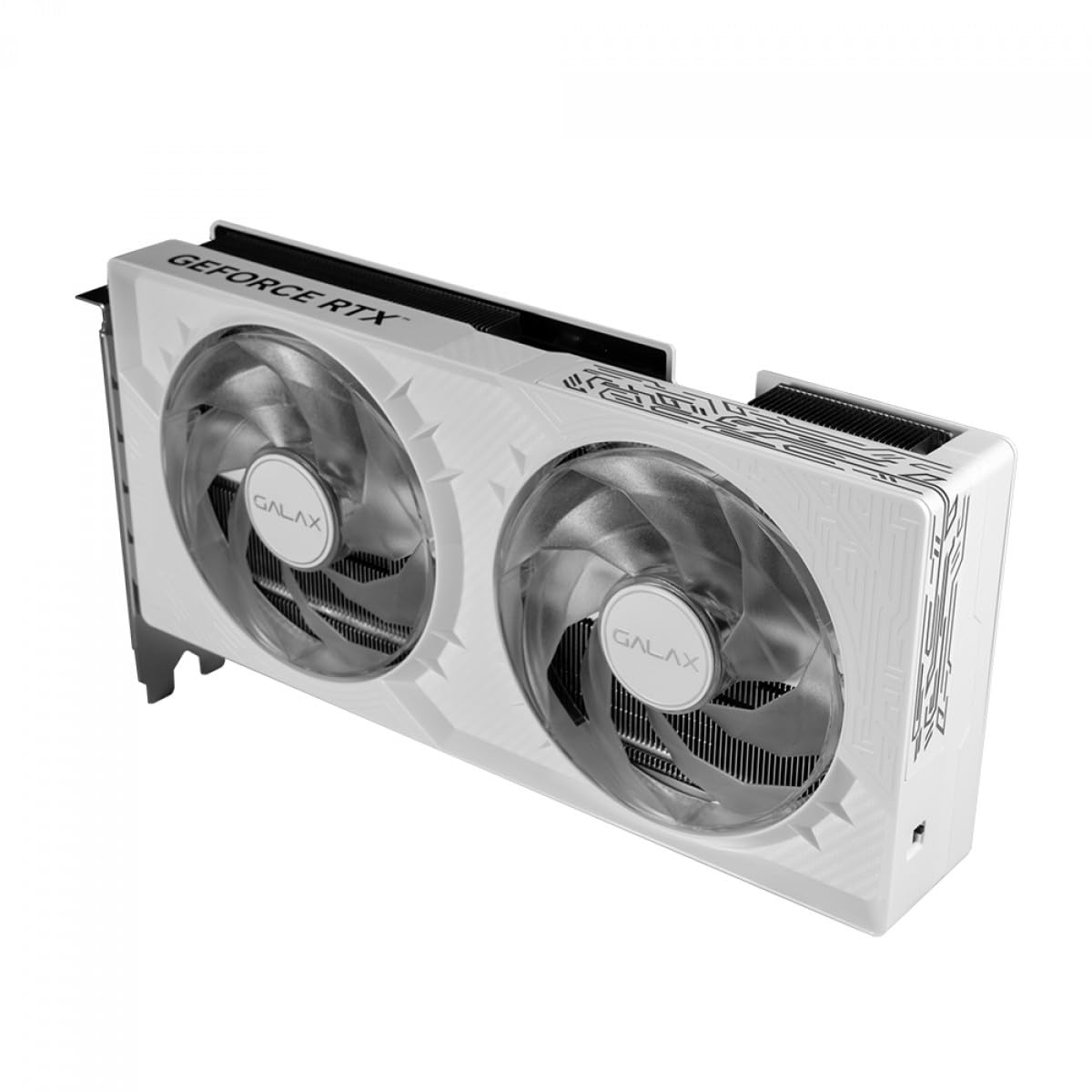

| Cooling & Fan | Equipped with dual 92 mm fans; WINGS 3.0 design; fan-stop feature when idle. |
| Display Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b. |
| Dimensions | With bracket: approximately 252 × 131 × 40.6 mm. Without bracket: approx. 240 × 115.5 × 39.6 mm (noted as “SFF-Ready” by manufacturer) |
| Power & PSU Requirements | Requires PCIe 16-pin connector or adapter (1 × 16-pin to 2 × 8-pin included). Minimum recommended PSU: ~650 W system requirement referencing high-end CPU. |
| Software / Overclocking Utility | Supports “1-Click OC” via software (Xtreme Tuner Plus) for overclocking and GPU monitoring. |
| Feature Support & Technologies | Supports NVIDIA feature set including RT Cores, Tensor Cores, DLSS 4, Microsoft DirectX 12 Ultimate, NVIDIA G-SYNC, VR Ready. |
Feature
Powered by NVIDIA Blackwell, Galax GeForce RTX 5070 1-Click OC Edition 12GB GDDR7 Graphics Card bring game-changing capabilities to gamers and creators.
Equipped with a massive level of AI horsepower, the Galax GeForce RTX 5070 1-Click OC Edition Graphics Card enables new experiences and next-level graphics fidelity.
Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
Plus, access NVIDIA NIM microservices – state-of-the-art AI models that let enthusiasts and developers build AI assistants, agents, and workflows with peak performance on NIM-ready systems.
- Powered by the NVIDIA Blackwell Architecture and DLSS 4
- Dedicated Tensor Cores
- Dedicated RT Cores
- Microsoft DirectX® 12 Ultimate
- GDDR7 Graphics Memory
- NVIDIA DLSS 4
- NVIDIA® App
- NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- Game Ready and NVIDIA Studio Drivers
- DisplayPort 2.1b, HDMI 2.1b
- VR Ready
- To 1-Click OC, overclock, control ARGB and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
- All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
With a factory boost clock of 2527 MHz and support for one-click overclocking through GALAX’s Xtreme Tuner Plus software, users can unlock extra performance without needing to fine-tune voltages or clock speeds manually.
Memory is a standout advantage on this model: 12 GB of GDDR7 memory with a 192-bit interface and effective memory speed of 28 Gbps ensures 672 GB/s of bandwidth.
Whether you’re playing modern AAA titles with ray tracing enabled, editing high-resolution videos, or working in design software, the combination of GALAX GeForce 5070 Series Graphics Card horsepower and fast memory helps maintain high frame rates and responsive performance.
The 1-Click OC mode elevates the card’s clock to approximately 2542 MHz—ideal for users who want extra performance with minimal effort.
Thermal design and noise control are thoughtfully engineered.

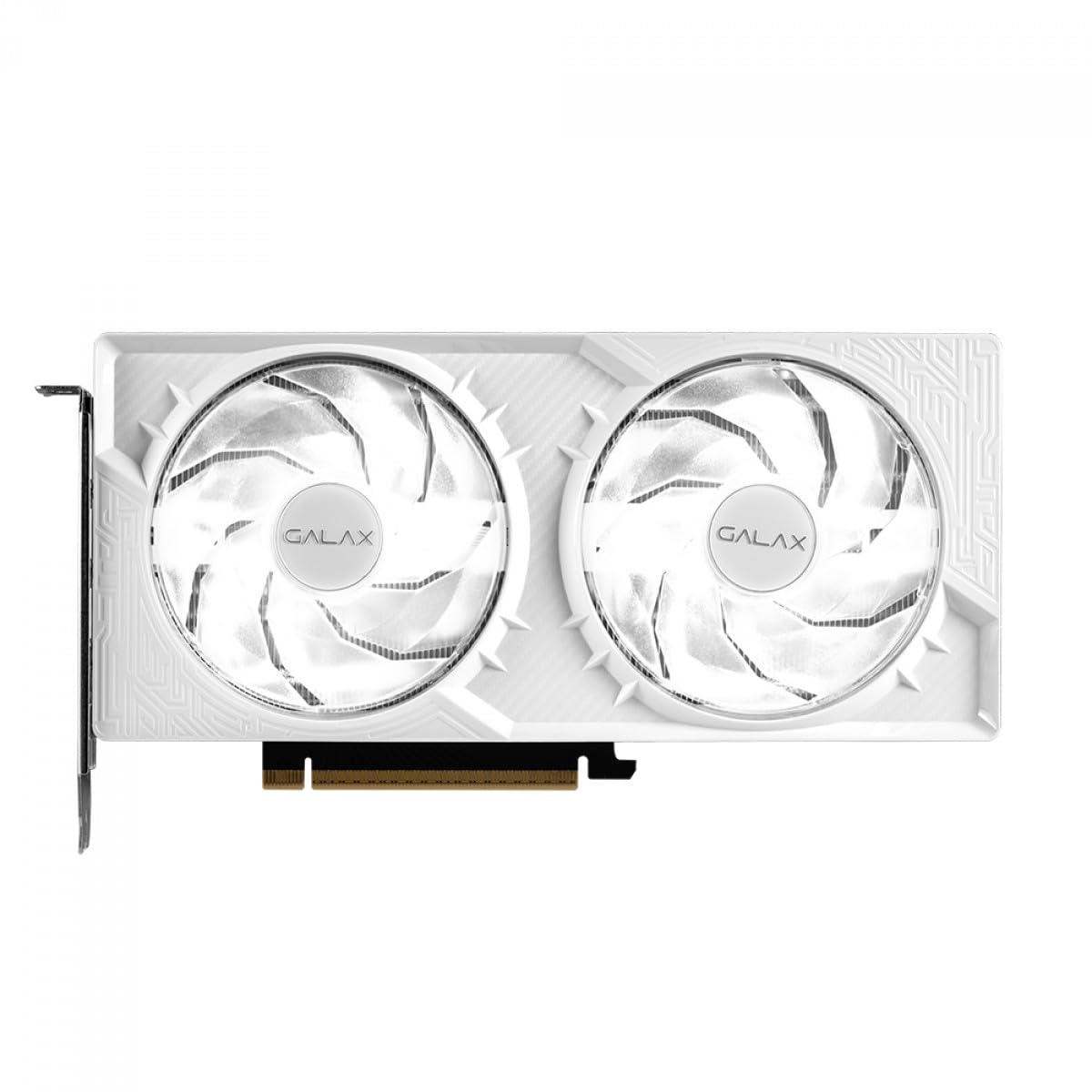

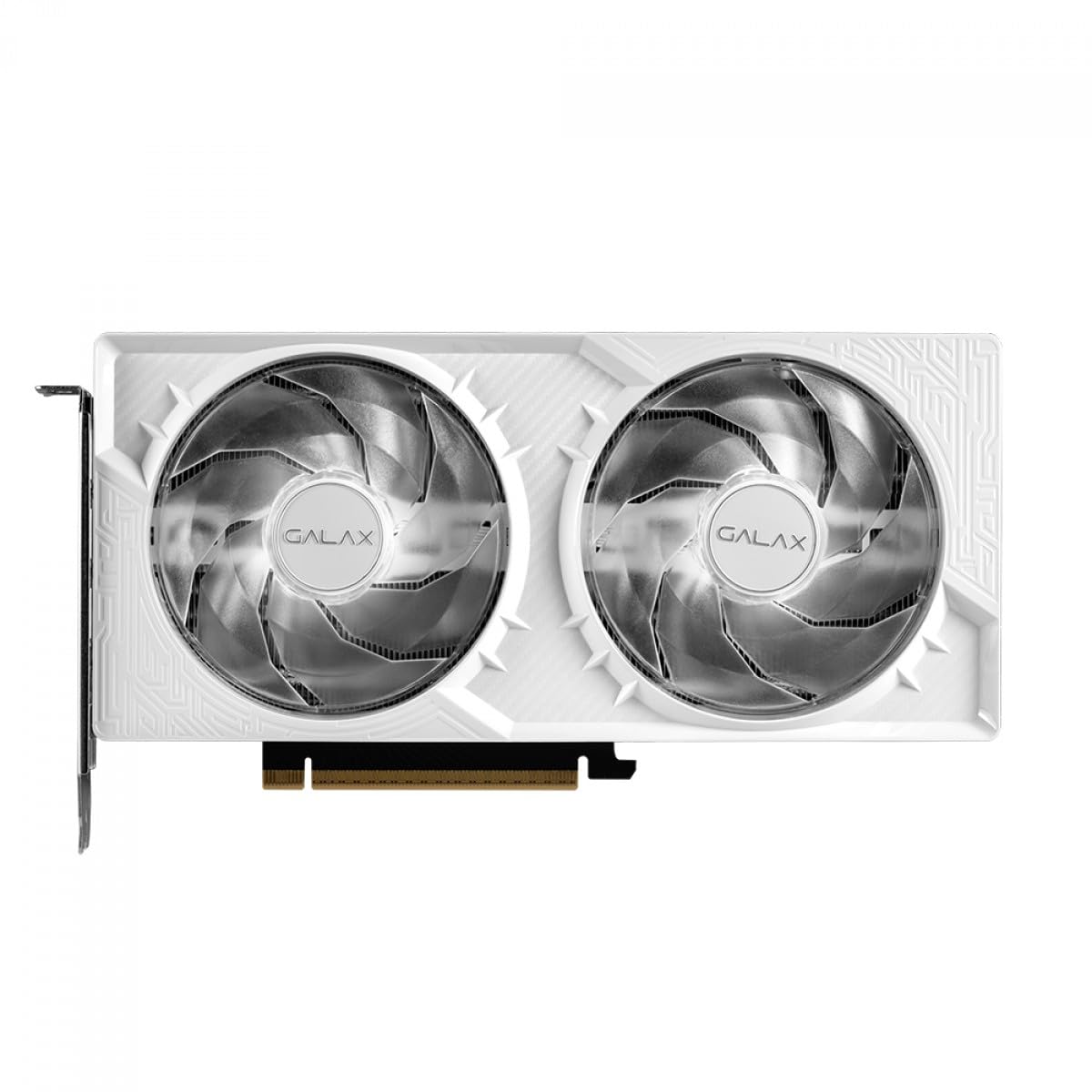

The Galax EX Gamer Triple Fan ARGB Graphics Card uses a dual-fan cooling setup paired with WINGS 3.0 fan blades, ensuring efficient airflow across heat-dissipating surfaces.
The fans in the Galax GeForce RTX 5070 1-Click OC Edition Graphics Card include an idle stop feature: when the GPU load is low, the fans pause operation to minimize noise, making your system quieter during everyday tasks or media consumption.
Physically, the Galax OC Edition 12GB GDDR7 Desktop Graphics Card is compact relative to many high-end GPUs: its bracket-on length is around 252 mm, making it suitable for many mid-towers and even small form-factor-ready setups—while retaining full performance.

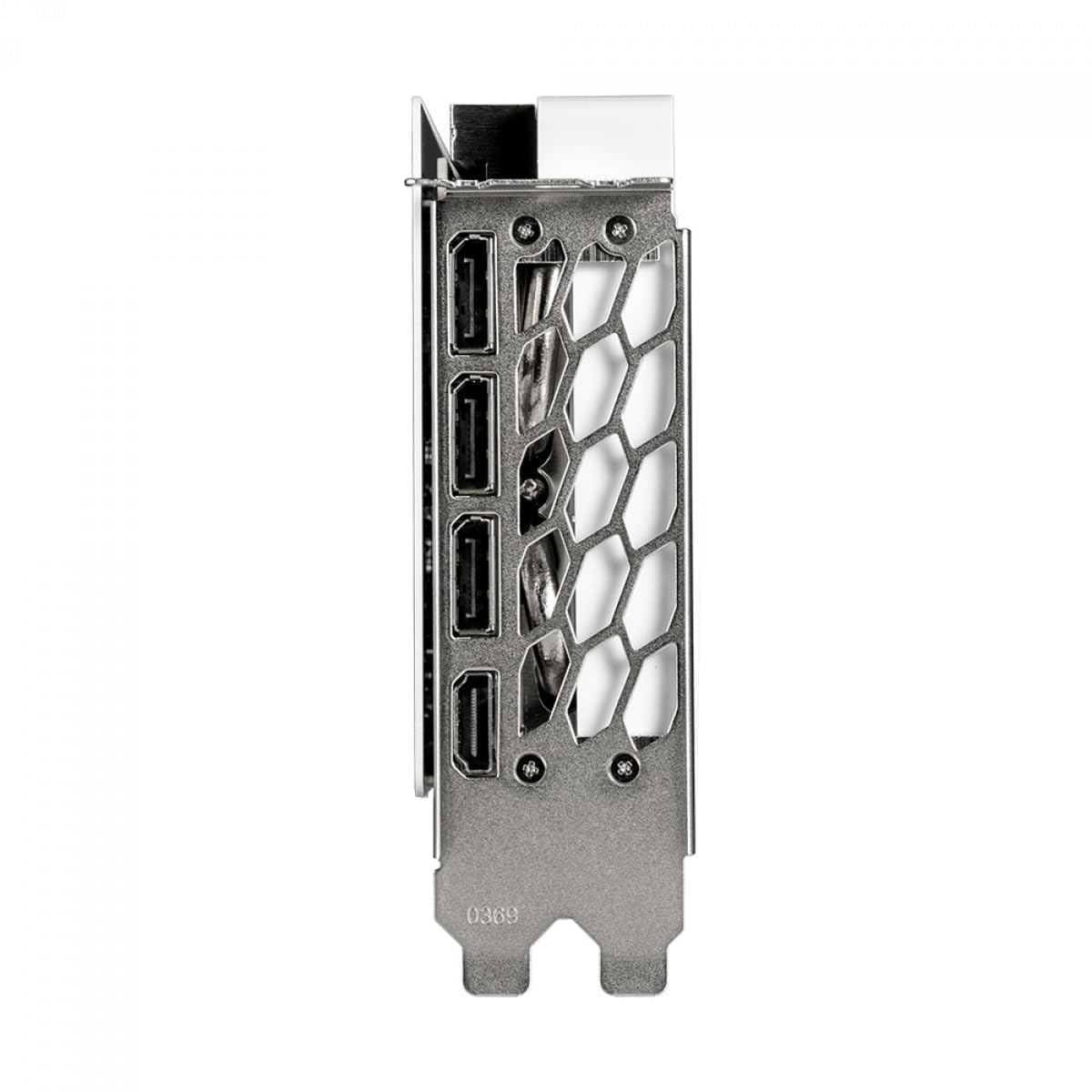

On connectivity, the Galax GeForce RTX 5070 1-Click OC Edition 12GB GDDR7 features three DisplayPort 2.1b ports and one HDMI 2.1b port, enabling support for high refresh rate monitors, high-resolution displays, and next-generation TVs.
The Galax GeForce RTX 5070 1-Click OC Edition 12GB GDDR7 also supports PCIe 5.0, ensuring future-proof data transfer bandwidth for upcoming CPUs and system platforms.
For power, the package includes a 16-pin to dual 8-pin adapter for compatibility with a variety of power supply units.
GALAX recommends using a PSU of at least ~650 W in a full system configuration to ensure stability under load.
For users focused on modern gaming and creative workflows, the Galax GeForce RTX 5070 1-Click OC Edition 12GB GDDR7 delivers full support for NVIDIA’s advanced feature set: real-time ray tracing via dedicated RT cores, AI-enhanced graphics with Tensor cores (enabling DLSS 4), and compatibility with Microsoft DirectX 12 Ultimate and other major APIs.
These features help keep the system in sync with the latest and upcoming game titles, developer tools, and VR/AR applications.
The user experience is further enhanced by GALAX’s software, which offers one-click optimization for performance, real-time monitoring, and easy firmware updates.
Whether you’re building a new gaming rig, upgrading for creative tasks, or preparing a system for livestreaming and content creation, the GALAX RTX 5070 1-Click OC Edition stands out for its blend of power, efficiency, and convenience.
For those looking to upgrade to a modern GPU that balances value and performance, the Galax GeForce RTX 5070 1-Click OC Edition 12GB GDDR7 represents a future-ready investment that doesn’t compromise on features or build quality.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
-
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
-
New Streaming Multiprocessors
Optimized for neural shaders
-
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
| GPU Engine Specs | |
| Cuda Cores | 6144 |
| Boost Clock | TBCMHz |
| 1-Click OC Clock | TBC (by installing Xtreme Tuner Plus Software and using 1-Click OC) |
| Memory Specs | |
| Memory Speed | 28 Gbps |
| Standard Memory Config | 12GB GDDR7 |
| Memory Interface Width | 192 Bit |
| Memory Bandwidth | 672 GB/sec |
| Feature Support | PCI-E 5.0 Windows 10/11 64-bit |
| Fan Feature | 92mm*102mm*92mm WINGS 3.0 with Fan stop @ Idle (All Fans) |
| Display Support | DisplayPort 2.1b x 3, HDMI 2.1b x 1 |
| Dimensions | Dimensions(with Bracket): 334*144*52 Dimensions(without Bracket): 322*130*52 |
| In Box Accessories | 1-Click Sync Pro Cable PCIe 1 x 16-pin to 2 x 8-pin adapter |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Weight | 1 kg |
|---|---|
| Product Type | Normal |
| color | White |
| Brands | Galax |
| GPU Chipset | Nvidia Geforce |
| GPU Memory Size | 12GB |
| GPU Series | RTX 50 Series |
| Memory Series | GDDR7 |
| Warranty | 3 Years |
