About Deepcool PL750D Black Desktop SMPS
| Specification Category | Details |
|---|---|
| Output Power | 750 W maximum total output. |
| Efficiency Certification | 80 PLUS Bronze, meaning approximately ≥ 85% efficiency under typical (50%) load. |
| Standards & Compatibility | ATX12V V3.0 and native ATX 3.1 compatible — handles modern power demands/spikes. |
| +12V Rail / Output Specifications | Single +12V rail delivering full 750 W on +12V; +3.3V/+5V combined at ~100 W. |
| Connectors | 20+4 pin main ATX, 2 × (4+4) CPU EPS, 3 × (6+2) PCIe, 1 × 12V-2×6 (16-pin) for high-end GPU, SATA & Molex connectors. |
| Cooling / Fan | Single 120 mm hydro bearing fan; operating temperature range 0–40 °C. |
| Protection Features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO included. |
| Hold-Up Time | ≥ 16 ms under full load (100%). |
| Dimensions & Weight | 150 × 140 × 86 mm; weight approx 1.9–2.4 kg depending on region. |
| Warranty | 5-year limited warranty included. |
Built to handle today’s demanding PCs yet remain accessible, the Deepcool PL750D Black Desktop SMPS is a strong choice whether you’re building a gaming rig, creator workstation or high-performance desktop on a budget.
At its heart is a full 750 W output, delivered through a single +12 V rail – meaning your graphics card, CPU and other high-draw components have ample headroom.
The Deepcool PL750D Black Desktop SMPS meets ATX12V V3.0 and is also compatible with the newer ATX 3.1 standard, giving it the muscle to absorb powerful transient loads and spikes that accompany modern GPUs and CPUs.
With an 80 PLUS Bronze certification (typically ≥ 85% efficiency under load), it’s both economical and efficient.
Connectivity is generous: the Deepcool PL750D Black Desktop SMPS comes equipped with a full set of mainstream and high-end cables including a main 20+4-pin ATX connector, two 4+4 CPU EPS plugs, three 6+2 PCIe plugs and a dedicated 12V-2×6 (16-pin) cable for next-gen graphics overhead.
While not modular, the fixed cables are reliable and straightforward, making installation quick and easy.

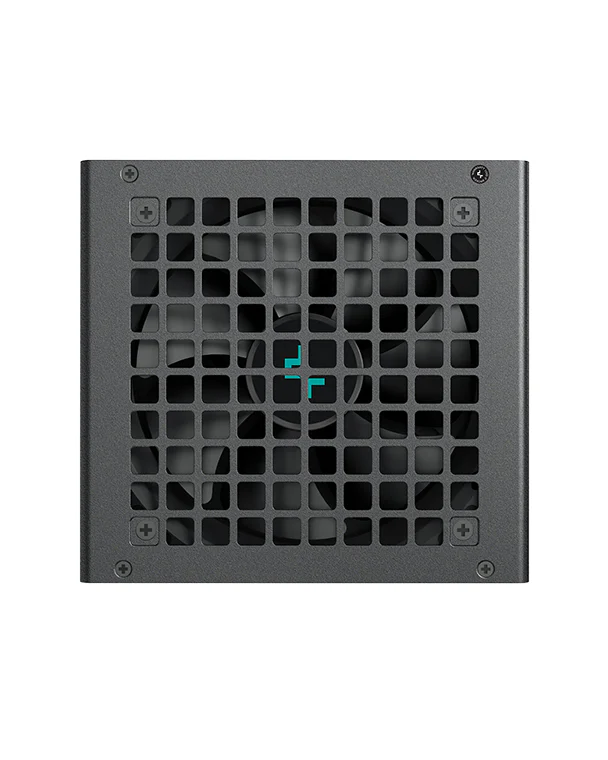

Cooling is managed via a 120 mm hydro-bearing fan, delivering consistent performance without excessive noise.
The housing measures just 150 × 140 × 86 mm, so it fits neatly into most mid-tower and full-tower cases without space issues.
Key internal components like high-grade electrolytic capacitors and DC-to-DC topology ensure stability over long-term use, while the extensive protection suite (OVP, OPP, SCP, OCP, UVP, SIP, NLO) keeps your system safe under adverse conditions.
Furthermore, by offering a 5-year warranty, DeepCool backs this unit confidently, signaling reliability.
If you’re building a PC with a powerful GPU and modern architecture, want future-proof connectivity, and appreciate a balance of performance and cost, the Deepcool PL750D Black Desktop SMPS delivers impressively.
It may sit below premium fully-modular PSUs in price, but Deepcool PL750D Black Desktop SMPS punches above its class in features and standards readiness — making it a smart foundation for your PC build.
