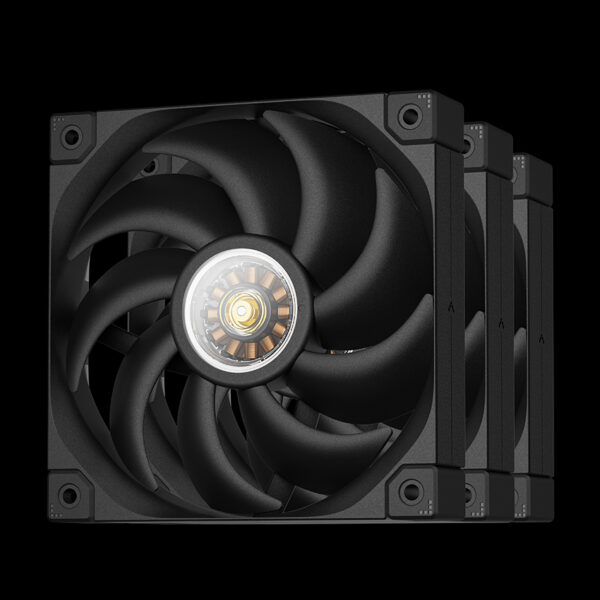

About DeepCool FT12 Black 3 IN 1 Desktop Cooler Fan
| Specification Category | Detail |
|---|---|
| Model / Part Number | FT12 (Pack: 3-in-1) – P/N R-FT12-BKWPN3-G for the 3-pack version |
| Pack Configuration | 3 fans in one pack (“3 in 1”) |
| Dimensions (L×W×H) | 120 × 120 × 25 mm |
| Net Weight (single fan) | 188 gms |
| Fan Speed | 500 ± 200 RPM (low) up to 2,150 RPM ±10% (max) |
| Airflow | 75 CFM |
| Static Pressure | 4.2 mmAq |
| Noise Level | ≤ 32 dB(A) |
| Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Rated Voltage | 12 V DC |
| Rated Current | 0.3 A |
| Power Consumption | 3.6 W |
| Frame/Blade Material | Composite of fiberglass + PBT for enhanced rigidity & quieter operation |
| Motor Design | 3-phase, 10-pole, 12-slot FOC closed-loop motor – high quality MQ magnets for minimal vibration |
| Vibration Dampening | Full-coverage rubber pads at each corner to reduce mounting vibration |
| Warranty | 5 years (as claimed by DeepCool) for FT series in general |
Each fan in this triple-pack has been crafted with precision: the motor system features a 3-phase, 10-pole, 12-slot FOC closed-loop design coupled with premium MQ magnets.
Deepcool FT12 Series Desktop Cooler Fan
This advanced motor architecture reduces electromagnetic imbalances and minimizes vibration, allowing the Deepcool FT12 Series Desktop Cooler Fan to operate smoothly even at high speed without compromising long-term reliability.
Beyond the motor, the FT12’s construction emphasises premium materials.
The fan blades and frame are formed from a composite of fiberglass and PBT, achieving consistency in structure and sound signature.
This makes the FT12 quieter during operation while still maintaining the rigidity needed to handle sustained high-speed rotation.
Deepcool Low Noise Desktop Cooler Fan
The Deepcool Low Noise Desktop Cooler Fan is also designed with vibration mitigation in mind: full-coverage rubber corner pads absorb mounting irregularities and reduce vibration-transmitted noise from the chassis.
Measured specifications underscore the performance credentials.
Deepcool High Performance Desktop Cooler Fan
The Deepcool High Performance Desktop Cooler Fan supports a wide speed range of approximately 500 ± 200 to 2,150 ± 10% RPM, enabling flexible deployment from quiet operation to full throttle cooling when needed.
At its top speed the Deepcool FT12 Black 3 IN 1 Desktop Cooler Fan delivers up to about 75 CFM of airflow and 4.2 mmAq of static pressure, making it capable of both case airflow and moderate resistance environments (such as behind a dust filter or radiator).
Despite this, the noise level remains capped at ≤ 32 dB(A) — impressive given its peak performance.
Connectivity is straightforward with a 4-pin PWM connector allowing motherboard-based or fan-controller speed adjustment.
The bearing system is a true fluid dynamic bearing (FDB), which ensures long life and low noise with minimal maintenance.

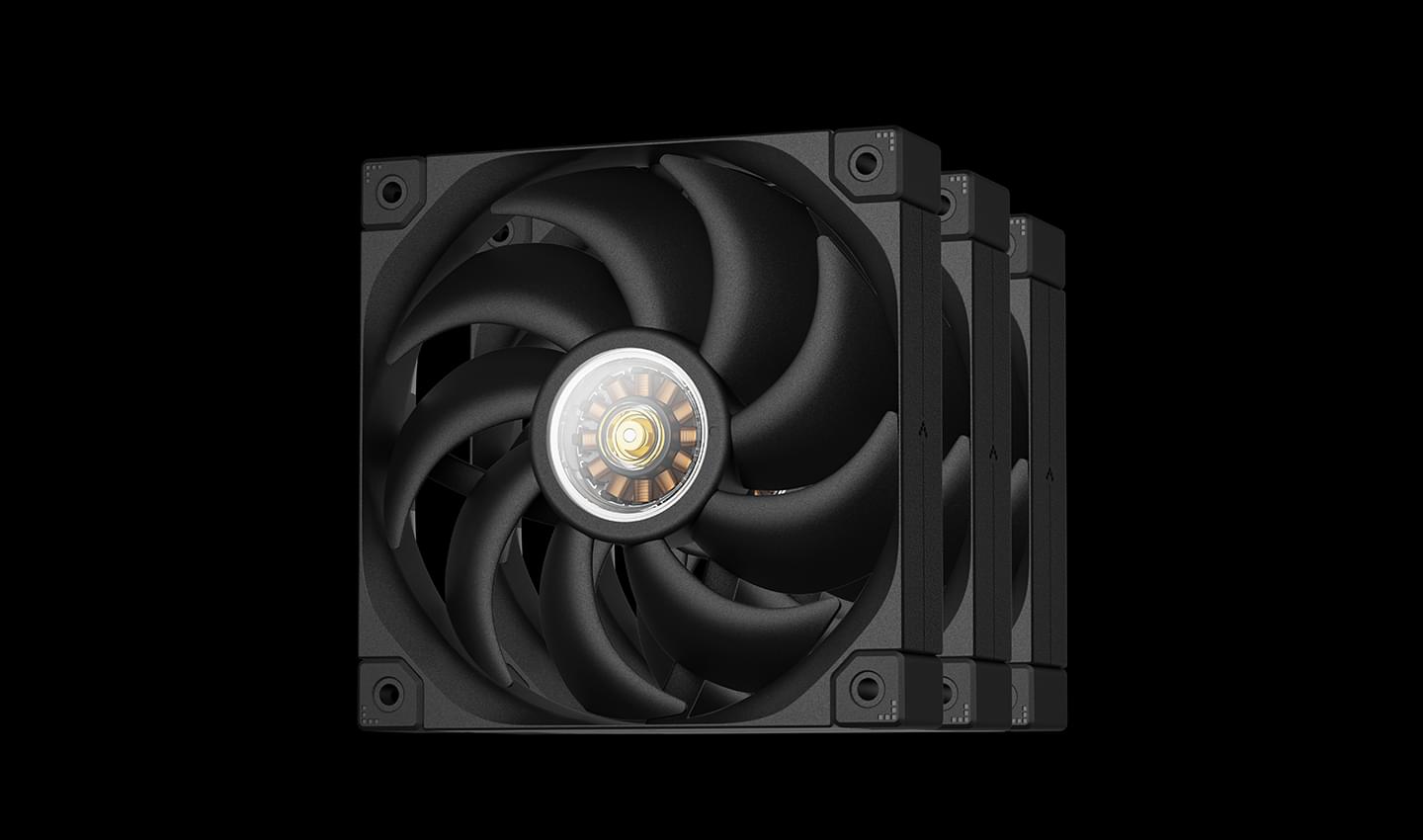

For users outfitting desktops with multiple fans, the “3 in 1” pack provides three identical units in one bundle, streamlining installation and ensuring matched performance across locations (intake, exhaust, side panel).
DeepCool’s confidence in the Deepcool FT12 Black 3 IN 1 Desktop Cooler is reflected in the generous warranty coverage (five years), giving peace of mind for long-term use.
The minimalist black aesthetic blends cleanly into most builds, whether gaming rigs or professional workstations.
If you’re constructing a system where efficient cooling, noise control and build quality matter, the Deepcool FT12 Black 3 IN 1 Desktop Cooler offers a compelling option.
Whether used as case intake, exhaust or radiator fans, these units bring a combination of motor sophistication, material quality and performance tuning rarely seen at this level.
