About Deepcool CH690 Digital Black Desktop Case
| Specification | Details |
|---|---|
| Product Dimensions (L×W×H) | 481 × 240 × 516 mm |
| Net Weight | 9.8 kg |
| Materials | ABS + SPCC steel + Tempered Glass panels |
| Colour | Black (model: CH690 DIGITAL Black) |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX |
| Front I/O Ports | USB 3.0 × 2, USB Type-C × 1, Audio/Mic combo × 1 |
| Drive Bays | 3.5″ bays: 1; 2.5″ bays: 2 + 1 |
| Expansion Slots | 8 slots |
| Pre-Installed Fans | None (you supply your own) |
| Fan Support | Top: up to 3×120mm/3×140mm Side: up to 3×120mm/3×140mm Rear: 1×120mm/1×140mm Bottom (PSU shroud): up to 3×120mm/3×140mm |
| Radiator Support | Top: 120/140/240/280/360/420mm Side: 120/140/240/280mm Bottom: 120/240/360mm |
| CPU Cooler Height Limit | 182 mm |
| GPU Length Limit | 450 mm |
| Power Supply Type & Max Length | ATX PS2; maximum length 180 mm |
| Cable Management Clearance | 36.5 mm behind motherboard tray for cables |
With its generous internal volume and expansive component support, it’s built to house serious hardware—from high-end graphics cards to custom liquid cooling loops—while maintaining a sleek, modern aesthetic.
At the core of the Deepcool CH690 Digital Black Desktop Case is its massive compatibility: you can install GPUs measuring up to 450 mm, CPU coolers up to 182 mm tall, and compact ATX-PS2 power supplies up to 180 mm in length.
The frame supports Mini-ITX, Micro-ATX and full-size ATX motherboards, making it flexible for builders of all types.
The case uses high-quality materials—ABS, SPCC steel and tempered glass—to deliver both durability and premium appearance.
Cooling isn’t an afterthought: the Deepcool CH690 Digital Black Desktop Case supports a top-mounted radiator of up to 420 mm, side mounts up to 280 mm, and bottom radiator support up to 360 mm.
Fan support is extensive, allowing up to three 120/140mm fans in multiple locations, giving you full control over airflow and custom loop configurations.
Despite this thermally capable layout, the case ships without pre-installed fans, allowing builders to tailor cooling to their exact needs.
From an aesthetic perspective, the Deepcool CH690 Digital Black Desktop Case stands out.

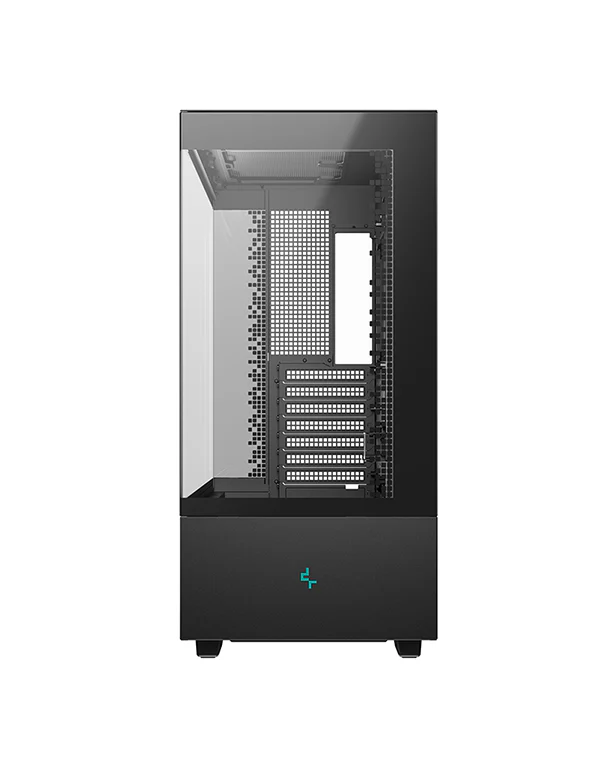

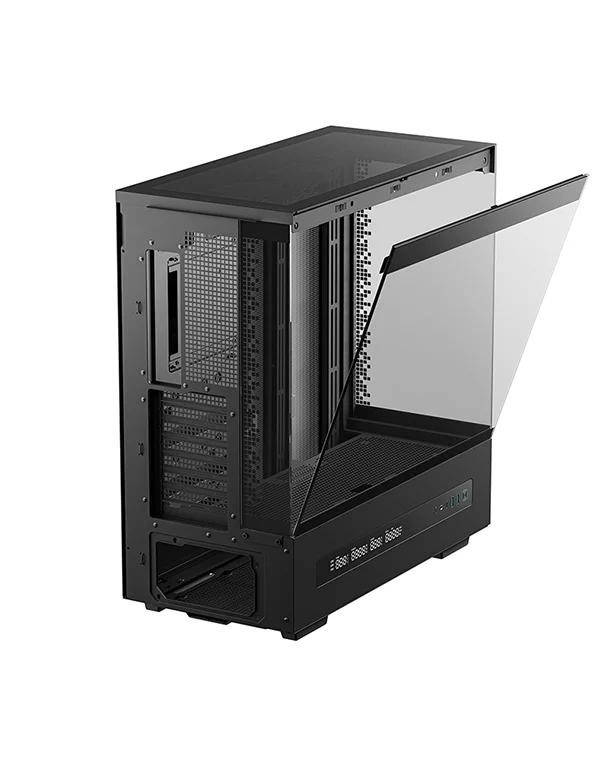

Large tempered glass panels on the front and side provide a full window into your build, making it ideal for showcasing RGB and custom components.
The front I/O panel offers modern connectivity with dual USB 3.0 ports, a USB Type-C port, and an audio/microphone combo jack.

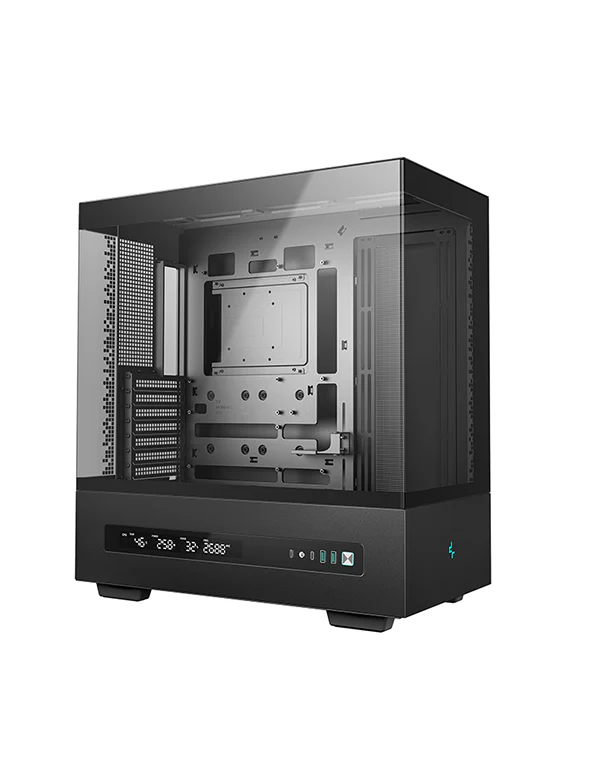

For enthusiasts who like to keep an eye on system performance, the built-in digital display offers real-time monitoring of CPU/GPU usage, temperatures and more.
When it comes to build convenience, the Deepcool CH690 Digital Black Desktop Case delivers thoughtful touches: a magnetic bottom dust filter for easy maintenance, 36.5 mm of cable-management space behind the motherboard tray for tidy routing, and a GPU support bracket to prevent sag over time.

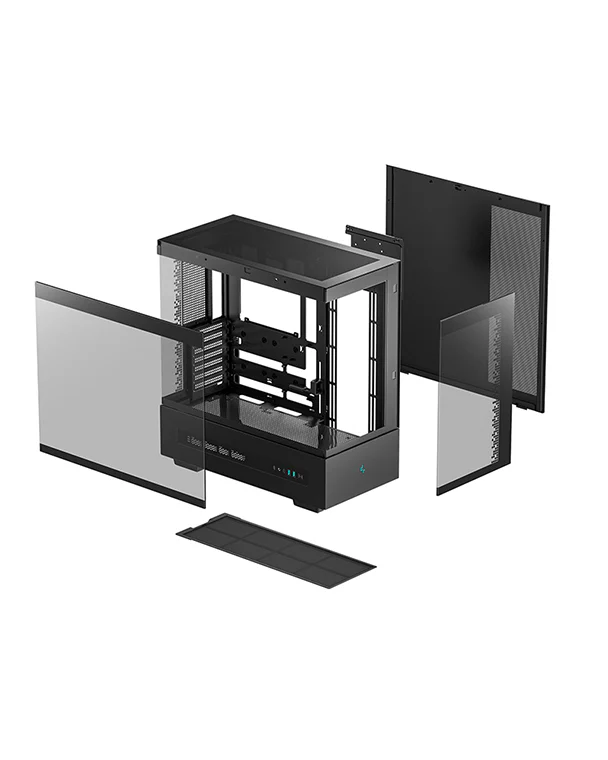

Plus, the side panel can be swapped for a mesh version if you prefer airflow over aesthetics.
The Deepcool CH690 Digital Black Desktop Case masterfully blends high-end features, striking visuals and versatile cooling potential, making it an excellent choice for modern PC builds that push the boundaries.
