About Deepcool CH270 Digital Black Desktop Case
| Category | Specification / Capability |
|---|---|
| Product Dimensions (L × W × H) | 296 × 225 × 486 mm |
| Net Weight | 5.8 kg |
| Materials / Panel | ABS plastic + SPCC steel + Tempered Glass side panel |
| Motherboard Support | Mini-ITX and Micro-ATX, including mATX boards with rear connector layout |
| Front I/O / Ports | 2 × USB 3.0 Type-A 1 × USB 3.2 Gen2 Type-C 1 × 3.5 mm audio/mic combo jack |
| Drive Bays | 1 × 3.5″ bay 1 × 2.5″ bay |
| Expansion Slots | 4 full-height slots |
| Pre-installed Fans | None (no fans come stock) |
| Fan Support / Layout | Top: 2 × 120 mm Side: 3 × 120 mm or 2 × 140 mm Bottom: 1 × 120 mm |
| Radiator / AIO Support | Side: 120 / 240 / 360 mm Bottom: 120 mm Front / Rear: not supported for liquid cooling |
| CPU Cooler Height Limit | 174 mm |
| GPU / Graphics Card Clearance | Up to 388 mm (standard) Up to 413 mm if top fans are absent or removed |
| Power Supply / PSU Compatibility | ATX PS2 standard (not SFX), up to 150 mm in length |
| Additional Features / Design Highlights | Wraparound mesh / perforated surfaces for enhanced airflow Digital display bar at the base showing system stats (CPU / GPU / PSU) Four removable dust filters for easy cleaning Four independent and reusable PCIe baffles Tool-free top panel access |

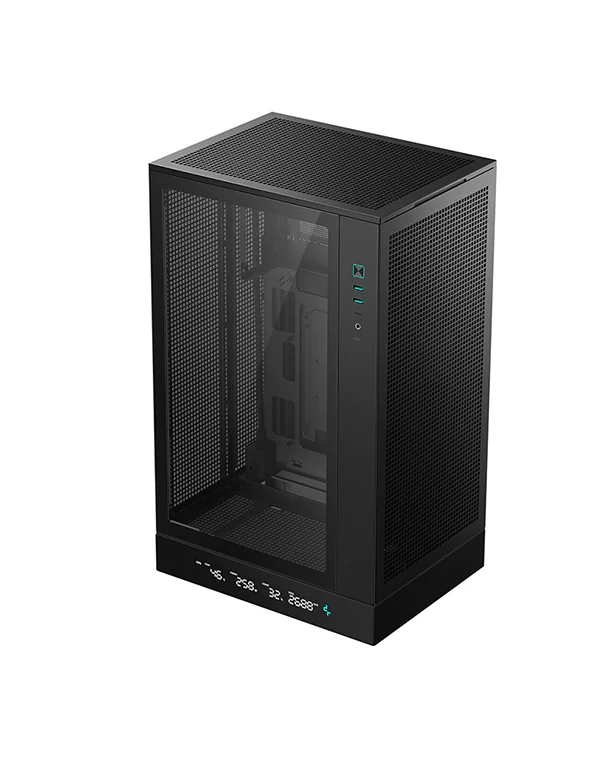

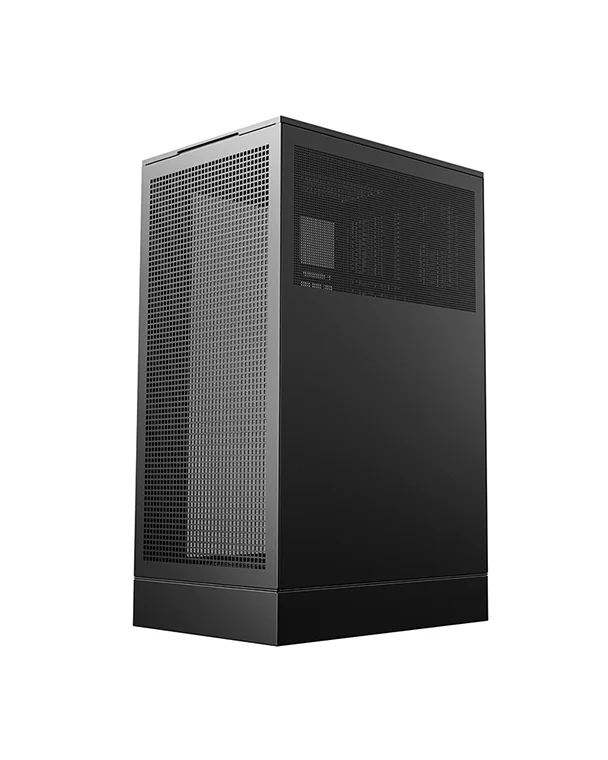

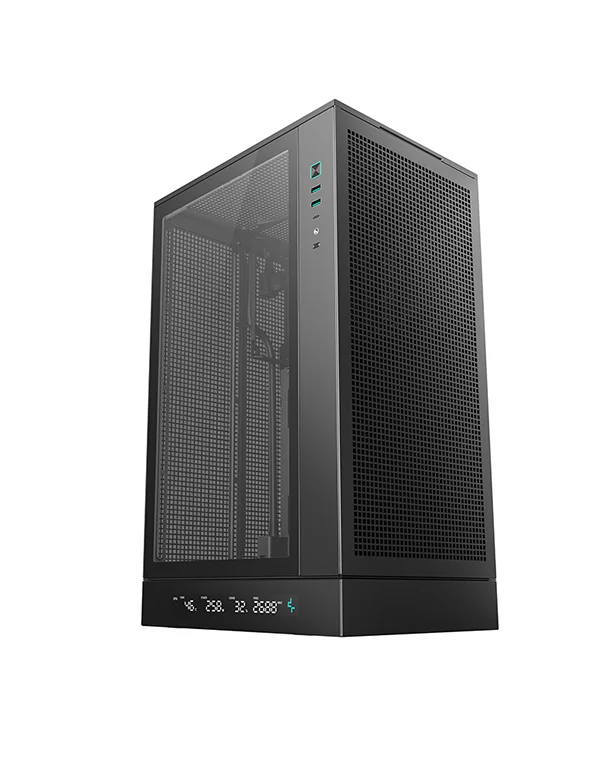

Measuring 296 × 225 × 486 mm and weighing around 5.8 kg, Deepcool CH270 Digital Black Desktop Case combines a compact footprint with robust internal support.
Its ABS + SPCC + tempered glass construction gives a refined look while remaining sturdy.
One of its standout features is the digital display bar integrated at the base.
This data screen cycles through vital metrics—CPU, GPU, or PSU stats—drawn from internal sensors via USB.
Builders and users can glance at system loads, temperatures, power usage, or fan speeds without needing additional software.
This “Digital” branding is more than a name—it’s a core functional differentiator.
The vertical layout is optimized for space savings: it leans upward rather than deep, making it ideal for desktops where depth is premium.
Yet it still supports full hardware configurations.

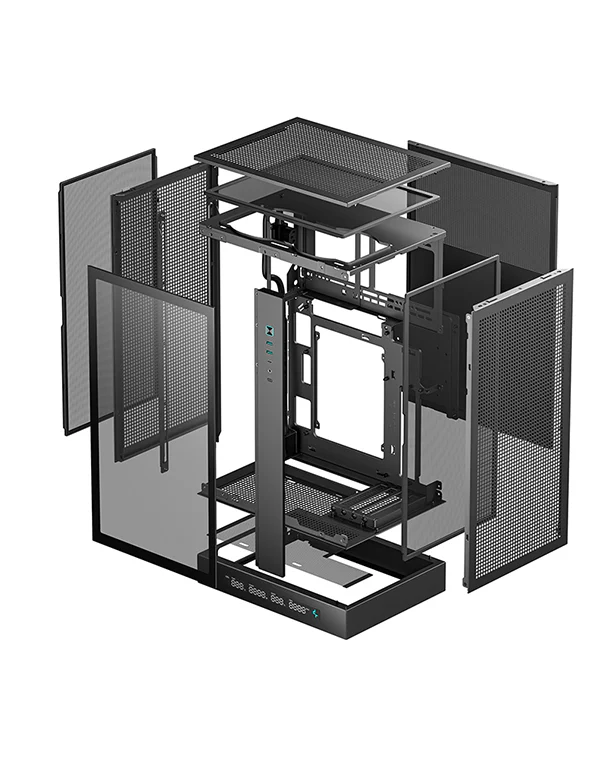

The airflow design is aggressive: wraparound mesh surfaces channel cool air in from side / front surfaces, while multiple fan mounting options (2 top, 3 side, 1 bottom) handle exhaust and intake.
Liquid cooling is equally supported via side-mounted radiators up to 360 mm or a bottom 120 mm unit.
For component compatibility, the Deepcool CH270 Digital Black Desktop Case is well-equipped. It supports GPUs up to 388 mm in length (which rises to 413 mm if top fans are omitted), and CPU towers up to 174 mm in height.
Deepcool CH270 Digital Black Desktop Case also supports standard ATX PS2 power supplies up to 150 mm in length.

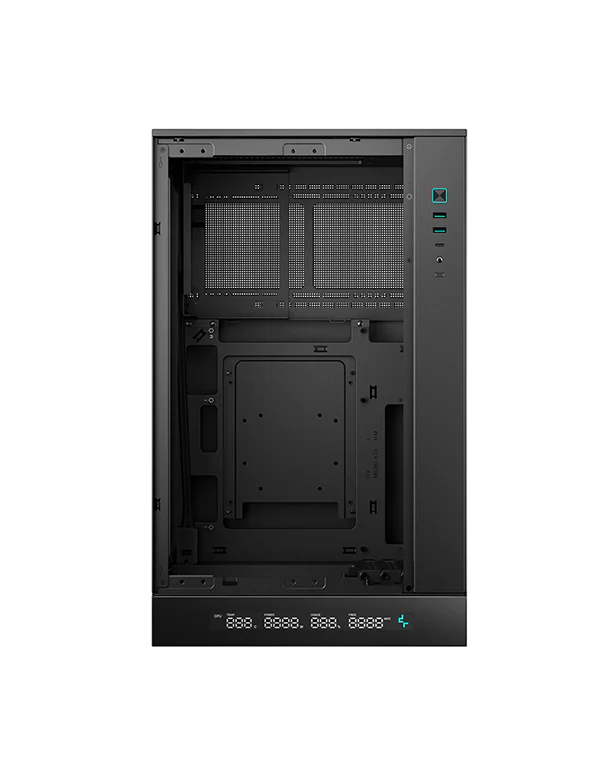

The Deepcool CH270 Digital Black Desktop Case layout allows Micro-ATX motherboards with rear connector I/O to fit cleanly thanks to added backplane clearance.
On the usability front, it features four removable dust filters for easy cleaning, reusable PCIe slot covers, and tool-free top panel access to streamline installation.
The tempered glass side panel presents internal components elegantly, while the sturdy frame ensures durability.
The Deepcool CH270 Digital Black Desktop Case steps up from smaller digital cases by offering increased component flexibility, enhanced cooling support, and intelligent monitoring features—all packaged in a sleek, vertical design.
For users who want a compact but fully capable system with real-time metrics at a glance, this case delivers both performance and visual sophistication.
