About Deepcool CH260 White Mid Tower Cabinet
| Category | Specification / Capability |
|---|---|
| Product Dimensions (L × W × H) | 438 × 225 × 312.5 mm |
| Net Weight | 5.3 kg |
| Materials / Construction | ABS plastic + SPCC steel + tempered glass side panel |
| Motherboard Support | Mini-ITX, Micro-ATX, and Micro-ATX rear connector types |
| Front I/O / Ports | USB 3.0 × 2, USB 3.2 Gen2 Type-C × 1, Audio/Mic combo jack × 1 |
| Drive Bays | 3.5″: 1 2.5″: 1 |
| Expansion Slots | 4 slots |
| Pre-installed Fans | None (no fans come pre-installed) |
| Fan Support / Layout | Front: 2 × 120 mm Top: 3 × 120 mm or 2 × 140 mm Rear: 1 × 120 mm |
| Radiator / AIO Support | Front: not supported Top: 120 / 240 / 360 mm Rear: 120 mm Bottom: none |
| CPU Cooler Height Limit | 174 mm |
| GPU / Graphics Card Limit | Up to 388 mm length with front fans Up to 413 mm if front fans removed |
| Power Supply Type & Limit | Accepts ATX PS2 type, up to 150 mm in length |
| Additional Design / Features | Full wraparound mesh panels (front + top) to maximize airflow Tempered glass side panel to showcase components Backplane clearance of ~ 29.6 mm for rear connector motherboard support Three removable dust filters for maintenance PCIe baffles reusable and independent for easy removal Tool-free front panel access for ease of building |

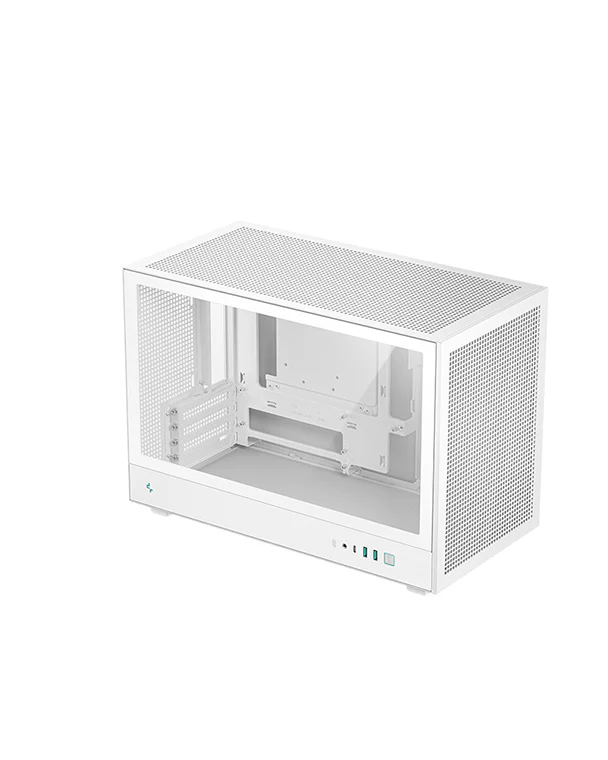

With its crisp white exterior, tempered glass side panel, and highly perforated mesh surfaces, it presents a striking and functional option for builders who want both form and function.
Measuring 438 × 225 × 312.5 mm and weighing approximately 5.3 kg, the Deepcool CH260 White Mid Tower Cabinet is compact but doesn’t shy away from hardware support.

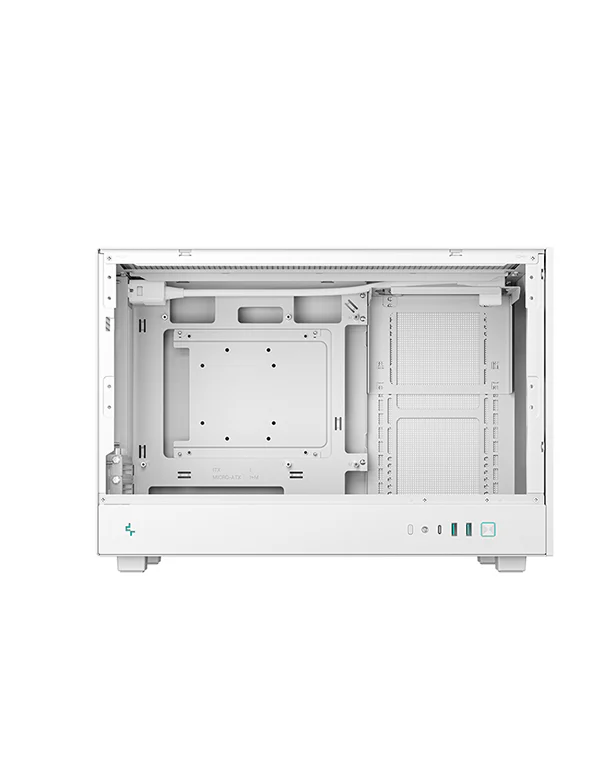

Inside, the Deepcool CH260 White Mid Tower Cabinet supports Mini-ITX and Micro-ATX motherboards, including those with rear connector layouts.
Thanks to the ~29.6 mm backplane clearance, the case accommodates boards with back I/O configurations without interfering with cables or obstructing airflow.

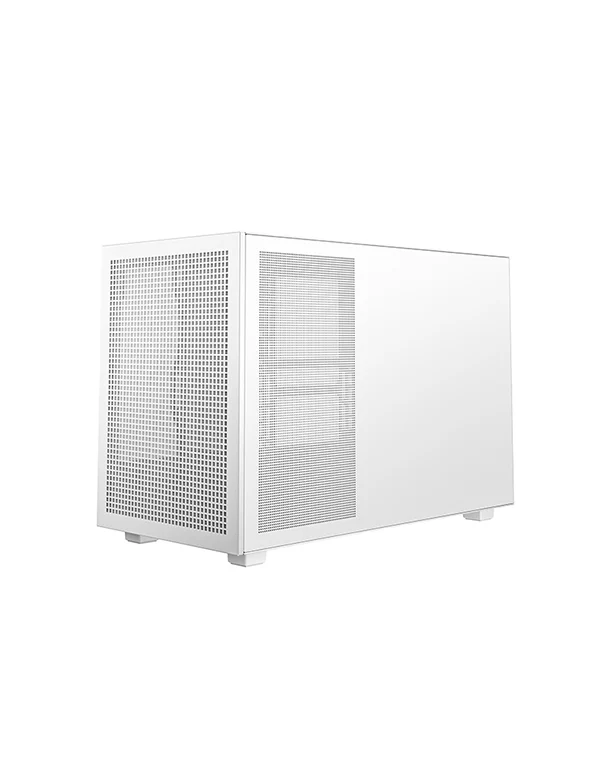

The thermal strategy of this case is centered around maximum airflow.
The front and top panels are fully meshed to let in fresh air from all directions, while an interior layout supports up to six 120 mm fans (2 front, 3 top, 1 rear) or alternate configurations using 140 mm fans on top.
For liquid cooling, the Deepcool CH260 White Mid Tower Cabinet supports up to a 360 mm radiator at the top and a 120 mm at the rear, giving flexibility for performance-focused cooling setups.
Air cooling is well catered for too, with compatibility for CPU towers up to 174 mm in height.
For graphics card enthusiasts, the Deepcool CH260 White Mid Tower Cabinet offers generous clearance: with front fans in place, it supports GPUs up to 388 mm; removing front fans increases that limit to 413 mm.
This makes installation of large triple-fan or high-end GPUs viable even in a compact footprint.
The front I/O panel is modern and well-equipped, providing two USB 3.0 Type-A ports, a USB 3.2 Gen2 Type-C port, and a combined audio/microphone jack, giving both legacy and next-gen connectivity.
Internally, there is room for a 3.5″ drive and a 2.5″ drive, alongside four PCIe expansion slots to support full-sized components.

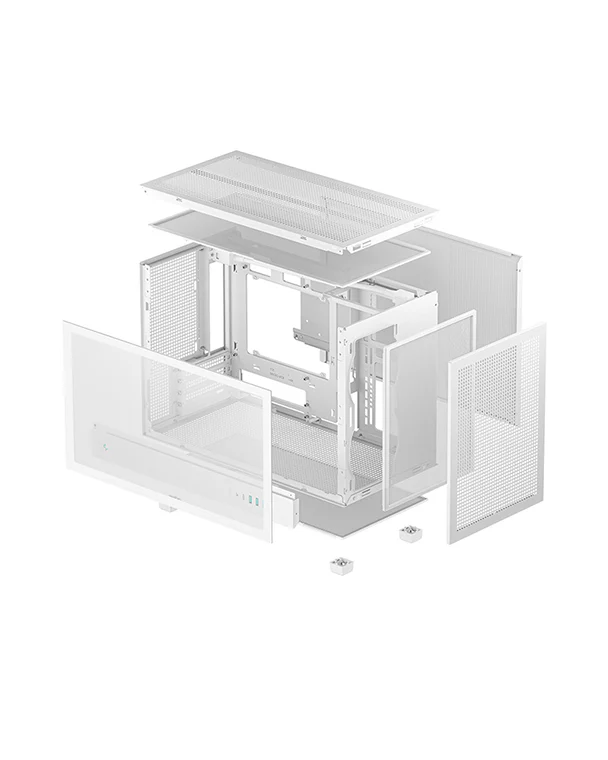

Build experience and maintenance are simplified with tool-free access to the front panel, reusable PCIe slot baffles, and three removable dust filters to keep internals clean.

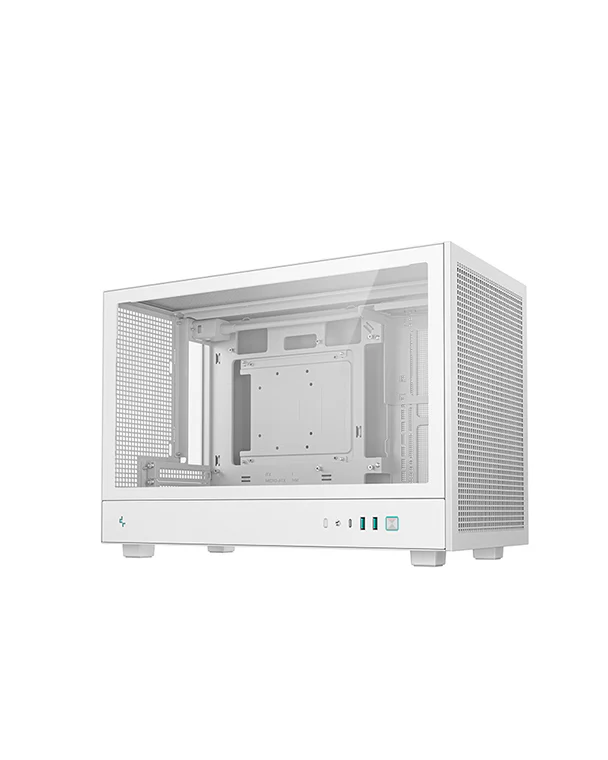

The tempered glass side panel lets you showcase internal components, while the sturdy ABS + SPCC + tempered glass construction ensures durability.
In essence, the Deepcool CH260 White Mid Tower Cabinet stands as a versatile and stylish compact mid-tower (or “compact mATX”) case that punches above its weight.
It offers excellent thermal design, compatibility for modern hardware, and a clean white aesthetic to complement both performance and design consciousness.
