About Deepcool CH160 White Mid Tower Cabinet
| Category | Specification Detail |
|---|---|
| Model / Variant | CH160 WH (white color version) |
| Case Type / Target | Mini-ITX, high-airflow small form factor case |
| External Dimensions | 336 mm (Length) × 200 mm (Width) × 283.5 mm (Height) |
| Net Weight | 3.3 kg |
| Material Construction | ABS plastic, SPCC steel, tempered glass panel(s) |
| Motherboard Support | Mini-ITX only |
| CPU Cooler Height Support | Up to 172 mm |
| Graphics Card (GPU) Support | Length up to 305 mm (with SFX / SFX-L PSU) If ATX PSU is used, GPU length limit ~230 mm Height limit 138 mm, width up to 65 mm (3 slots) |
| Power Supply Options | Supports ATX PS/2 (max length 140 mm), SFX, SFX-L |
| Fan / Cooling Support | Front: 1 × 120 mm (or used for drive bay) Top: 2 × 120 mm Rear: 1 × 120 mm No official support for radiators / AIOs in the stock configuration |
| Pre-Installed Fans | None (ships without fans) |
| Drive Bays / Storage Options | 1 bay that can serve either 3.5″ HDD or 2.5″ SSD (or front fan) 1 dedicated 2.5″ SSD bay |
| Expansion Slots | 3 slots (for GPU / PCIe use) |
| Front I/O / Connectivity | 2 × USB 3.0 ports, 1 × Gen2 Type-C, audio in/out jack(s) |
| Other Features / Design | High-airflow mesh panels on multiple sides to boost ventilation Carry handle on top for portability Removable fan brackets for ease of installation Three removable dust filters for ease of cleaning |
Despite its small footprint—measuring only 336 × 200 × 283.5 mm—the Deepcool CH160 White Mid Tower Cabinet packs thoughtful design choices to accommodate powerful hardware without compromising thermal performance.
With a net weight of just about 3.3 kg, the case is lightweight for its class, and its built-in handle simplifies carrying between LAN events or for mobile builds.
One of the standout qualities of the CH160 WH is its flexible accommodation of larger components uncommon in many small form factor cases.
Deepcool CH160 White Mid Tower Cabinet supports air coolers up to 172 mm tall, which allows high-end tower coolers to be installed even in this compact space.
For graphics cards, the Deepcool CH160 White Mid Tower Cabinet accepts lengths up to 305 mm when paired with SFX or SFX-L power supplies.
However, if an ATX PS/2 unit is used, the GPU length is limited to around 230 mm.
For GPU height and width, it supports up to 138 mm tall and fits within 65 mm width (i.e. 3 PCIe slots).
These generous allowances enable many mainstream GPUs to be installed without major compromises.

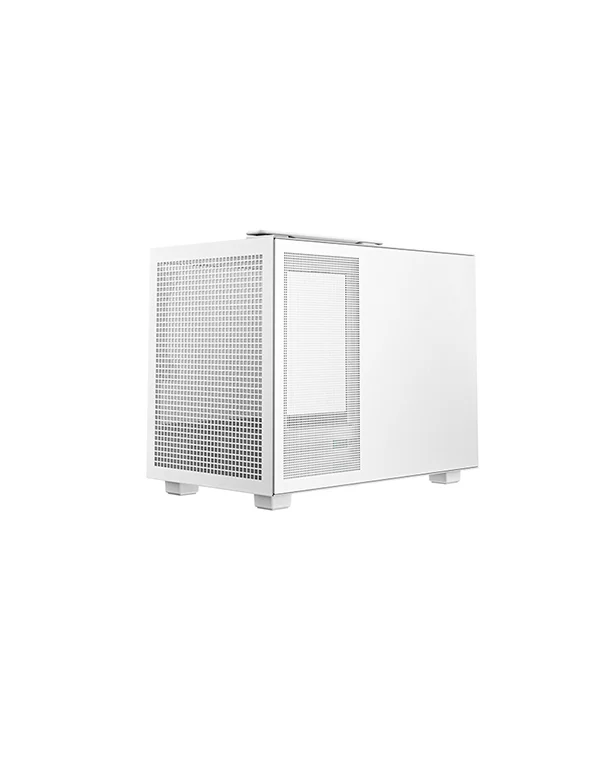

Cooling is addressed through mesh panels on multiple sides, enabling efficient airflow in and out of the Deepcool CH160 White Mid Tower Cabinet.
Rear and top fan mounts complement this design, while a front fan or drive bracket arrangement allows tradeoffs between airflow and storage in the Deepcool CH160 White Mid Tower Cabinet.
That said, the Deepcool CH160 White Mid Tower Cabinet ships without any fans installed, so you’ll need to source your own to match your thermal needs.
Storage options are modest but practical: a versatile front bay that can hold either a 3.5″ HDD, a 2.5″ SSD, or a fan, plus a dedicated 2.5″ SSD bay elsewhere.
Expansion is limited to three PCIe slots, which is typical for an ITX chassis.
In terms of connectivity, the Deepcool CH160 White Mid Tower Cabinet offers a modern front I/O layout: two USB 3.0 ports, one Gen2 Type-C, and an audio jack.

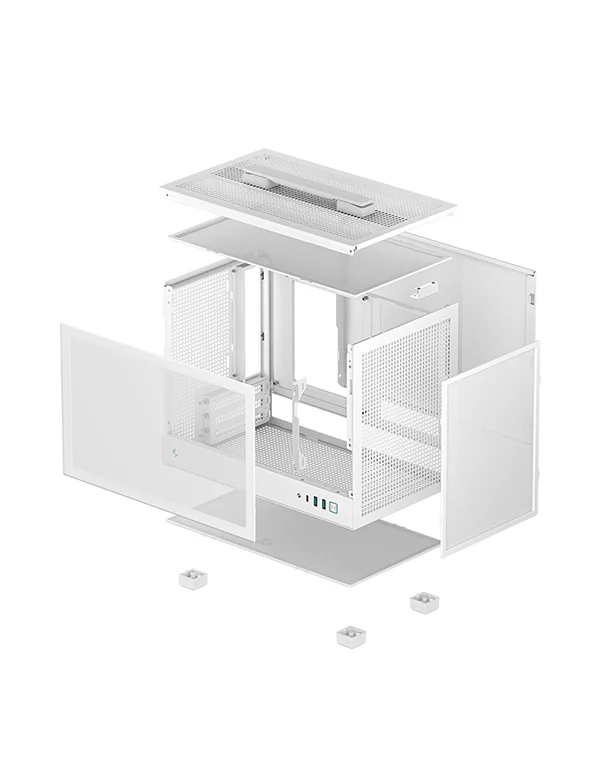

Its modular fan brackets and removable dust filters make component installation and maintenance relatively hassle-free.
Overall, the Deepcool CH160 White Mid Tower Cabinet is an appealing choice for builders seeking to balance portability with performance.
For users who prioritize a compact build without sacrificing airflow or component compatibility, this case offers a compelling mix of features.
It is particularly well suited for high-performance Mini-ITX builds where mobility and cooling are both priorities.
