About Deepcool CG580 WH Mid Tower Cabinet
| Category | Specification / Detail |
|---|---|
| Model | CG580 WH (White version) |
| Case Type / Layout | Mid Tower, single-chamber / panoramic design with tempered glass front & side, no A-pillar for unobstructed view |
| Materials | ABS + SGCC (steel) + Tempered Glass |
| Net Weight | 7.9 kg |
| Motherboard Support | ITX / Micro-ATX / ATX (rear connector compatibility) |
| Front I/O Ports | USB 3.0 × 2, Hybrid audio (mic + audio), Power, Reset |
| Drive Bays | 3.5″: 2 bays; 2.5″: 2 + 1 (extra mount) |
| Expansion Slots | 7 slots |
| Pre-Installed Fans | None in base WH version |
| Fan Support | Top: 3×120 / 2×140 mm; Side: 3×120 mm; Rear: 1×120 / 1×140 mm; Bottom: 1×120 mm or 3.5″ HDD position; PSU shroud: 2×120 mm |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360 mm; Side: 120 / 240 / 360 mm; Rear: 120 / 140 mm |
| GPU Clearance | Up to 410 mm; if side radiator + fan installed, limited to ~262 mm |
| CPU Cooler Height Limit | 176 mm |
| PSU Compatibility / Length Limit | ATX PS2 / standard ATX, up to 210 mm length |
| Cable Management | ~33 mm of cable routing space behind the tray |
| Dust / Filter Features | Magnetic top filter; dust filters for top and bottom for easy cleanin |
| Design / Aesthetic | Panoramic tempered glass (front & side), single-chamber layout, minimal structural obstructions for viewing components |

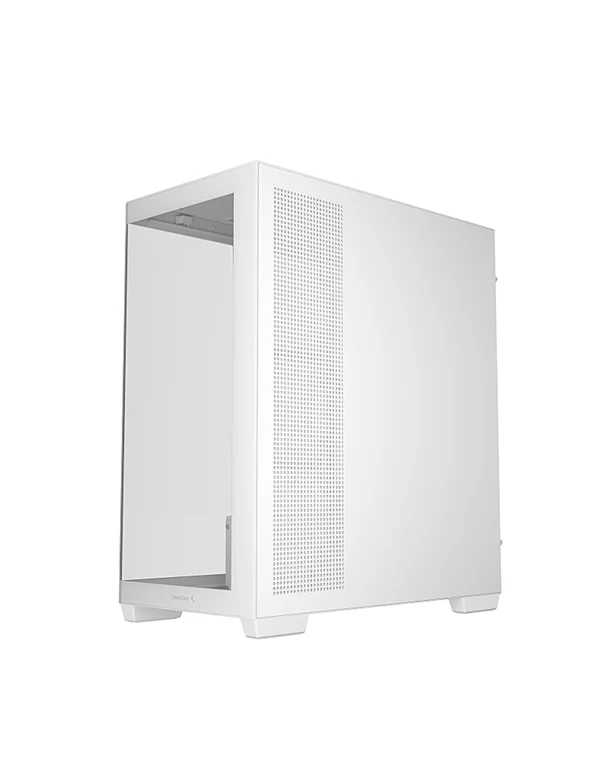

Finished in white, Deepcool CG580 WH Mid Tower Cabinet features a panoramic tempered glass frontage and side, allowing your build to be showcased without distraction.
By removing the typical A-pillar between front and side panels, the view remains clean and uninterrupted, making it ideal for RGB or high-end hardware displays.

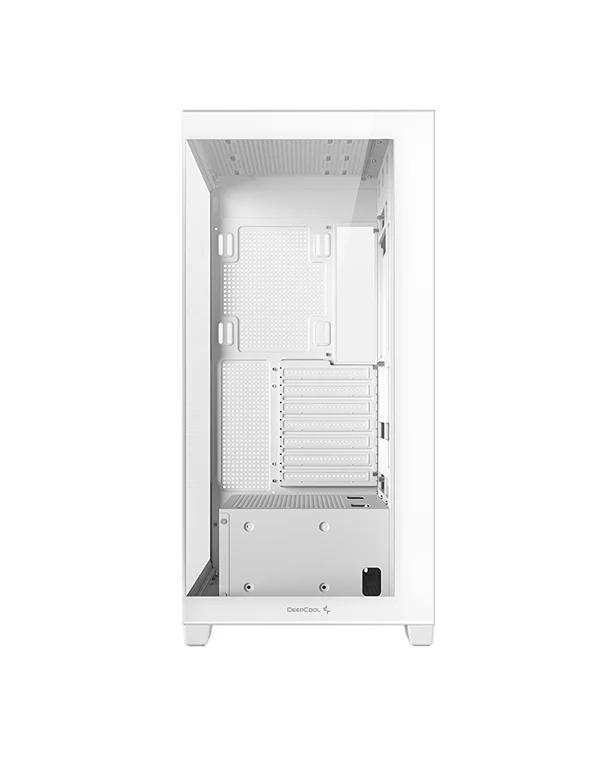

Internally, the Deepcool CG580 WH Mid Tower Cabinet maintains a single-chamber layout, which maximizes usable space and eases component installation.
The blueprint supports standard motherboard sizes (ITX, Micro-ATX, ATX) and leaves ample room for large graphics cards up to 410 mm in length.
However, if you mount side radiators and fans, that clearance reduces to about 262 mm.
The CPU cooler height limit is 176 mm, sufficient for many performance air coolers.
Cooling flexibility is one of its strengths.
You can mount radiators up to 360 mm on the top or side, and the Deepcool CG580 WH Mid Tower Cabinet accommodates multiple fan mounts: top (3×120 or 2×140 mm), side (3×120 mm), rear (120/140 mm), and bottom (120 mm or HDD).
While the WH version doesn’t include pre-installed fans, its design is ready for custom fan setups.

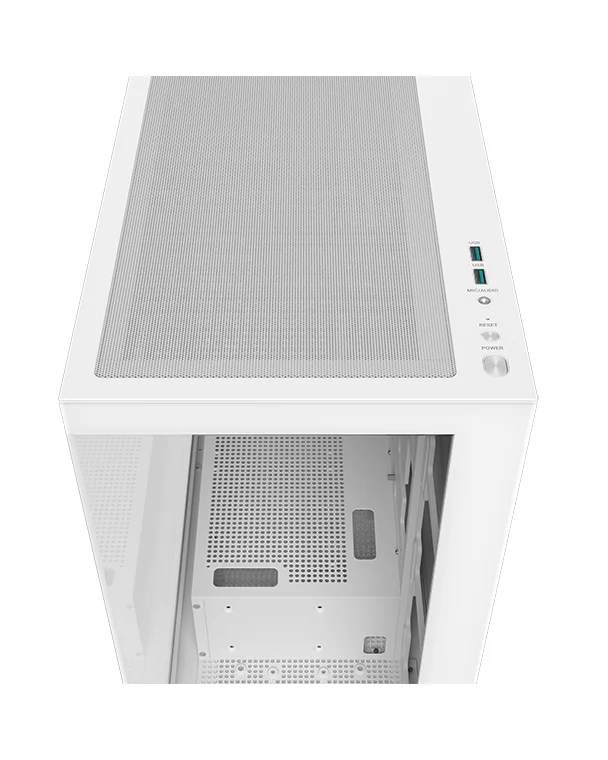

Dust control is handled via magnetic filters on the top and filters at the bottom intake.
Cable management behind the motherboard tray is aided by ~33 mm of routing space, which helps produce clean builds and good airflow.
The Deepcool CG580 WH Mid Tower Cabinet delivers aesthetic appeal, expandability, and cooling versatility.
