About Deepcool CG580 Black Cabinet
| Specification Category | Detailed Description |
|---|---|
| Model / Name | Deepcool CG580 (Black, Panoramic ATX) |
| Case Layout / Design | Single-chamber panoramic design with uninterrupted tempered glass front and side, lacking a front A-pillar to offer a clearer view of the internal build |
| Motherboard Compatibility | ITX, Micro-ATX, ATX (support for motherboards with back connectors, including those from ASUS / MSI) |
| Drive / Storage Bays | 2 × 3.5″ HDD bays (bottom) 2 + 1 × 2.5″ SSD bays (versatile mounting) |
| Expansion Slots | 7 standard PCIe expansion slots |
| Component Clearances | GPU: up to 410 mm (but if side radiator + fan set is used, restricts GPU to ~ 262 mm) CPU cooler height: up to 176 mm PSU length: up to 210 mm |
| Cooling / Fan Support | No fans pre-installed (users must supply fans) Maximum fan mounting: Top: 3 × 120 mm or 2 × 140 mm Side: 3 × 120 mm Rear: 1 × 120 mm or 1 × 140 mm Bottom: 1 × 120 mm (or 3.5″ HDD) PSU shroud: 2 × 120 mm Radiator support: Top: 120 / 140 / 240 / 280 / 360 mm Side: 120 / 240 / 360 mm Rear: 120 / 140 mm |
| I/O Panel | Two USB 3.0 ports, hybrid audio jack, power and reset buttons located at top I/O |
| Dust / Filters | Magnetic top dust filter to prevent dust ingress and ease cleaning |
| Materials & Construction | Made of ABS + SGCC (steel) body, tempered glass panels for front and side faces |
| Dimensions & Weight | 437 × 235 × 501 mm (L × W × H) Net weight: 7.9 kg |
| Other / Notable Features | 33 mm of cable management space behind motherboard tray Motherboard tray designed to accommodate backs of motherboard connectors (for cleaner cable runs) Supports vertical GPU mounting via bracket (on vertical GPU compatibles) Unobstructed interior view (no front pillar between glass panels) for cleaner aesthetics |

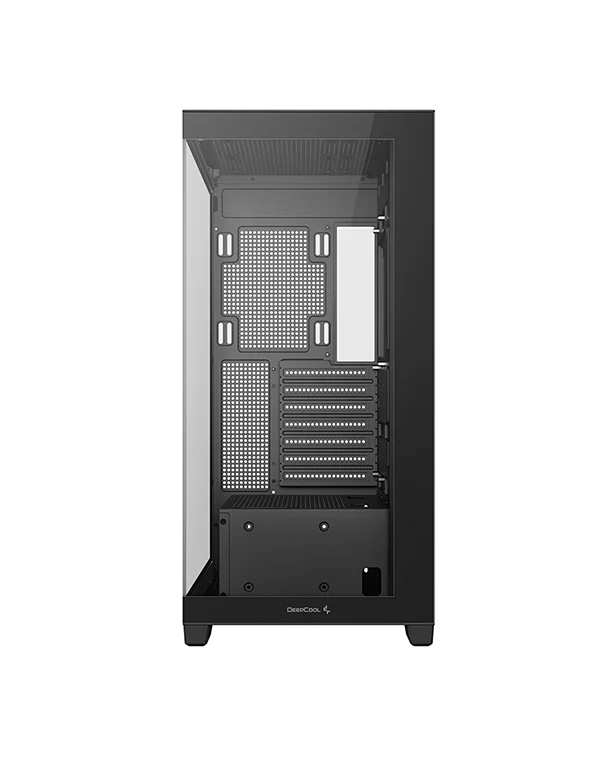

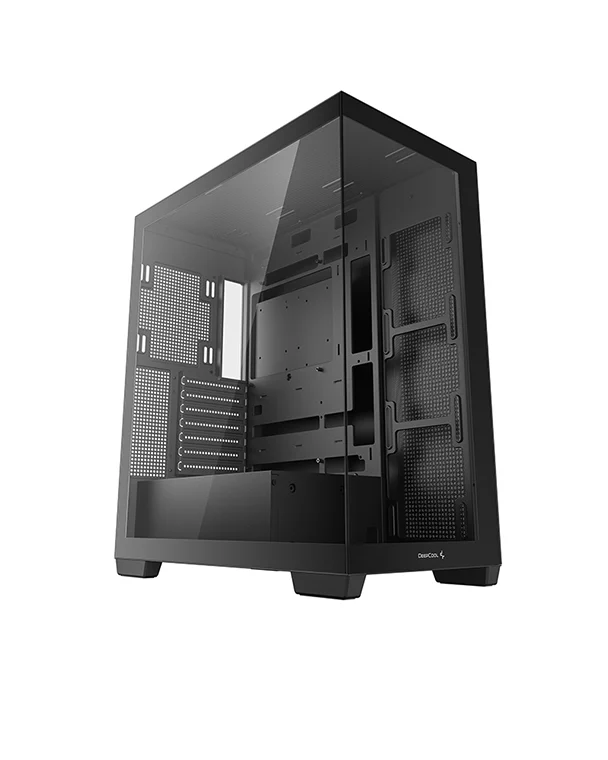

With tempered glass panels on the front and side, and no obstructing A-pillar, it offers an expansive and unobstructed view into your system—ideal for enthusiasts and modders who wish to showcase internal components and RGB setups.
Construction is robust, combining ABS and steel (SGCC) with tempered glass to balance durability and visual flair.
Despite its elegant appearance, the interior is engineered for practicality.
The Deepcool CG580 Black Cabinet supports standard ATX, Micro-ATX, and ITX motherboards, and allows generous clearances: GPUs up to 410 mm long (though reduced to ~262 mm if side radiator + fans are mounted), CPU coolers up to 176 mm tall, and PSUs up to 210 mm.
The layout is single chamber, giving full visibility to all components, and the motherboard tray includes ~33 mm behind for cable routing, with wiring cutouts to keep the interior uncluttered.
Cooling flexibility is a strong point.
Though it ships without fans, the Deepcool CG580 Black Cabinet can host up to nine 120 mm fans (in top, side, rear, bottom, and PSU shroud positions).
Radiator options are extensive: up to 360 mm on top and side, and up to 140 mm at the rear.
This allows substantial options for liquid or air cooling configurations.
A magnetic top dust filter helps to reduce maintenance hassle by keeping dust out while enabling easy cleaning.

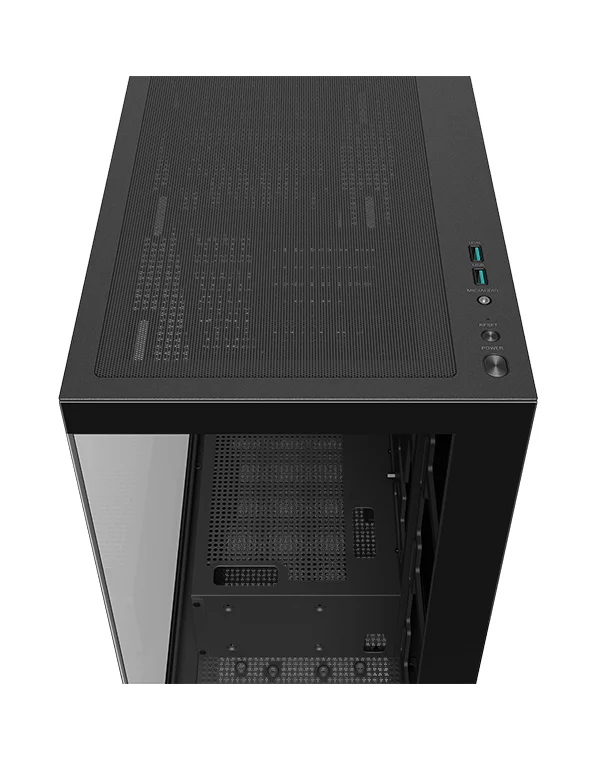

I/O features include two USB 3.0 ports, a hybrid audio jack, and standard power/reset buttons centrally placed.
The Deepcool CG580 Black Cabinet supports vertical GPU mounting if desired, which can enhance visual presentation in builds.
All told, the Deepcool CG580 Black Cabinet is a premium, display-oriented enclosure that pairs structural capability with aesthetic emphasis, offering both flexibility for high-performance hardware and showmanship for visually driven builds.
