About Deepcool CG530 WH ATX Mid Tower Cabinet
| Feature / Parameter | Specification |
|---|---|
| Model / Variant | CG530 WH (White) |
| Case Type / Layout | ATX Mid Tower, dual-chamber design |
| Dimensions (L × W × H) | 440 × 285 × 399 mm |
| Net Weight | 6.5 kg |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Compatibility | ITX / Micro-ATX / ATX (rear connector style) |
| Expansion Slots | 7 slots |
| 3.5″ Drive Bays | 2 bays |
| 2.5″ Drive Bays | 2 + 1 (i.e. 3 total) |
| Cooling / Fan Support | Top: 3 × 120 mm or 2 × 140 mm Side: 3 × 120 mm or 2 × 140 mm Rear: 1 × 120 mm Bottom: up to 3 × 120 mm (various layouts) |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360 mm Side: 120 / 140 / 240 / 280 mm Bottom: 120 / 240 / 360 mm |
| CPU Cooler Height Clearance | Up to 160 mm |
| GPU Length Limit | 410 mm |
| Power Supply Type / Max Length | ATX PS2, up to 210 mm |
| Front I/O Ports | USB 3.0 × 2, USB 2.0 × 1, Audio/Mic combo |
| Pre-installed Fans | None (stock version has no fans included) |
| Special / Additional Features | Pillar-less / seamless tempered glass front and side, 45 mm cable space behind tray, magnetic dust filters (top & bottom), dual chamber isolation, rear connector motherboard support |

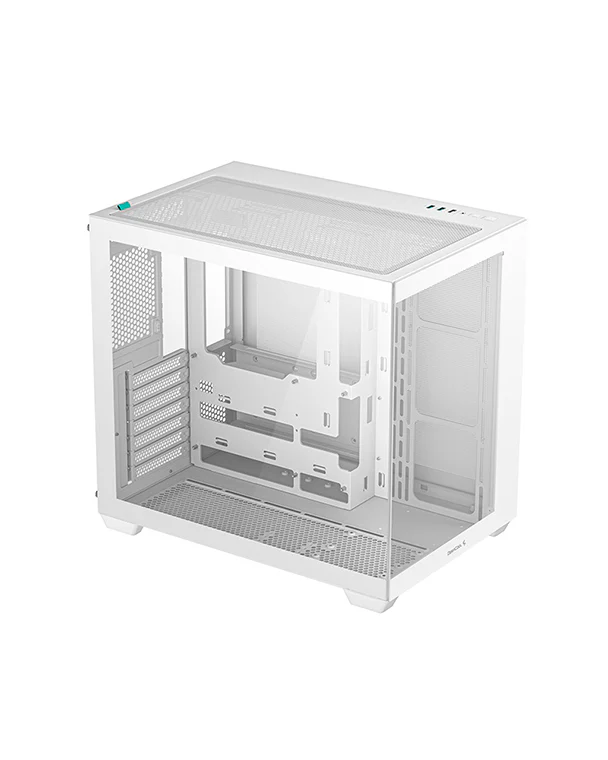

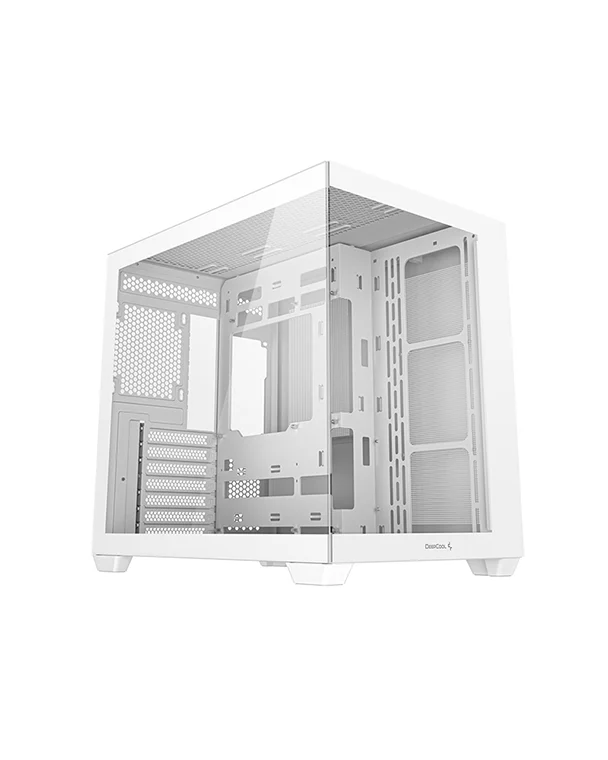

Its standout trait is the panoramic, pillar-less tempered glass design for both the front and side panels, enabling a fully unobstructed view into the interior.
This is ideal for users who want to showcase RGB components, custom loops, or simply a clean, visual presentation.

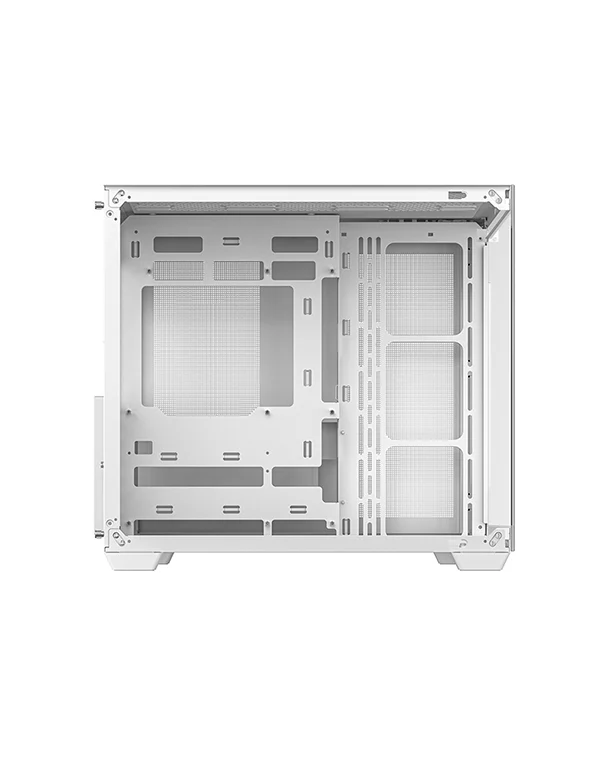

Internally, the dual-chamber architecture of the Deepcool CG530 WH ATX Mid Tower Cabinet gives it an advantage in keeping clutter hidden: the PSU and storage drives are tucked away in a separate section, allowing the main compartment to stay focused on the motherboard, GPU, and cooling gear.
The Deepcool CG530 WH ATX Mid Tower Cabinet supports full-sized ATX boards as well as smaller form factors, and provides 7 expansion slots for flexibility.
Cooling is well catered to — you can mount radiators in multiple zones (top, side, bottom) and fans in nearly every accessible surface.
Despite its extensive support, in the stock (non-4F) version it ships without any fans, giving builders freedom to choose their cooling setup.
Cable routing is aided by generous wiring space (~45 mm) behind the tray and magnetic filters on top and bottom panels to ease dust control.
With capacity for a 410 mm GPU, 160 mm CPU cooler, and a 210 mm PSU, the Deepcool CG530 WH ATX Mid Tower Cabinet balances aesthetics and functional support.
It’s a strong option for users who want a visually appealing white-themed showcase case without sacrificing expandability or cooling capability.
