About Deepcool CG530 4F WH ATX Mid Tower
| Feature / Parameter | Specification |
|---|---|
| Model / Variant | CG530 4F WH (White) |
| Case Type / Layout | ATX Mid Tower, dual-chamber design |
| Dimensions (L × W × H) | 440 × 285 × 399 mm |
| Material / Build | ABS + SPCC + Tempered Glass |
| Motherboard Support | ITX / Micro-ATX / ATX |
| Expansion Slots | 7 Slots |
| 3.5″ Drive Bays | 2 bays |
| 2.5″ Drive Bays | 2 + 1 (i.e. 3 total) |
| Cooling / Fan Support | Top: 3 × 120 mm or 2 × 140 mm Side: 3 × 120 mm or 2 × 140 mm Rear: 1 × 120 mm Bottom: up to 3 × 120 mm (with HDD / SSD arrangements) |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360 mm Side: 120 / 140 / 240 / 280 mm Bottom: 120 / 240 / 360 mm |
| CPU Cooler Height Clearance | Up to 160 mm |
| Maximum GPU Length | 410 mm |
| Power Supply / Max Length | ATX PS2, up to 210 mm |
| Front / Top I/O Ports | 2 × USB 3.0, 1 × USB Type-C (Gen2), Audio / Mic, LED / Power / Reset buttons |
| Pre-installed Fans | 4 × 120 mm ARGB: 3 reverse-blade on side, 1 standard exhaust on rear |
| Dust Filters & Cable Management | Magnetic dust filters (top, bottom), ~45 mm behind-tray clearance for wiring |
| Special / Extra Features | Pillar-less / seamless tempered glass front and side, dual-chamber layout, rear connector board support, reusable PCIe slot covers, ARGB lighting control hub |
Its dimension is 440 × 285 × 399 mm, and it weighs approximately 7.0 kg, making it a robust midtower option for most modern builds.

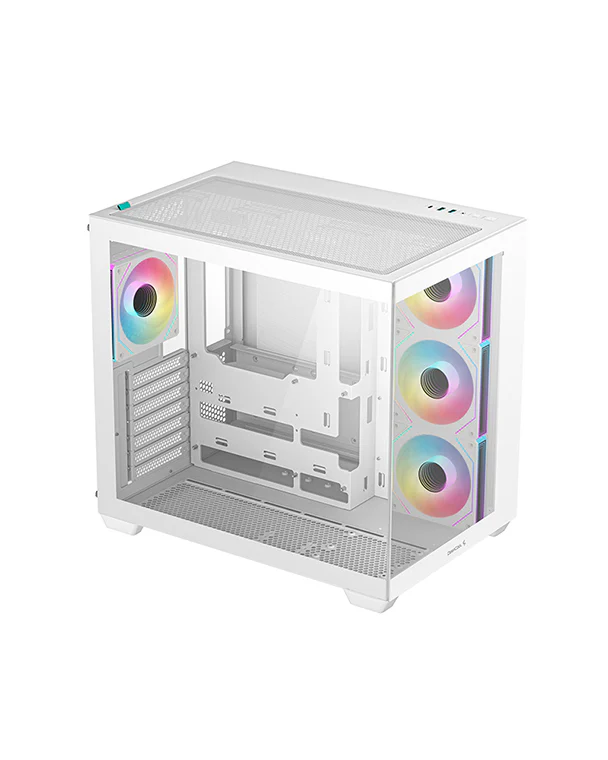

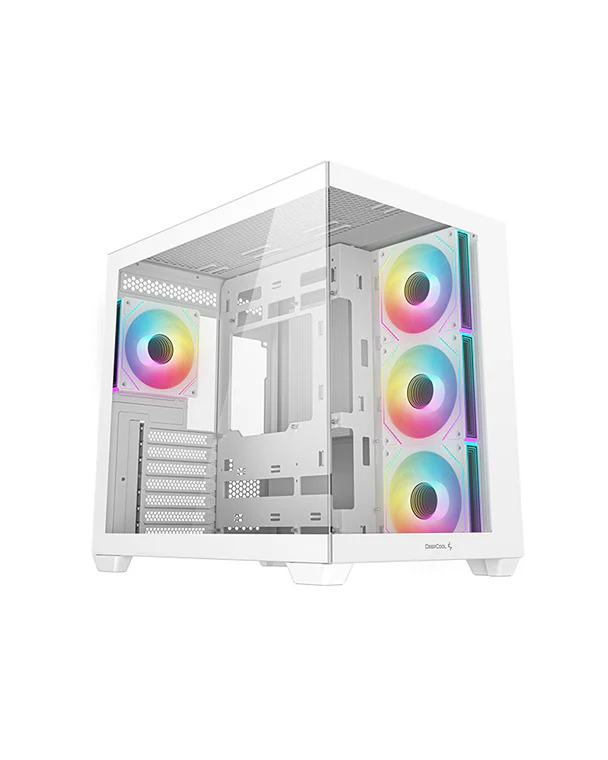

What sets this variant apart is its inclusion of four ARGB 120 mm fans pre-installed (three reverse-blade on the side, one standard exhaust at the rear), offering both cooling and visual flair immediately after purchase.
This is ideal for users who don’t want to source fans separately.

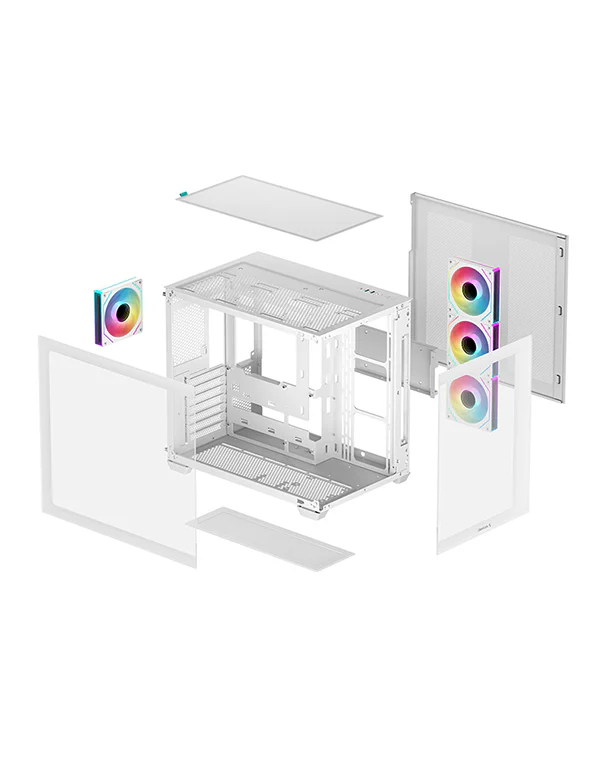

Its design features seamless, pillar-less tempered glass panels on both the front and side, delivering unobstructed views into your build.

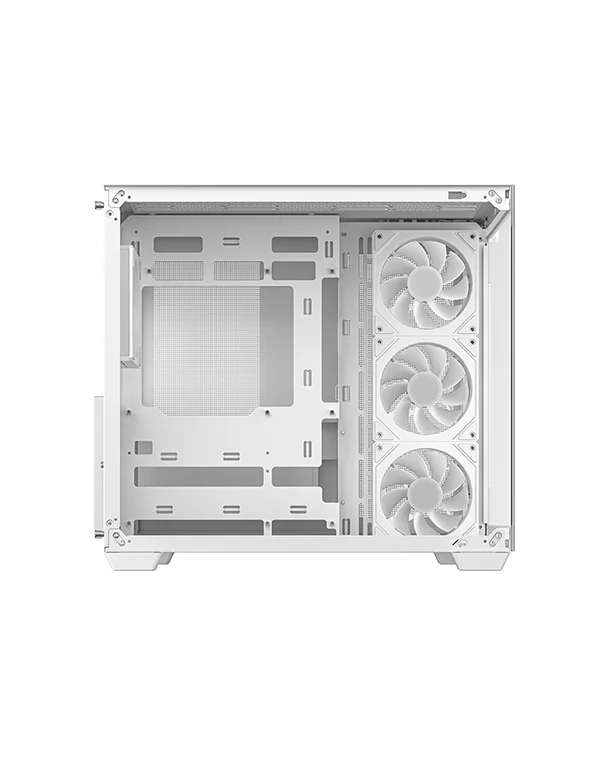

The Deepcool CG530 4F WH ATX Mid Tower employs a dual-chamber layout, isolating the PSU and drive storage in a separate compartment so that the main chamber remains uncluttered and better cooled.
Wiring is neatly managed thanks to about 45 mm of behind-tray clearance and magnetic dust filters on the top and bottom panels for easy cleaning.
When it comes to component compatibility, the Deepcool CG530 4F WH ATX Mid Tower performs well.
It supports GPUs up to 410 mm in length, CPU coolers up to 160 mm in height, and power supplies up to 210 mm, which covers most high-end hardware.
The Deepcool CG530 4F WH ATX Mid Tower supports ATX, Micro-ATX, and ITX motherboard sizes, and offers 7 expansion slots for add-in cards.
Cooling flexibility is impressive: the case supports radiators on multiple planes — top (up to 360 mm), side (up to 280 mm), and bottom (up to 360 mm).
Fan mounting options are abundant across top, side, bottom, and rear.
The front/top I/O includes USB 3.0 ports, a USB Type-C (Gen 2) port, audio jack, and control buttons.
All told, the Deepcool CG530 4F WH ATX Mid Tower is suitable for users who want a visually clean, lighting-ready build without compromising on cooling or compatibility.
