About Deepcool CG530 4F ATX Mid Tower Cabinet
Feature / Parameter | Specification |
---|---|
Model / Variant | CG530 4F (ARGB fan edition) |
Case Type / Layout | ATX Mid Tower, dual-chamber design |
Dimensions (L × W × H) | 440 × 285 × 399 mm |
Net / Approx Weight | ~7.0 kg (varies by variant) |
Materials | ABS + SPCC + Tempered Glass |
Motherboard Support | ITX / Micro-ATX / ATX |
Expansion Slots | 7 slots |
3.5″ Drive Bays | 2 bays |
2.5″ Drive Bays | 2 + 1 (i.e. 3 total) |
Cooling / Fan Support | Top: 3 × 120 mm or 2 × 140 mm Side: 3 × 120 mm or 2 × 140 mm Rear: 1 × 120 mm Bottom: up to 3 × 120 mm |
Radiator Support | Top: 120 / 140 / 240 / 280 / 360 mm Side: 120 / 140 / 240 / 280 mm Bottom: 120 / 240 / 360 mm |
CPU Cooler Height Clearance | Up to 160 mm |
Maximum GPU Length | 410 mm |
Power Supply / Max Length | ATX PS2, up to 210 mm |
Front / Top I/O Ports | Dual USB 3.0, USB Type-C (Gen 2), Audio / Mic, LED / Power buttons |
Pre-installed Fans | 4 fans: 3 × 120 mm PWM ARGB (side, reverse blade) + 1 × 120 mm PWM ARGB (rear) |
Special / Extra Features | Pillar-less / seamless tempered glass front and side, magnetic dust filters (top & bottom), dual chamber isolation, 45 mm cable management clearance behind tray, rear connector motherboard support |

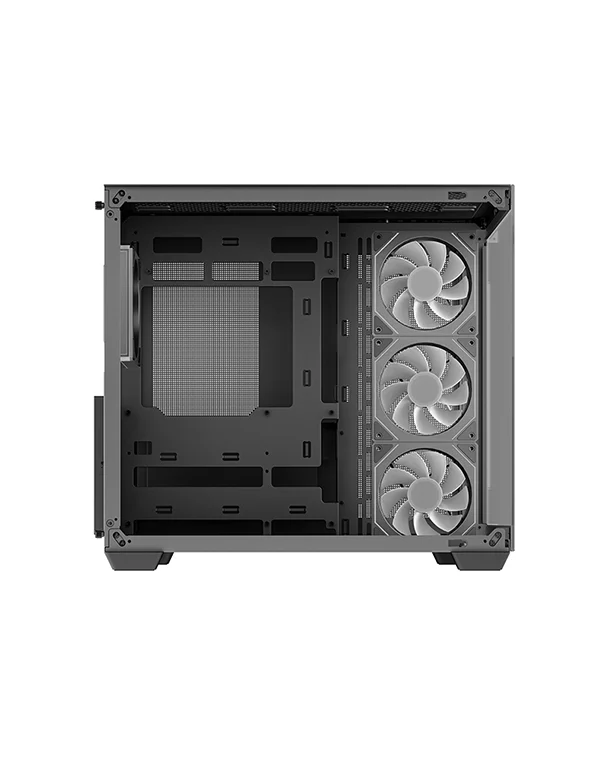

The “4F” designation indicates that the case arrives pre-fitted with four 120 mm ARGB fans—three reverse-blade units mounted on the side and one standard exhaust fan at the rear—providing vibrant lighting and airflow straight out of the box.

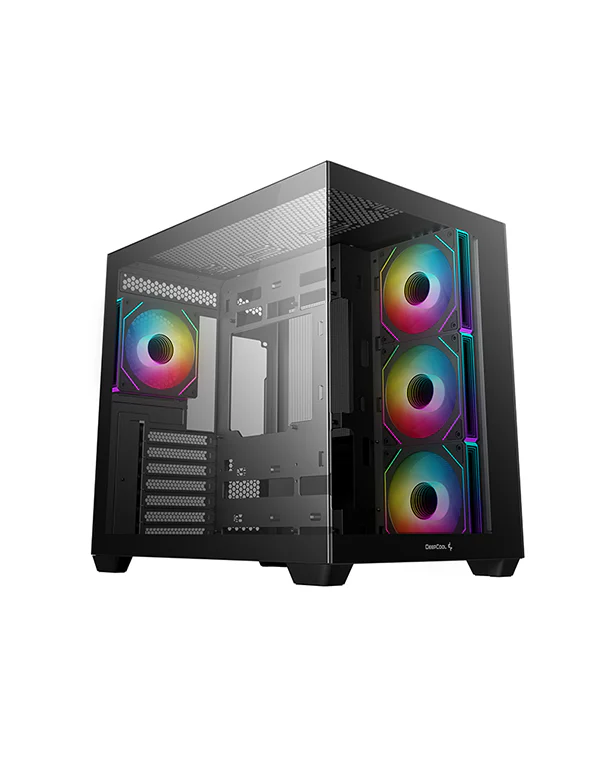

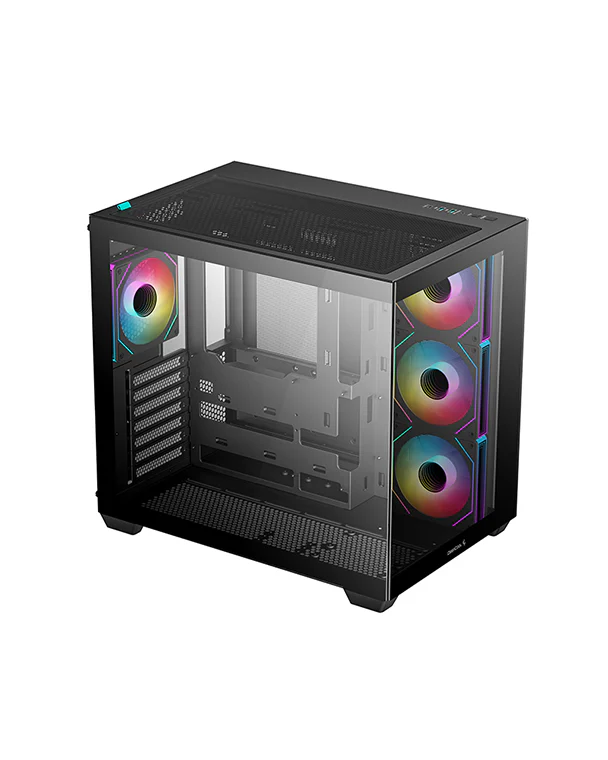

Its standout visual trait is the panoramic, pillar-less tempered glass front and side design, which allows unobstructed views into the system and highlights internal components and lighting setups.

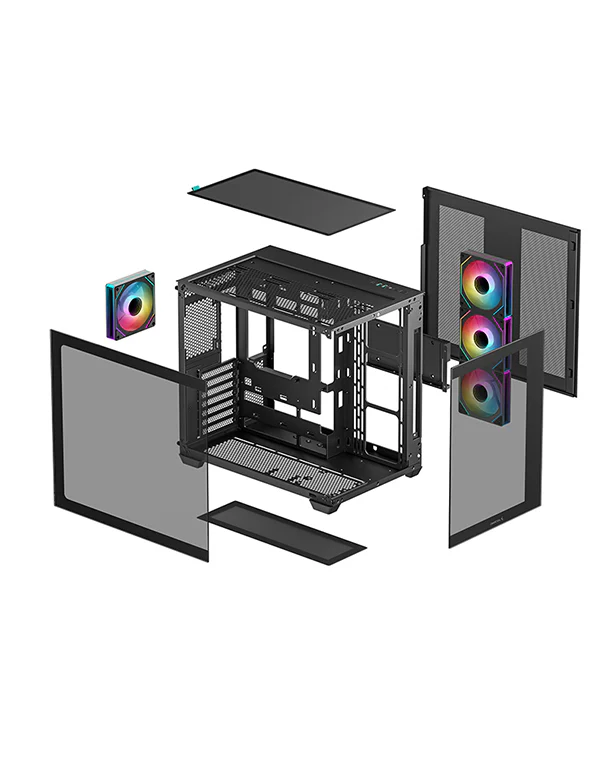

Internally, the Deepcool CG530 4F ATX Mid Tower Cabinet employs a dual-chamber architecture in which the PSU and storage bays live in a separate compartment.
This helps maintain a clean internal layout by hiding cables and reducing clutter in the main chamber.
With support for ATX, micro-ATX, and ITX motherboards, it offers flexibility for a wide range of builds.
The case also accommodates GPUs up to 410 mm in length and CPU coolers up to 160 mm in height, offering compatibility with many high-end components.
For cooling, the chassis is highly versatile: radiator support exists on the top (up to 360 mm), side (up to 280 mm), and bottom (up to 360 mm).
Fan mounting options are abundant across all planes (top, side, bottom, rear).
Dust control is managed via magnetic filters on the top and bottom panels, while cable management is facilitated by ~45 mm of space behind the motherboard tray.
The front/top I/O section includes dual USB 3.0 ports, a Gen-2 USB Type-C port, audio in/out, LED and power controls, making it convenient for connectivity.
Overall, the Deepcool CG530 4F ATX Mid Tower Cabinet is ideal for builders who prioritize both visual flair and functional thermal performance without needing to add extra fans separately.
Its combination of pre-installed ARGB cooling, robust component compatibility, and clean internal layout make it a compelling mid tower choice.
