About Deepcool Assassin IV Vision Desktop Air Cooler
| Feature | Specification |
|---|---|
| Model Name | Assassin IV VC Vision |
| Cooling Capacity (TDP) | 300 W, thanks to the vapor-chamber base |
| Base / Cold Plate | Vapor-chamber-enhanced base for efficient heat spread |
| Heat Pipes | 7 × Ø 6 mm heat pipes |
| Fin Design | Dual fin-array towers (two heat sink towers) |
| Thermal Paste Included | DM9 industrial-grade thermal paste |
| Fan Configuration | – 140 mm “main” (front) fan- 120 mm rear fan (relocatable) |
| Fan Motor / Bearings | Three-phase, six-slot, four-pole motor; True Fluid Dynamic Bearing (FDB) |
| Fan Speed Ranges | – 140 mm: 500–1800 RPM (Performance) / 500–1450 RPM (Quiet)- 120 mm: 500–1700 RPM (Performance) / 500–1350 RPM (Quiet) |
| Airflow | – 140 mm: 61.25 CFM (perf) / 48.55 CFM (quiet)- 120 mm: 58.06 CFM (perf) / 46.75 CFM (quiet) |
| Static Pressure | 140 mm: 3.76 mmAq; 120 mm: 2.1 mmAq (performance mode) |
| Noise Level | ≤ 29.3 dB(A) (perf); ≤ 22.6 dB(A) (quiet) |
| Connector | 4-pin PWM for both fans |
| Rated Voltage / Current | 12 V DC, 0.2 A per fan; Power consumption: 2.4 W per fan |
| Display Module Power | 5 V DC, ~0.08 A; ~0.4 W consumption |
| Display Size | 44.6 × 53.6 mm quad-segment LCD |
| RAM Clearance | Unobstructed for Intel LGA1700/1200/115x and AMD AM4/AM5; limited for some older Intel sockets |
| Case / Height Considerations | 172 mm total height; magnetic display panel and sliding fan for easier installation |
| Compatibility – CPU Sockets | Intel: LGA2066 / 2011 / 2011-v3 / 1851 / 1700 / 1200 / 115x; AMD: AM5 / AM4 |
| Warranty / Support | 6-year limited warranty from DeepCool |

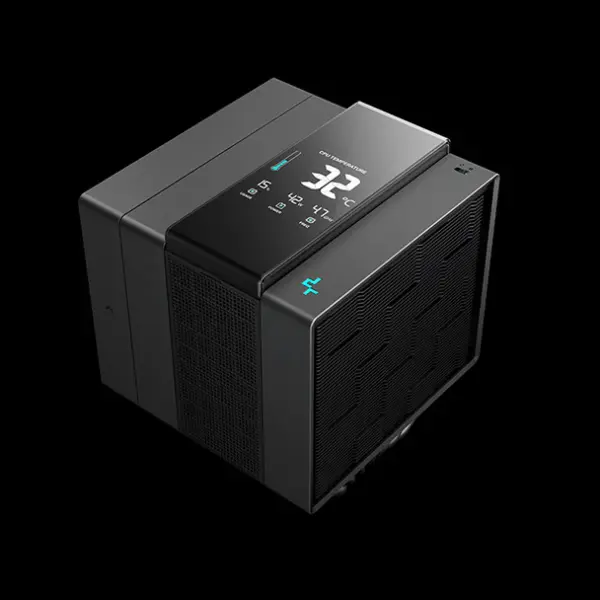

A highlight feature is the quad-segmented digital display, which magnetically attaches to the top of the cooler.
Deepcool Assassin Series Black Desktop Air Cooler provides real-time feedback on CPU temperature, power usage, frequency, and more — all controllable via DeepCool’s software over a USB 2.0 header.
For added convenience, the display on the Deepcool Assassin IV Vision Desktop Air Cooler raises visual temperature alerts: green below 80 °C, orange between 80–90 °C, and red flashing above 90 °C.
Users can toggle between Quiet Mode and Performance Mode using a simple switch.
Quiet Mode prioritizes low noise, while Performance Mode delivers maximum cooling.
The Deepcool 300W Desktop Air Cooler setup leverages three-phase, six-slot, four-pole motor technology and fluid dynamic bearings to maintain a balance between high airflow and quiet operation.
Despite its powerful cooling, the design maintains excellent RAM clearance — especially for high-profile modules — by using a relocatable fan frame.
Installation of the Deepcool Assassin IV Vision Desktop Air Cooler is made easier with a sliding main fan mechanism and a magnetic display panel, reducing interference during mounting.
The Deepcool Assassin ARGB Desktop Air Cooler is compatible with a wide range of modern CPU sockets, including Intel LGA2066 / 2011 / 1851 / 1700 / 1200 / 115x and AMD AM4 / AM5.
Deepcool Assassin IV Vision Desktop Air Cooler also backs it with a 6-year limited warranty, underscoring their confidence in the build quality.
