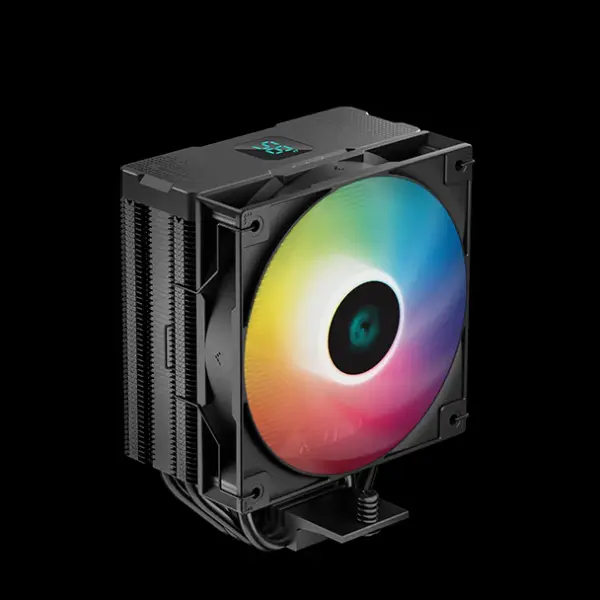

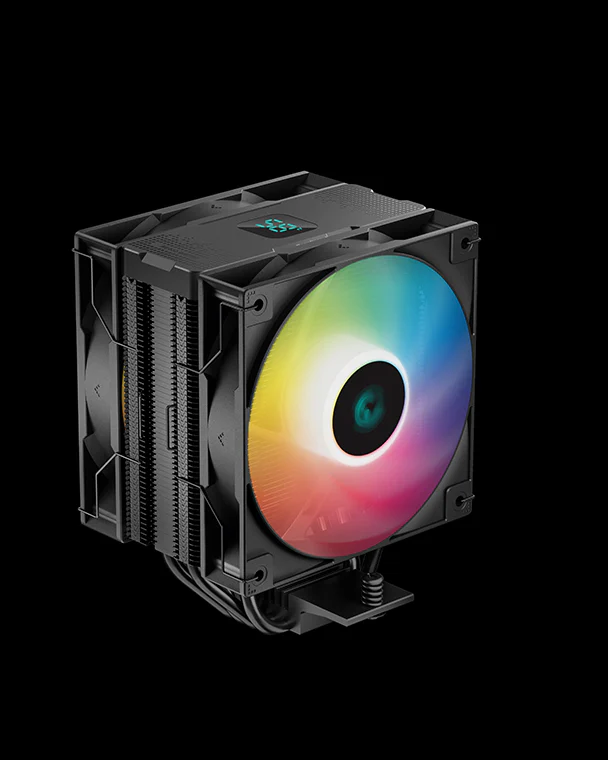

About Deepcool AG400 Digital Plus Black Cooler
| Specification | Details |
|---|---|
| Product Name | DeepCool AG400 Digital Plus Black Cooler |
| Form Factor | Single-tower CPU air cooler with dual PWM fans and digital status display |
| Heatsink Dimensions (L×W×H) | 120 × 92 × 150 mm |
| Overall Product Dimensions | 125 × 107.5 × 152.7 mm (L×W×H) |
| Net Weight | Approximately 773 g |
| Heat Pipes | 4 × Ø 6 mm copper, direct-touch base design |
| Fan Dimensions | 120 × 120 × 25 mm (×2 fans) |
| Fan Speed Range | 500 – 2100 RPM ±10% |
| Fan Airflow | 75.89 CFM |
| Fan Air Pressure | 2.53 mmAq |
| Noise Level (Max) | ≤ 31.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing (for quiet and reliable operation) |
| LED Type | Addressable RGB LED lighting and digital screen display (USB/3-pin interface) |
| Supported CPU Sockets | Intel LGA 1700 / 1200 / 1151 / 1150 / 1155; AMD AM5 / AM4 |

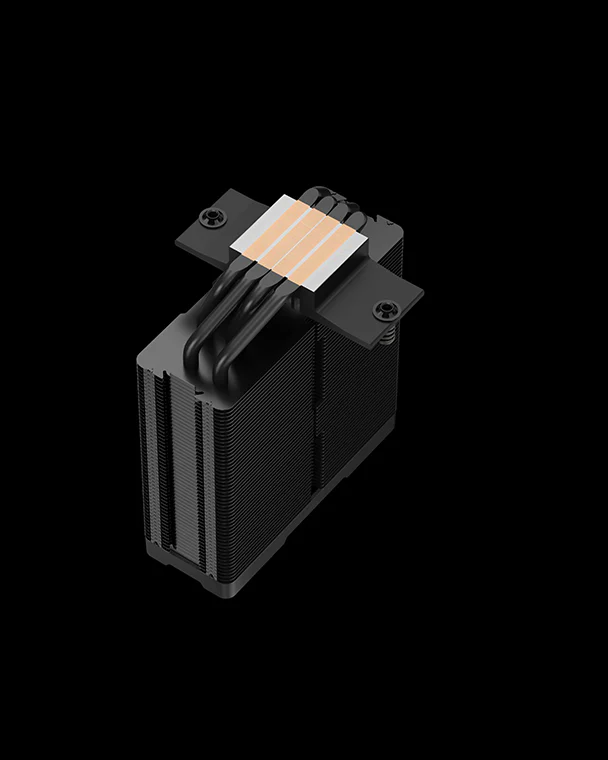

Designed around a single-tower heatsink architecture, it incorporates four high-efficiency 6 mm copper direct-touch heat pipes mounted to a dense black-coated fin stack.

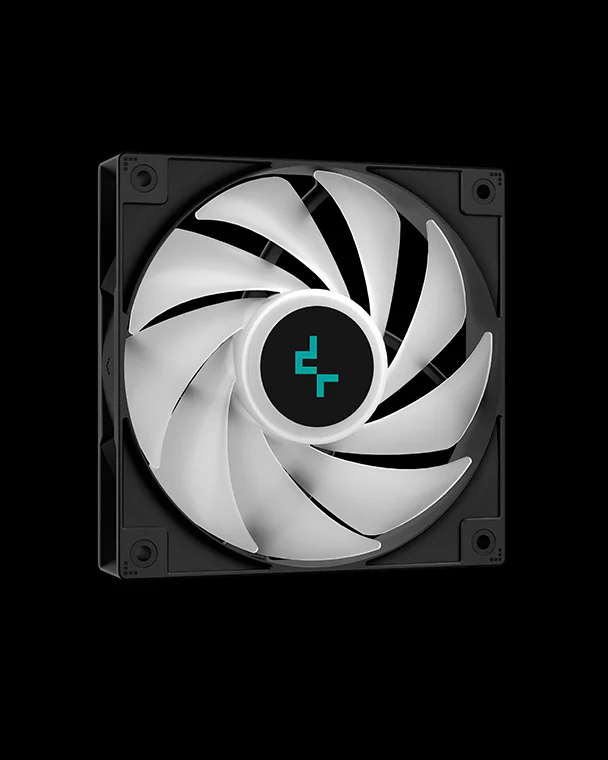

This ensures that heat generated by your CPU is rapidly transferred out into the tower array and dissipated effectively by the dual 120 mm PWM fans installed.
The Deepcool AG Series Desktop Air Cooler system offers a wide operational range—from a whisper-quiet 500 RPM during light tasks up to 2100 RPM under full load—delivering up to approximately 75.89 CFM of airflow and an air pressure rating of around 2.53 mmAq.
Despite its robust cooling potential, the maximum noise level is held under 31.6 dB(A), making it well-suited for quiet gaming rigs or productivity systems where fan noise matters.

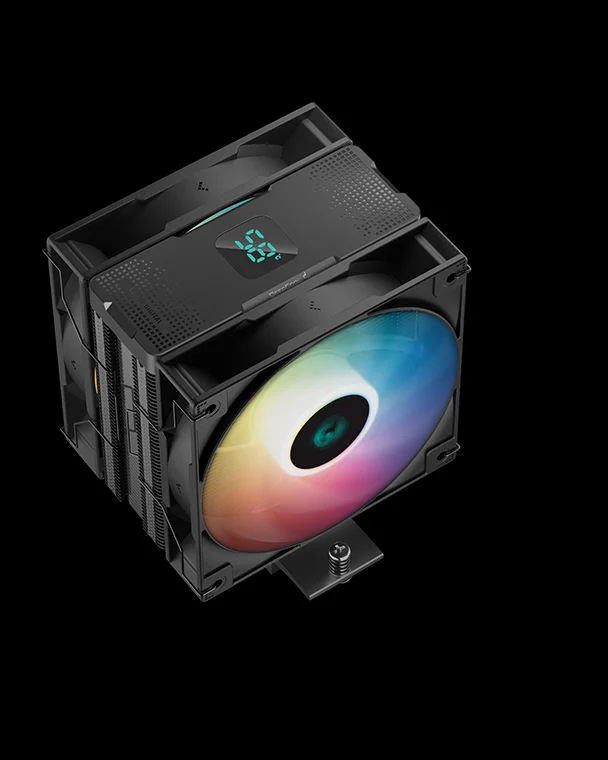

What elevates the Deepcool Single Tower Digital Air Cooler beyond typical air coolers is its real-time digital status display.
Positioned elegantly on top of the cooler, the screen shows live CPU temperature readings in Celsius alongside usage percentages.
It also provides visual alerts when temperatures climb beyond safe thresholds.
This feature gives builders and enthusiasts a direct view into system thermal performance—without needing to rely purely on software monitoring tools.
With compatibility covering Intel’s LGA 1700, 1200, 1151/1150/1155 sockets as well as AMD’s AM5 and AM4 platforms, this cooler offers excellent flexibility.
Whether you’re building a fresh high-end system or refreshing an older AM4 or LGA1200 rig, you’re covered.
The Deepcool 120mm Digital Black Air Cooler’s dimensions—approximately 125 × 107.5 × 152.7 mm—and height ensure that it fits well into mid-tower cases while still maintaining sufficient clearance for tall memory modules, thanks to its slim profile width of ~107.5 mm.

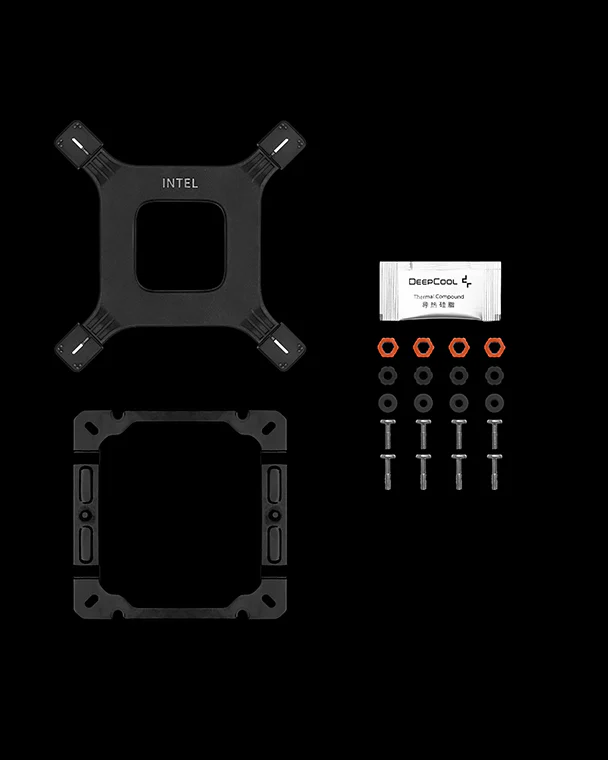

Installation is made user-friendly with an all-metal mounting bracket and hardware kit included.
The hydro bearing fans enhance durability and quiet operation over time, and the addressable RGB lighting adds a modern visual touch that syncs with compatible motherboard RGB systems—without being overly flashy or detracting from the overall build.
Thermally, the combination of heat pipe design, dual fan airflow, and the quality fin stack puts this cooler in a sweet spot: it can handle a wide range of mainstream to performance CPUs, covering gaming systems, streaming rigs or general-purpose desktops.
Users benefit from efficient cooling, monitoring convenience via the digital read-out, and aesthetic flexibility.
The DeepCool AG400 Digital Plus Black Cooler brings together performance, smart functionality and aesthetics into a single compact air-cooling package—ideal for those who want more than a basic cooler but prefer air-cooling simplicity over complex liquid cooling loops.
