About DarkFlash Floatron F1 M-ATX Black Cabinet
| Category | Specification |
|---|---|
| Model Name | DarkFlash Floatron F1 (M-ATX, Black) |
| Chassis Type | Micro-ATX / Mini-ITX mid-tower style with a floating base design |
| Frame Material | 0.8 mm SPCC steel |
| Panels | Four detachable panels (quick-release): front, both sides, bottom/base; with magnetic dust filters on side, top, and bottom. |
| Motherboard Support | Micro-ATX (M-ATX), Mini-ITX |
| Expansion Slots | 5 PCIe slots |
| Drive Bays / Storage | 3 × 3.5″ HDD, 3 × 2.5″ SSD |
| Graphics Card (GPU) Compatibility | Up to 350 mm length |
| CPU Cooler Compatibility | Up to 185 mm height |
| Power Supply (PSU) Compatibility | Standard ATX PSU, maximum length ~200 mm |
| Cooling / Fans | – Top: up to 3 × 120 mm – Side: 2 × 120 mm – Bottom: 3 × 120 mm – Rear: 1 × 120 mm – Total fan capacity: up to 9 fans |
| Liquid Cooling (Radiator) Support | Top: 360 / 280 / 240 mm Rear: 120 mm radiator support |
| Front / Side I/O | – USB Type-C × 1 – USB 3.0 × 2 – HD Audio – Power Button, Reset Button |
| Ventilation & Base Design | Floating extended base design to channel airflow from bottom and sides; open-vent layout for multidirectional airflow |
| Dust Management | Magnetic dust filters on side, top, and bottom panels for easy cleaning |
| Accessibility | Tool-free, quick-release side panels for easy access and upgrades |

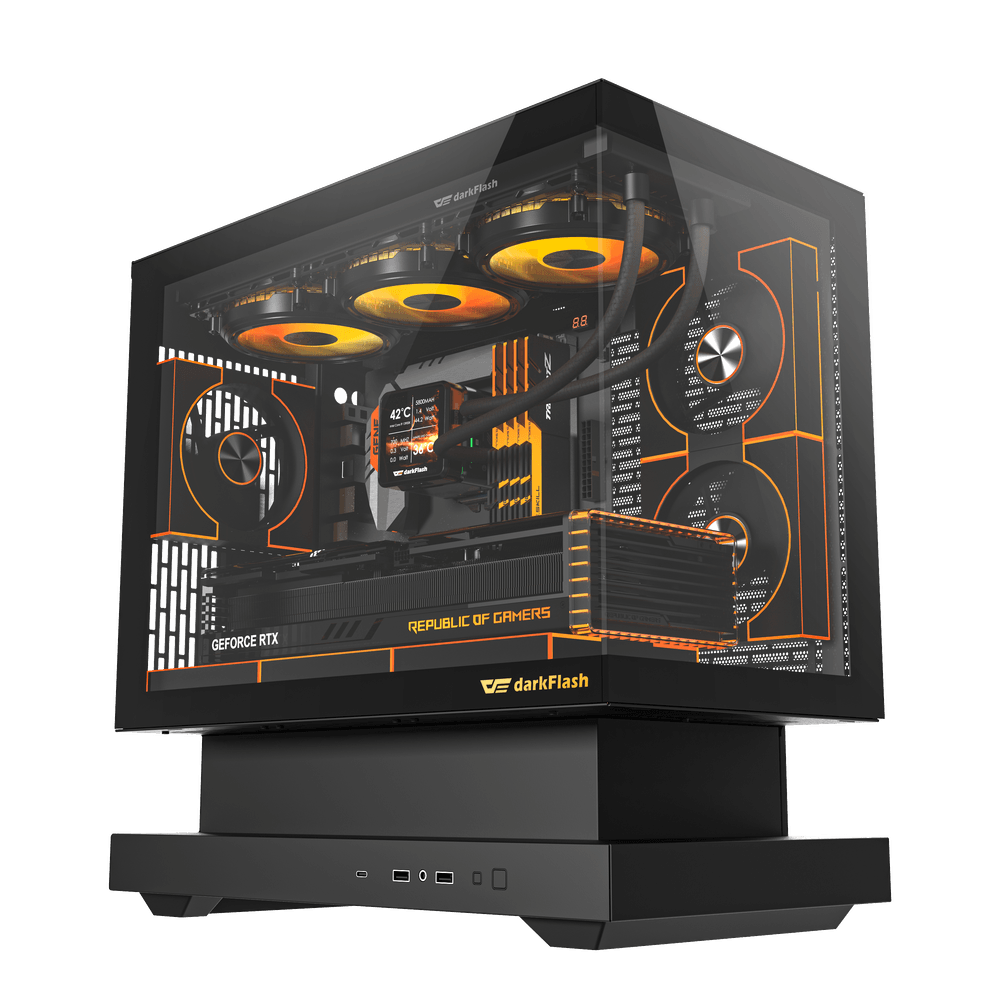

At first glance, the most distinctive feature of the DarkFlash Floatron F1 M-ATX Black Cabinet is its floating base.
Instead of sitting flush on a surface, the main chassis is elevated above its foundation.
This design is not purely visual — it channels cool airflow from the bottom and sides into the core of the system, allowing better heat dissipation and pushing up thermal efficiency.
The floating base also doubles as a creative display platform, perfect for placing decorative elements, RGB lighting, or even custom scenery, transforming the setup into a showcase.
Cooling performance gets a major boost from the multi-directional ventilation layout.

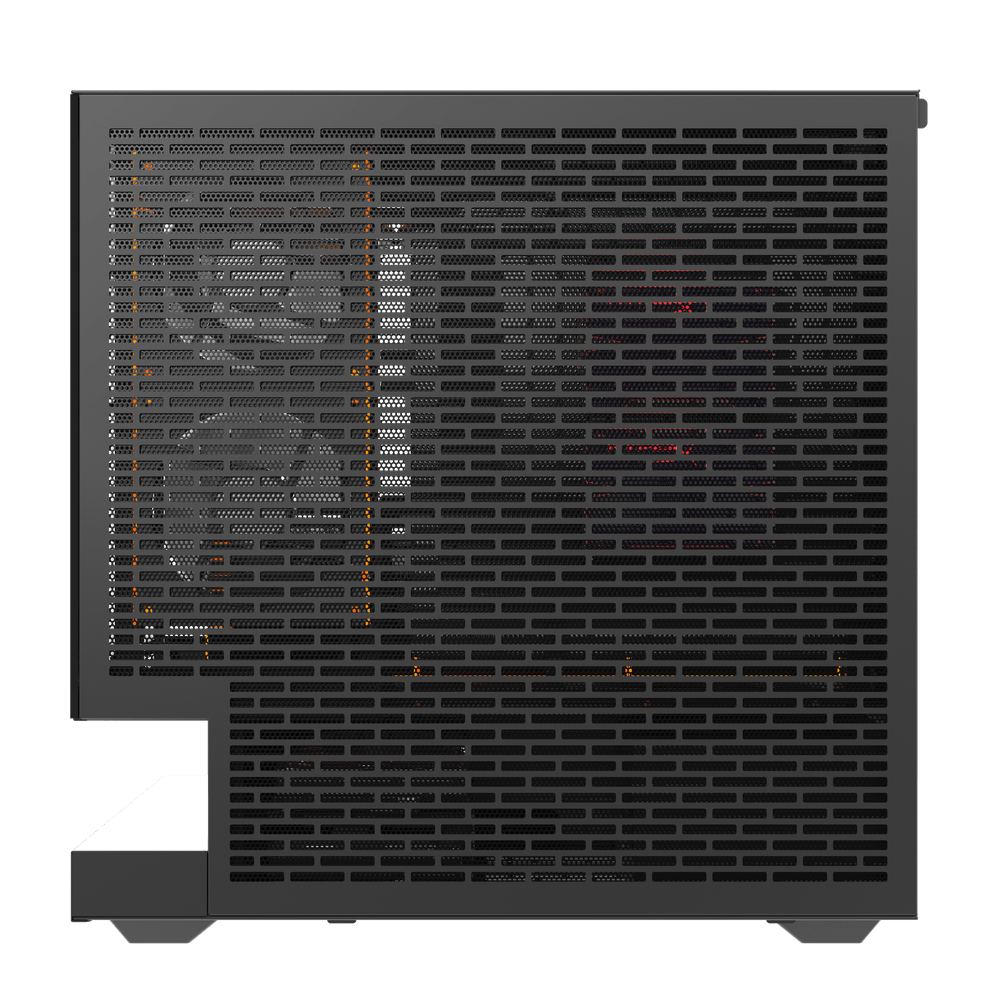

With generous mesh openings across the front, sides, and bottom, the case supports superb airflow.
The DarkFlash Floatron F1 M-ATX Black Cabinet can house up to nine 120 mm fans — three on top, two on the side, three below, and one at the rear — giving you flexibility to fine-tune the airflow for your build.
For liquid cooling enthusiasts, the DarkFlash Floatron Series Mid Tower Cabinet also supports up to a 360 mm radiator on the top, along with a 120 mm radiator at the rear, making it ideal for even high-performance CPU or GPU cooling loops.
Under the hood, the interior is smartly organized.
DarkFlash Floatron F1 Mid Tower Cabinet supports micro-ATX and mini-ITX motherboards, making it versatile for compact yet powerful rigs.
Storage options are generous for a case of this size, with room for three 3.5″ hard drives and three 2.5″ SSDs, giving a good mix of capacity and speed.
The DarkFlash Floatron Tempered Glass Desktop Cabinet also supports GPUs up to 350 mm in length and CPU coolers with heights up to 185 mm, making it possible to install premium graphics cards and tall air coolers without compromise.

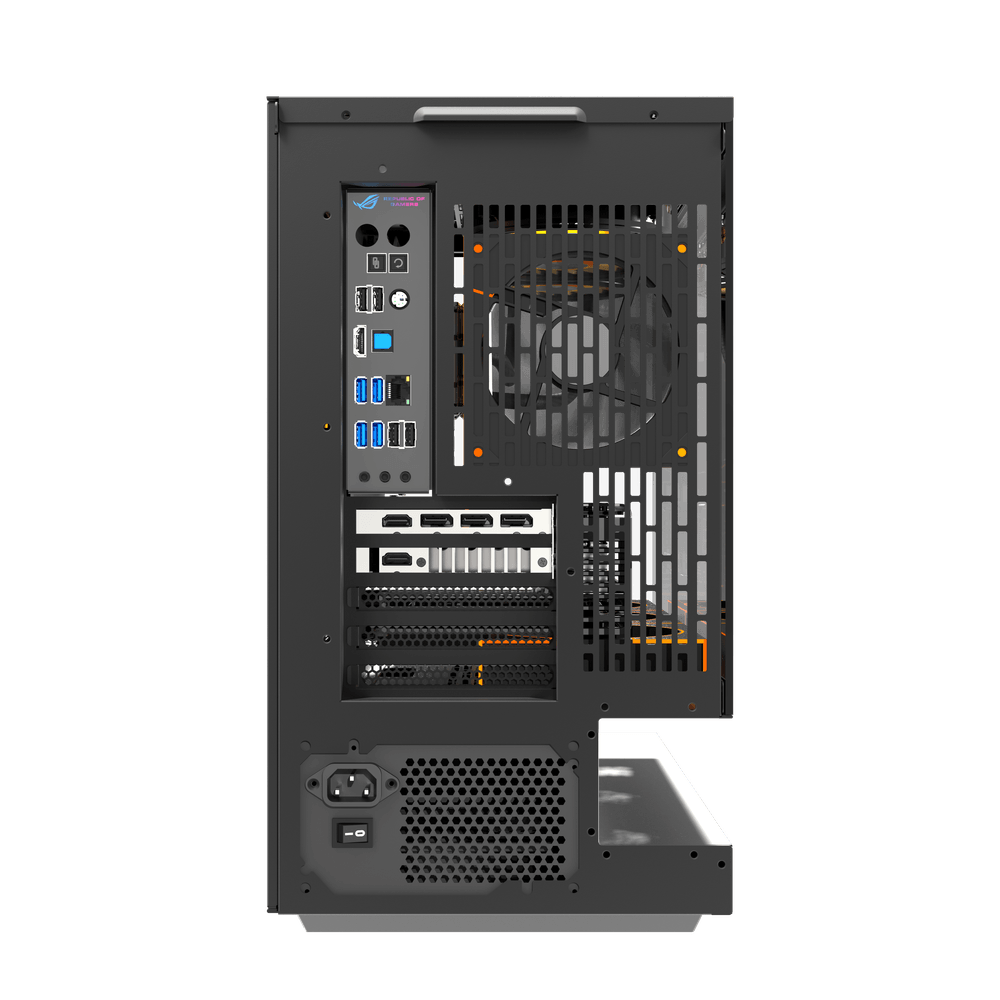

The PSU compartment supports standard ATX power supplies up to 200 mm in length.
One of the strong points of this case is accessibility.
The side and bottom panels are tool-free and quick to remove, making upgrades or maintenance painless.
This design philosophy ensures you don’t struggle when building or tweaking your setup.
Additionally, dust management is thoughtful: magnetic filters on the side, top, and bottom make cleaning simple and efficient.
Connectivity is modern and practical.
The side I/O panel offers USB Type-C, two USB 3.0 ports, and HD audio, making it easy to plug in peripherals even if the DarkFlash Floatron F1 M-ATX Black Cabinet is placed on your desk.
The power and reset buttons are also conveniently placed for quick access.
Beyond performance, the DarkFlash Floatron F1 M-ATX Black Cabinet’s visual design is a strong suit.
The floating structure, combined with sleek mesh and tempered-glass panels, gives your PC a futuristic and clean profile.
Whether you’re building a powerful gaming rig, a content-creation workstation, or a stylish small-form-factor system, this case delivers both aesthetics and thermal excellence.
The DarkFlash Floatron F1 M-ATX Black Cabinet is a premium M-ATX case designed for users who want a high-performance compact build without sacrificing airflow, versatility, or design.
Its floating base, open ventilation, and flexible build space combine to offer a refined and powerful foundation for your next PC.
