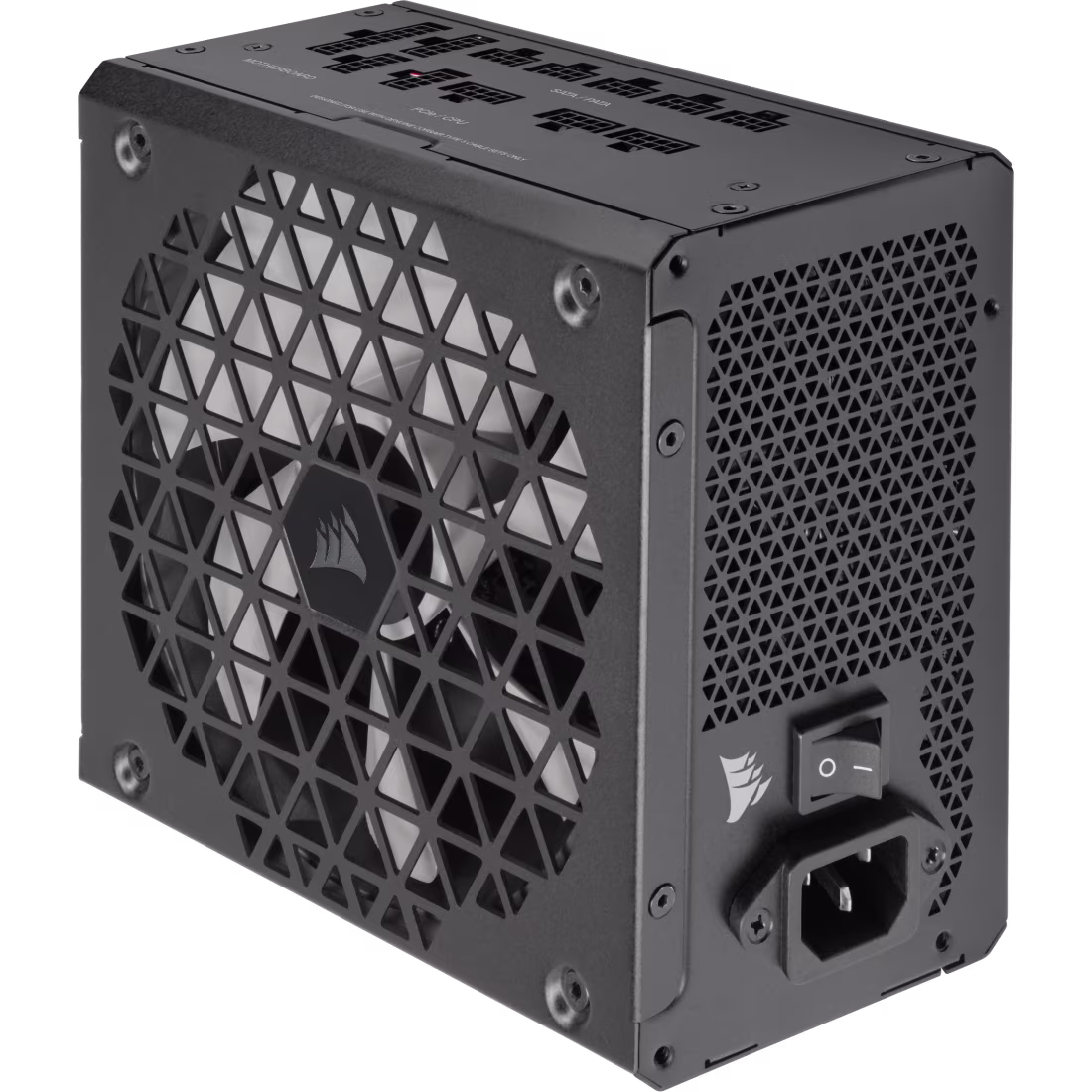

About Corsair RM850X 850W Gold Fully Modular SMPS
| Specification | Details |
|---|---|
| Wattage | 850 W continuous power |
| Efficiency Certification | Cybenetics Gold (≤ 91 %) and 80 PLUS Gold |
| Modularity | Fully modular cables (Type-4 connectors) |

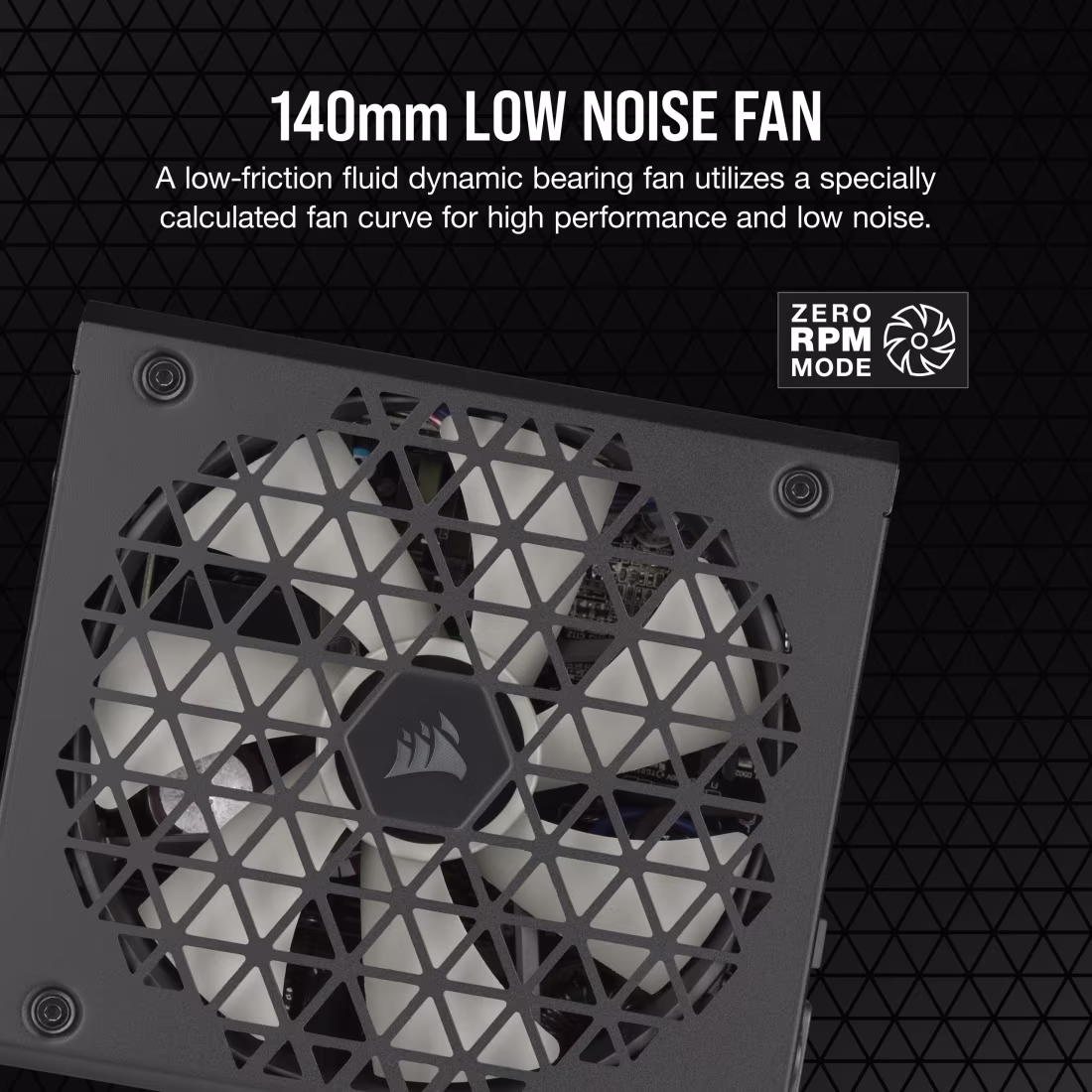

| Cooling & Fan | 140 mm fluid dynamic bearing (NR140HP) fan, Zero-RPM mode |
| Dimensions (W × H × D) | 150 × 86 × 160 mm |
| Input Rating | AC 100–240 V, 10–5 A, 47–63 Hz |
| Output Table | +3.3 V @ 20 A (150 W), +5 V @ 20 A, +12 V @ 70.8 A (849.6 W), +5 VSB @ 3 A (15 W) |

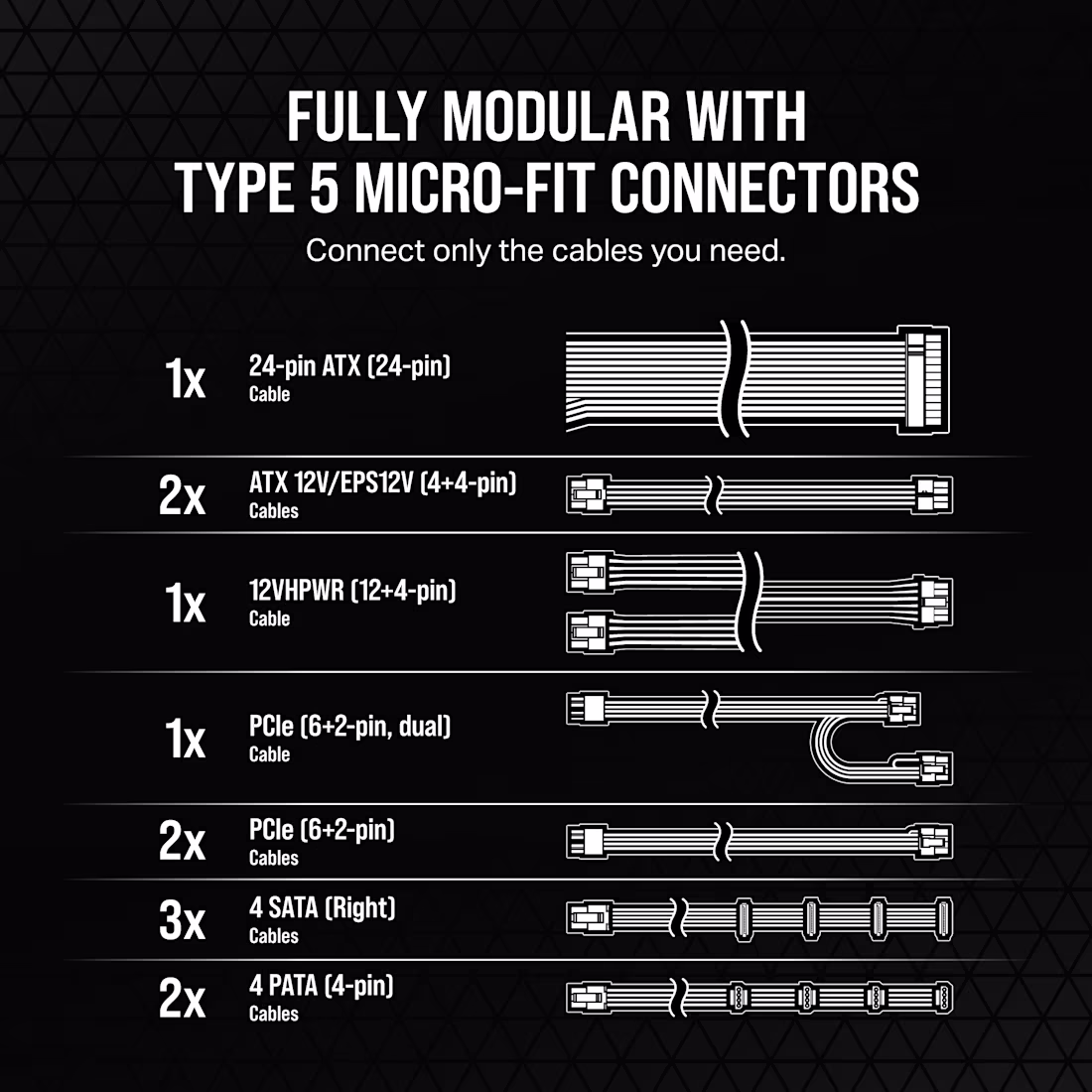

| Cable Connectors | 1 × ATX (24-pin), 2 × EPS/ATX12V 8-pin, 3 × PCIe 6+2-pin, 1 × PCIe 12+2, SATA and PATA arrangements as per included cables |
| Capacitors | 100 % Japanese electrolytic capacitors rated 105 °C |
| Protections (Safety Features) | OVP, UVP, OCP, OTP, SCP, OPP |
| ATX Compliance | ATX12V v2.4 / EPS12V 2.92; ATX 3.1 in newer revision |
| Modern Standby Support | Yes – supports modern sleep/hibernate modes |
| MTBF (Mean Time Between Failures) | 100,000 hours |
| Weight | Approx. 3.28 – 3.38 kg |
| Warranty | 10-year warranty |
| Manual Fan Override Knob | Yes – allows control over starting fan speed |
