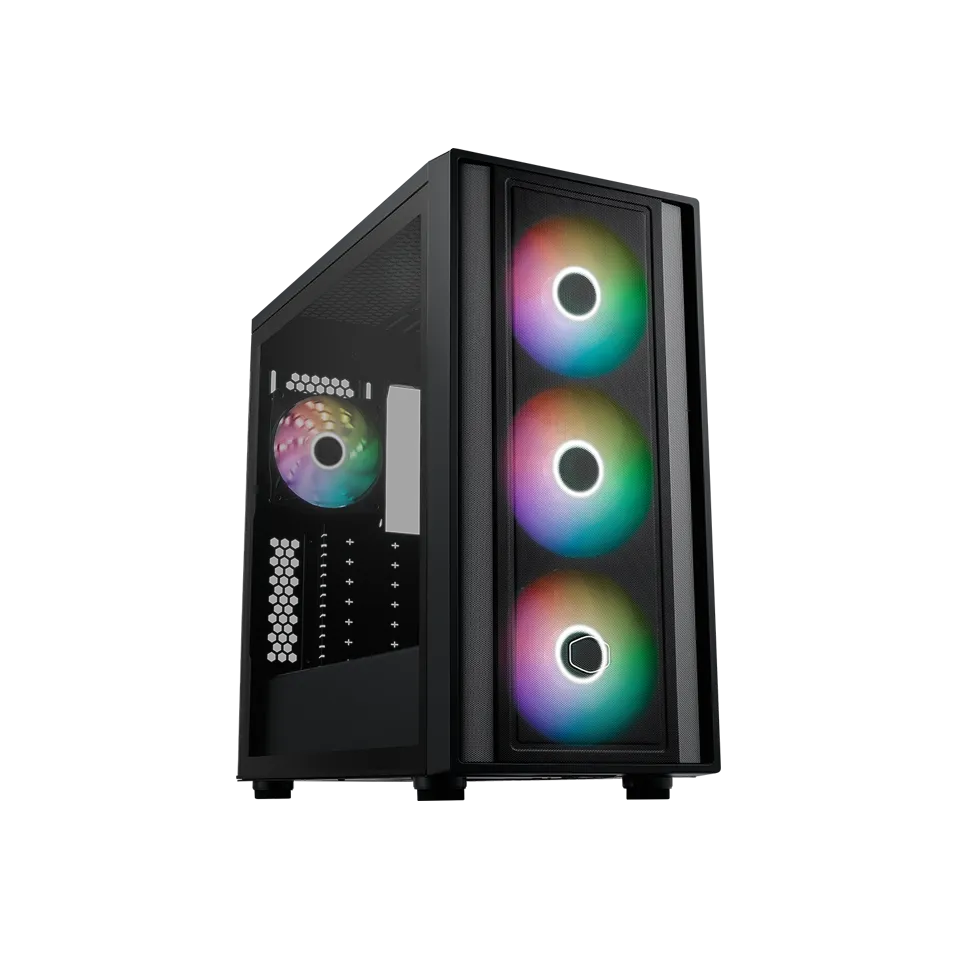

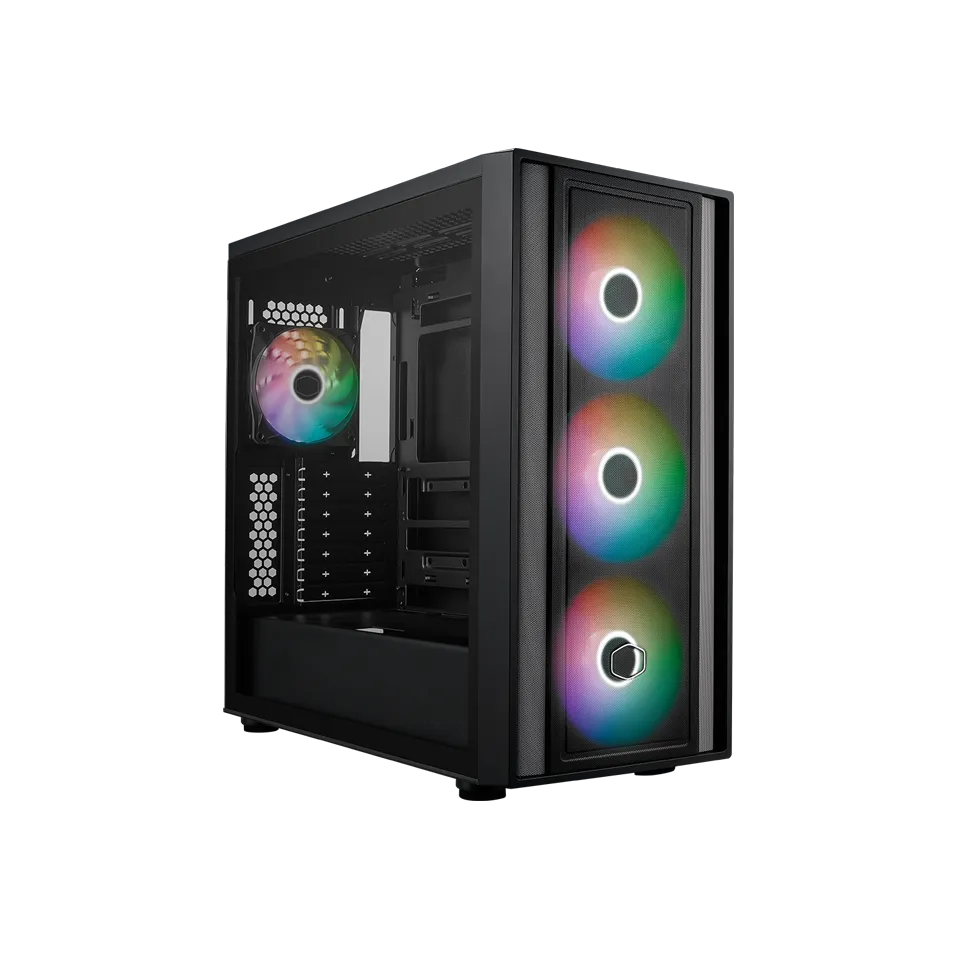

Cooler Master MB600 Cabinet

About Cooler Master Masterbox MB600 Cabinet

When you’re building a high-performance PC, the case you choose matters just as much as the components inside.

The Cooler Master Masterbox MB600 Cabinet from Cooler Master delivers a perfect balance of airflow, flexibility, and modern design — everything you need to support serious upgrades and keep your system running cool for years to come.

Key Features of the Cooler Master Masterbox MB600 Cabinet

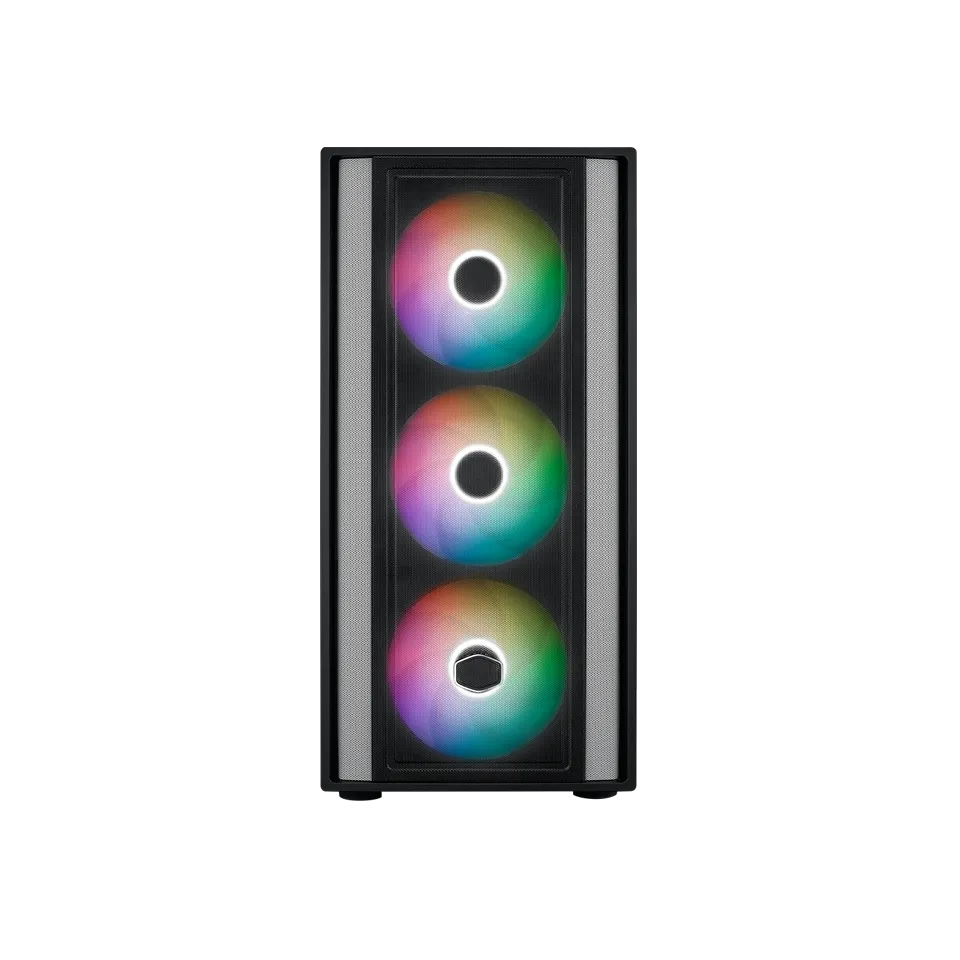

• FineMesh Performance Front Panel – A large mesh intake design ensures excellent airflow from the front, minimizing thermal resistance and maximizing cooling potential.

• Back-connector Motherboard Support – “Back-connected” layout frees up room in front of the motherboard tray, improving airflow and making cable management easier; around 33-35 mm of space behind the tray.

• Generous Radiator & GPU Clearance – Supports up to a 420 mm radiator at front, a 360 mm radiator at the top, and a GPU up to 410 mm in length (when front radiator is removed). Perfect for high-end liquid cooling or massive air coolers.

• Pre-installed ARGB Cooling Setup – Ships with three 140 mm SickleFlow ARGB PWM fans at the front and one 120 mm CF120 ARGB exhaust fan at the rear, giving both performance and visual appeal out of the box.

• Modular Storage & Removable HDD Cage – Offers flexibility: two 3.5″ HDD bays, two 2.5″ SSD bays (expandable to up to 6 in some configurations), and a removable HDD cage to free up space or improve airflow.

Cabinet Characteristics & Design of the Cooler Master Masterbox Series Cabinet

• Form Factor & Material: The Cooler Master Masterbox MB600 Cabinet supports E-ATX (up to approximately 30.5 × 27.7 cm) motherboards. Constructed from steel and plastic, with a tempered glass side panel to showcase your build.

• Dimensions & Internal Space: Overall size (including protrusions) around 474 × 230 × 481 mm, giving about 49.7 liters of internal volume. With protrusions removed, slightly smaller footprint.

• Cooling Support: Fully prepared for high-end cooling setups — front, top, and rear radiator mounts; up to 7 case fans in many positions; generous air pathways. Dust filters at top and bottom help keep the build clean.

Functioning Purpose & Role of the Cooler Master Masterbox Black Cabinet

The Cooler Master Masterbox MB600 Cabinet is built to be more than just an enclosure. Its purpose is to:

• Provide optimum airflow and thermal performance so that high-power CPUs and GPUs can run without throttling.

• Support advanced cooling systems (liquid cooling, large air cooler, multiple fans) to achieve lower component temperatures and quieter operation.

• Allow flexible component installation (long graphics cards, tall CPU coolers, sizable power supplies) so that users can choose powerful components without worrying about fit.

• Enable clean, organised builds through good cable routing, removable cages, and back-tray space, which improves aesthetics and airflow.

• Offer future-proof options for upgrades — whether adding extra drives, bigger GPU, or more cooling — without needing a new case.

Space Allotted to Cooler Master Masterbox Next Generation Cabinet

Here is what you can expect in terms of component clearances:

• Motherboards: Mini-ITX, Micro-ATX, ATX, and E-ATX (up to ~30.5 × 27.7 cm), though the largest E-ATX may reduce cable routing space.

• Graphics Cards: Up to ~360 mm with standard configuration; up to ~410 mm if front radiator / front-mounted cooling removed.

• CPU Cooler Height: Supports CPU coolers up to ~170 mm in height.

• Power Supply (PSU): Supports standard ATX PSUs; with the HDD cage removed you can fit longer PSUs (up to ~210 mm) if needed.

• Drive Bays: 2 × 3.5-inch HDD bays; at least 2 × 2.5-inch SSD bays on standard mounts, with support for more SSDs in additional mounting points. Removable HDD cage allows freeing up bottom/front space.

Applications of the Cooler Master Masterbox MB600 Cabinet

• Gaming pcs & high-fps rigs: With its support for large GPUs and strong airflow, it handles GPU heat well during long gaming sessions.

• Content creation & workstation builds: Large components, robust cooling and spacious interior make room for multi-GPU, powerful CPUs, and multiple drives.

• Overclocking setups / liquid cooling tanks: Ability to mount large radiators, excellent airflow, and clearance for big coolers make it great for aggressive cooling solutions.

• Custom builds & showcase builds: Tempered glass side, ARGB fans, back-connector layout and overall design lend themselves well to visually striking PC builds for display.

• Upgradable / future upgrade-friendly: Removing the HDD cage, extra fan and radiator support, Motherboard back-connector support – these all ease future component add-ons or modifications without needing a whole new case.

Best in investing in the Cooler Master Masterbox MB600 Cabinet?

If you want a case that gives you breathing room for powerful components, excellent airflow, and a clean, modern aesthetic — all without breaking into ultra-large tower territory — the Cooler Master Masterbox MB600 Cabinet is a strong choice.

Whether you’re building for gaming, content creation, or general high performance, this cabinet gives you the foundation to design, upgrade, and maintain a cool and quiet PC that still looks sharp.
