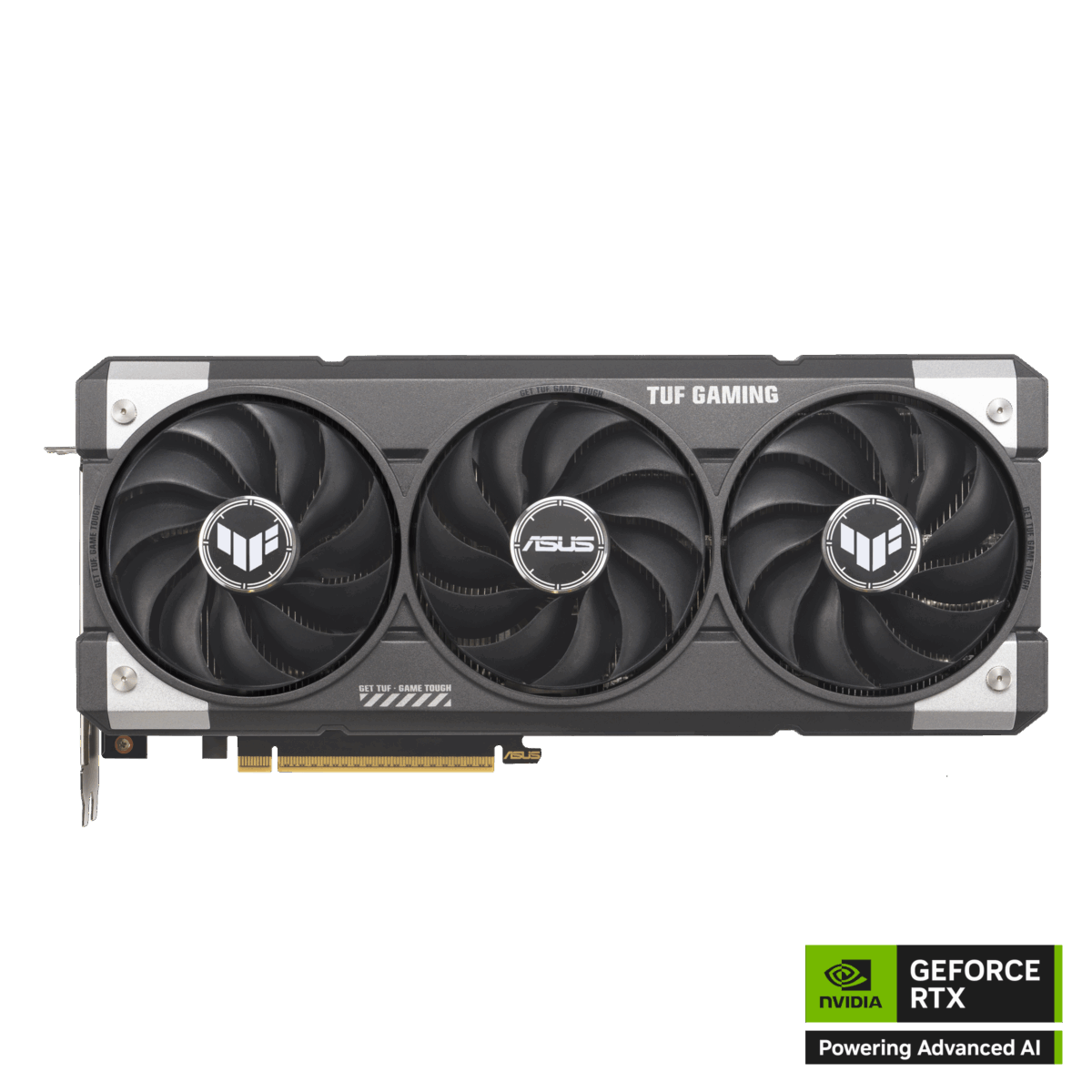

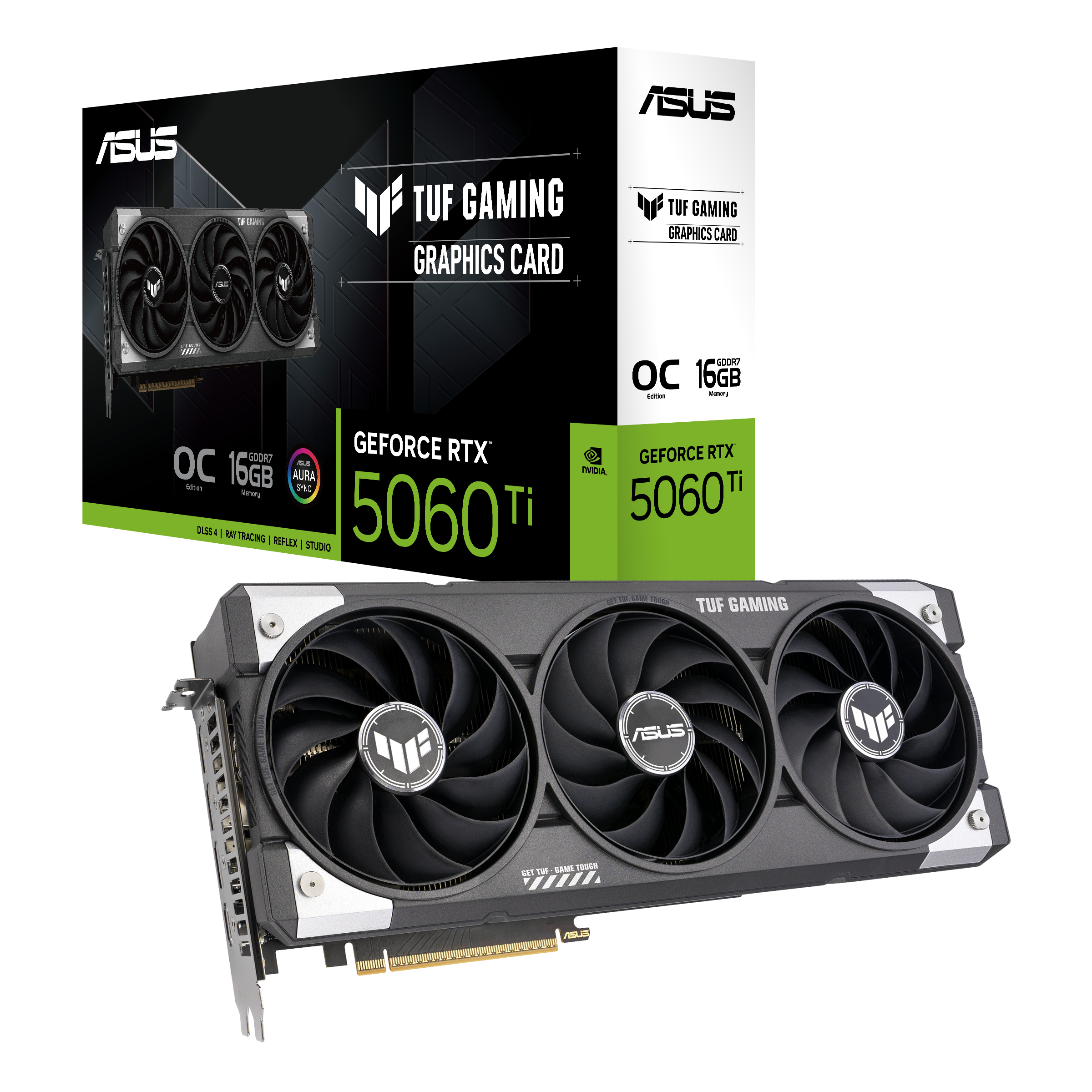

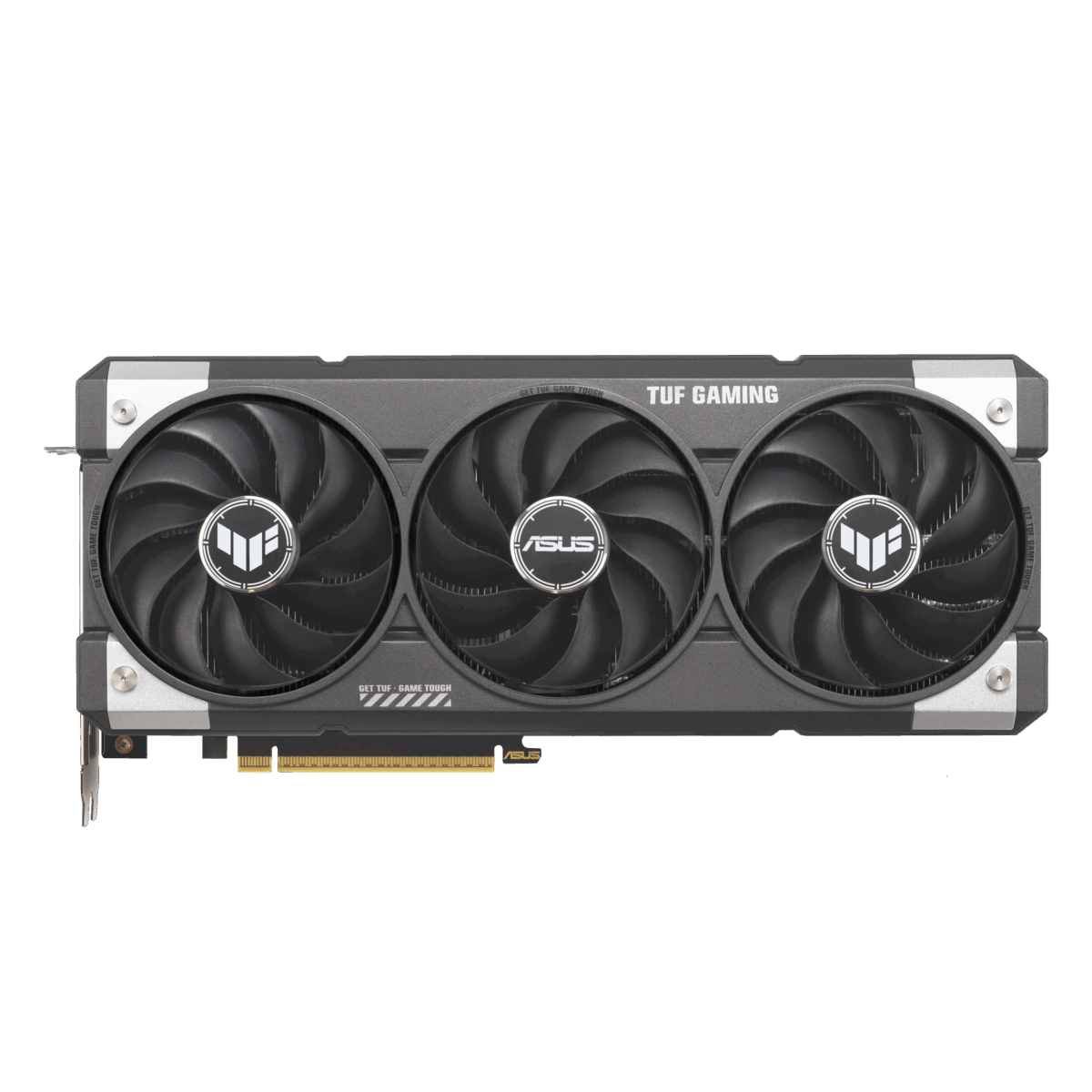

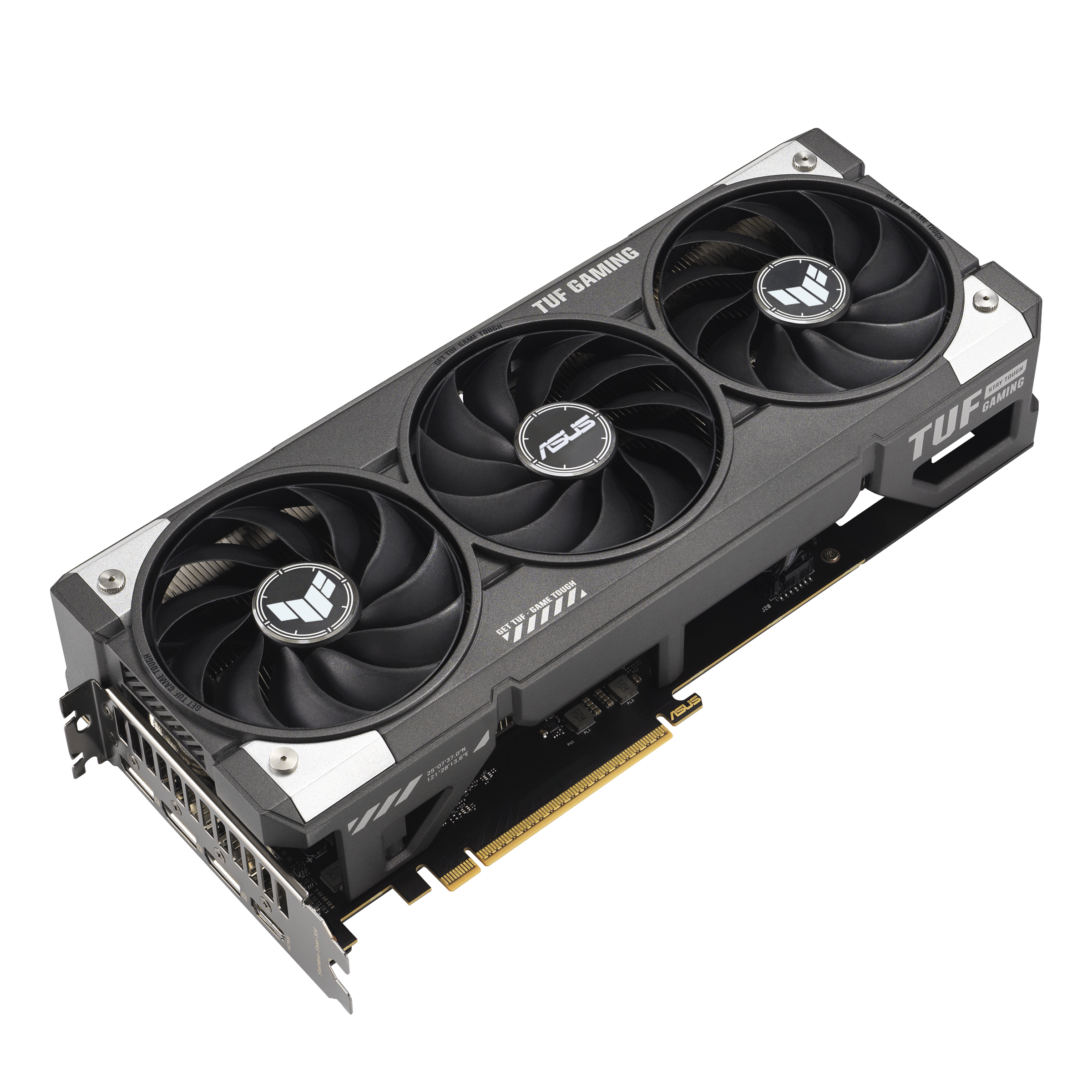

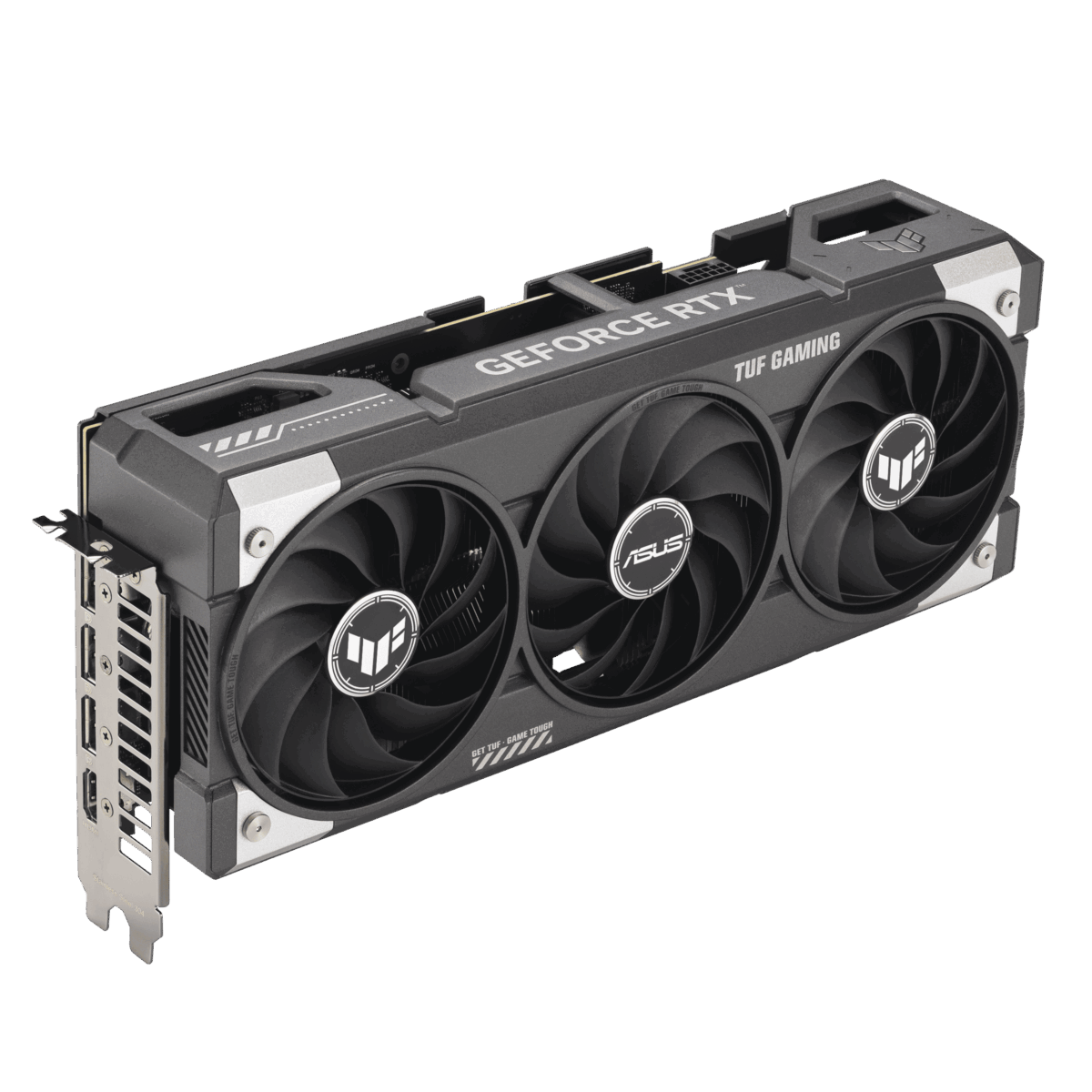

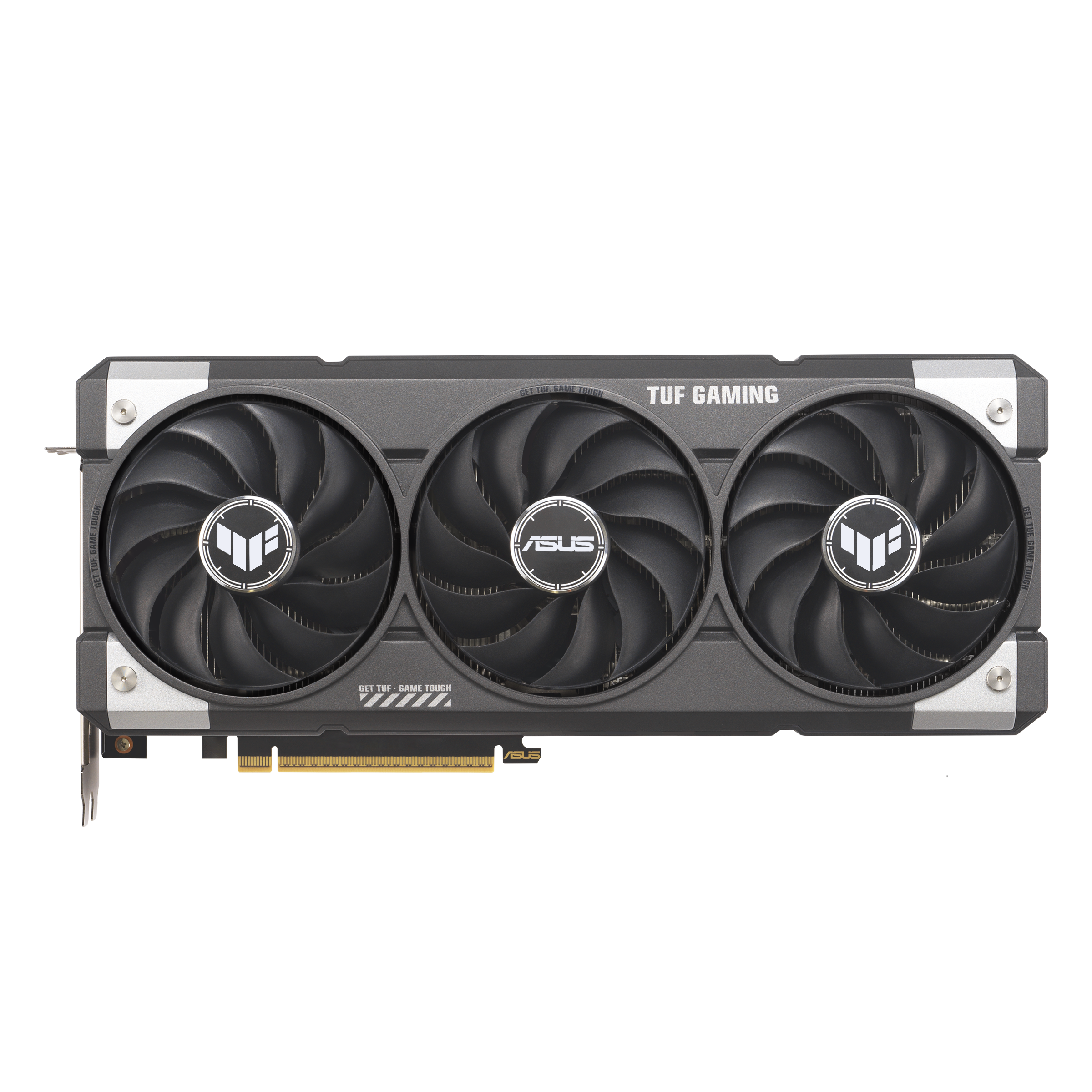

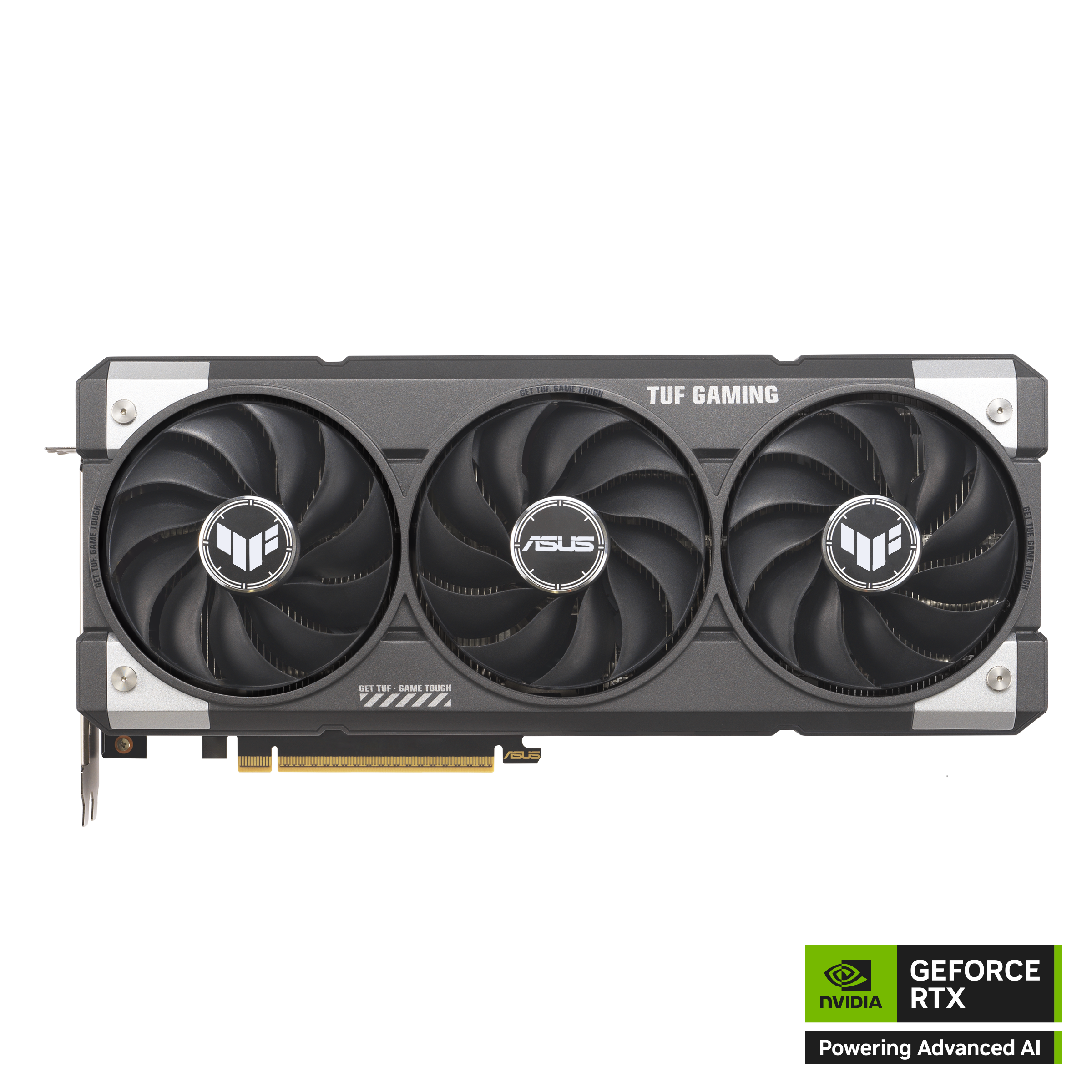

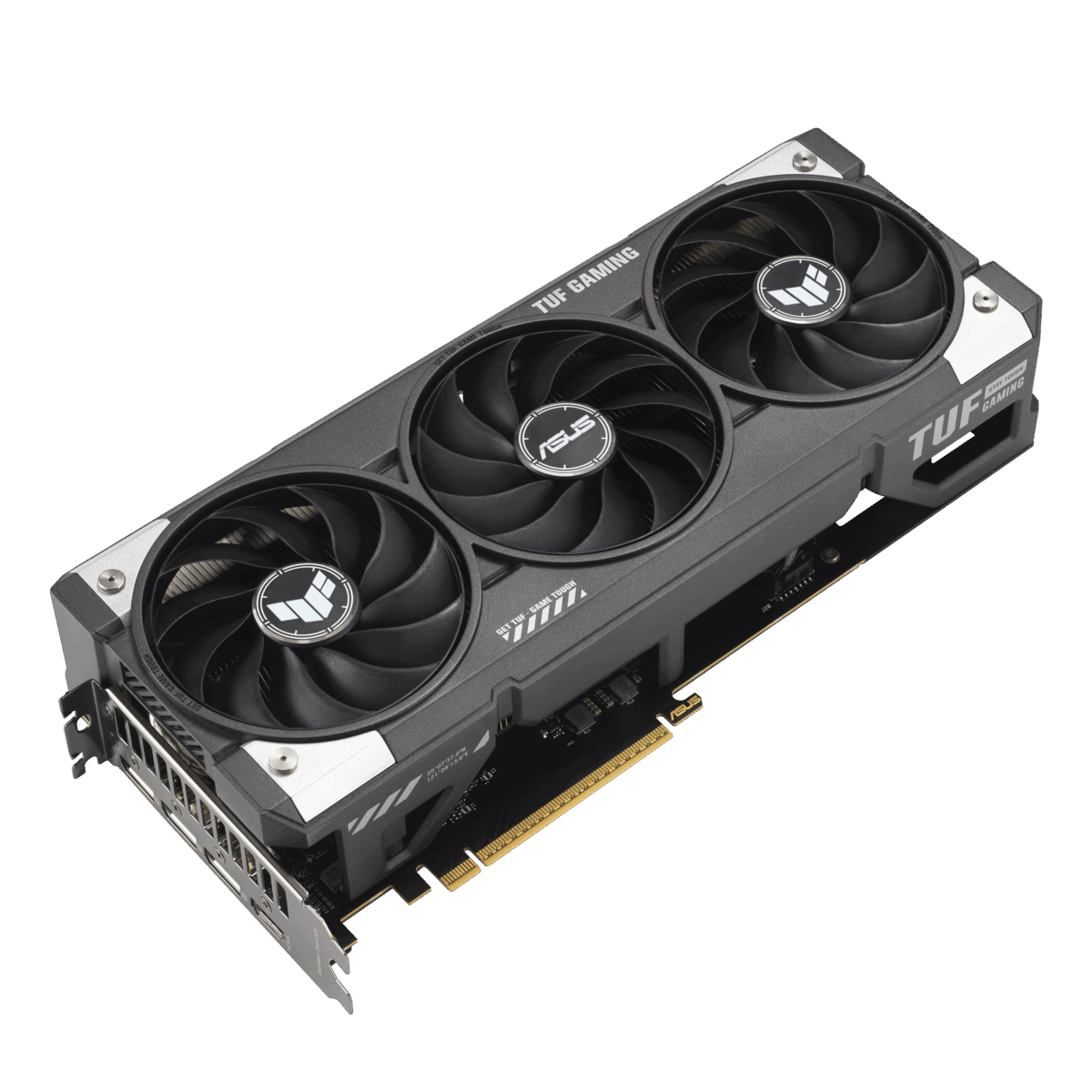

About ASUS TUF Gaming GeForce RTX 5060 Ti OC 16GB
| Category | Specification / Detail |
|---|---|
| Model / SKU | TUF-RTX5060TI-O16G-GAMING |
| GPU Architecture | NVIDIA Blackwell architecture |
| Bus Interface | PCI Express 5.0 |
| OpenGL / API Support | OpenGL 4.6 |
| Video Memory | 16 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface Width | 128-bit |
| Boost / Engine Clocks | Default (boost) 2662 MHz, OC mode 2692 MHz |
| CUDA Cores | 4608 |
| AI / TOPS | 785 AI TOPS (in OC spec listings) |

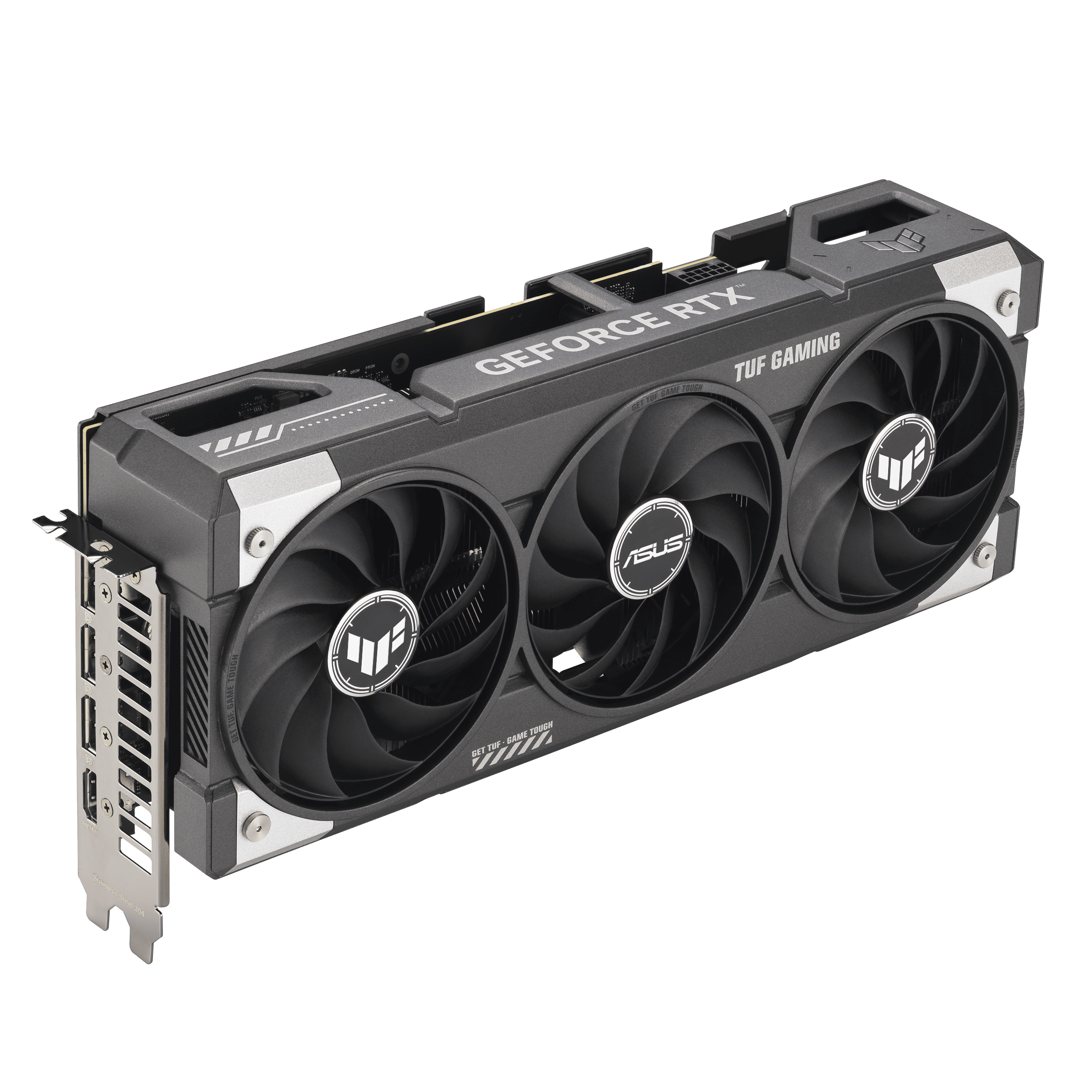

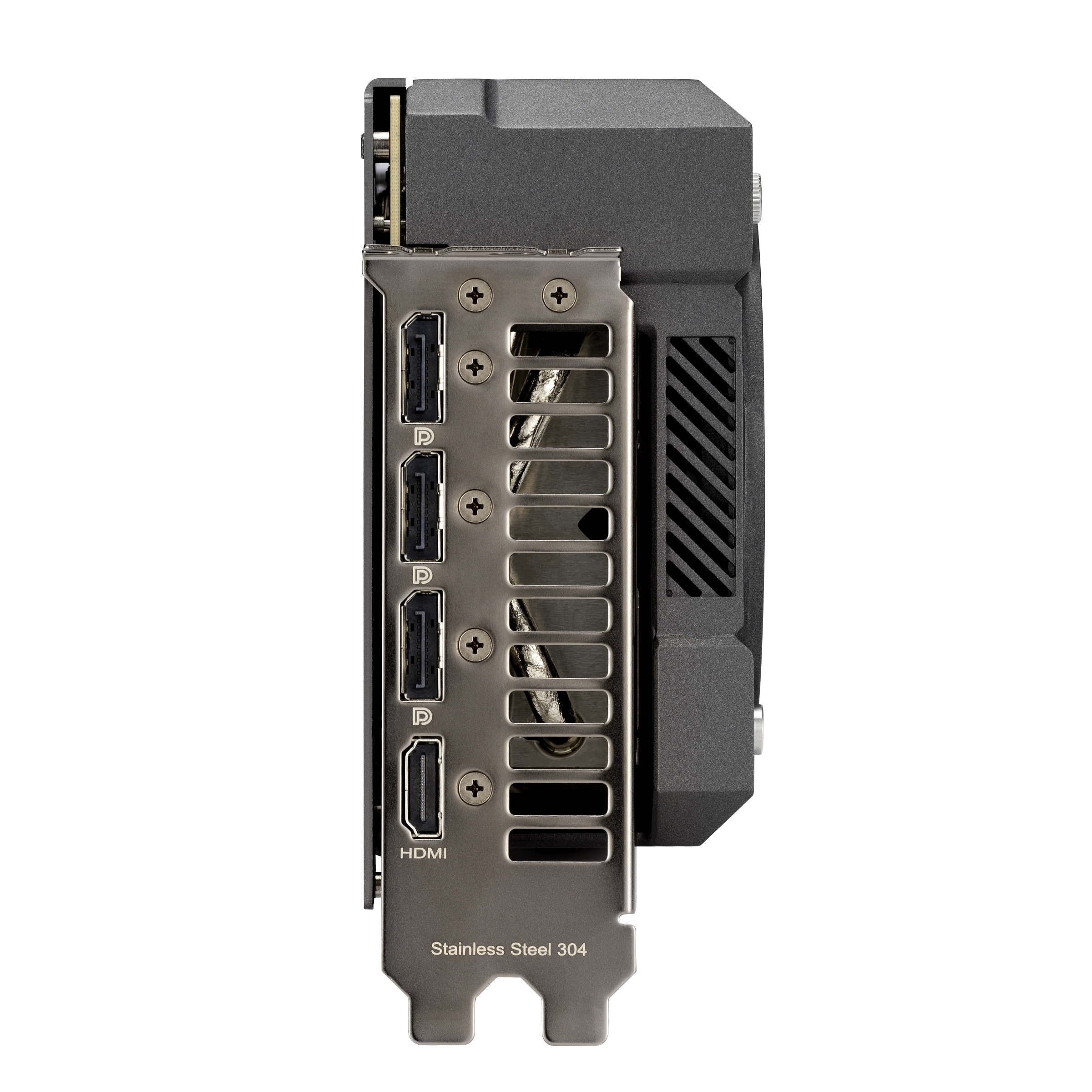

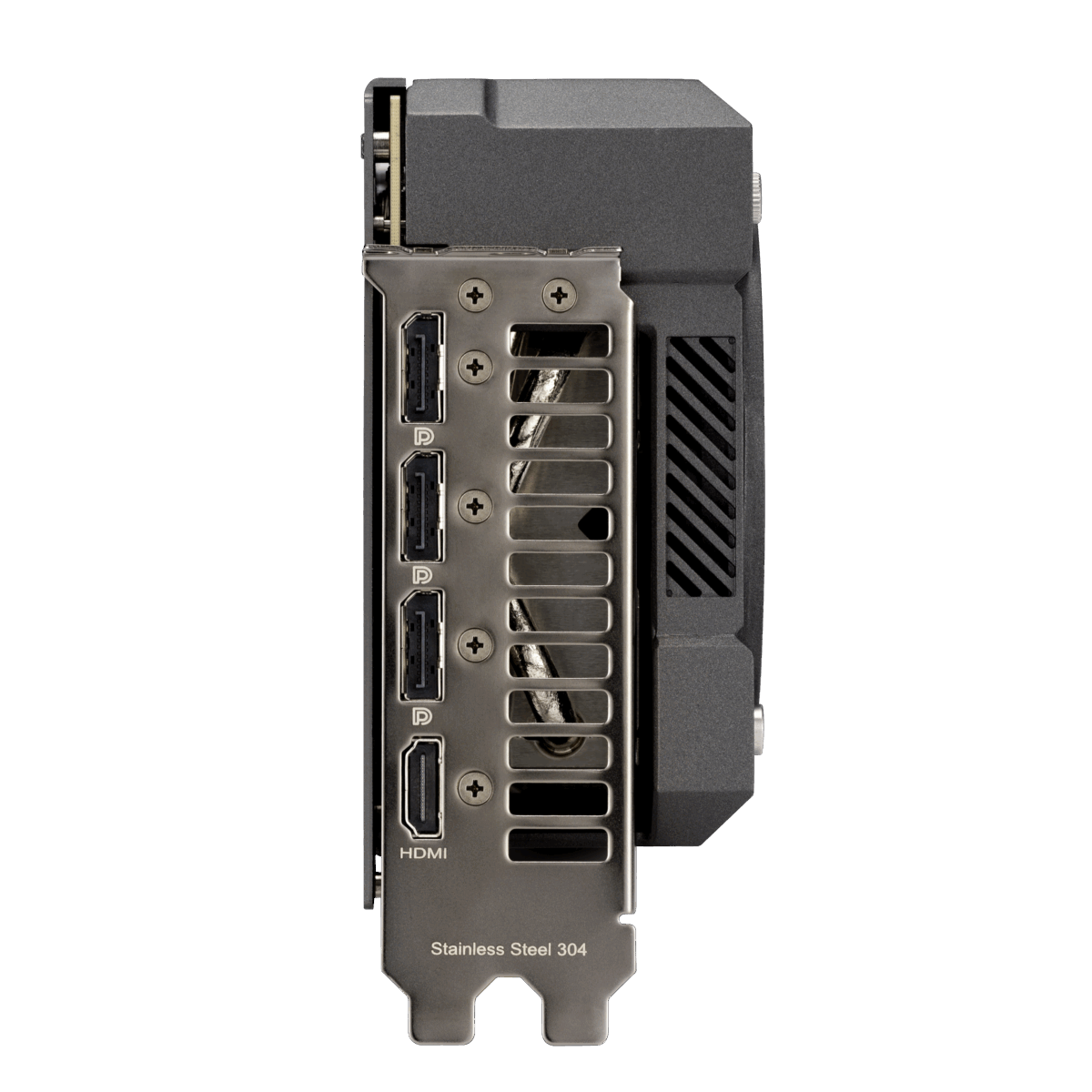

| Display Outputs | 1 × HDMI 2.1b, 3 × DisplayPort 2.1b |
| Maximum Displays | 4 |
| Max Digital Resolution | 7680 × 4320 (8K) |

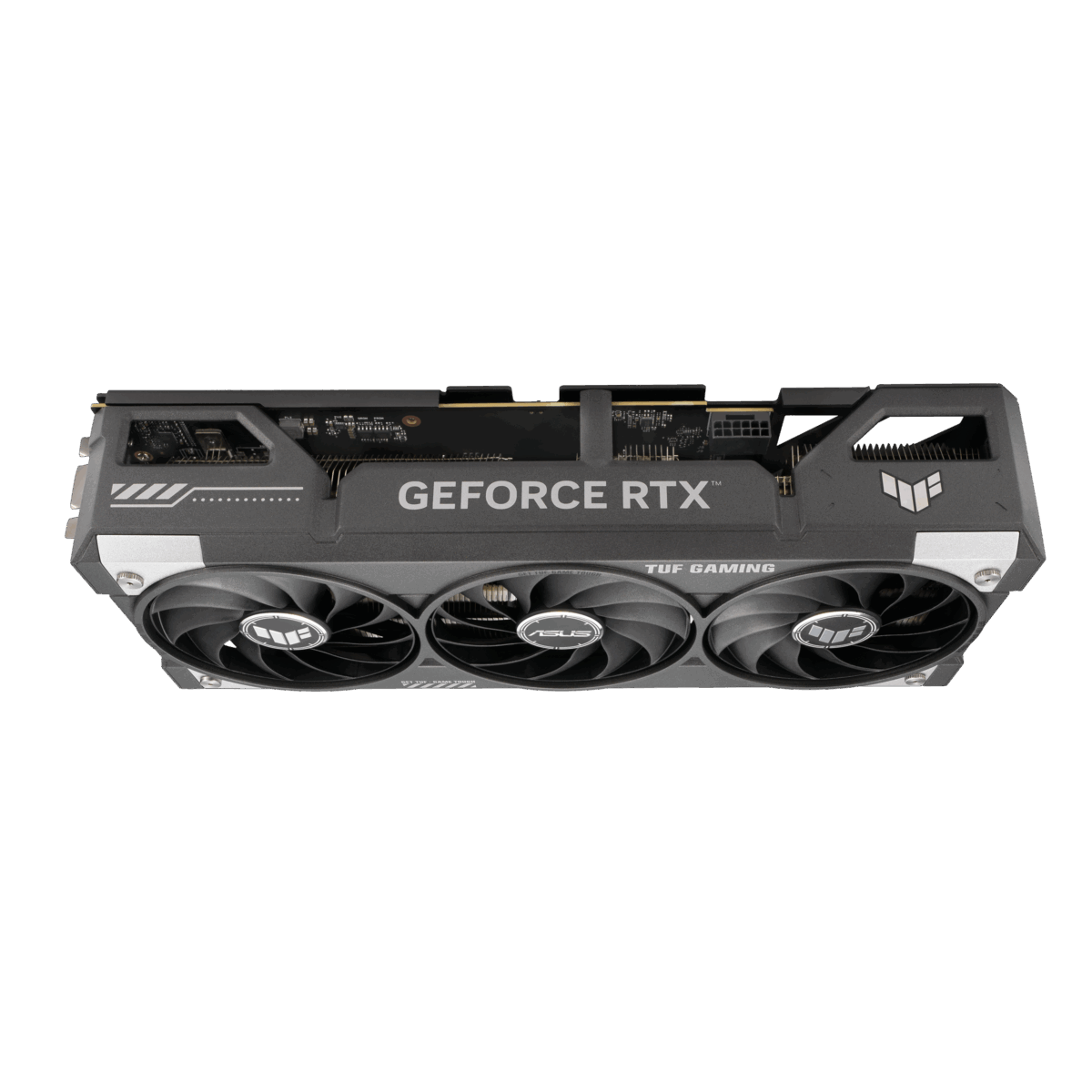

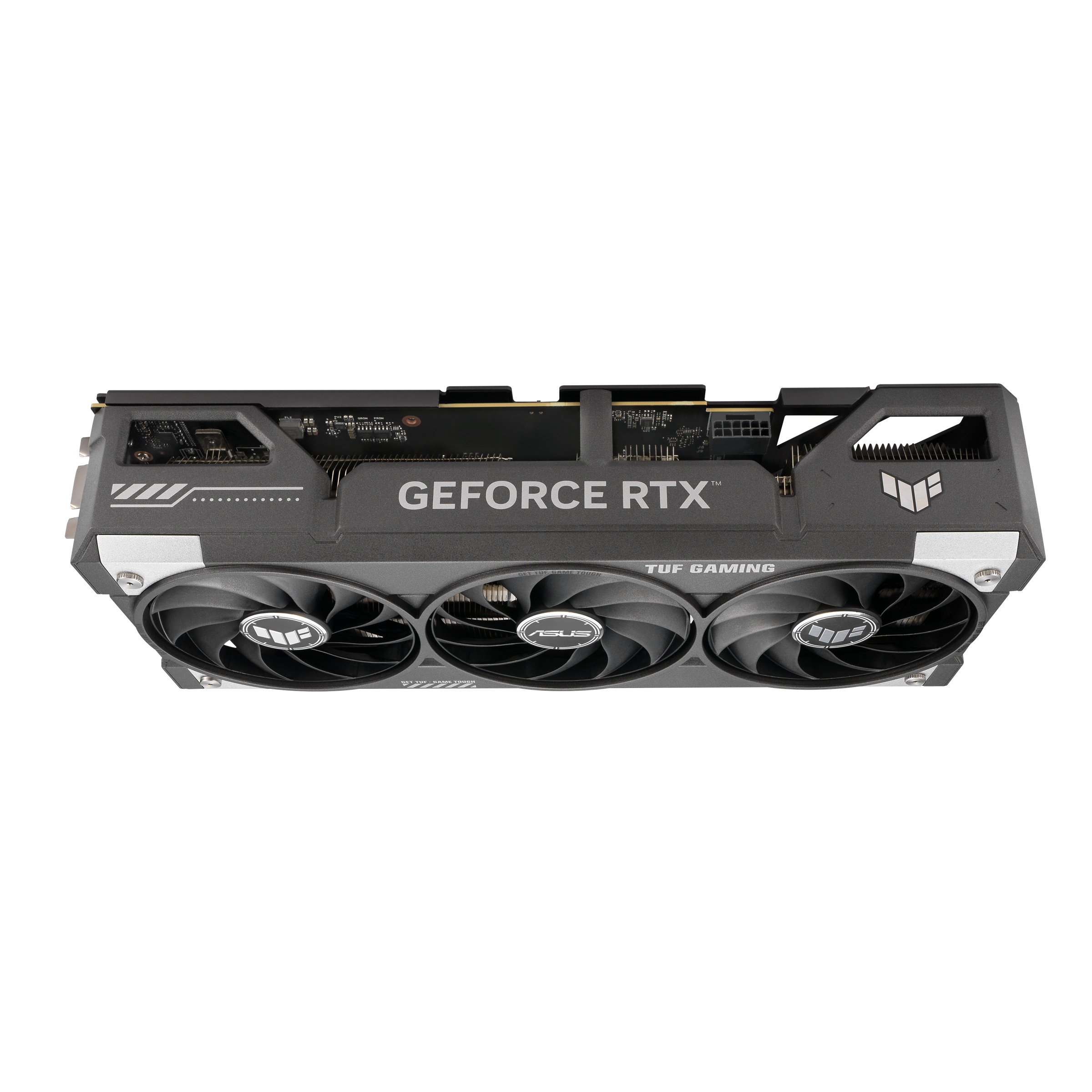

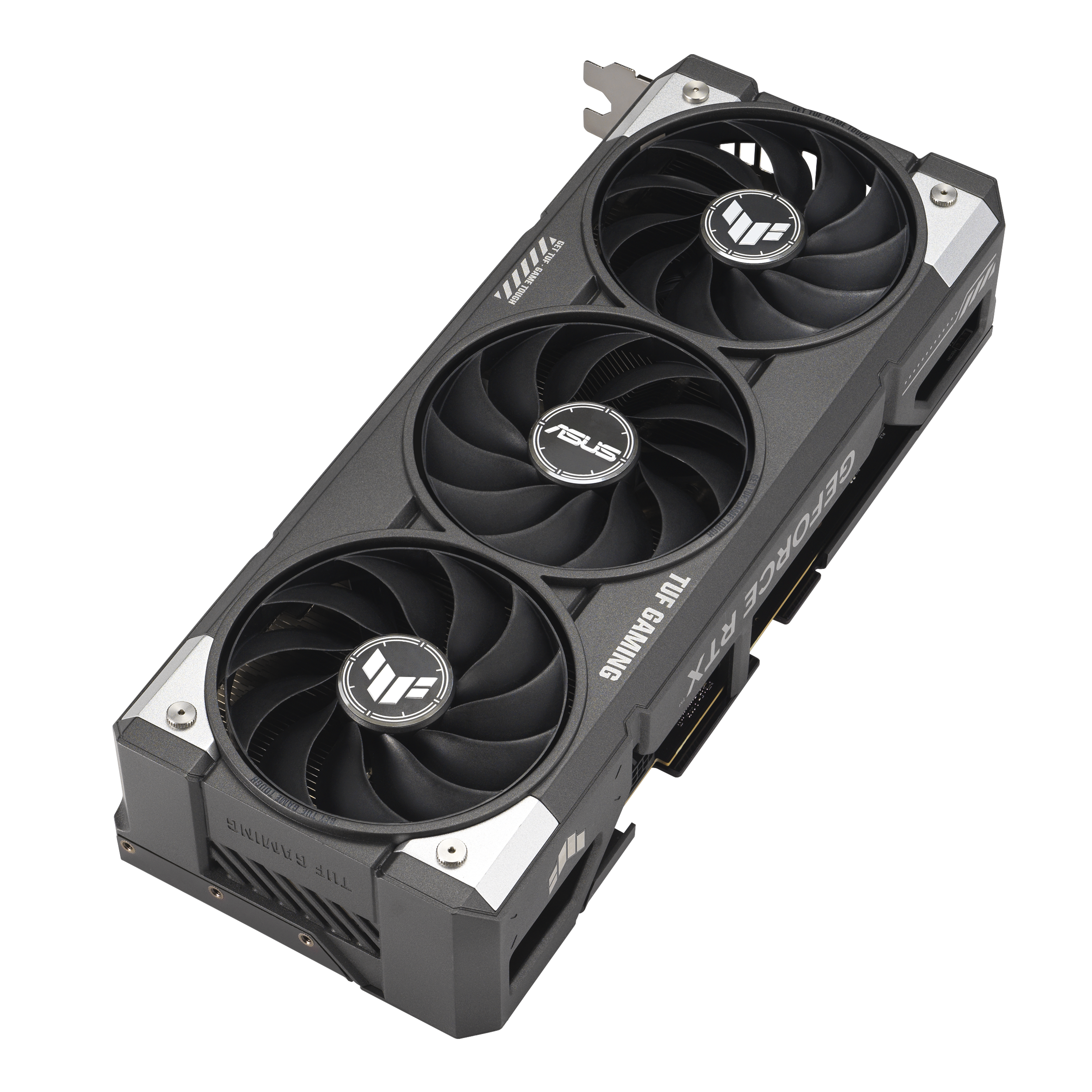

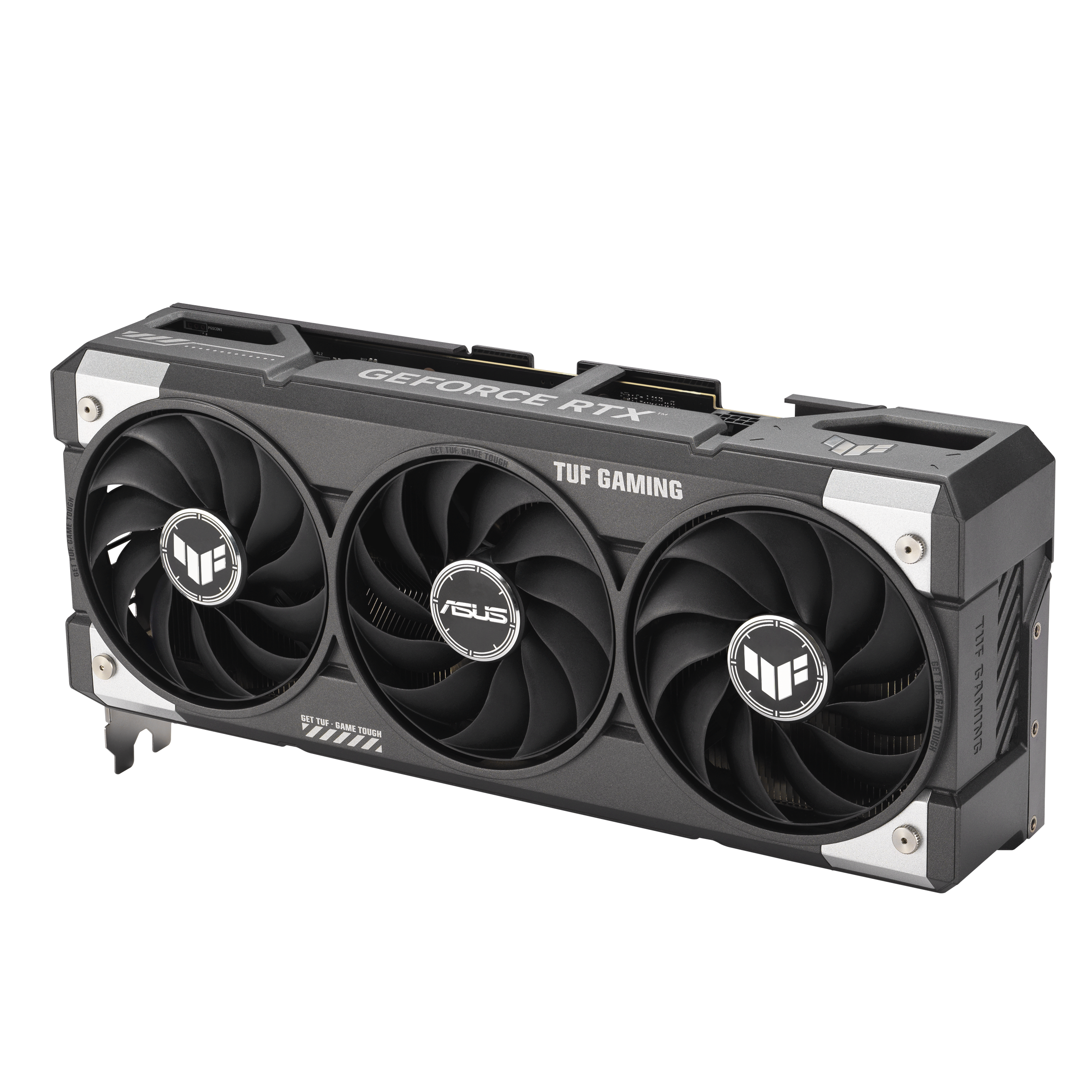

| Slot / Cooling Design | 3.1-slot, vented exoskeleton, triple Axial-Tech fans, MaxContact cold plate |
| PCB & Durability Features | Protective PCB coating, military-grade TUF chokes, capacitors, GPU Guard, Auto-Extreme manufacturing |

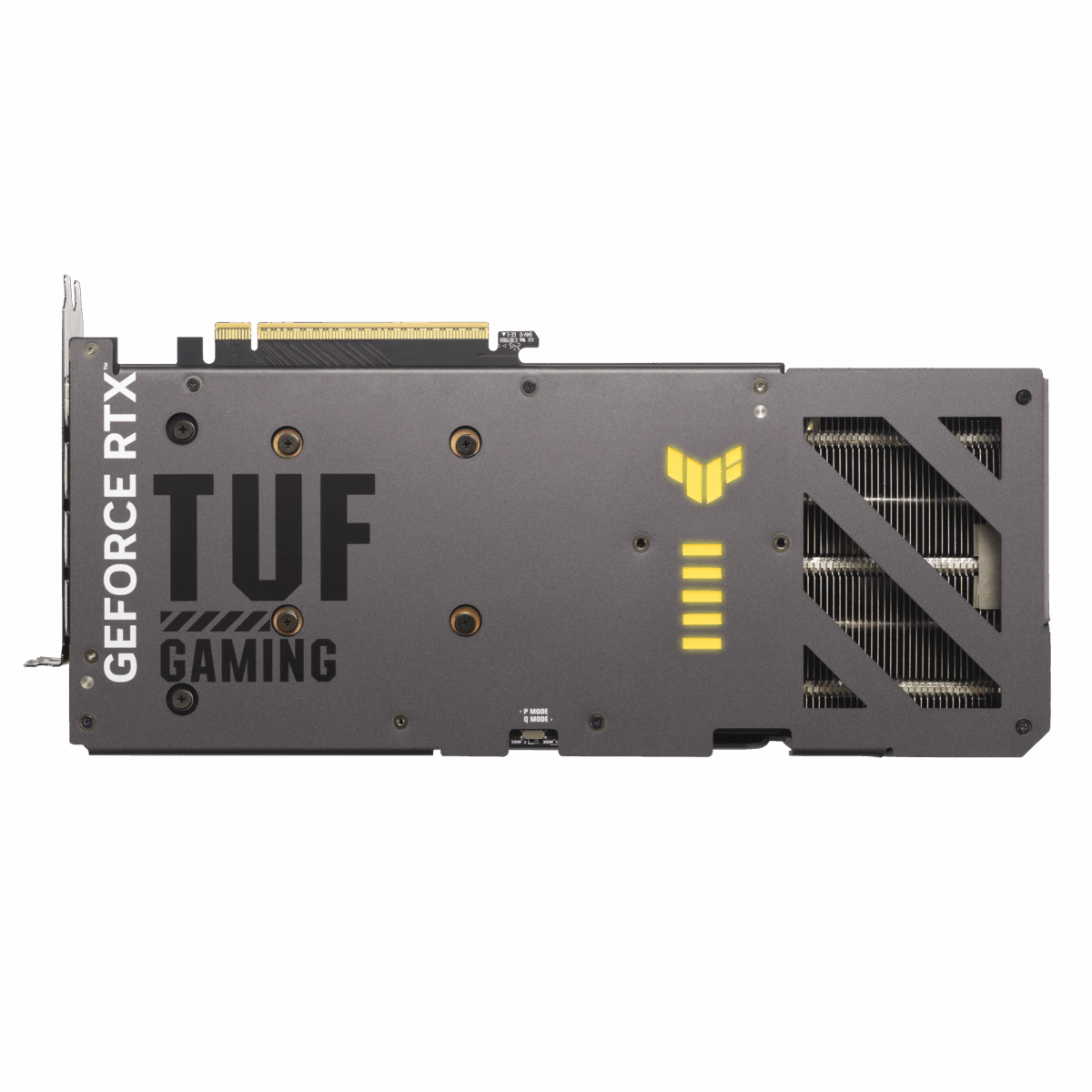

| Dual BIOS / Modes | Yes — Quiet / Performance mode toggle |
| Dimensions (L × W × H) | 302 × 133.5 × 62 mm |
| Recommended PSU | 550 W |
| Power Connector / Slot | 1 × 16-pin PCIe / (via adapter) |
| Other Features & Software | Supports DLSS 4, NVIDIA Reflex 2, AI / neural rendering, Aura ARGB, GPU Tweak III + MuseTree |
Asus TUF Gaming 5060TI 16GB OC Graphics Card blends a strong factory overclock, modern architecture (Blackwell) with advanced cooling, robust build quality, and full support for next-gen features like DLSS 4, ray tracing, and DisplayPort 2.1.
The 16 GB of fast GDDR7 memory gives it headroom for demanding textures and AI/compute workloads.
The design with triple fans and a 3.1-slot profile means you’ll want to ensure your PC case has sufficient clearance.
Overall, for users seeking durability, performance, and long-term relevance, this TUF version of the RTX 5060 Ti is a compelling option.
