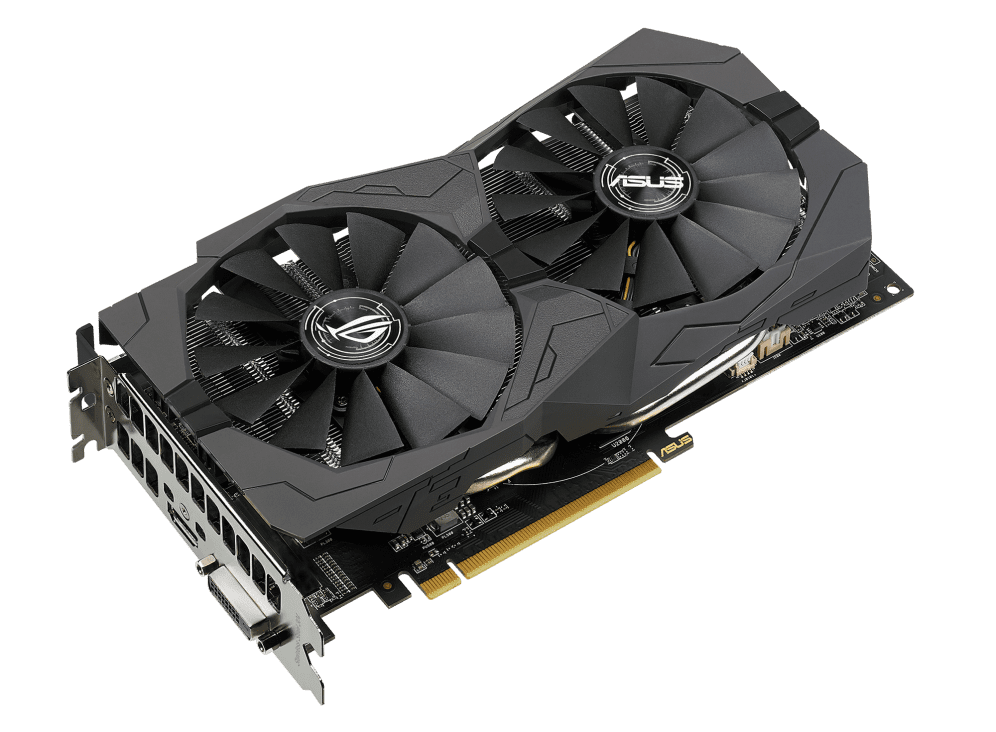

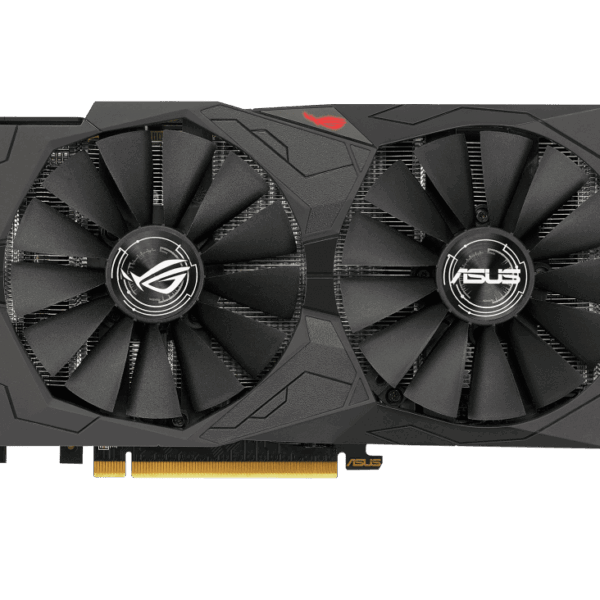

About ASUS ROG Strix Radeon RX 560 V2 OC 4 GB GDDR5
AMD’s Polaris 21 GPU, which has 1024 shaders, powers the ASUS ROG Strix Radeon RX 560 V2. For amazing value gaming, it can boost to about 1275 MHz in OC mode from its factory-set base clock of 1199 MHz.

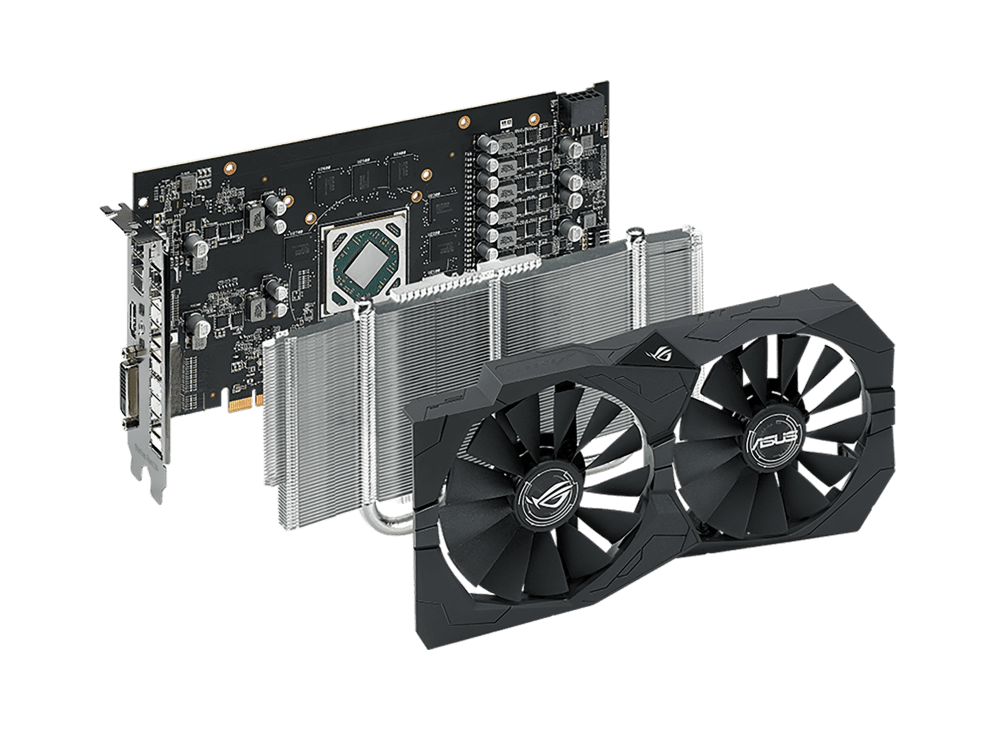

Thanks to 0 dB idle technology, its dual Wing-blade fans, which are mounted on DirectCU II copper heatpipes, remain silent below ~50 °C. Compared to sleeve types, the fans’ lifespan is doubled thanks to their sturdy dual-ball bearings. While Aura Sync RGB lighting and a reinforced stainless steel bracket offer strength and style, Auto-Extreme automated soldering guarantees dependable construction.
It uses a single 8-pin power connector, consumes about 75 watts, and is small enough to fit into a 242 × 129 × 42 mm design that has two slots. It recommends a 450W PSU for stable operation and supports up to two displays via dual-link DVI-D and HDMI 2.0b.
Features of ASUS ROG Strix Radeon RX 560 V2 OC 4 GB GDDR5
Specification | Details |
---|---|
GPU Architecture | AMD Polaris 21 (RX 560), 1024 shaders |
Base Clock | 1199 MHz |
Boost Clock | Up to ~1275 MHz |
Memory | 4 GB GDDR5 @ 6.8 Gbps, 128‑bit |
PCIe Interface | PCIe 3.0 x16 |
Display Outputs | 1× DVI‑D, 1× HDMI 2.0b |
Cooling | Dual Wing‑blade fans, DirectCU II copper, 0 dB idle |
Bearings | Dual‑ball |

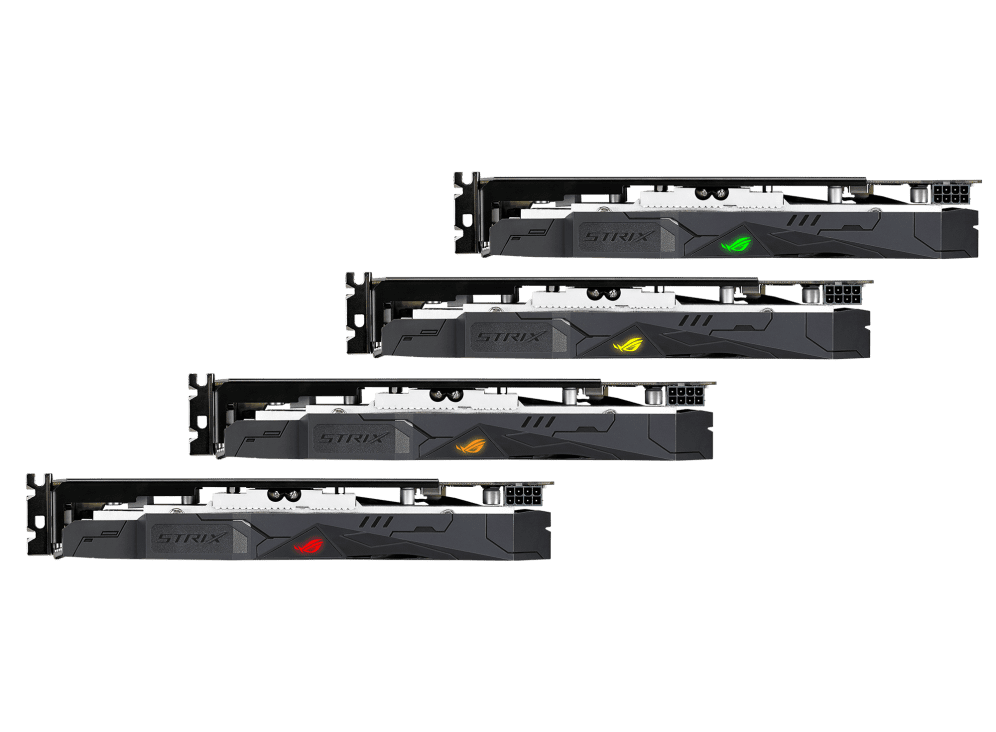

RGB Lighting | Aura Sync (shroud lighting) |

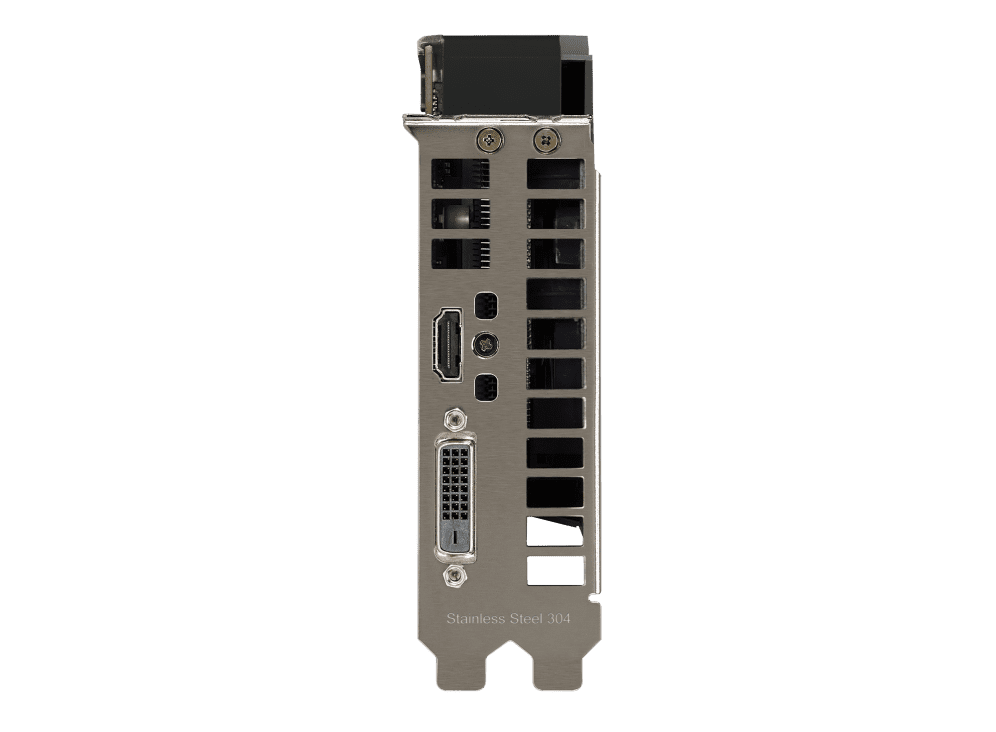

Construction | Auto‑Extreme soldering, stainless steel bracket |
Power Connector | 1×8-pin PCIe |
Power Draw (TDP) | ~75 W |
Dimensions | 242 × 129 × 42 mm (2 slots) |
Recommended PSU | 450 W |
Warranty | 3 years |
Ideal Best For
- Beginner to mid-level gamers playing titles like CS: GO, DOTA2, and League at 1080p.
- Budget-conscious builders are seeking quality cooling, aesthetics, and reliability.
- Compact PC systems need a reliable 2‑slot GPU with Aura Sync.
- Users who prefer quiet idling and automatic performance tuning.
Buy ASUS ROG Strix Radeon RX 560 V2 OC 4 GB GDDR5 Dual‑Fan | 1199 MHz Base 1275 MHz Boost Online Today.
