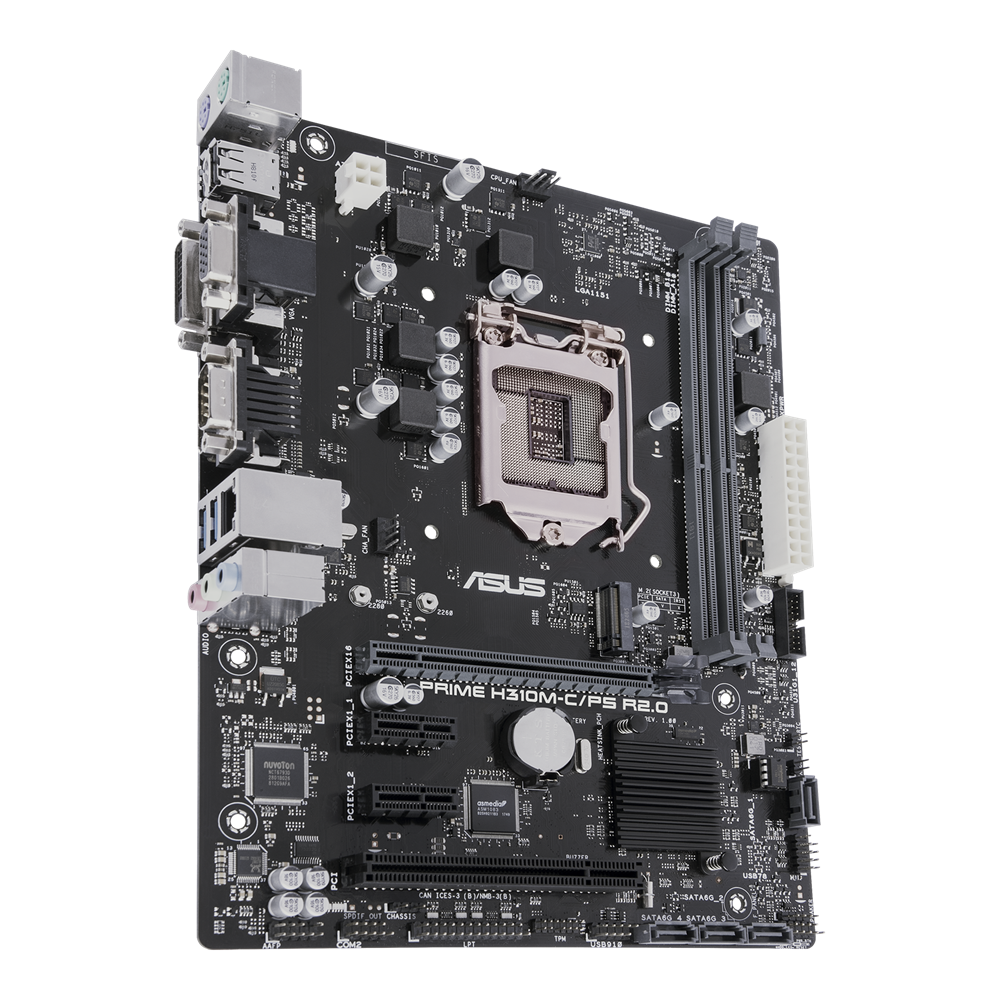

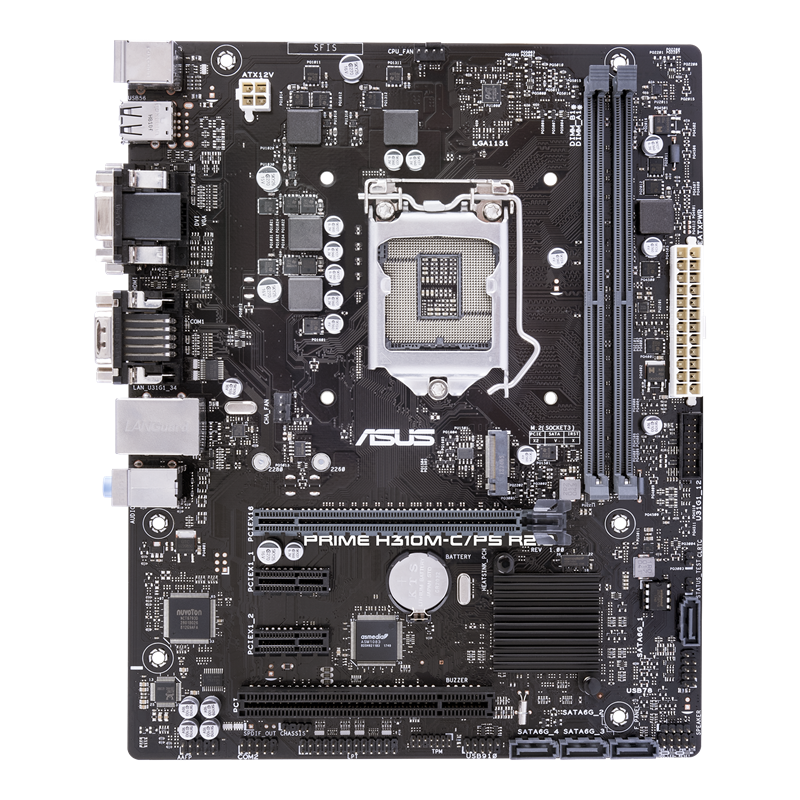

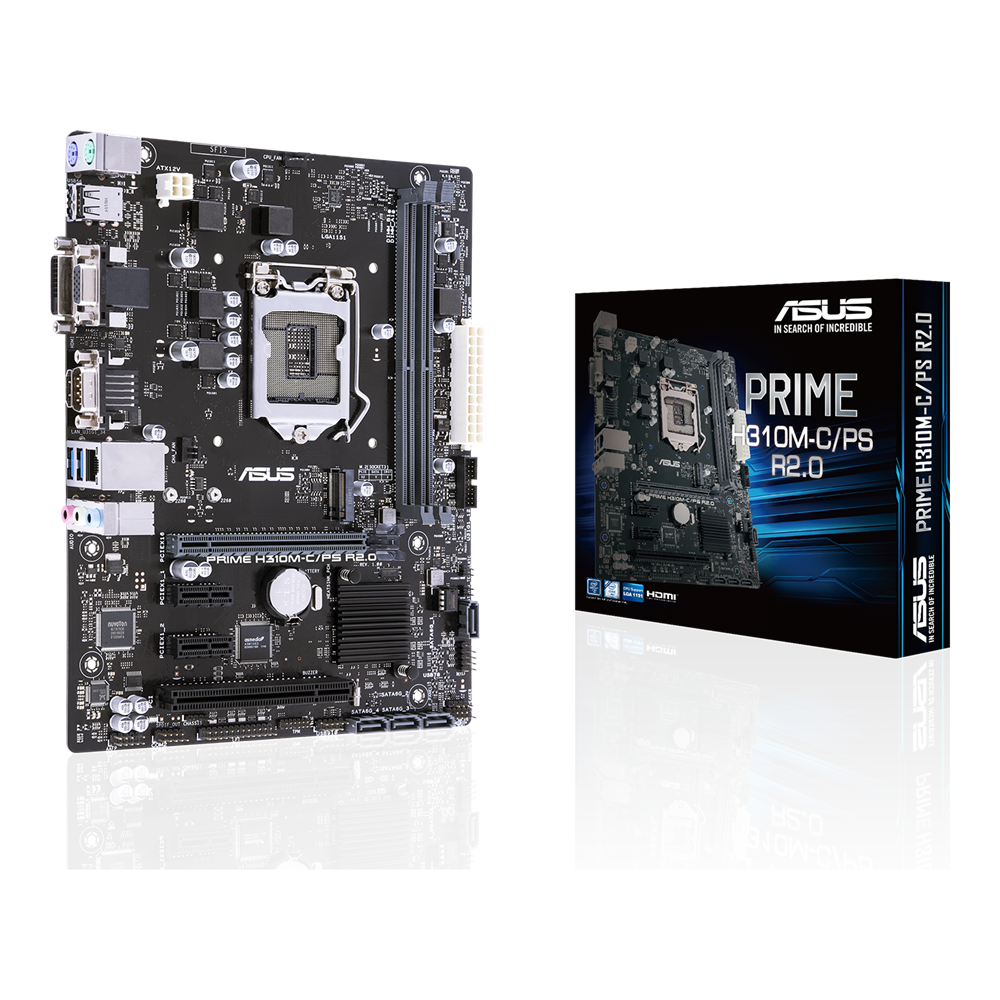

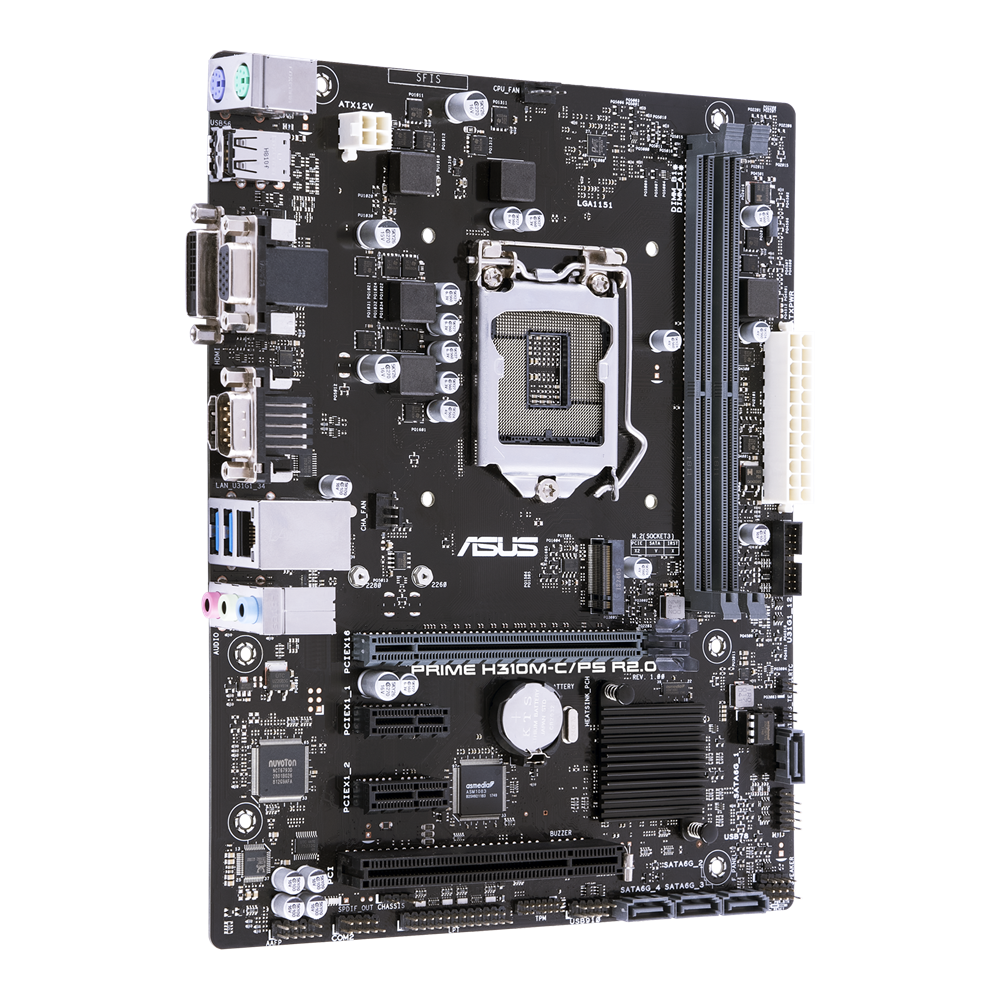

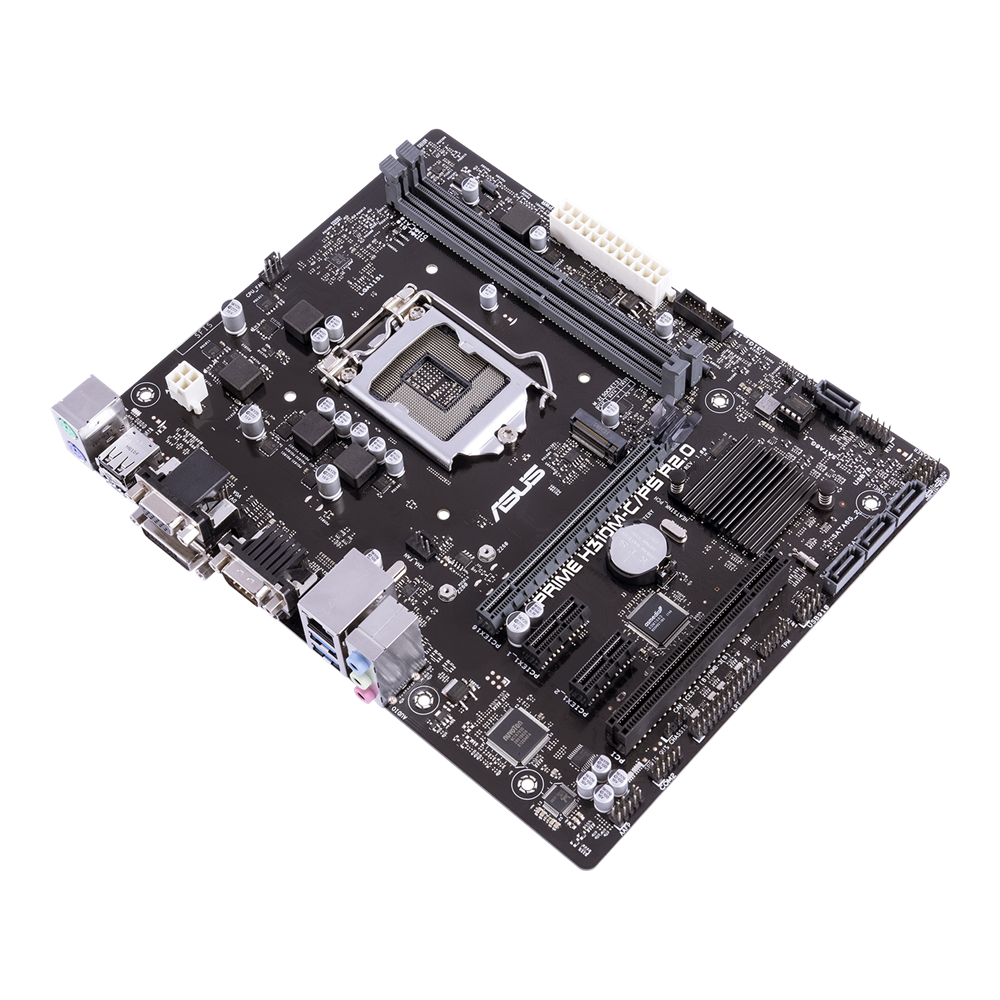

Asus Prime H310M-CS R2.0 Motherboard
Avail the all-new Asus Prime H310M-CS R2.0 Motherboard from Avika Retails at the best price. Best in-class features includes:
| Specification | Details |
|---|---|
| CPU Support | LGA 1151 socket for 8th/9th Gen Intel Core, Pentium Gold, Celeron, 14 nm CPUs |
| Memory | 2 × DDR4 DIMM slots, up to 32 GB, 2133/2400/2666 MHz, non-ECC, unbuffered |
| Storage | 4 × SATA III ports; 1 × M.2 Socket 3 (2260/2280, SATA & PCIe x2) |
| Expansion Slots | 1 × PCIe 3.0 x16; 2 × PCIe 2.0 x1; 1 × PCI |
| Networking & Audio | Gigabit LAN (Realtek RTL8111H); Realtek ALC887 8-channel HD audio |
About the item:
-
Versatile Legacy & Modern Expansion – Supports PCIe 3.0 x16, PCIe 2.0 x1, and even a legacy PCI slot—ideal for mixing older hardware with newer components.
-
Compact Yet Well-Equipped – The micro-ATX layout packs abundant connectivity: multiple internal headers (USB, fan, COM, LPT, TPM) and legacy support like serial and parallel connectors.
-
Enterprise-Grade Protection Suite – Robust features like SafeSlot reinforced PCIe, LAN surge protection, overvoltage protection, corrosion-resistant I/O, and DIGI+ VRM deliver durability in demanding environments.
-
Future-Proof Storage Options – Includes both SATA III and M.2 support (SATA & PCIe x2), enabling users to choose between traditional drives or faster NVMe-style SSDs.
-
User-Friendly BIOS and DIY Features – The UEFI BIOS supports one-click updates (EZ Flash 3), recovery (CrashFree BIOS 3), plus assembly aids like Q-Slot and Q-DIMM for tool-free upgrades or maintenance
₹5,999.00
11
People watching this product now!
Payment Methods:
Description
About Asus Prime H310M-CS R2.0 Motherboard
| Category | Details |
|---|---|
| CPU Compatibility | LGA 1151 socket supporting 8th/9th Gen Intel Core, Pentium Gold, Celeron CPUs (14 nm), with Turbo Boost 2.0 support depending on CPU model |
| Chipset | Intel H310 |
| Memory | Dual-channel; 2 DIMM slots; max 32 GB DDR4; speeds: 2133/2400/2666 MHz; Intel XMP supported; non-ECC, unbuffered |
| Graphics Outputs | HDMI, DVI-D (1920×1200@60 Hz), D-Sub (1920×1200@60 Hz); shared iGPU memory up to 1024 MB; Intel HD Graphics support (InTru 3D, Quick Sync, Clear Video HD, Insider) |
| Expansion Slots | 1 × PCIe 3.0/2.0 x16; 2 × PCIe 2.0 x1; 1 × legacy PCI |
| Storage | 4 × SATA 6 Gb/s; 1 × M.2 Socket 3 (2260/2280, SATA & PCIe x2) – shares bandwidth with SATA6G_4 |
| LAN | Realtek RTL8111H Gigabit LAN controller |
| Audio | Realtek ALC887 8-channel HD audio codec, supports jack-detection and front panel jack-retasking |
| USB Ports | 2 × USB 3.1 Gen 1 (back panel) + 2 (mid-board); 4 × USB 2.0 (two back, two mid-board) |
| Internal I/O Ports | USB headers (1 × USB 3.1 Gen 1, 2 × USB 2.0); M.2 socket; COM, LPT, TPM headers; chassis intrusion; CPU & chassis fan; front panel audio; system panel; clear CMOS; power connectors (24-pin ATX, 4-pin ATX 12 V); speaker connector |
| Special Features | ASUS 5X Protection III (SafeSlot, LANGuard, Overvoltage Protection, Stainless Steel I/O, DIGI+ VRM), OptiMem, AI Suite 3, AI Charger, PC Cleaner, EZ Flash 3, CrashFree BIOS 3, Q-Slot, Q-DIMM, EZ DIY features |

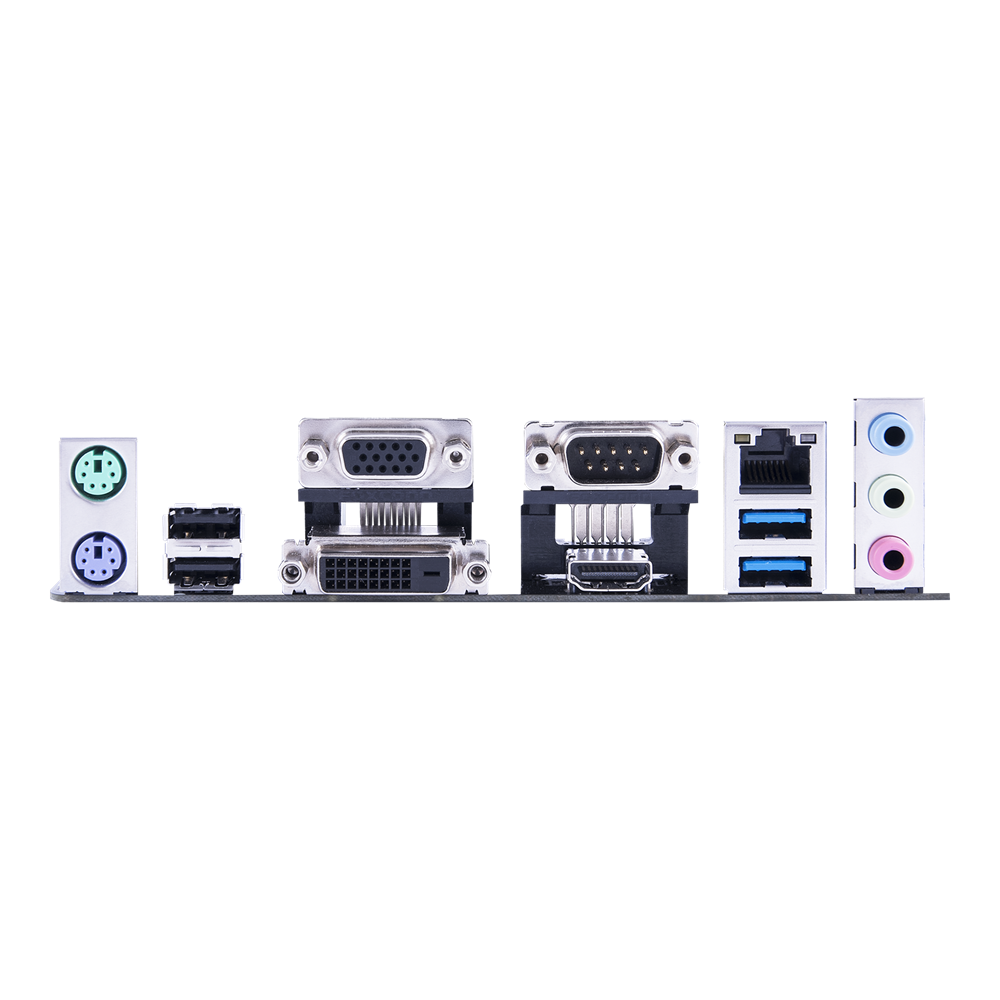

| Back I/O Ports | PS/2 keyboard & mouse, DVI-D, D-Sub, HDMI, LAN, USB 3.1 Gen 1 ×2, USB 2.0 ×2, audio jacks ×3, COM port |
| BIOS & Manageability | 128 Mb UEFI AMI BIOS; EZ Flash 3, CrashFree BIOS 3; WOL by PME, PXE support |
| Form Factor | micro-ATX; dimensions approximately 9.6″ × 7.6″ (24.4 × 19.3 cm) |
| Operating System | Supports Windows 10 (64-bit) |
