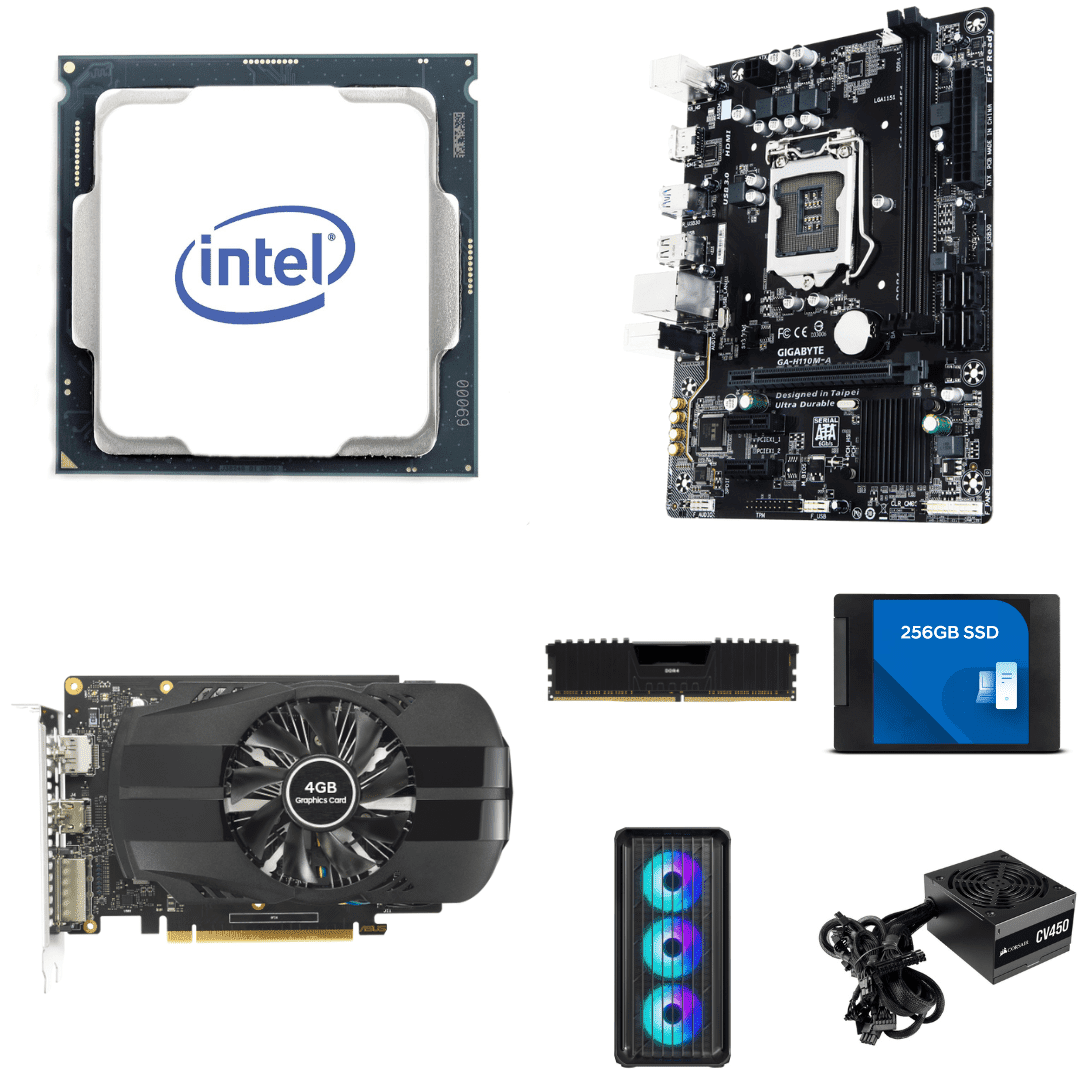

About Intel Core-i7 6th Gen with H110M Motherboard
| Specification | Details |
|---|---|
| Processor Number | i7-6660U |
| Launch Date | Q3’15 |
| Lithography | 14 nm |
| Base Frequency | 2.40 GHz |
| Max Turbo Frequency | 3.40 GHz |
| Cache | 4 MB Intel® Smart Cache |
| Bus Speed | 4 GT/s OPI |
| TDP | 15 W |
| Configurable TDP-down | 9.5 W |
| Configurable TDP-down Frequency | 0.8 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-up Frequency | 2.6 GHz |
| Core Count | 2 |
| Thread Count | 4 |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Embedded Options Available | No |
| Max Memory Size (dependent on memory type) | 32 GB |
| Memory Types | DDR4-2133, LPDDR3-1866, DDR3L-1600 |
| Max Memory Channels | 2 |
| Max Memory Bandwidth | 34.1 GB/s |
| ECC Memory Supported | No |
| Processor Graphics | Intel® Iris® Graphics 540 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.05 GHz |
| Graphics Video Max Memory | 32 GB |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI 1.4) | 4096×2304@24Hz |
| Max Resolution (DP) | 4096×2304@60Hz |
| Max Resolution (eDP – Integrated Flat Panel) | 4096×2304@60Hz |
| DirectX Support | 12 |
| OpenGL Support | 4.4 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x1926 |
| Socket Supported | BGA1356 |
| Max CPU Configuration | 1 |
| Thermal Monitoring Technologies | Yes |
| Intel® AES New Instructions | Yes |
| Intel® Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® TSX-NI | No |
| Intel® 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Intel® Demand Based Switching | No |
| Intel® Smart Response Technology | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes |
| Intel® Memory Protection Extensions (Intel® MPX) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Stable Image Platform Program (SIPP) | No |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
About H110M Motherboard
| Feature | Specification |
|---|---|
| CPU | Supports 7th/6th Gen Intel® Core™ i7/i5/i3, Intel® Pentium®, Intel® Celeron® (LGA1151) |
| Chipset | Intel® H110 Express Chipset |
| Memory | 2 x DDR4 DIMM sockets, up to 32 GB, Dual channel, DDR4 2400/2133 MHz, ECC & non-ECC supported |
| Onboard Graphics | Integrated Graphics Processor – Intel® HD Graphics, 1 x HDMI port (4096×2160@24 Hz) |
| Audio | Realtek® ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCIe x16 (PCIe 3.0), 2 x PCIe x1 (PCIe 2.0) |
| Storage Interface | 4 x SATA 6Gb/s connectors |
| USB | 4 x USB 3.0/2.0, 6 x USB 2.0/1.1 |
| Internal I/O | 1 x 24-pin ATX, 1 x 4-pin ATX 12V, 4 x SATA 6Gb/s, CPU/System fan headers, front panel/audio headers, S/PDIF Out, USB 3.0/2.0/1.1 headers, TPM header, Clear CMOS jumper |
| Back Panel I/O | 1 x PS/2 mouse, 1 x PS/2 keyboard, 1 x HDMI, 2 x USB 3.0/2.0, 4 x USB 2.0/1.1, 1 x RJ-45, 3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection, overheating and fan fail warning, fan speed control |
| BIOS | 1 x 64 Mbit flash, AMI UEFI BIOS, DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | APP Center support, 3D OSD, @BIOS, AutoGreen, Cloud Station, EasyTune, Fast Boot, Smart TimeLock, Smart Keyboard, Smart Backup, System Information Viewer, USB Blocker, Smart Recovery 2, Q-Flash, Smart Switch, Xpress Install |
| Bundle Software | Norton® Internet Security (OEM version), cFosSpeed |
| Operating System | Windows® 10 64-bit (7th Gen Intel® Processors), Windows® 10/8.1/7 (6th Gen Intel® Processors) |
| Form Factor | Micro ATX, 22.6 cm x 17.4 cm |
About 16GB DDR4 RAM
16GB DDR4 RAM with 3 Years Warranty
256 GB SSD
256GB SSD With 5 Years Warranty
450W PSU
3 Years Warranty
4GB Graphics Card
GT730 4GB
The GT730 4GB graphics card is an entry-level GPU designed to provide enhanced graphics performance for everyday computing needs. It is well-suited for users looking to upgrade their integrated graphics without breaking the bank. Here’s a detailed look at its features, functionality, performance, and applications.
Features
- 4GB GDDR5 Memory: The GT730 comes with 4GB of GDDR5 memory, which ensures smoother performance in graphic-intensive applications and supports higher resolution displays.
- Multiple Display Outputs: Equipped with multiple HDMI ports, this card supports up to four displays simultaneously, making it ideal for multi-monitor setups.
- Low Profile Design: Its compact and low-profile design ensures compatibility with a wide range of systems, including small form factor (SFF) and mini-ITX builds.
- Passive Cooling: The card features a passive cooling system with a large heatsink, ensuring silent operation by eliminating the need for a fan.
- DirectX 12 Support: It supports DirectX 12, offering improved graphics performance and enabling modern gaming experiences.
- NVIDIA CUDA Technology: With CUDA cores, the card can handle parallel computing tasks more efficiently, improving performance in certain applications.
Functionality
- Enhanced Video Playback: The GT730 4GB enhances video playback quality, making it perfect for streaming HD and 4K content smoothly.
- Basic Gaming: While not designed for high-end gaming, it can handle older and less demanding games at medium to low settings.
- Multi-Monitor Productivity: With support for up to four monitors, it significantly boosts productivity by allowing users to multitask efficiently across multiple screens.
- Video Editing and Rendering: The card provides basic support for video editing and rendering tasks, making it a good choice for hobbyists and beginners.
Performance
- Power Efficiency: The GT730 is known for its low power consumption, which makes it an energy-efficient upgrade for older systems.
- Improved Graphics: It offers a significant improvement over integrated graphics, providing better visuals and smoother performance for everyday tasks.
- Stability: The card is designed for reliable performance, ensuring stable operation in a variety of scenarios.
- Compatibility: It is compatible with a wide range of motherboards and power supplies, making it an easy upgrade for many users.
Applications
- Home Theater PCs (HTPCs): Ideal for HTPC setups, it enhances the multimedia experience by delivering high-quality video and audio output.
- Office Workstations: Perfect for office environments, it supports multiple monitors, aiding in productivity and workflow management.
- Educational Use: Suitable for educational purposes, the card can handle a variety of software used in learning environments, including multimedia and light 3D applications.
- Digital Signage: With support for multiple displays, it is an excellent choice for digital signage setups in retail, hospitality, and corporate settings.
- Casual Gaming: It provides adequate performance for casual gamers who enjoy less demanding titles and older games.
- Graphic Design: The card supports basic graphic design tasks, making it a viable option for budding designers working on entry-level projects.
In summary, the GT730 4GB graphics card is a versatile and budget-friendly option that caters to a variety of needs. From enhancing multimedia playback to supporting multi-monitor setups, it offers a range of features that make it a valuable addition to any PC looking for a graphics boost. Its low power consumption, passive cooling, and compatibility with various systems further enhance its appeal, making it a reliable choice for everyday computing and light graphics work.
4 RGB Fan Cabinet
Geonix 4 FAN
