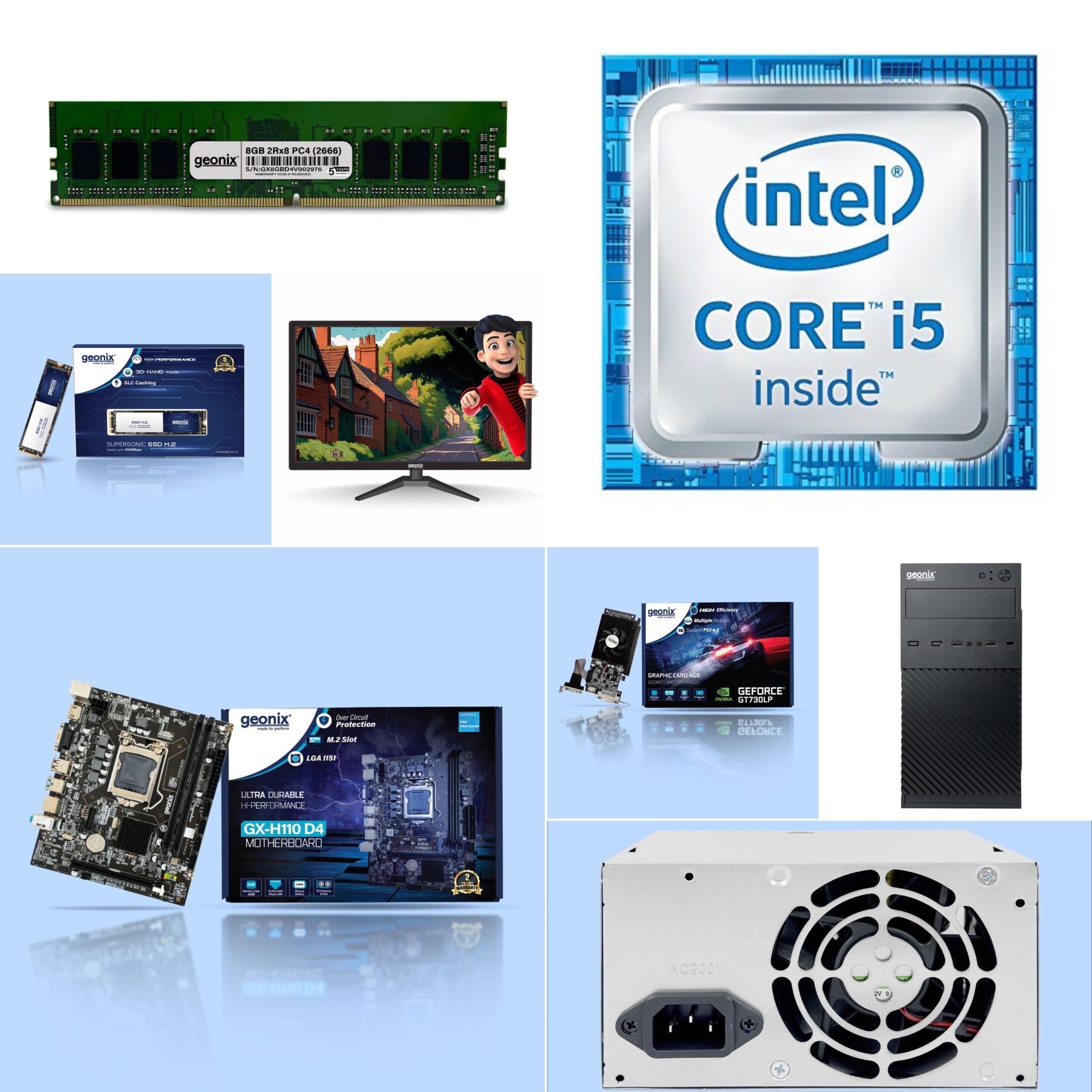

About Intel Core-i5 6th Gen with GX-H110 D4 Motherboard
About Intel Core-i5 6th Gen
| FEATURE | SPECIFICATION |
|---|---|
| CPU | Supports 7th/6th Gen Intel® Core™ i7/i5/i3, Intel® Pentium®, Intel® Celeron® (LGA1151) |
| Chipset | Intel® H110 Express Chipset |
| Memory | 2 x DDR4 DIMM sockets, up to 32 GB, Dual channel, DDR4 2400/2133 MHz, ECC & non-ECC supported |
| Onboard Graphics | Integrated Graphics Processor – Intel® HD Graphics, 1 x HDMI port (4096×2160@24 Hz) |
| Audio | Realtek® ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCIe x16 (PCIe 3.0), 2 x PCIe x1 (PCIe 2.0) |
| Storage Interface | 4 x SATA 6Gb/s connectors |
| USB | 4 x USB 3.0/2.0, 6 x USB 2.0/1.1 |
| Internal I/O | 1 x 24-pin ATX, 1 x 4-pin ATX 12V, 4 x SATA 6Gb/s, CPU/System fan headers, front panel/audio headers, S/PDIF Out, USB 3.0/2.0/1.1 headers, TPM header, Clear CMOS jumper |
| Back Panel I/O | 1 x PS/2 mouse, 1 x PS/2 keyboard, 1 x HDMI, 2 x USB 3.0/2.0, 4 x USB 2.0/1.1, 1 x RJ-45, 3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection, overheating and fan fail warning, fan speed control |
| BIOS | 1 x 64 Mbit flash, AMI UEFI BIOS, DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | APP Center support, 3D OSD, @BIOS, AutoGreen, Cloud Station, EasyTune, Fast Boot, Smart TimeLock, Smart Keyboard, Smart Backup, System Information Viewer, USB Blocker, Smart Recovery 2, Q-Flash, Smart Switch, Xpress Install |
| Bundle Software | Norton® Internet Security (OEM version), cFosSpeed |
| Operating System | Windows® 10 64-bit (7th Gen Intel® Processors), Windows® 10/8.1/7 (6th Gen Intel® Processors) |
| Form Factor | Micro ATX, 22.6 cm x 17.4 cm |
About Geonix GX-H110 D4 Motherboard
| Feature | Description |
|---|---|
| Model | GX-H110 D4 |
| Form Factor | Micro ATX |
| Chipset | Intel H110 |
| CPU Socket | LGA 1151 |
| Memory Support | DDR4 |
| Memory Slots | 2 DIMM slots, up to 32GB |
| Graphics Interface | 1 PCIe 3.0 x16 slot |
| Expansion Slots | 2 PCIe 2.0 x1 slots |
| Storage Interface | 4 SATA III ports |
| USB Ports | USB 3.0 and USB 2.0 ports |
| Audio | Integrated HD Audio |
| LAN | Gigabit LAN |
| Power Connector | 24-pin ATX main power connector, 4-pin ATX 12V power connector |
| Special Features | Support for Intel Turbo Boost Technology 2.0 |
| BIOS | UEFI BIOS |
About Geonix 16GB RAM DDR4
- Capacity:
- The Geonix 16GB RAM DDR4 comes with a 16GB capacity, making it ideal for multitasking, handling intensive applications, and boosting overall system performance.
- Speed:
- The Geonix 16GB RAM DDR4 operates at a 2666 MHz clock speed, providing fast data transfer rates and smooth functioning of demanding software applications.
- DDR4 Technology:
- Utilizing DDR4 technology, the Geonix 16GB RAM DDR4 module offers improved bandwidth, lower power consumption, and enhanced reliability compared to DDR3 modules.
- Form Factor:
- Designed for laptops, the SO-DIMM form factor ensures compatibility with a wide range of modern laptops, delivering a quick and easy upgrade solution.
- Performance:
- With its high-speed performance, the Geonix 16GB RAM DDR4 ensures efficient processing and smooth running of heavy applications, improving the overall user experience, especially for gaming, video editing, and other resource-intensive tasks.
- Power Efficiency:
- Geonix 16GB DDR4 RAM operates at 1.2V, which reduces power consumption, helping to extend laptop battery life and maintain energy efficiency during prolonged use.
- Error-Free Data Transmission:
- It is equipped with advanced error correction features that prevent data corruption and ensure consistent, reliable data transmission without errors.
- Durability:
- Built with high-quality components, the Geonix 16GB RAM DDR4 module is designed for long-term durability and consistent performance under high workloads.
- Compatibility:
- The Geonix 16GB RAM DDR4 is compatible with most laptop models supporting DDR4 SO-DIMM memory, making it a versatile choice for laptop upgrades or replacements.
- Plug and Play:
- The easy installation process requires no technical expertise, allowing users to plug in the module and immediately benefit from faster memory performance.
- Applications:
- Gaming: Enhances the gaming experience with faster data processing and reduced load times.
- Productivity: Ideal for heavy multitasking, improving workflow for professional applications like graphic design, video editing, and 3D modeling.
- Everyday Use: Boosts general laptop performance for everyday tasks such as browsing, office work, and media consumption.
The Geonix 16GB DDR4 Laptop RAM is a reliable and efficient choice for those seeking to upgrade their laptop’s memory, ensuring faster performance and smooth multitasking capabilities.
About Geonix 256GB SSD
| Feature | Description |
|---|---|
| Model | Geonix Black 256GB SSD M.2 |
| Capacity | 256GB |
| Form Factor | M.2 2280 |
| Interface | SATA III |
| Read Speed | Up to 550MB/s |
| Write Speed | Up to 500MB/s |
| NAND Type | 3D NAND |
| Endurance | High durability and reliability |
| Operating Temperature | 0°C to 70°C |
| Warranty | 3 years |
- Storage Capacity:
- The 256GB capacity provides ample space for storing important files, applications, and media while ensuring quick access to frequently used data.
- Performance:
- With its high-speed read and write capabilities, this Geonix 256GB SSD significantly reduces load times, enabling faster boot-ups, quicker file transfers, and smoother application performance.
- Read speeds up to 500 MB/s and write speeds up to 450 MB/s make it ideal for both professional tasks and everyday computing.
- Form Factor:
- The 2.5-inch form factor ensures wide compatibility with most laptops and desktop systems, making it a versatile upgrade option for enhancing system performance.
- Interface:
- Equipped with a SATA III (6Gbps) interface, the Geonix 256GB SSD delivers fast data transmission, optimizing system responsiveness for intensive workloads.
- Durability:
- Designed with no moving parts, the Geonix 256GB SSD is resistant to shocks, vibrations, and drops, ensuring a longer lifespan and greater data protection compared to traditional HDDs.
- Power Efficiency:
- Low power consumption helps extend battery life for laptops, making the Geonix 256GB SSD an energy-efficient storage solution for mobile devices.
- Enhanced Reliability:
- Featuring built-in error correction technologies, the Geonix 256GB SSD ensures data integrity and stability, providing reliable performance under heavy use.
- Silent Operation:
- The silent, fanless design ensures that the Geonix 256GB SSD operates quietly, making it a perfect solution for noise-sensitive environments.
- Compact and Lightweight:
- The slim design and lightweight build of the Geonix 256GB SSD make it easy to install and ideal for compact systems where space is at a premium.
- Applications:
- System Upgrades: Ideal for upgrading from traditional HDDs to SSDs, significantly enhancing speed and performance.
- Gaming: Reduces game load times and improves in-game performance, delivering a smoother gaming experience.
- Professional Use: Excellent for creative professionals who require fast access to large files and seamless operation of resource-intensive applications like video editing software.
- Everyday Computing: Perfect for everyday tasks such as web browsing, media playback, and office productivity, making general computer usage more efficient.
The Geonix 256GB Supersonic SSD Gold Edition offers a perfect balance of performance, durability, and reliability, making it an excellent storage solution for any type of user.
About Geonix 500W PSU
| Specification | Details |
|---|---|
| Brand | Geonix |
| Model | 500W PSU |
| Power Output | 500 Watts |
| Input Voltage | 200-240V |
| Fan Size | 120mm |
| Efficiency | Up to 85% |
| Connector Types | 20 4 Pin, SATA, Molex, PCIe |
| Protections | OVP, UVP, OPP, SCP |
| Certification | Not specified |
| Warranty | 1 Year |
About Geonix 4GB Graphics Card
| Feature | Description |
|---|---|
| Model | Geonix GeForce GT 730LP 4GB DDR3 |
| GPU | NVIDIA GeForce GT 730 |
| Memory | 4GB DDR3 |
| Memory Interface | 64-bit |
| Core Clock | 902 MHz |
| Memory Clock | 1600 MHz |
| Interface | PCI Express 2.0 |
| Outputs | 1 x HDMI, 1 x DVI, 1 x VGA |
| Cooling | Single fan |
| DirectX Support | DirectX 12 |
| OpenGL Support | OpenGL 4.4 |
| Power Consumption | Low-profile, low power consumption |
| Warranty | 3 years |

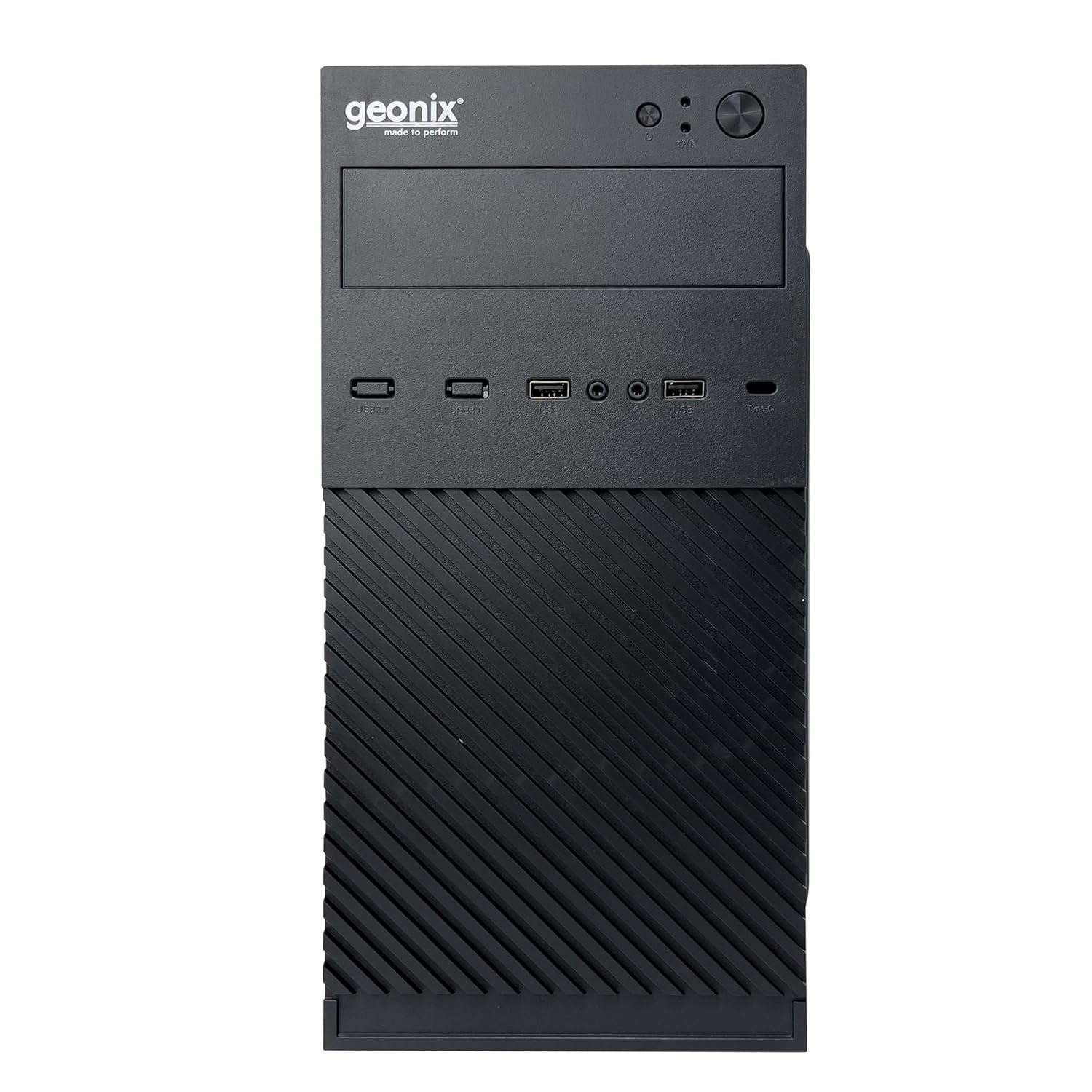

About Geonix Multipurpose PC Cabinet
| Brand | GEONIX |
|---|---|
| Manufacturer | Geonix International Pvt Ltd, Geonix International Pvt Ltd, care@geonix.in |
| Product Dimensions | 30 x 16 x 36 cm; 1.95 kg |
| Item part number | GX-1711 |
| Number of items | 1 |
| Batteries Required | No |
| Total USB ports | 2 |
| Manufacturer | Geonix International Pvt Ltd |
| Item Weight | 1 kg 950 g |

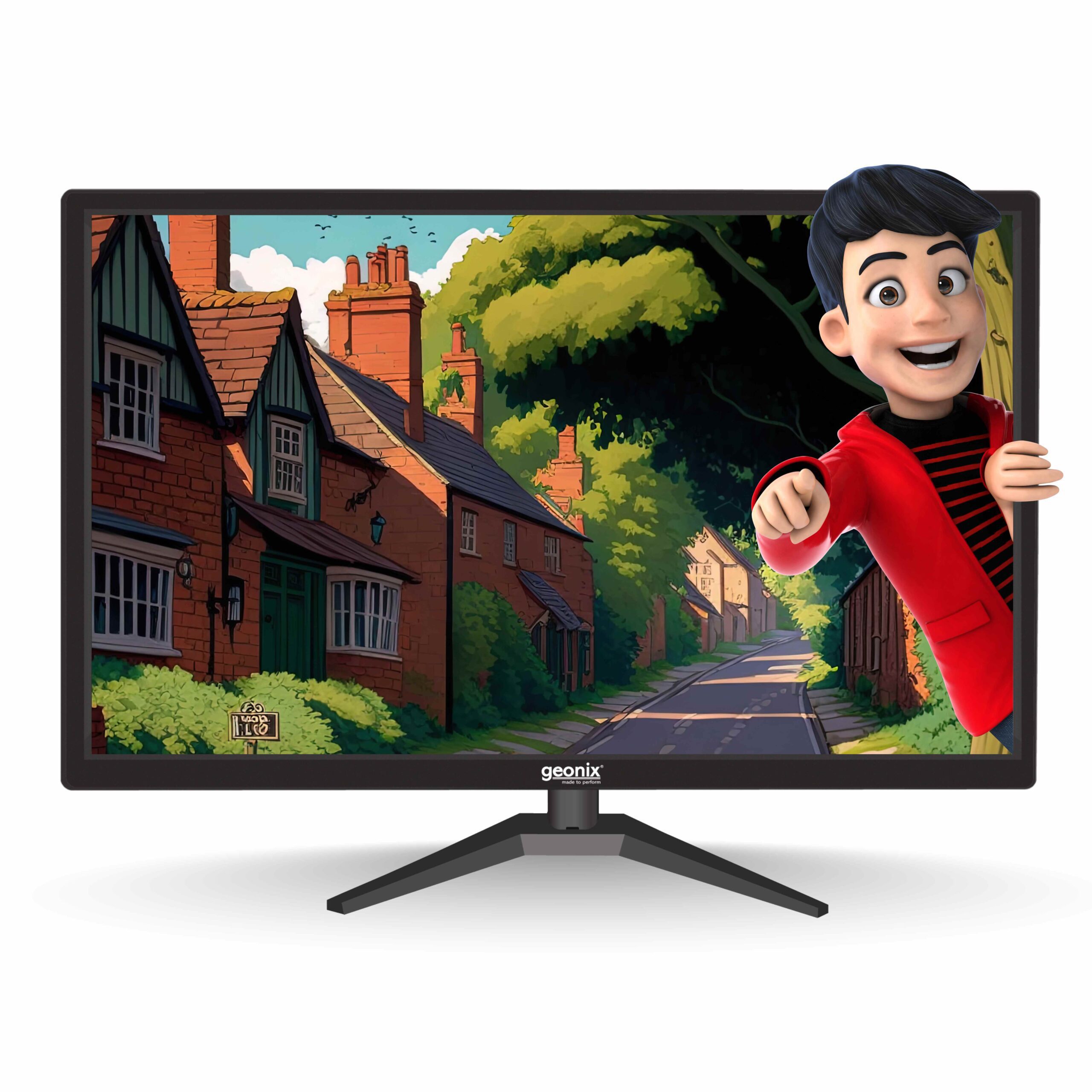

About Geonix 24 Inch Monitor
| Feature | Description |
|---|---|
| Model | Geonix 24 Inch Monitor |
| Screen Size | 24 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Panel Type | LED |
| Aspect Ratio | 16:9 |
| Refresh Rate | 60Hz |
| Response Time | 5ms |
| Connectivity | HDMI, VGA |
| Viewing Angle | 178° horizontal, 178° vertical |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Speakers | Built-in speakers |
| Mounting | VESA mount compatible |
| Warranty | 3 years |
