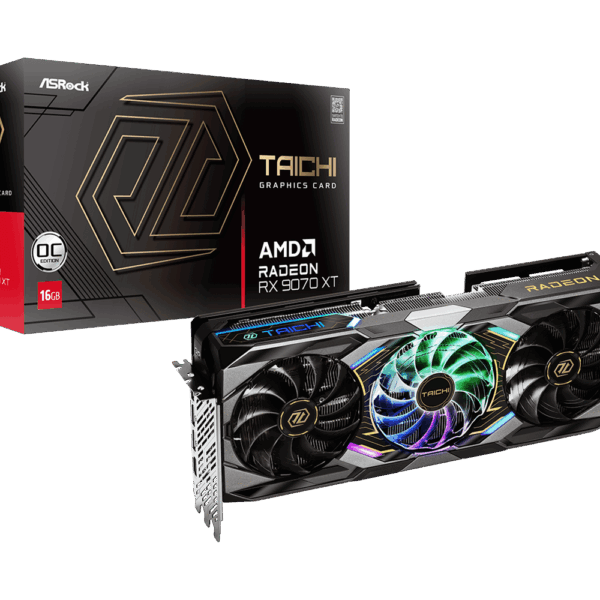

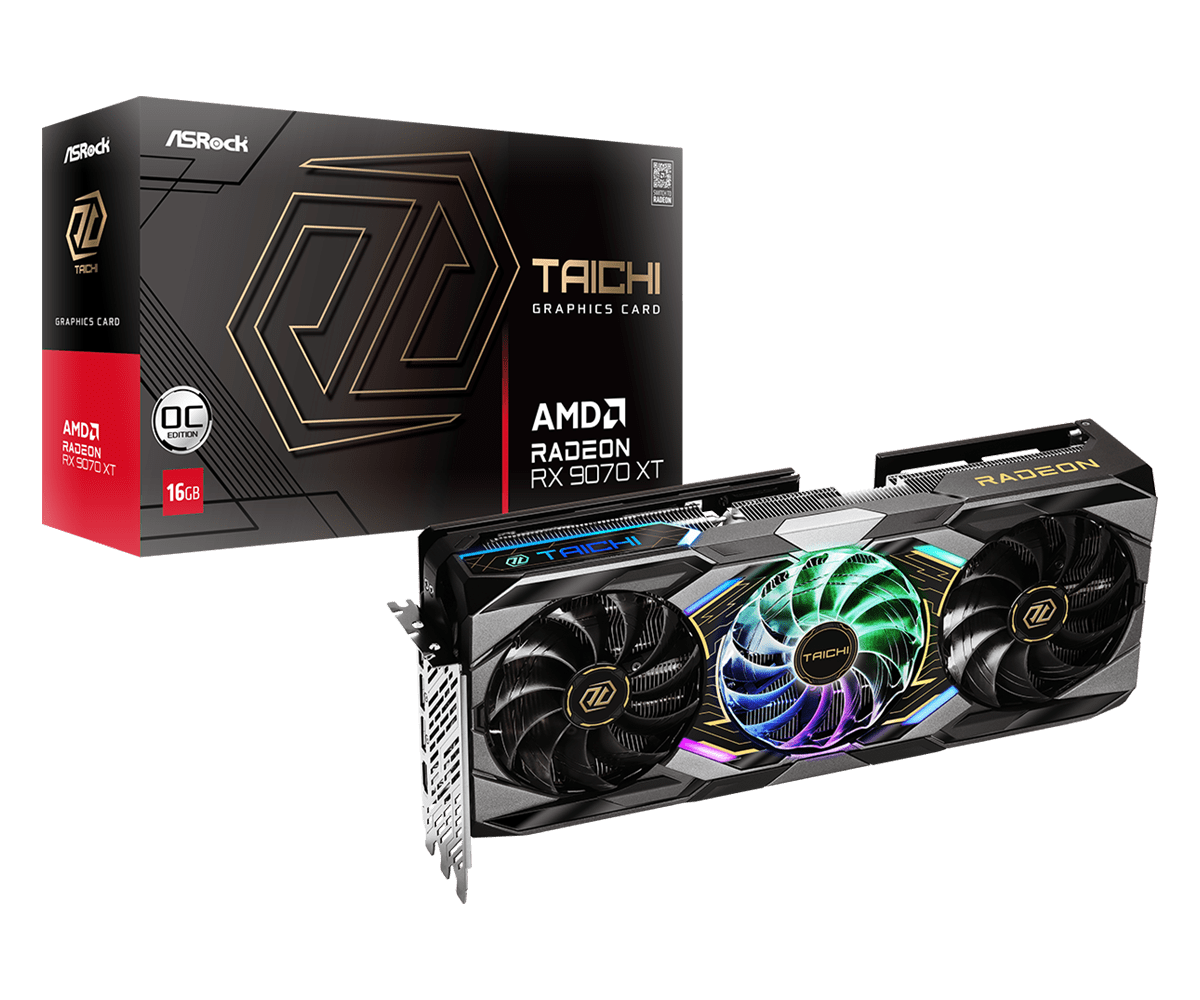

About AsRock RX 9070 XT Taichi 16GB OC AMD Radeon
| Category | Specification |
|---|---|
| GPU Engine | AMD Radeon™ RX 9070 XT |
| Architecture | RDNA™ (with RT + AI accelerators) |
| Compute Units | 64 |
| Stream Processors | ~4096 |
| Game Clock | ~2570 MHz |
| Boost Clock | Up to ~3100 MHz |
| Memory Size | 16GB GDDR6 |
| Memory Speed | 20 Gbps |
| Memory Bus | 256-bit |
| PCIe Interface | PCIe 5.0 x16 |
| DirectX Support | 12 Ultimate |
| OpenGL Support | 4.6 |
| Display Outputs | 3× DisplayPort™ 2.1a, 1× HDMI™ 2.1b |
| Max Resolution | Up to 7680 × 4320 |
| Cooling | Taichi 3X triple-fan with Reverse Spin design |
| Backplate | Stylish metal backplate |
| LED Lighting | Polychrome SYNC compatible |
| Dual BIOS | Yes |
| Power Phases | 16 Power Phase Design with SPS |
| Power Connector | 1 × 12V-2×6-pin |
| Recommended PSU | ~850W |
| Slot Width | Triple-slot |
| Dimensions | ~330 × 140 × 61 mm |
| TDP | ~340–360 W (est.) |
Key features about the AsRock RX 9070 XT Taichi 16GB OC AMD Radeon
-
Factory overclocking pushes the RX 9070 XT to higher clocks, boosting frame rates in demanding games and real-time graphics tasks.
-
16GB GDDR6 memory ensures smooth performance with large textures and high-resolution workloads for creators and gamers alike.
-
PCIe 5.0 support delivers maximum bandwidth on next-gen platforms, reducing data transfer bottlenecks in GPU-intensive applications.
-
RDNA architecture with RT- and AI-accelerators enhances ray tracing and compute tasks, improving visual fidelity and AI performance.
-
Triple-fan Taichi 3X cooling with reverse spin greatly improves thermal efficiency under load.
-
Polychrome SYNC RGB lighting lets users customize aesthetics across compatible system components.
-
Dual BIOS in the AsRock Taichi Series Graphics Card enables switching between performance and quiet modes based on user preference.
-
Stylish metal backplate adds rigidity and enhances heat dissipation.
-
HDMI 2.1b and DisplayPort 2.1a outputs support high refresh rates and ultrawide displays.
-
Recommended ~850W PSU requirement ensures stable power delivery for peak performance.
-
16-phase power design with SPS boosts voltage stability under extreme loads.
-
RDNA’s efficient compute units strike a good balance between performance and power draw for modern gaming.
-
High memory bandwidth (20 Gbps) accelerates texture and data processing in games/applications.
-
Triple-slot cooler design allows more extensive heatsink surface area for heat dissipation.
-
256-bit memory bus supports wide data paths, aiding complex rendering tasks.
-
AsRock 16GB AMD Radeon Graphics Card supports up to 4 displays simultaneously, improving workflow and immersive setups.
-
DirectX 12 Ultimate in the AsRock GDDR6 AMD Radeon Graphics Card support unlocks cutting-edge graphics features in supported titles.
-
OpenGL 4.6 compatibility broadens support for professional graphics and CAD applications.
-
Factory tuning ensures better out-of-box performance than reference models.
-
Ideal for 1440p-to-4K gaming, rendering, GPU compute tasks, with headroom for creative workflows.
