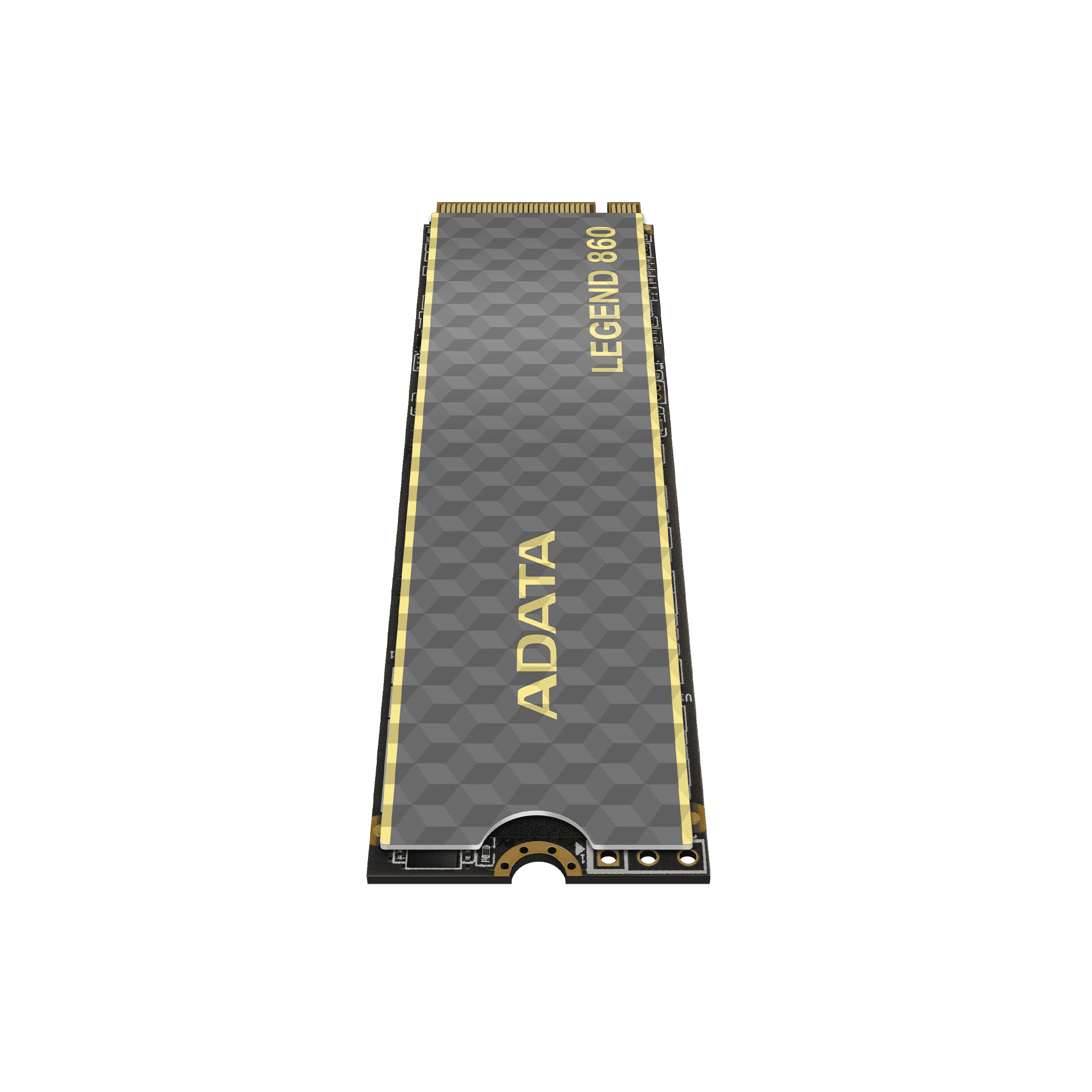

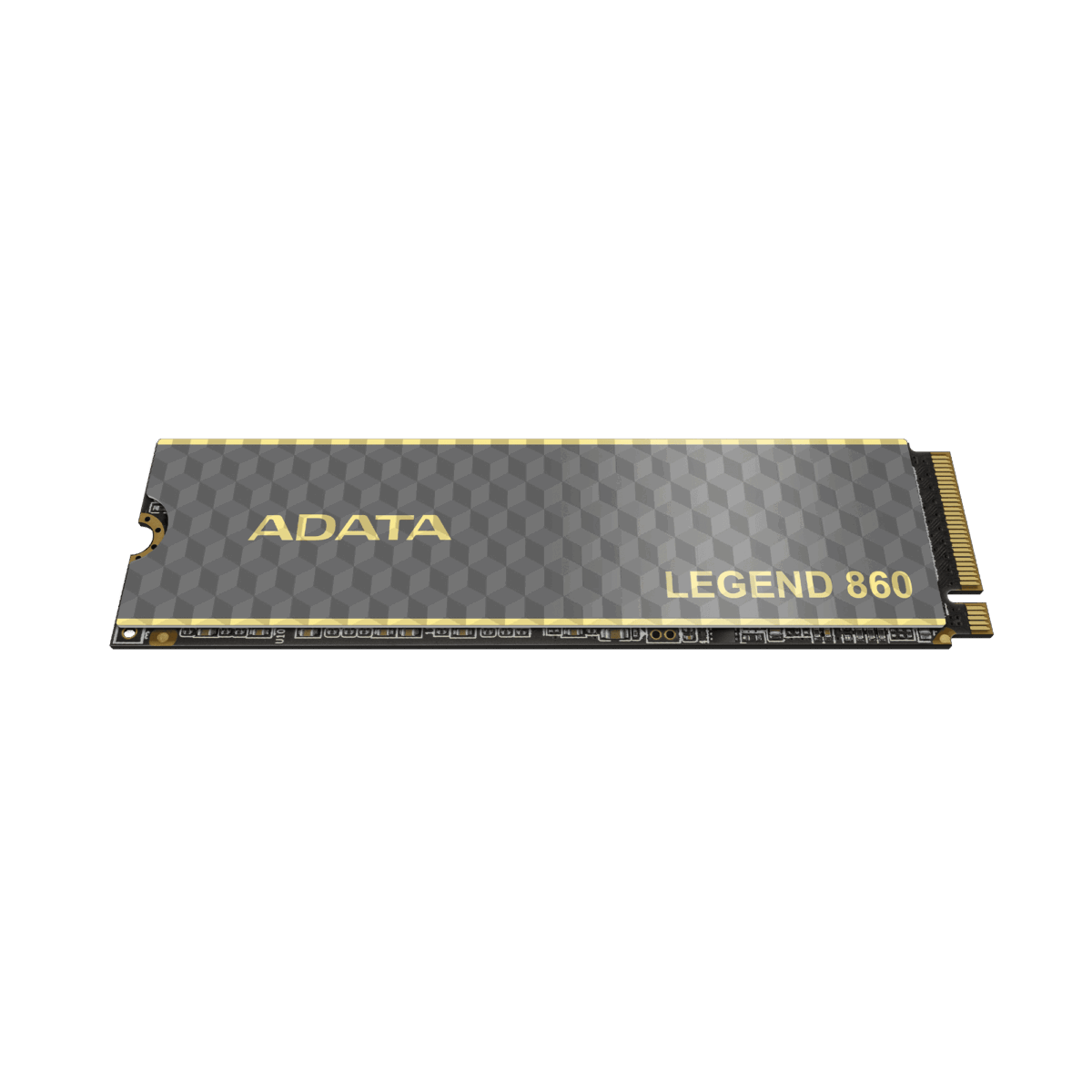

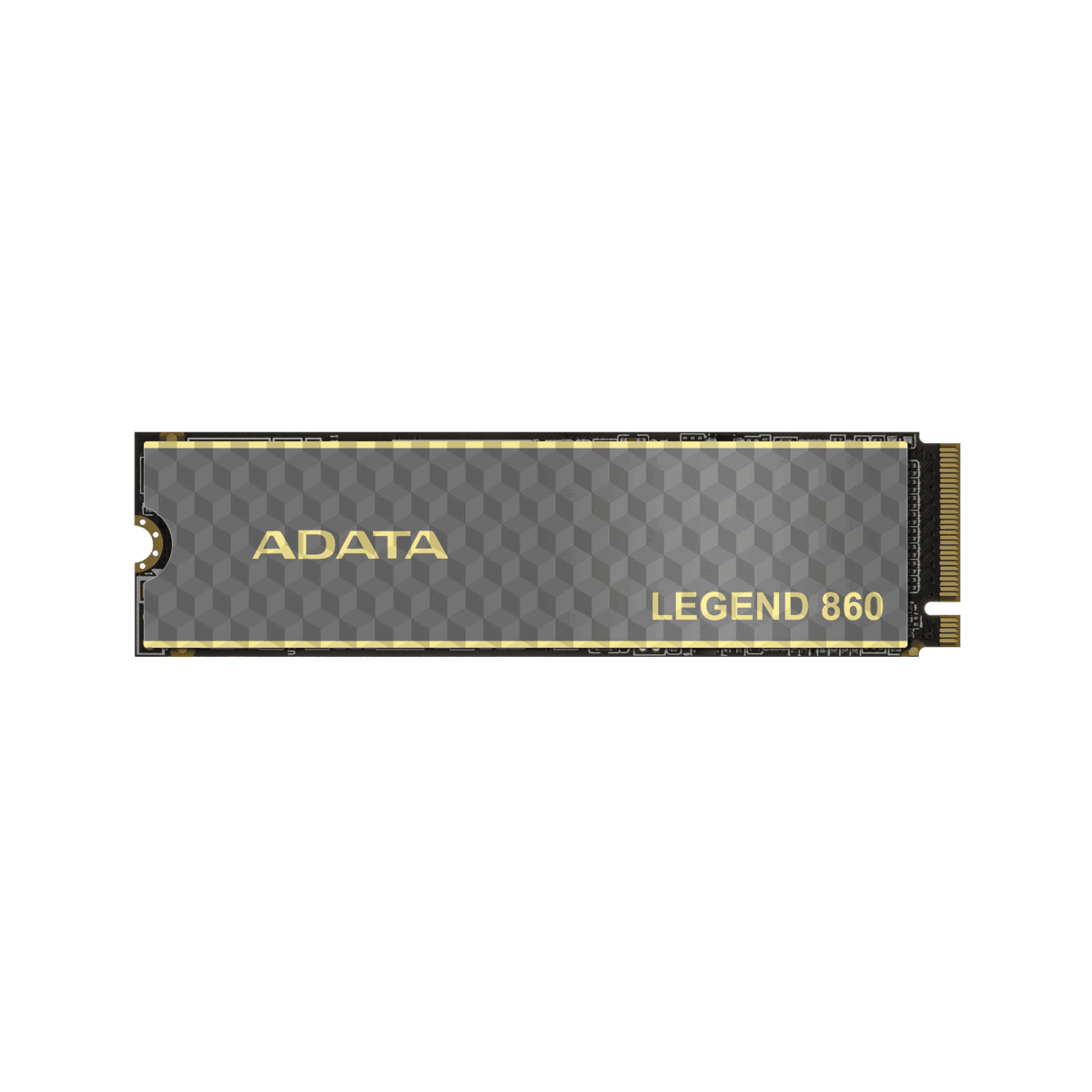

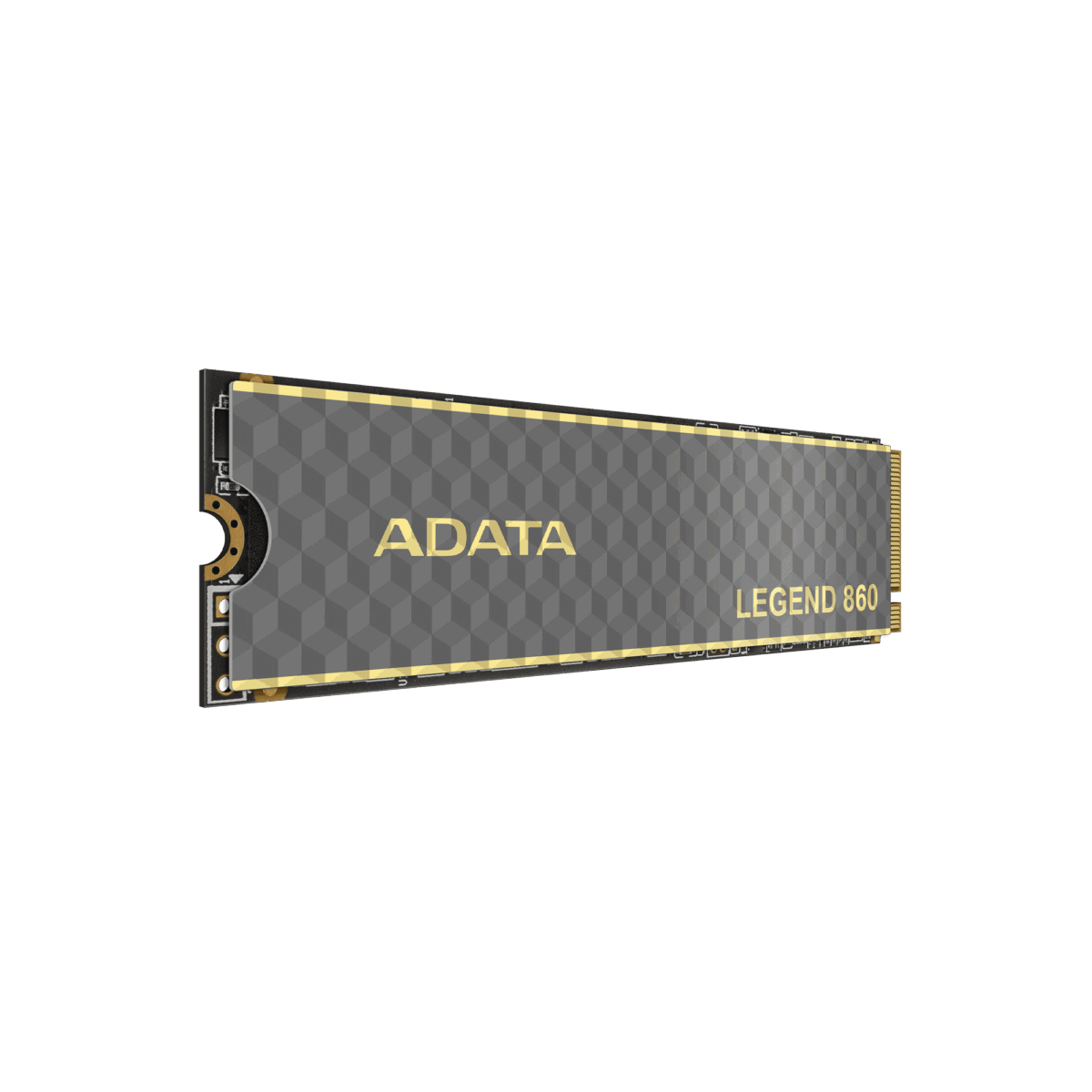

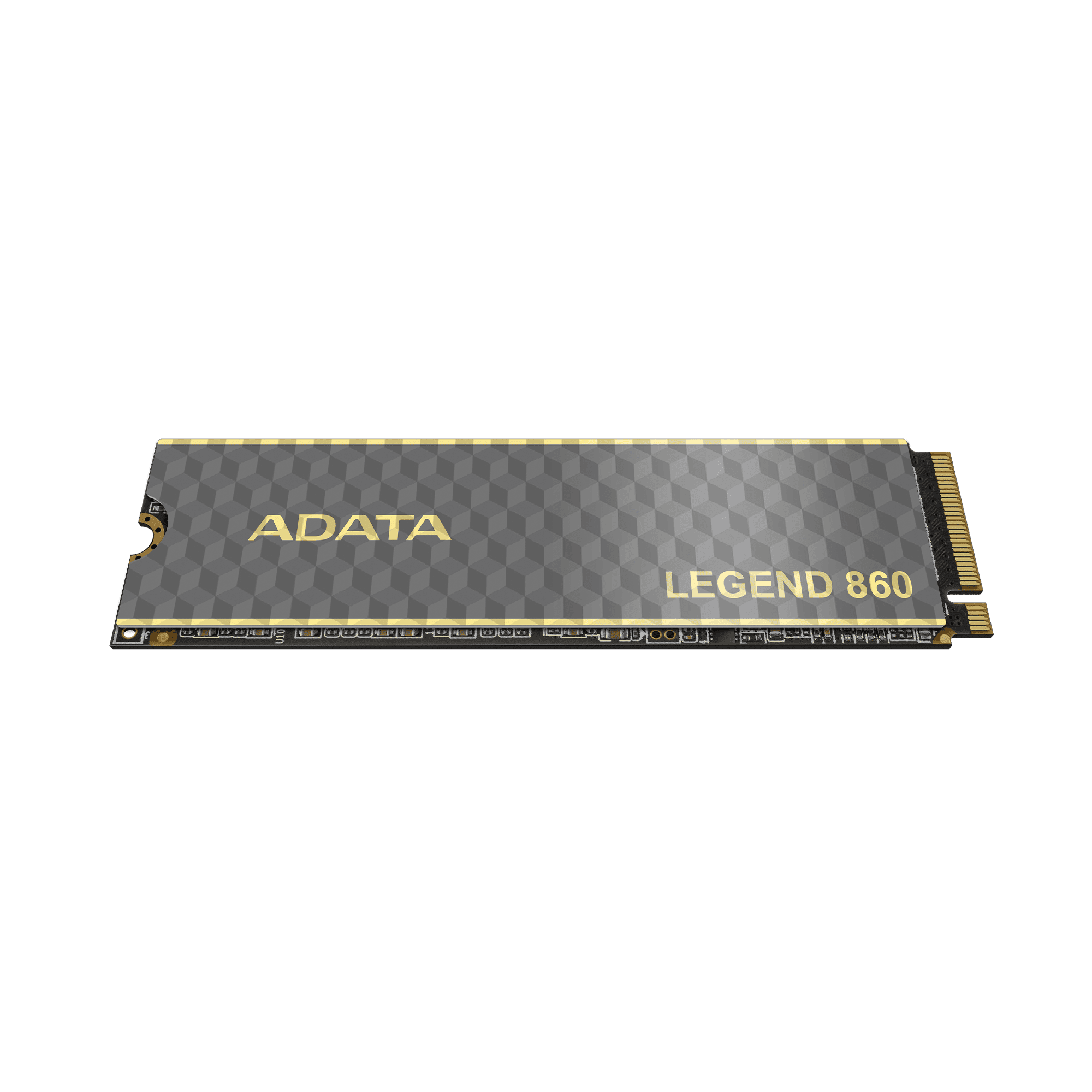

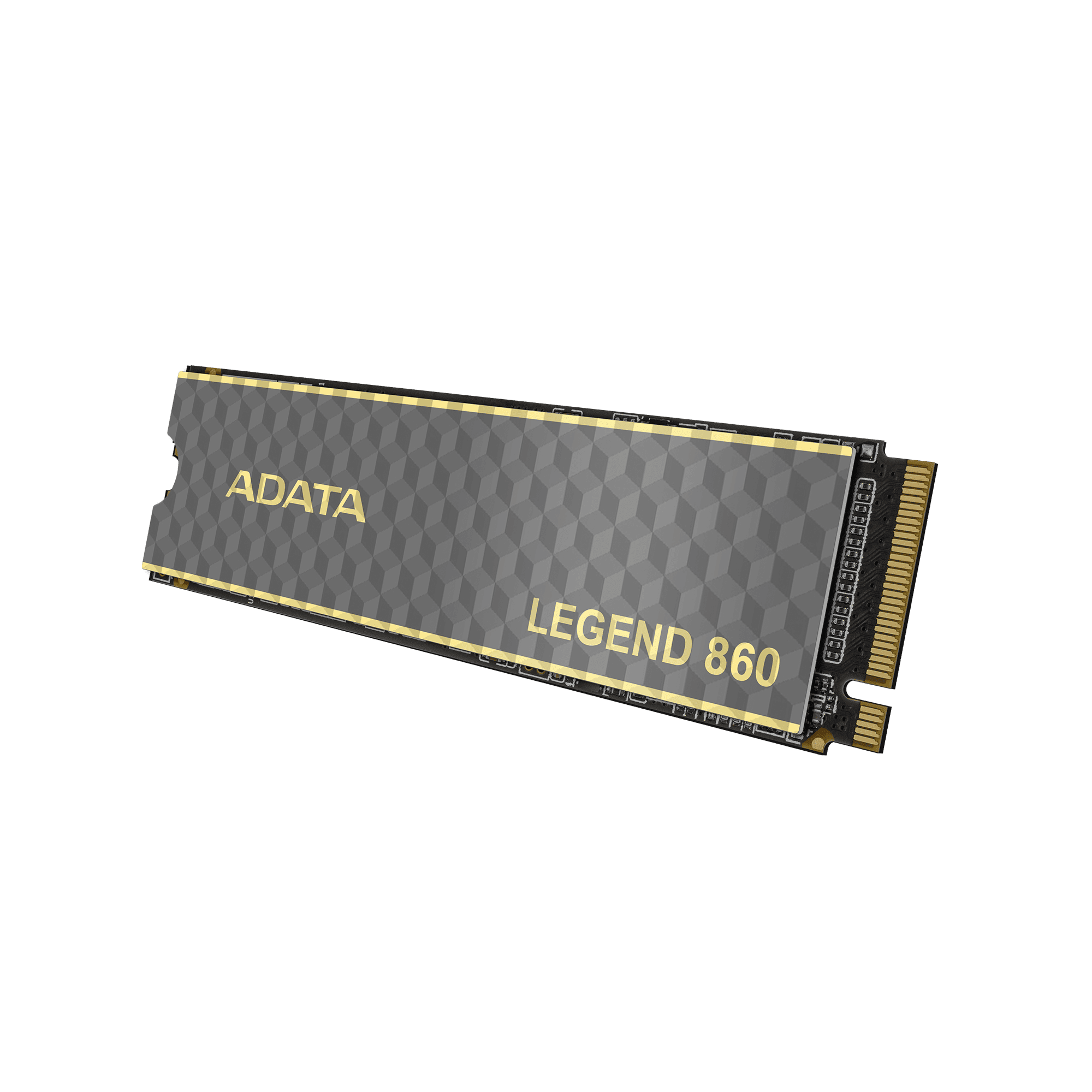

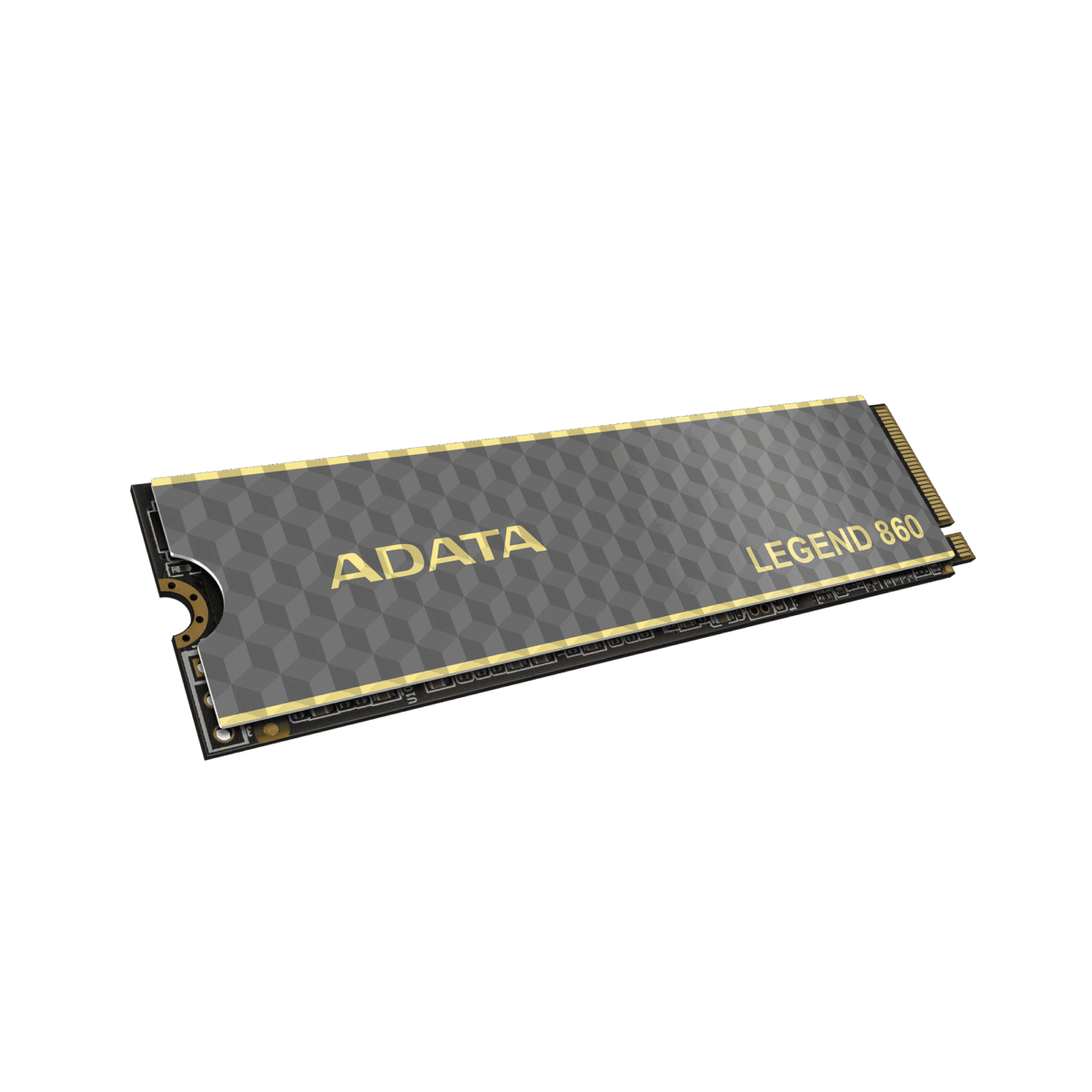

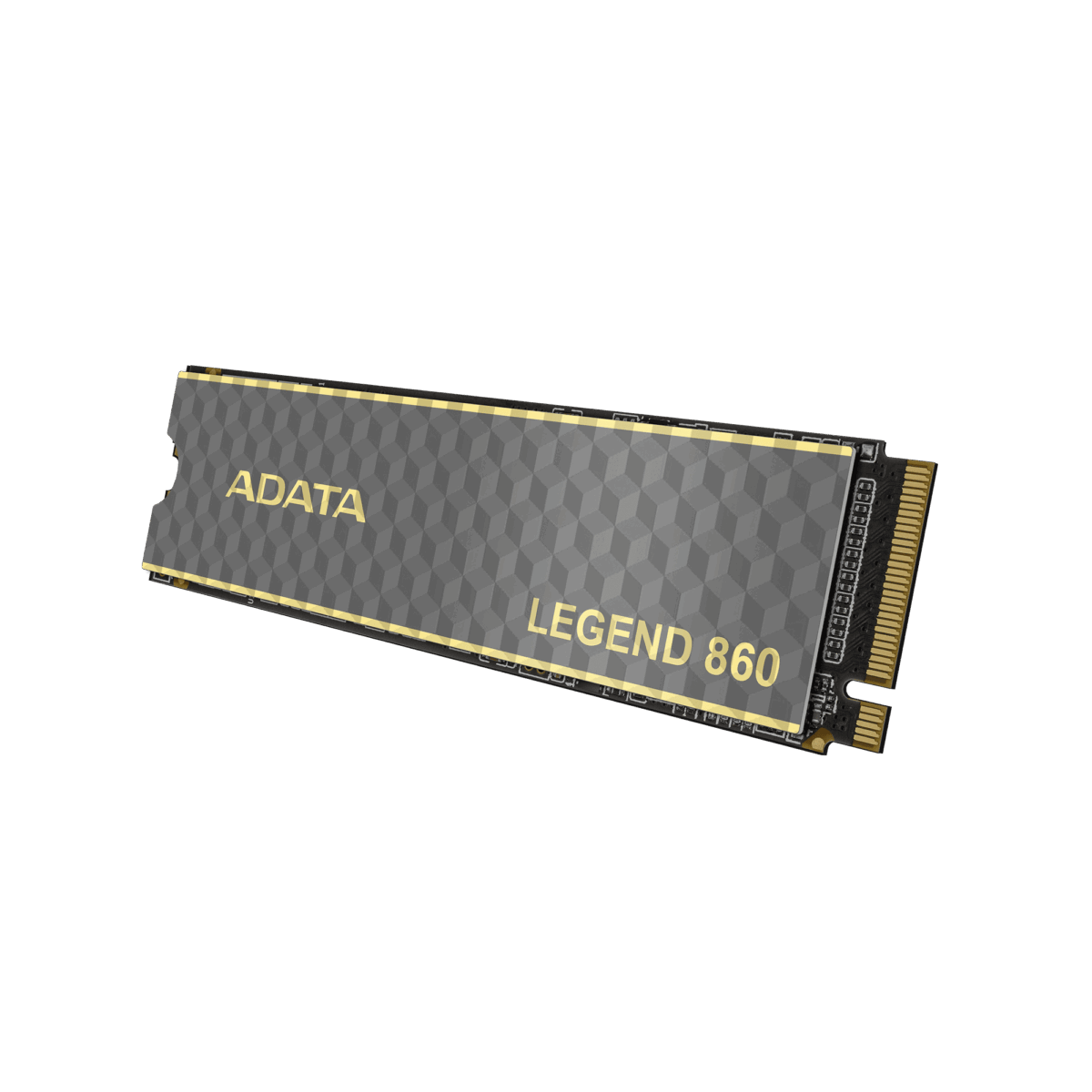

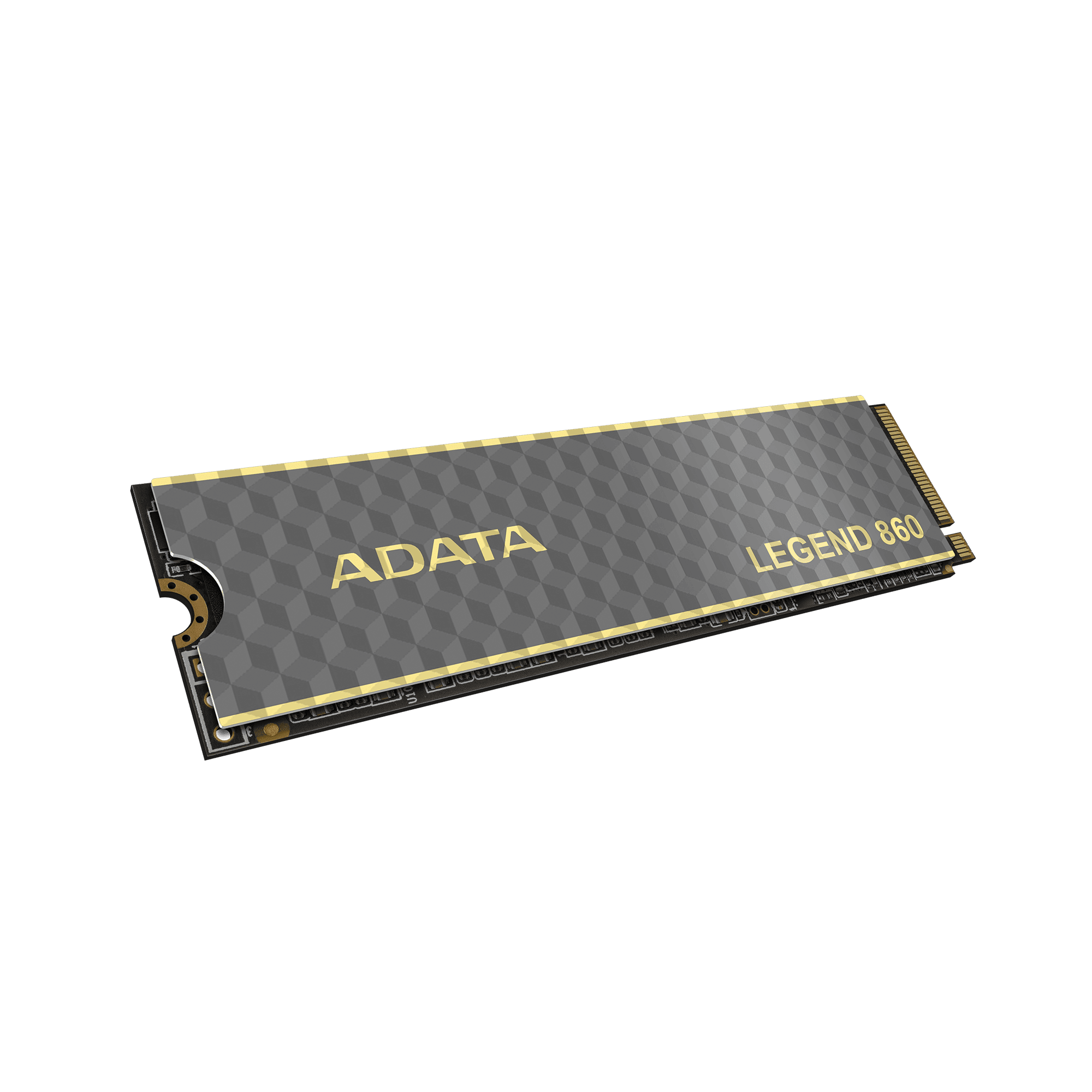

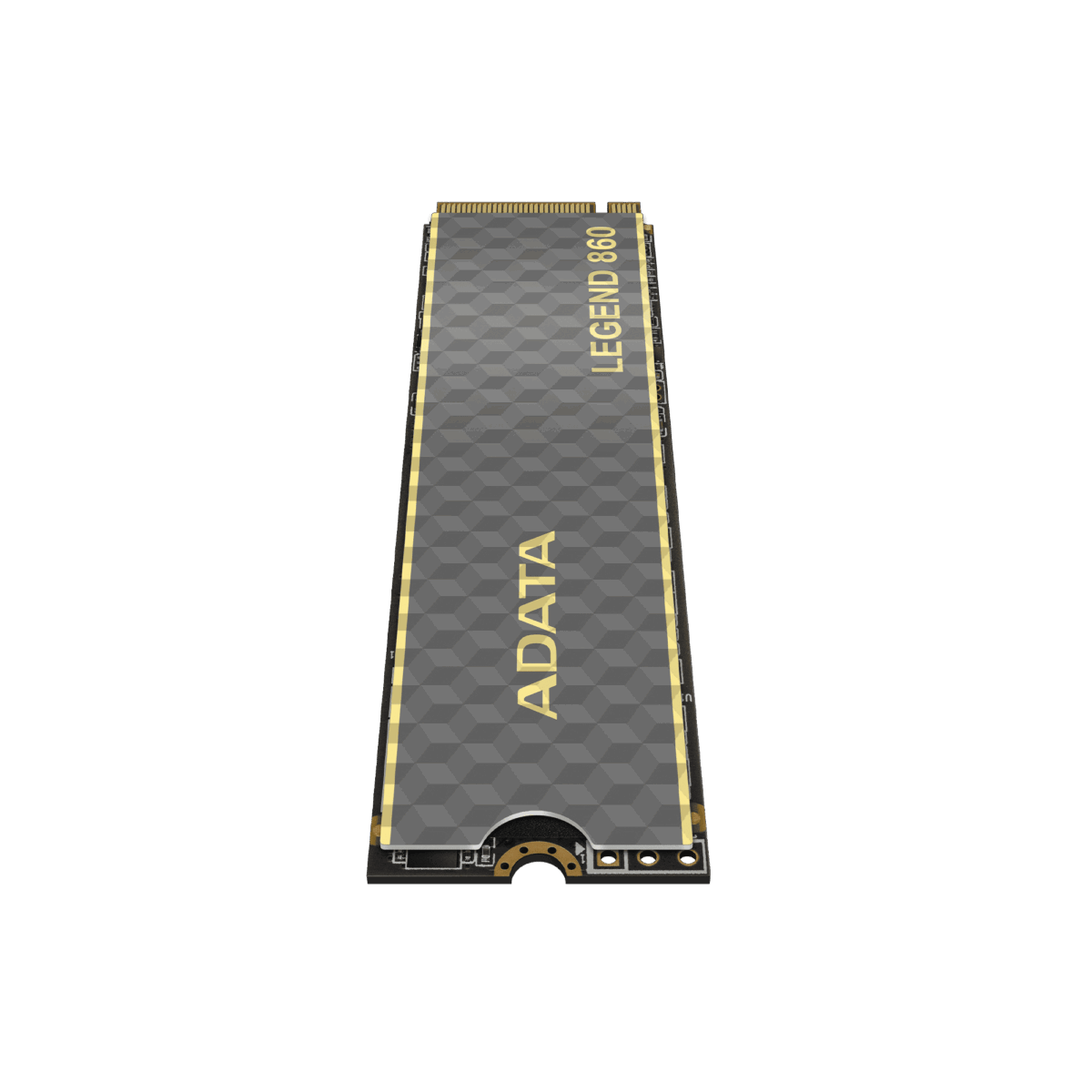

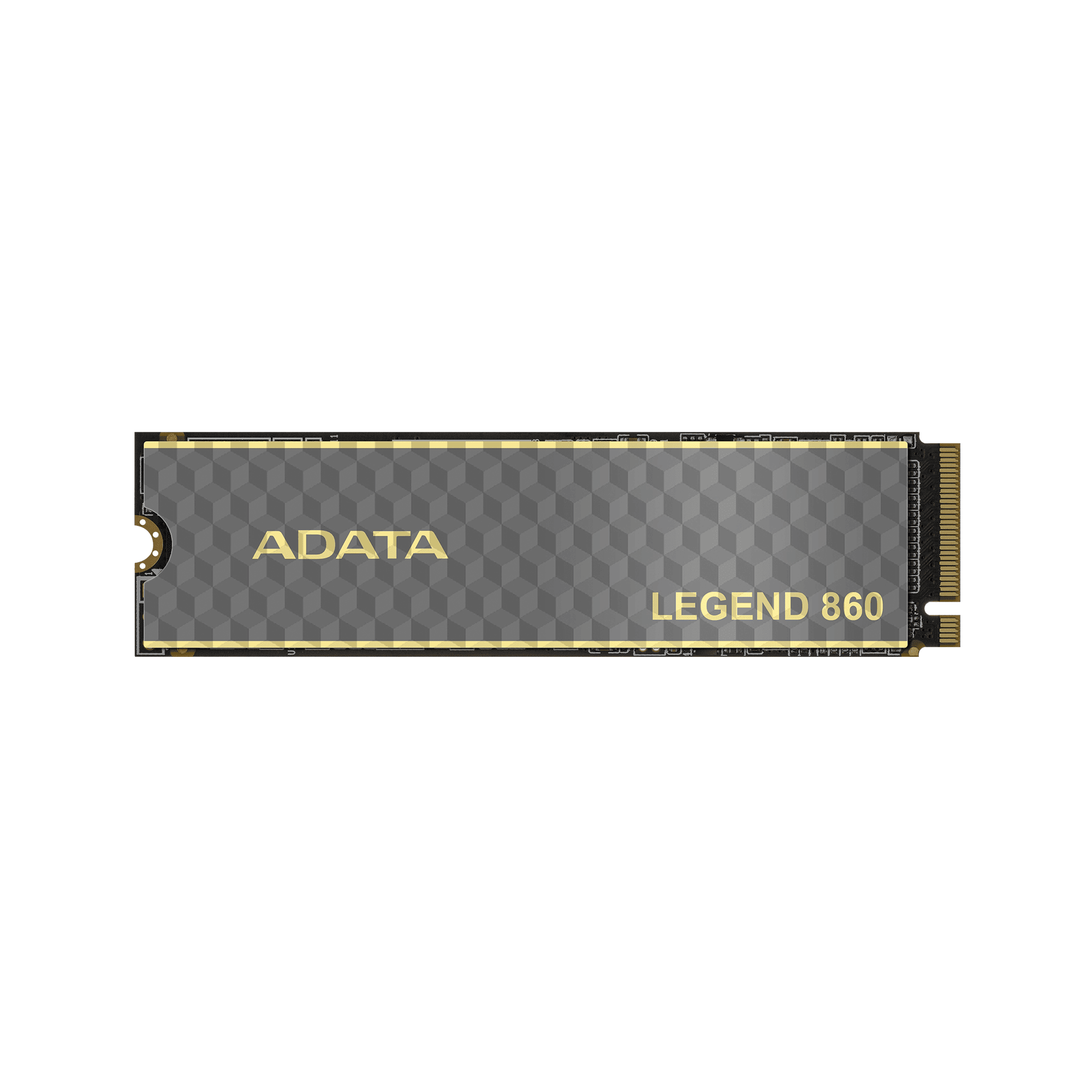

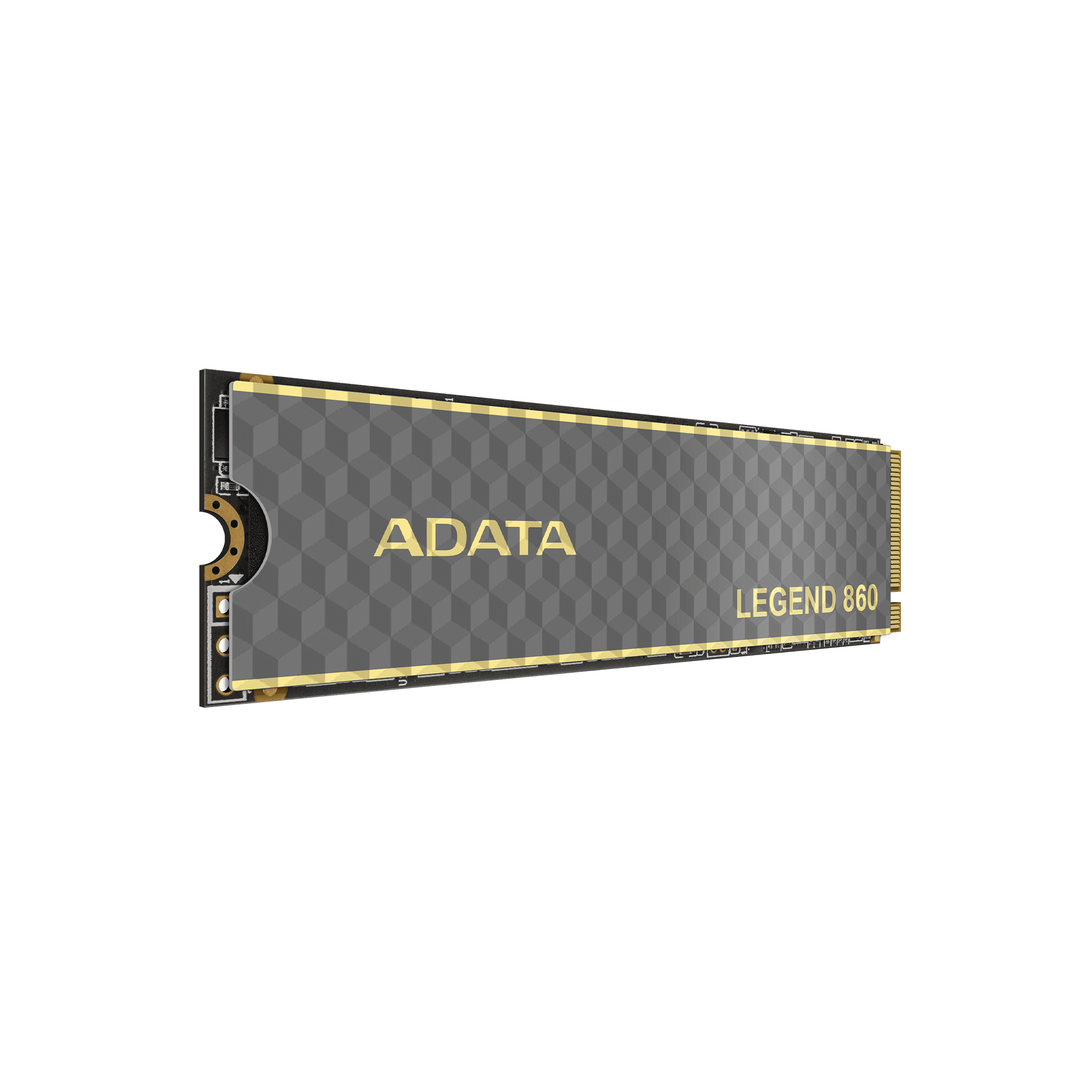

About ADATA Legend 860 NVMe 1TB Gen4 SSD
Specification Category | Details |
---|---|
Capacity & Interface | 1 TB storage; PCIe Gen4 ×4 NVMe interface; M.2 2280 form factor with integrated heatsink |
Sequential Performance | Up to 6,000 MB/s read and 5,000 MB/s write on PC/laptop; PS5 read up to 5,000 MB/s |
Flash & Controller Tech | 3D NAND flash, SLC cache, Host Memory Buffer (HMB), and LDPC (Low-Density Parity Check) ECC for enhanced performance and reliability |
Endurance & Reliability | Rated for 320 TBW; MTBF of 2,000,000 hours; shock-resistant up to 1,500G/0.5 ms |
Dimensions & Weight | Size with heatsink: 80 × 22 × 3.13 mm; without heatsink: 80 × 22 × 2.15 mm; weight with heatsink ~9.5 g |
Operating Conditions | Operating temperature: 0 °C to 70 °C; storage temperature: –40 °C to 85 °C |
Warranty & Software | Backed by a 5-year limited warranty; includes SSD Toolbox utility for firmware updates, S.M.A.R.T. monitoring, and health tracking |
Certifications | CE, FCC, BSMI, KC, EAC, RCM, UKCA, RoHS compliance |
